Black tall mini PC barebone with VESA mount visible

ASUS

ASUS NUC 13 Pro RNUC13ANHI70000UI barebone mini PC i7-1360P DDR4 64GB max

SKU CH-9QT5-BTW70 MPN RNUC13ANHI70000UI

A barebone mini PC with a Core i7-1360P, two DDR4 SO-DIMM slots supporting 64 GB, one M.2 PCIe Gen4x4 slot, a 2.5 Gbps LAN port, dual HDMI and dual Thunderbolt 4 for up to four 4K displays.

  • ColorBlack
  • Form FactorTall
  • CPU TypeIntel Core i7-1360P
  • Memory installedNo Memory
  • Memory slot2 x 260Pin SO-DIMM
  • Memory Type SupportedDDR4 3200

CPU Type Intel Core i7-1360P

Group Tall Kit

  • Intel Core i7-1360P drives demanding workloads
  • 64GB DDR4 3200 max for heavy multitasking
  • PCIe Gen4x4 M.2 plus 2.5" SATA bay for flexible storage
  • 5Gbps Ethernet plus Wi-Fi 6E for fast networking
  • Dual Thunderbolt 4 and dual HDMI 2.1 support quad 4K displays

ASUS NUC 13 Pro i7-1360P barebone

This barebone mini PC arrives with an Intel Core i7-1360P processor and Intel Iris Xe graphics built in. It targets small-footprint workstations, digital-signage players and edge deployments that need 24/7 qualified operation in a 4x4 chassis. Memory, storage and an operating system must be supplied by the buyer. The tall form factor includes a VESA mount for behind-screen or wall placement.

DDR4 3200 SO-DIMM limits and single M.2 Gen4x4 slot

Two 260-pin SO-DIMM slots accept DDR4 3200 modules up to 64 GB total. Only one M.2 2280 PCIe Gen4x4 socket is provided for NVMe SSDs from 128 GB to 8 TB. A single SATA 6.0 Gb/s header supports one 2.5-inch SATA drive up to 2 TB, but this bay exists only on the tall SKU. No second M.2 or PCIe expansion is available.

Tool-less access with tall-SKU cable routing

The case opens without tools for SO-DIMM and M.2 installation; the 2.5-inch SATA drive uses a combined power/data header that requires careful cable seating in the taller chassis. Thunderbolt 4 ports carry DisplayPort 1.4 and 5 V/3 A power, so cable orientation matters for display and charging. A Kensington lock slot and cable-locking arm secure the unit physically. Buyers who need a second NVMe slot or discrete graphics cannot use this platform.

Highlights

  • Intel Core i7-1360P drives demanding workloads
  • 64GB DDR4 3200 max for heavy multitasking
  • PCIe Gen4x4 M.2 plus 2.5" SATA bay for flexible storage
  • 5Gbps Ethernet plus Wi-Fi 6E for fast networking
  • Dual Thunderbolt 4 and dual HDMI 2.1 support quad 4K displays

Specifications

BrandASUS
SeriesNUC 13 PRO
ModelRNUC13ANHI70000UI
Part Number90AR00C1-M000H0
ColorBlack
Form FactorTall
CPU TypeIntel Core i7-1360P
Memory installedNo Memory
Memory slot2 x 260Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB (2 x 32GB)
Other1 x Kensington Lock Slot
Storage InstalledNo Hard Drive
Serial ATA1 x SATA 6.0Gb/s
M.2 Slot1 x M.2 2280 PCIe Gen4x4, supports 128GB~8TB NVMe SSD
Integrated GraphicsIntel Iris Xe Graphics
LANIntel i226V
Max LAN Speed2.5Gbps
2.5" Internal Bays1 x SATA Power/DATA header for 2.5in SSD/HDD, supports 128GB~2TB SATA drive (Tall SKU only)
Front USB2 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
Front Audio Ports1 x Audio Jack (Line out/Mic in/Headphone out)
HDMI2 x HDMI 2.1 (up to 4K@60Hz)

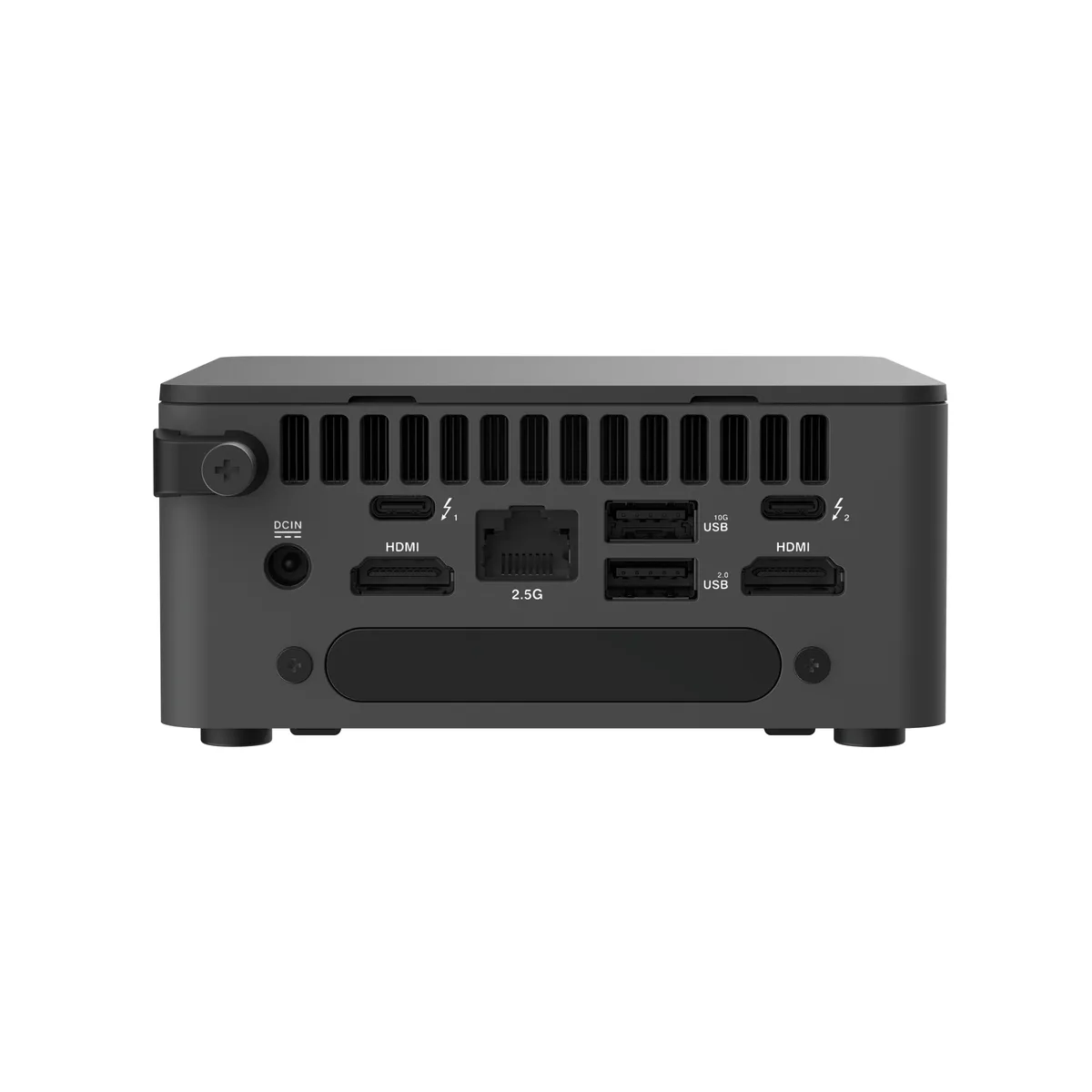

Rear USB2 x Thunderbolt 4 (with DP1.4 / 5V/3A, 40Gbps)
1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x USB 2.0 Type-A (5V/0.5A, 480Mbps)
RJ451 x 2.5GbE (RJ45)
Other Rear Ports1 x Cable Locking Arm
1 x DC-in
Power Supply120W
Dimensions2.13" x 4.61" x 4.41"
PackagingVESA Mount & Screws / AC Power Adapter / Power Cord (US Only)
Shipping weight1.66 kg
Package size203 × 165 × 127 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I choose the single M.2 NVMe slot or the 2.5-inch SATA bay for my main storage?

The M.2 2280 PCIe Gen4x4 slot supports 128 GB to 8 TB NVMe drives and is the faster primary boot option. The 2.5-inch SATA bay adds a second drive up to 2 TB for bulk storage.

What does the 64 GB DDR4 3200 limit mean when I install two 32 GB SO-DIMMs?

The board has two 260-pin slots and caps at 64 GB total. Two 32 GB modules at 3200 MT/s will run at that speed and give the maximum supported capacity.

How many 4K displays can the dual Thunderbolt 4 ports drive at 60 Hz?

Each Thunderbolt 4 port carries DisplayPort 1.4 and together with the two HDMI 2.1 ports the system supports up to four 4K 60 Hz screens simultaneously.
