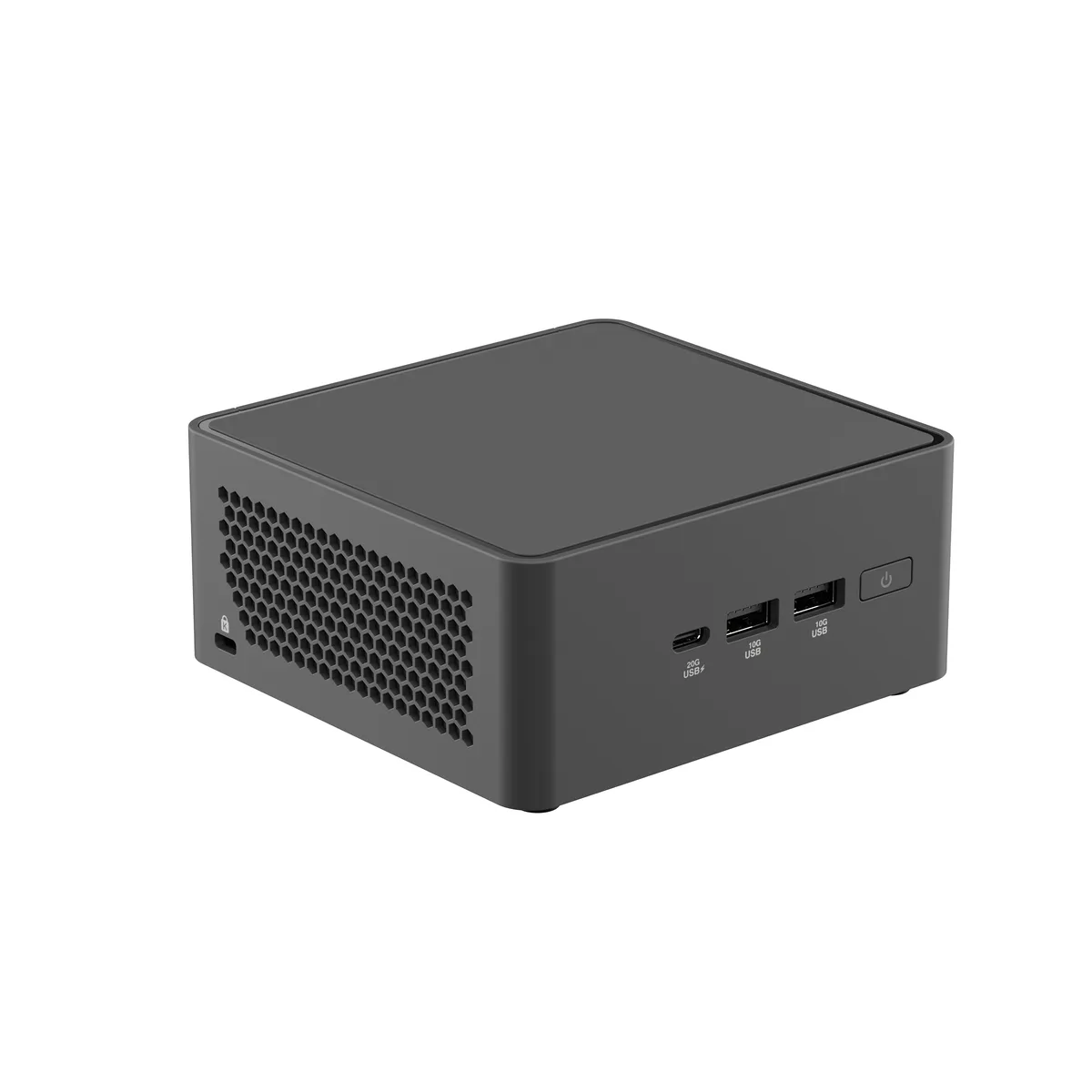

Black tall mini PC barebone with matte finish

ASUS

ASUS NUC 15 Pro RNUC15CRHU70000U barebone mini PC Core Ultra 7 255H

SKU CH-88SX-YGMXD MPN RNUC15CRHU70000U

A compact barebone mini PC with an Intel Core Ultra 7 255H processor, Intel Arc 140T graphics, dual DDR5 SO-DIMM slots supporting up to 96 GB, two M.2 NVMe slots, 2.5 Gbps Ethernet.

  • ColorBlack
  • Form FactorTall
  • AI FeaturesProcessor Essentials *Processor Number 255H *Overall Peak TO
  • CPU TypeIntel Core Ultra 7 255H
  • CPU SocketFCBGA2049
  • CPU CoresTotal Cores 16 # of Performance-cores 6 # of Efficient-cores

CPU Type Intel Core Ultra 7 255H

Group Tall Kit

  • Compact 0.7 L chassis fits tight workspaces
  • Intel Core Ultra 7 255H with 16 cores and 5.1 GHz turbo drives heavy workloads
  • Intel Arc 140T graphics with 8 Xe-cores accelerates creative tasks
  • Dual DDR5 SO-DIMM slots support up to 96 GB at 6400 MHz
  • Wi-Fi 7 and 2.5 GbE LAN deliver high-speed connectivity

Purpose-built barebone

The ASUS NUC 15 Pro RNUC15CRHU70000U is a compact barebone mini PC built around the Intel Core Ultra 7 255H processor with integrated Intel Arc 140T graphics. It targets developers, IT managers and edge-computing deployments that need AI-ready compute in a 0.7 L chassis. Buyers who require discrete graphics or multiple full-size expansion slots should look elsewhere.

Memory and storage headroom

Two 262-pin SO-DIMM slots accept DDR5-5600 or CSO-DIMM DDR5-6400 modules up to 96 GB total, giving ample headroom for heavy multitasking and local inference workloads. Storage uses one M.2 2280 PCIe 5.0 NVMe slot and one M.2 2242 PCIe 4.0 NVMe slot; no drives are included, so capacity is limited only by the modules you install.

Interface practical limits

Wired networking tops out at 2.5 Gbps via the Intel i226V controller. Wireless uses Wi-Fi 7 (802.11be) with Bluetooth 5.4 for high-density environments. The integrated Arc 140T GPU supports DirectX 12.2, OpenGL 4.6 and OpenCL 3.0, but lacks the memory bandwidth of discrete cards for sustained 3D rendering.

Highlights

  • Compact 0.7 L chassis fits tight workspaces
  • Intel Core Ultra 7 255H with 16 cores and 5.1 GHz turbo drives heavy workloads
  • Intel Arc 140T graphics with 8 Xe-cores accelerates creative tasks
  • Dual DDR5 SO-DIMM slots support up to 96 GB at 6400 MHz
  • Wi-Fi 7 and 2.5 GbE LAN deliver high-speed connectivity

Specifications

BrandASUS
SeriesNUC 15 Pro
ModelRNUC15CRHU70000U
Part Number90AR00Q2-M001U0
ColorBlack
Form FactorTall
AI FeaturesProcessor Essentials
*Processor Number 255H
*Overall Peak TOPS (Int8) 96
CPU Specifications
Total Cores 16
# of Performance-cores 6
# of Efficient-cores 8
# of Low Power Efficient-cores 2
Total Threads 16
Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes
*AI Software Frameworks Supported by CPU OpenVINO™, WindowsML, ONNX RT, DirectML, WebNN
GPU Sepcifications:
*Name : Intel® Arc™ 140T GPU
*Graphics Max Dynamic Frequency : 2.25GHz
*GPU Peak TOPS (Int8) 74
*Ray Tracing Yes
*AI Software Frameworks Supported by GPU OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU
NPU Specifications:
CPU TypeIntel Core Ultra 7 255H
CPU SocketFCBGA2049
CPU CoresTotal Cores 16
# of Performance-cores 6
# of Efficient-cores 8
# of Low Power Efficient-cores 2
Total Threads 16
Max Turbo Frequency 5.1 GHz
Performance-core Max Turbo Frequency 5.1 GHz
Efficient-core Max Turbo Frequency 4.4 GHz
Low Power Efficient-core Max Turbo Frequency 2.5 GHz
Performance-core Base Frequency 2 GHz
Efficient-core Base Frequency 1.5 GHz
Low Power Efficient-core Base Frequency 700 MHz
Cache 24 MB
Processor Base Power 28 W
Maximum Turbo Power 115 W
Minimum Assured Power20 W
CPU Lithography TSMC N3B
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedSO-DIMM DDR5-5600 MHz / CSO-DIMM DDR5-6400 MHz
Max Memory Supported96GB
Storage InstalledNo Hard Drive
M.2 Slot1 x M.2 2280 PCIe Gen4x4 NVMe SSD slot
1 x M.2 2242 PCIe Gen4x4 NVMe SSD slot
Integrated GraphicsGPU Name Intel® Arc™ 140T GPU
Graphics Max Dynamic Frequency 2.25 GHz
Xe-cores 8
Ray Tracing Yes
DirectX* Support 12.2
OpenGL* Support 4.6
OpenCL* Support 3.0
Multi-Format Codec Engines 2
H.264 Hardware Encode/Decode Yes
H.265 (HEVC) Hardware Encode/Decode Yes
AV1 Encode/Decode Yes
VP9 Bitstream & Decoding Yes
Intel® Quick Sync Video Yes
# of Displays Supported 4
LANIntel i226V
Max LAN Speed2.5Gbps
Wireless LAN802.11be
WiFi GenerationWi-Fi 7
BluetoothBluetooth 5.4
Front USB1 x USB 3.2 Gen 2x2 Type-C
2 x USB 3.2 Gen 2 Type-A
HDMI2 x HDMI 2.1 (up to 4K@60Hz)
Thunderbolt2 x Thunderbolt 4 (with DisplayPort 2.1)
Rear USB1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x USB 2.0 Type-A (5V/0.5A, 480Mbps)
RJ451x RJ45 (2.5Gb Ethernet)
Power Supply120W
Dimensions4.61" x 4.41" x 2.13"
Weight0.8 lb.
FeaturesOnboard Processor Features
Intel® Core™ Ultra 7 Processor 255H (24M Cache, up to 5.10 GHz)
Overall Peak TOPS (Int8): 96
CPU Specifications
Total Cores 16
# of Performance-cores 6
# of Efficient-cores 8
# of Low Power Efficient-cores 2
Total Threads 16
Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes
*AI Software Frameworks Supported by CPU OpenVINO™, WindowsML, ONNX RT, DirectML, WebNN
*CPU Lithography TSMC N3B
GPU Sepcifications:
*Name : Intel® Arc™ 140T GPU
*Graphics Max Dynamic Frequency : 2.25GHz
*GPU Peak TOPS (Int8) 74
*Ray Tracing Yes
*AI Software Frameworks Supported b
PackagingVESA Mount & Screws / AC Power Adapter/ Power Cord
Shipping weight1.34 kg
Package size183 × 152 × 127 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the Intel Core Ultra 7 255H work with my existing DDR4 memory modules?

No. This unit only accepts SO-DIMM DDR5-5600 MHz or CSO-DIMM DDR5-6400 MHz memory. DDR4 modules are physically and electrically incompatible.

How can I verify the Intel Arc 140T GPU is active after I install memory and storage?

Open Device Manager and confirm the display adapter lists Intel Arc 140T GPU without error codes.

What components come in the box and what must I purchase separately?

The barebone includes the chassis, motherboard with soldered Intel Core Ultra 7 255H, a US power cord and an Intel i226V 2.5Gbps LAN port. You must buy SO-DIMM DDR5 memory and M.2 NVMe SSDs separately.
