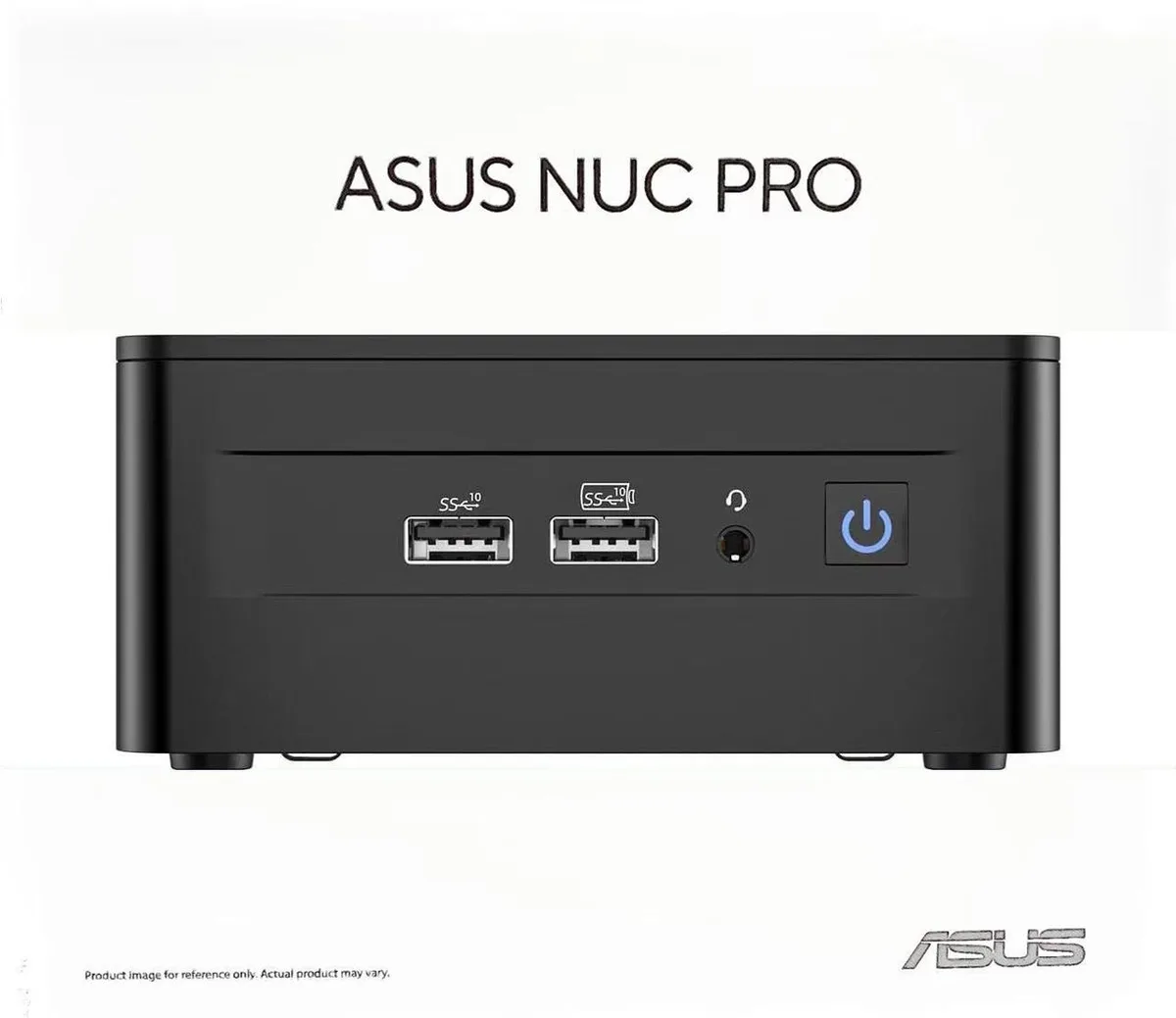

Small square black mini PC barebone unit with front ports visible

ASUS

ASUS NUC13ANHi7 Core i7-1360P barebone mini PC

SKU CH-N2R3-BEPDM MPN NUC13ANHi7

A 13th Gen Intel Core i7-1360P barebone mini PC with Intel Iris Xe graphics, dual-channel DDR4-3200 support up to 64 GB, two M.2 slots, 2.5 Gbps Ethernet, Wi-Fi 6E and Thunderbolt 4

  • CPU TypeIntel Core i7 13th Gen
  • Memory installedNo Memory
  • Memory slot2 x 262Pin SO-DIMM
  • Memory Type SupportedDDR4 3200
  • Max Memory Supported64GB
  • Dual Channel Memory SupportedYes
  • 13th Gen Intel Core i7-1360P with 12 cores and 16 threads for demanding workloads
  • Intel Iris Xe Graphics 96EU at 1.50 GHz for integrated visual performance
  • Dual-channel DDR4-3200 support up to 64 GB for responsive multitasking
  • Two Thunderbolt 4 ports with DisplayPort 2.1 and USB4 for versatile connectivity
  • Intel Wi-Fi 6E AX211 and Bluetooth 5.3 plus 2.5 Gbps Ethernet for fast networking

Barebone mini PC for custom builds

The ASUS NUC13ANHi7 is a barebone mini PC built around a 13th Gen Intel Core i7-1360P processor with 12 cores and 16 threads. It ships without memory or storage, letting system builders choose up to 64 GB of DDR4-3200 across two SO-DIMM slots and populate two M.2 slots. Integrated Intel Iris Xe graphics with 96 execution units handles display output.

Who this suits and who should look elsewhere

This kit suits IT teams and developers who need a compact 4x4 platform they can configure with specific RAM and SSD capacities for office, signage or light workstation duties. Buyers who want a ready-to-run system with memory and storage already installed should look at complete mini PC units instead.

The spec that decides fit

The barebone format means no RAM or SSD are included; you must supply DDR4-3200 modules and M.2 drives yourself. If your procurement process requires a sealed, pre-validated unit, this product will not meet that requirement.

Highlights

  • 13th Gen Intel Core i7-1360P with 12 cores and 16 threads for demanding workloads
  • Intel Iris Xe Graphics 96EU at 1.50 GHz for integrated visual performance
  • Dual-channel DDR4-3200 support up to 64 GB for responsive multitasking
  • Two Thunderbolt 4 ports with DisplayPort 2.1 and USB4 for versatile connectivity
  • Intel Wi-Fi 6E AX211 and Bluetooth 5.3 plus 2.5 Gbps Ethernet for fast networking

Specifications

BrandASUS
SeriesArena Canyon
ModelNUC13ANHi7
CPU TypeIntel Core i7 13th Gen
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
M.2 Slot2 x M.2
Discrete Graphic CardIntel Iris Xe Graphics 96EU
Onboard AudioIntegrated
Channel7.1 Channel
LANIntel® Ethernet Controller i226-V
Max LAN Speed2.5Gbps
Wireless LANIntel® Wi-Fi 6E AX211 (Gig+)
Bluetooth5.3
Front USB2x USB 3.2
Front Audio Ports3.5mm headphone/mic jack
Thunderbolt 32x Thunderbolt™ 4
Rear USB2x USB 4 (type C)
RJ451
Input20V
Power Supply120W
Dimensions117 x 112 x 54 [mm] (LxWxH)
Weight1.5kg
PackagingOriginal packaging

Questions about this item

What DDR4 SO-DIMM memory must I add before this NUC13ANHi7 will boot?

You need two 262-pin DDR4-3200 SO-DIMMs; the board supports up to 64 GB in dual-channel mode.

Will my existing 2.5 Gbps Ethernet switch work with the Intel i226-V controller on this unit?

Yes, the i226-V RJ45 port negotiates 10/100/1000/2500 Mbps, so a 2.5 Gbps switch connects at full speed.

How can I confirm the Intel Iris Xe 96 EU graphics are active after I install memory and storage?

Open Device Manager in Windows — the adapter will appear as Intel Iris Xe Graphics with 96 execution units and a 1.50 GHz max frequency.
