Compact silver mini PC with front ports and slim profile

ASUS

ASUS NUC13ANKi5 barebone mini PC i5-1340P 16GB 512GB

SKU CH-5TEQ-3HXWA MPN NUC13ANKi5

Compact mini PC with 13th Gen Intel Core i5, 16GB DDR4, 512GB SSD, dual Thunderbolt 4 and 2.5GbE LAN

  • Integrated GraphicsIntel Iris Xe Graphics
  • Wireless LAN802.11ax
  • BluetoothBluetooth 5.3
  • LANIntel i226V
  • Max LAN Speed2.5Gbps
  • WiFi GenerationWi-Fi 6E
  • 13th Gen Intel Core i5-1340P with 12 cores and 16 threads for responsive multitasking
  • 16GB dual-channel DDR4-3200 memory installed, expandable to 64GB across two SO-DIMM slots
  • 512GB SSD storage ready with additional M.2 2242 SATA and M.2 2280 PCIe Gen 4 slots for expansion
  • Dual Thunderbolt 4 ports plus two HDMI 2.1 outputs supporting 4K at 60Hz for multi-display setups
  • Intel 2.5GbE LAN, Wi-Fi 6E and Bluetooth 5.3 provide fast wired and wireless connectivity

Compact Business Mini-PC

The ASUS NUC13ANKi5 is a 4x4 barebone system built around a 13th Gen Intel Core i5-1340P processor with 12 cores and 16 threads. It ships with 16GB of DDR4-3200 memory and a 512GB SSD installed. The platform targets commercial deployments that need vPro manageability, dual 4K display output, and 2.5GbE networking in a silent chassis.

Straightforward Memory and Storage Access

The case opens without tools to reveal two 262-pin SO-DIMM slots and two M.2 sockets. The 2242 key-B slot accepts SATA or PCIe x1 Gen 3 drives, while the 2280 key-M slot supports PCIe x4 Gen 4 NVMe. Factory-installed modules occupy one SO-DIMM and the 2242 slot, so builders must plan which slot to populate first.

Thunderbolt 4 and Display Limits

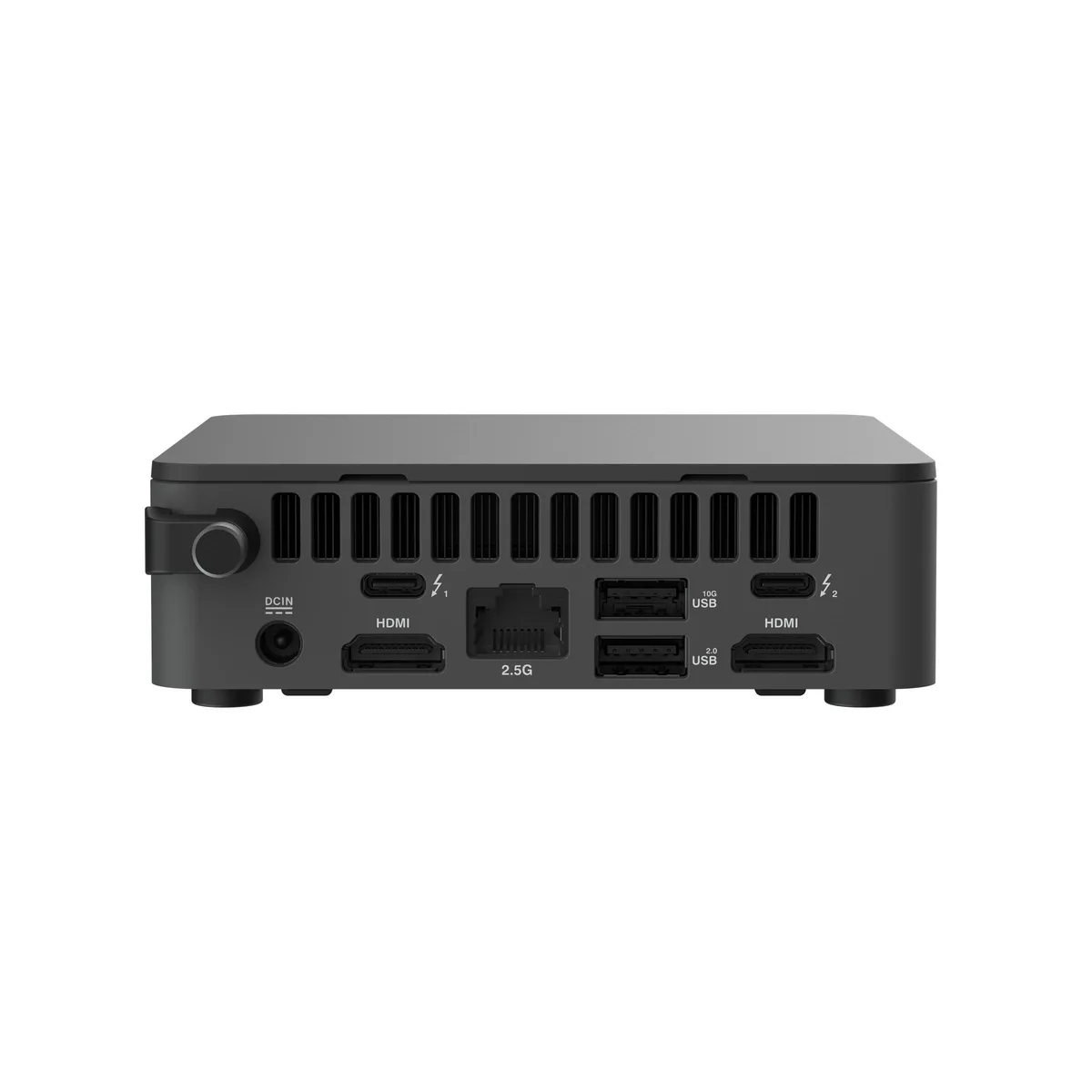

Two Thunderbolt 4 ports carry DisplayPort 1.4a and USB4 traffic, but the HDMI 2.1 ports operate in TMDS mode limited to 4K at 60Hz. The i226V Ethernet controller negotiates up to 2.5Gbps on the single RJ45 jack. Wireless clients connect via Wi-Fi 6E and Bluetooth 5.3, while legacy peripherals use the rear USB 3.2 Gen 2 and USB 2.0 Type-A ports.

Highlights

  • 13th Gen Intel Core i5-1340P with 12 cores and 16 threads for responsive multitasking
  • 16GB dual-channel DDR4-3200 memory installed, expandable to 64GB across two SO-DIMM slots
  • 512GB SSD storage ready with additional M.2 2242 SATA and M.2 2280 PCIe Gen 4 slots for expansion
  • Dual Thunderbolt 4 ports plus two HDMI 2.1 outputs supporting 4K at 60Hz for multi-display setups
  • Intel 2.5GbE LAN, Wi-Fi 6E and Bluetooth 5.3 provide fast wired and wireless connectivity

Specifications

BrandASUS
SeriesArena Canyon
ModelNUC13ANKi5
Integrated GraphicsIntel Iris Xe Graphics
Wireless LAN802.11ax
BluetoothBluetooth 5.3
LANIntel i226V
Max LAN Speed2.5Gbps
WiFi GenerationWi-Fi 6E
HDMI2 x HDMI 2.1 (TMDS)
Thunderbolt2 x Thunderbolt 4 Type-C
Rear USB1 x USB 3.2 Gen 2 Type-A
1 x USB 2.0 Type-A
RJ451 x RJ45 LAN
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Dual Channel Memory SupportedYes
Memory installed16GB
Serial ATA1 x 128GB~1TB M.2 2242 SATA SSD
Storage Installed512GB SSD
M.2 Slot1 x M.2
CPU TypeIntel Core i5 13th Gen
Onboard AudioIntegrated
ChannelRealtek ALC269
Front USB2 x USB 3.2 Gen2 Type-A
Front Audio Ports1 x 3.5mm Headset Jack
Other Front Ports1 x Kensington Lock
Input20VDC, 6.0A
Power Supply120W
Dimensions117 x 112 x 54mm
Weight502g
PackagingOriginal packaging

Questions about this item

How can I confirm the Intel Core i5-1340P is running at its 4.5 GHz turbo speed after setup?

Open Task Manager or a monitoring tool such as HWMonitor and watch the core clocks under load; the processor has 12 cores and a 35 W TDP, so sustained turbo will depend on thermal headroom.

The box lists 16 GB DDR4-3200 and a 512 GB SSD — what extra parts must I buy?

Nothing is required to start; the barebone ships with memory and storage installed. You may later add a second SO-DIMM up to 64 GB total or a 2280 NVMe drive in the M.2 key-M slot.

Should I choose the 16 GB / 512 GB version or plan to upgrade to 64 GB and a larger NVMe drive?

The 16 GB / 512 GB configuration handles typical office workloads. Select the higher capacity now if you run virtual machines, large datasets, or want headroom without opening the chassis.
