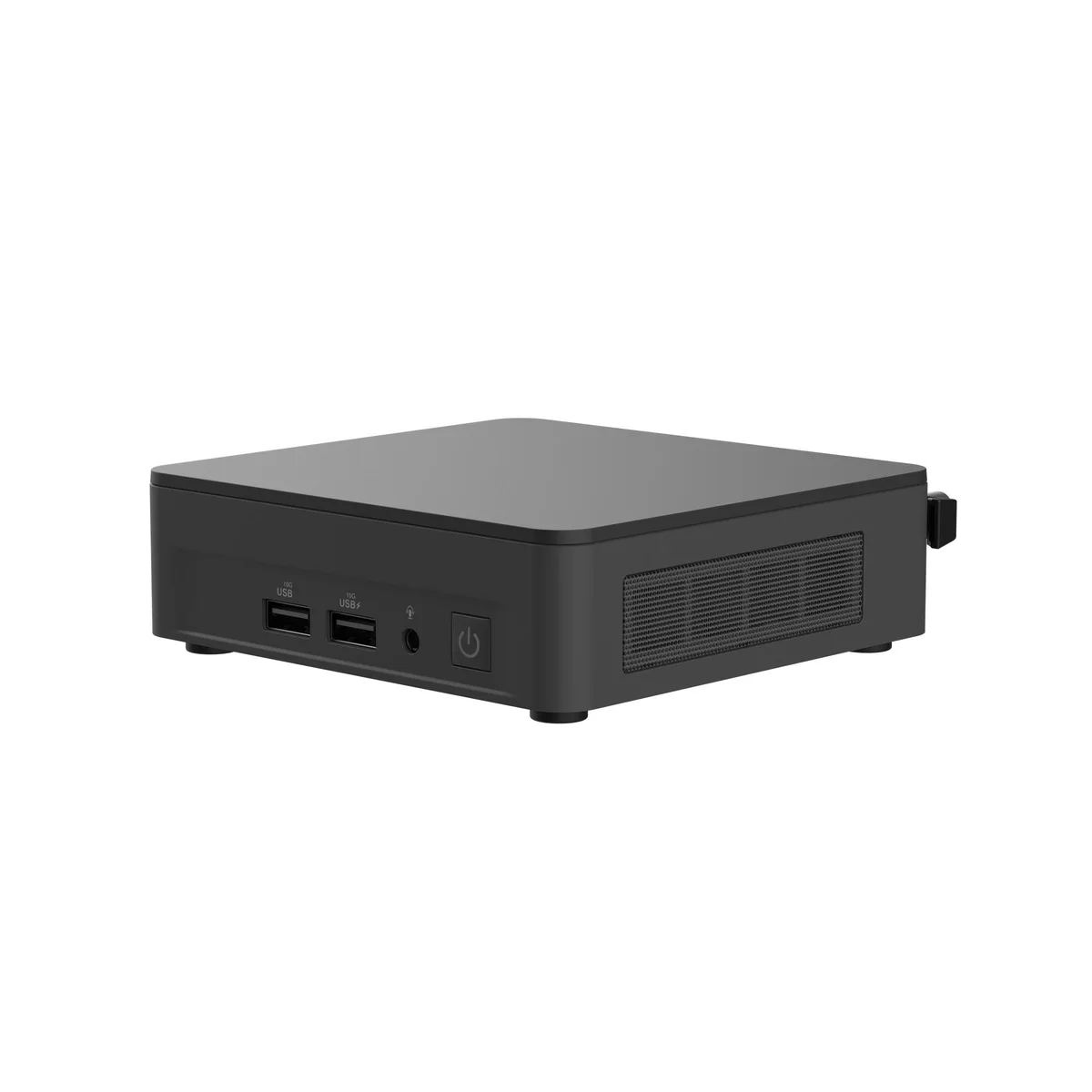

Small square barebone mini PC with matte dark finish and visible front ports

ASUS

ASUS NUC13ANKi5 barebone mini PC Intel Core i5-1340P DDR4 64GB max

SKU CH-HWSV-404PN MPN NUC13ANKi5

A compact barebone kit with a 13th Gen Intel Core i5-1340P processor, dual-channel DDR4-3200 support up to 64 GB, dual Thunderbolt 4 ports, dual HDMI 2.1 outputs, 2.5 Gbps LAN.

  • Integrated GraphicsIntel Iris Xe Graphics
  • Wireless LAN802.11ax
  • BluetoothBluetooth 5.3
  • LANIntel i226V
  • Max LAN Speed2.5Gbps
  • WiFi GenerationWi-Fi 6E
  • 12 cores and 16 threads handle heavy multitasking
  • Dual DDR4-3200 slots support up to 64 GB RAM
  • Two Thunderbolt 4 ports drive 4K displays and fast storage
  • 5 Gbps Ethernet plus WiFi 6E for wired and wireless speed
  • Compact 4×4 barebone fits behind a monitor or in a rack

Built for Business Workloads

The ASUS NUC13ANKi5 is a 4x4 barebone mini PC powered by a 13th Gen Intel Core i5-1340P processor with 12 cores and 16 threads. It targets businesses needing compact, reliable desktops for productivity and content creation. The 35W TDP chip integrates Intel Iris Xe Graphics for multi-display output. Intel vPro Enterprise support adds hardware-based remote management and stability for IT departments.

Expandable Memory and Storage

This unit ships without memory or storage, allowing custom configuration. Two 262-pin SO-DIMM slots accept dual-channel DDR4-3200 modules up to 64GB total at 1.2V. An M.2 2280 key M slot supports PCIe x4 Gen 4 NVMe SSDs, while an M.2 2242 key B slot takes PCIe x1 Gen 3 drives. Additional SATA and USB 3.2 Gen 2 expandability is provided for further storage needs.

Connectivity Limits and Display Output

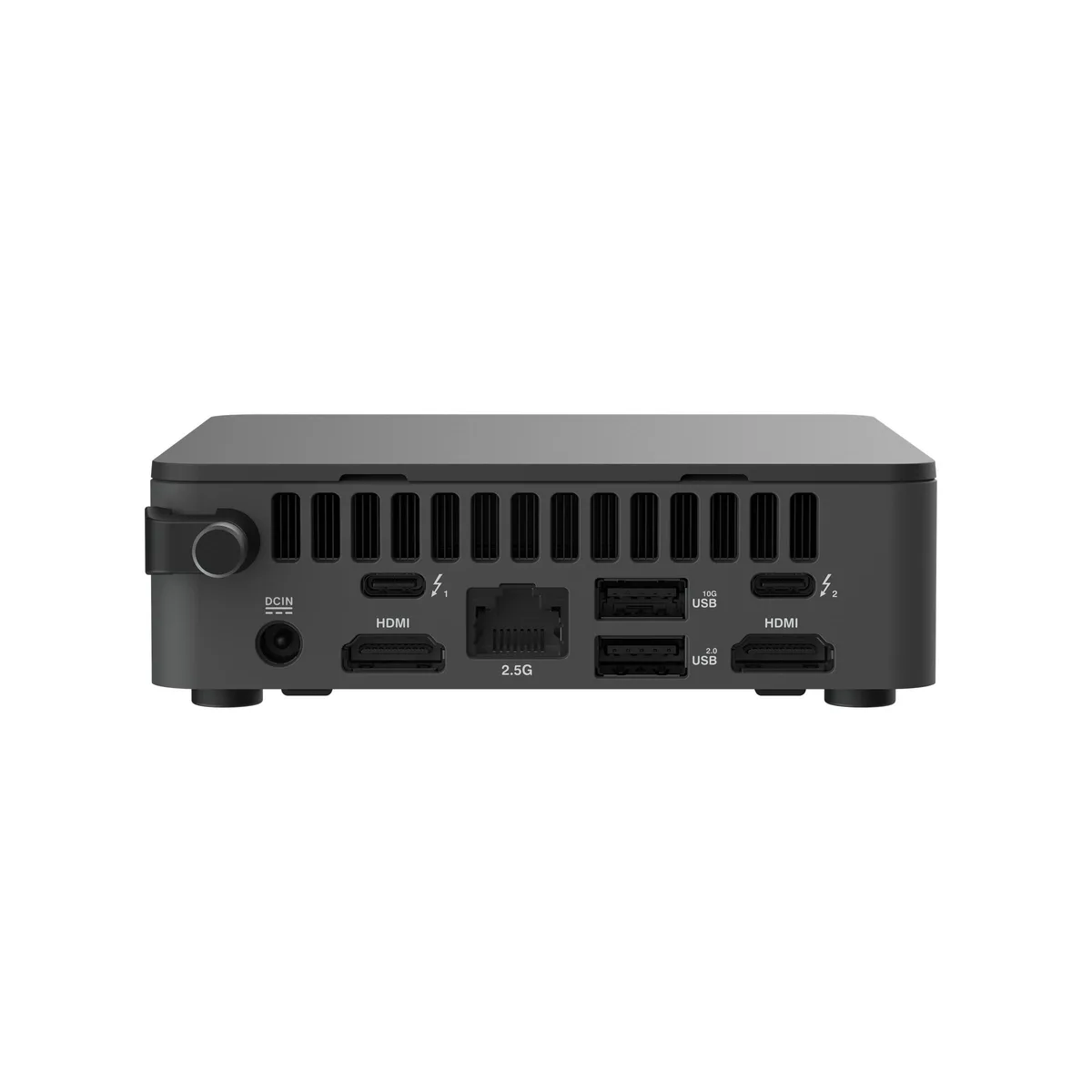

Dual Thunderbolt 4 Type-C ports carry DisplayPort 1.4a and USB4 signals alongside data. Two HDMI 2.1 TMDS ports drive 4K resolution at 60Hz with CEC and up to 7.1 digital audio. The Intel i226V controller delivers 2.5Gbps wired Ethernet, while Wi-Fi 6E and Bluetooth 5.3 handle wireless links. Front USB 3.2 Gen 2 and rear USB 3.2 Gen 2 plus USB 2.0 ports cover peripheral connections.

Highlights

  • 12 cores and 16 threads handle heavy multitasking
  • Dual DDR4-3200 slots support up to 64 GB RAM
  • Two Thunderbolt 4 ports drive 4K displays and fast storage
  • 5 Gbps Ethernet plus WiFi 6E for wired and wireless speed
  • Compact 4×4 barebone fits behind a monitor or in a rack

Specifications

BrandASUS
SeriesArena Canyon
ModelNUC13ANKi5
Integrated GraphicsIntel Iris Xe Graphics
Wireless LAN802.11ax
BluetoothBluetooth 5.3
LANIntel i226V
Max LAN Speed2.5Gbps
WiFi GenerationWi-Fi 6E
HDMI2 x HDMI 2.1 (TMDS)
Thunderbolt2 x Thunderbolt 4 Type-C
Thunderbolt 3Yes
Rear USB1 x USB 3.2 Gen 2 Type-A
1 x USB 2.0 Type-A
RJ451 x RJ45 LAN
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Dual Channel Memory SupportedYes
Memory installedNo Memory
CPU TypeIntel Core i5 13th Gen
SATA RAIDSupport 128GB~1TB M.2 2242 SATA SSD
Storage InstalledNo Hard Drive
M.2 Slot1 x M.2
Onboard AudioIntegrated
ChannelRealtek ALC269
Front USB2 x USB 3.2 Gen2 Type-A
Front Audio Ports1 x 3.5mm Headset Jack
Other Front Ports1 x Kensington Lock
Input20VDC, 6.0A
Power Supply120W
Dimensions117 x 112 x 37 mm
Weight502g
PackagingOriginal packaging

Questions about this item

Will the two 262-pin DDR4 SO-DIMM slots need any maintenance or replacement later?

The slots themselves are fixed on the board; only the DDR4-3200 modules you install may be upgraded up to 64 GB total.

What limit appears first when the Core i5-1340P runs at its 35 W TDP for long periods?

The 35 W thermal design power is the sustained ceiling; the processor will throttle to stay within that envelope.

How loud or hot does the unit get when it runs all day with Wi-Fi 6E and Bluetooth 5.3 active?

The barebone includes a built-in cooling solution rated for the 35 W TDP; fan noise rises with load but stays within typical mini-PC limits.
