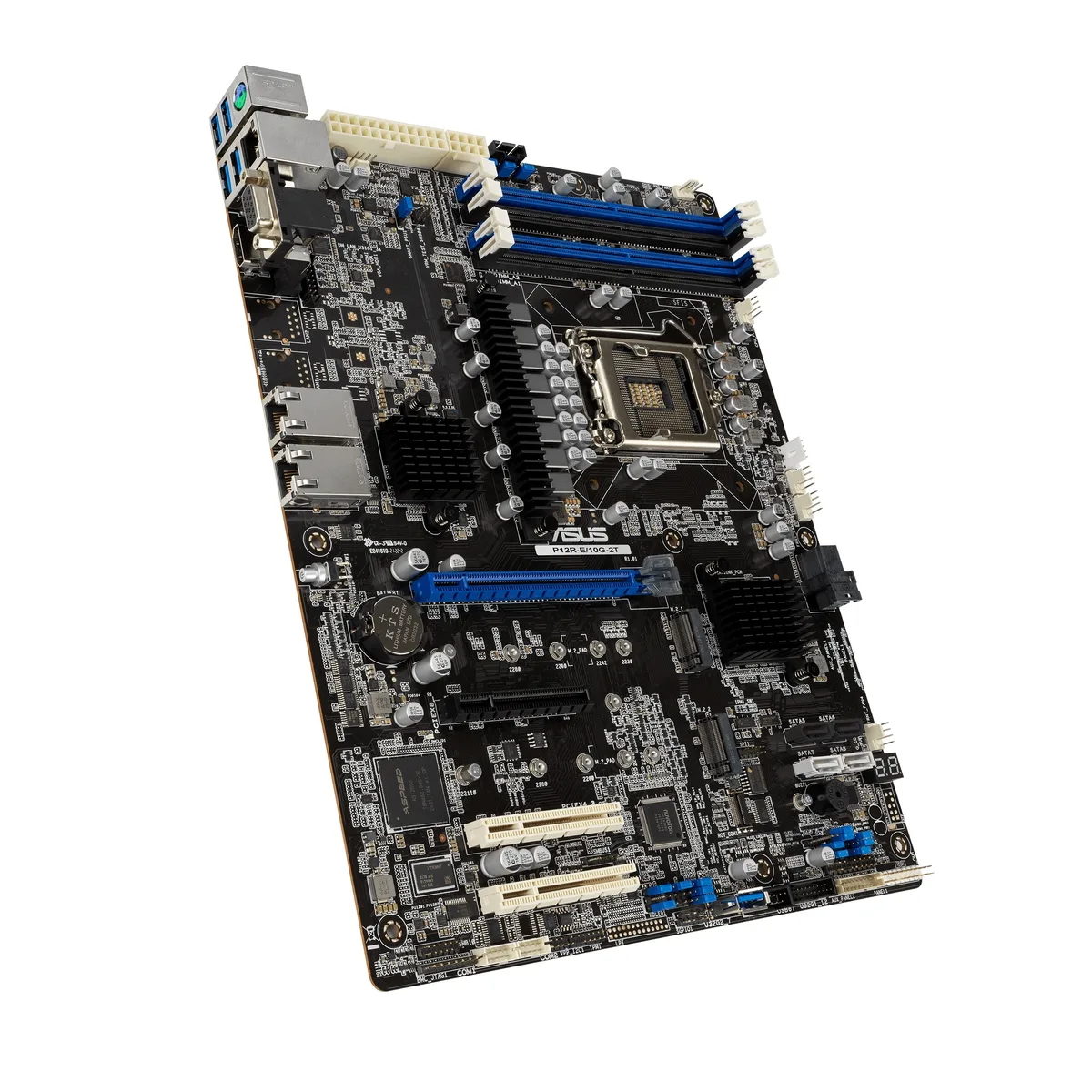

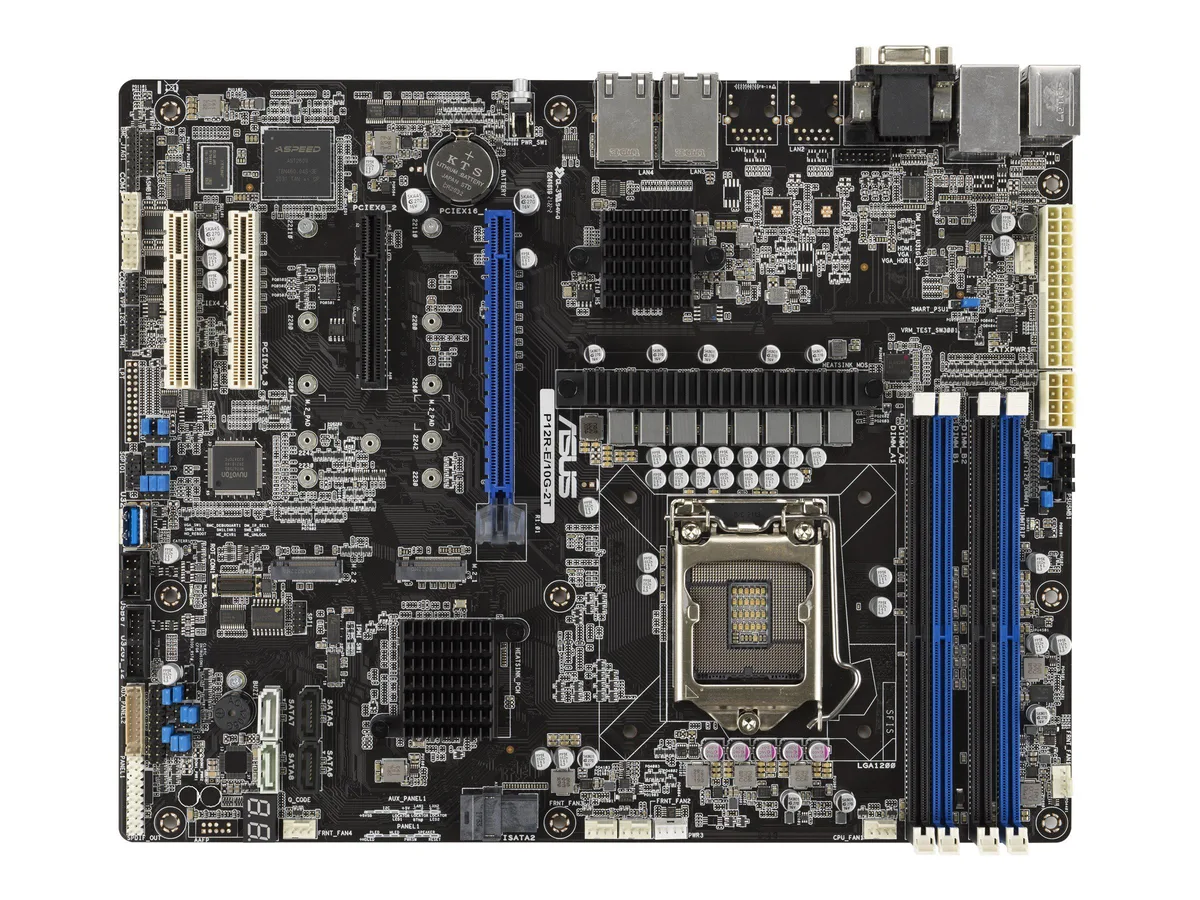

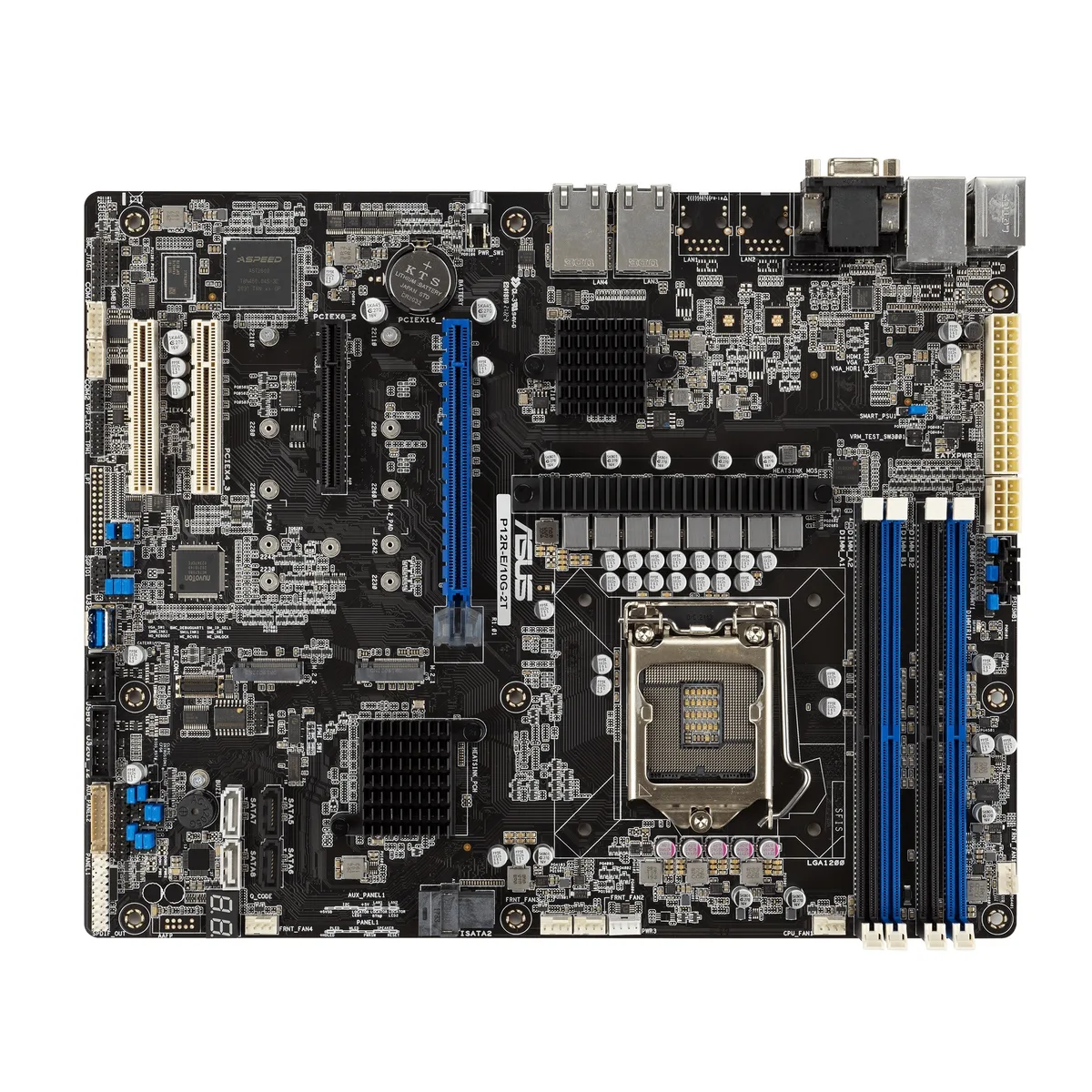

ATX server motherboard with dual 10G LAN ports, eight SATA connectors, four DDR4 slots, two M.2 slots, HDMI and VGA outputs

ASUS

ASUS P12R-E/10G-2T LGA 1200 ATX server motherboard

SKU CH-X21Q-SHZ5S MPN P12R-E/10G-2T

ATX server board with dual 10G LAN, eight SATA ports, two M.2 slots, four DDR4 DIMM slots up to 128 GB, and two PCIe 4.0 slots

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports Intel Pentium processors, Intel Xeon E Processors
  • North BridgeIntel C256
  • Number of DDR4 Slots4 x 288-pin
  • DDR4 StandardDDR4 3200
  • Maximum Memory Supported128GB
  • Supports up to 128 GB DDR4 3200 memory via four 288-pin slots
  • Dual 10 GbE Intel X710-AT2 LAN for high-throughput networking
  • Two M.2 connectors accept 2242 to 22110 drives in SATA or PCIe mode
  • Eight native SATA 6.0 Gb/s ports provide extensive storage expandability
  • PCIe 4.0 x16 and x8 slots enable flexible add-in card configurations

Server motherboard for Xeon E-2300 processors

This ATX board fits the LGA 1200 socket and supports Intel Xeon E-2300 series CPUs up to 95 W TDP alongside Pentium options. Four 288-pin DDR4 slots accept memory at 3200 MT/s for a total of 128 GB in dual-channel mode. The Intel C256 chipset provides the platform foundation for remote-office and branch-office deployments.

Dual 10GbE LAN and dual M.2 slots

Two Intel X710-AT2 controllers deliver 10 Gbps Ethernet with teaming support, while a dedicated management LAN enables out-of-band access. Both M.2 connectors accept 2242, 2260, 2280 and 22110 modules operating in either SATA or PCIe mode. An optional ASMB10-iKVM card adds KVM-over-IP through the ASPEED AST2600 controller.

PCIe lane sharing limits expansion flexibility

The primary PCIe 4.0 x16 slot drops to x8 when the PCIe 4.0 x8 slot is populated, restricting simultaneous full-speed use of both Gen4 slots. Two additional PCIe 3.0 x8 slots run at x4 link width. HDMI 1.4 output functions only when a processor with integrated graphics is installed, otherwise the Aspeed AST2600 drives VGA for basic display.

Highlights

  • Supports up to 128 GB DDR4 3200 memory via four 288-pin slots
  • Dual 10 GbE Intel X710-AT2 LAN for high-throughput networking
  • Two M.2 connectors accept 2242 to 22110 drives in SATA or PCIe mode
  • Eight native SATA 6.0 Gb/s ports provide extensive storage expandability
  • PCIe 4.0 x16 and x8 slots enable flexible add-in card configurations

Specifications

BrandASUS
ModelP12R-E-10G-2T
CPU Socket TypeLGA 1200
CPU TypeSupports Intel Pentium processors, Intel Xeon E Processors
North BridgeIntel C256
Number of DDR4 Slots4 x 288-pin
DDR4 StandardDDR4 3200
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 4.0 x16Slot Location 6 : PCI-E x16 (Gen4 X16 Link), Auto switch to x8 link if slot 4 is occupied
PCI Express x8Slot Location 1 : PCI-E x8 (Gen3 X4 Link)
Slot Location 2 : PCI-E x8 (Gen3 X4 Link)
Slot Location 4 : PCI-E x8 (Gen4 X8 Link)
SATA8 x SATA 6.0Gb/s
M.22 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode
Onboard Video ChipsetAspeed AST2600
LAN ChipsetIntel X710-AT2
LAN Speed10Gbps
Back I/O Ports2 x USB 3.2 Gen 2
2 x USB 3.2 Gen 1
1 x HDMI Port (useable only with iGPU)
1 x VGA Port (VGA from BMC)
2 x 10GbE LAN + 1 x Mgmt LAN
1 x PS/2 KB/Mouse
Other Connectors1 x VGA Header
1 x HDMI
1 x TPM header
1 x COM port
1 x PS/2 KB/MS port
1 x Onboard header for optional management card
6 x Fan Header, 4pin
1 x SMBus
1 x Chassis Intruder
4 x Front LAN LED
1 x Serial Port Header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
2 x M.2 Connector
2 x USB3.2 Gen2 ports
2 x USB3.2 Gen1 ports
1 x USB3.2 Gen1 header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Shipping weight1.50 kg
Package size343 × 279 × 76 mm

Questions about this item

Will the Aspeed AST2600 BMC need a firmware update after installation?

The Aspeed AST2600 BMC handles out-of-band management; firmware updates are released by ASUS for security and feature improvements and can be applied through the BMC web interface.

What limits sustained throughput on the dual 10GbE ports?

The Intel X710-AT2 controller provides two 10GbE links; sustained throughput is limited by the PCIe 3.0 x4 electrical connection to the chipset and by the 95 W CPU thermal ceiling under heavy packet processing.

How loud and hot does the board get when running all day?

Six 4-pin fan headers allow speed control tied to CPU and chipset temperatures; the 95 W TDP Xeon E-2300 and Intel C256 chipset generate moderate heat, so acoustic and thermal results depend on the chassis airflow and fan curves configured in BIOS.
