ASUS

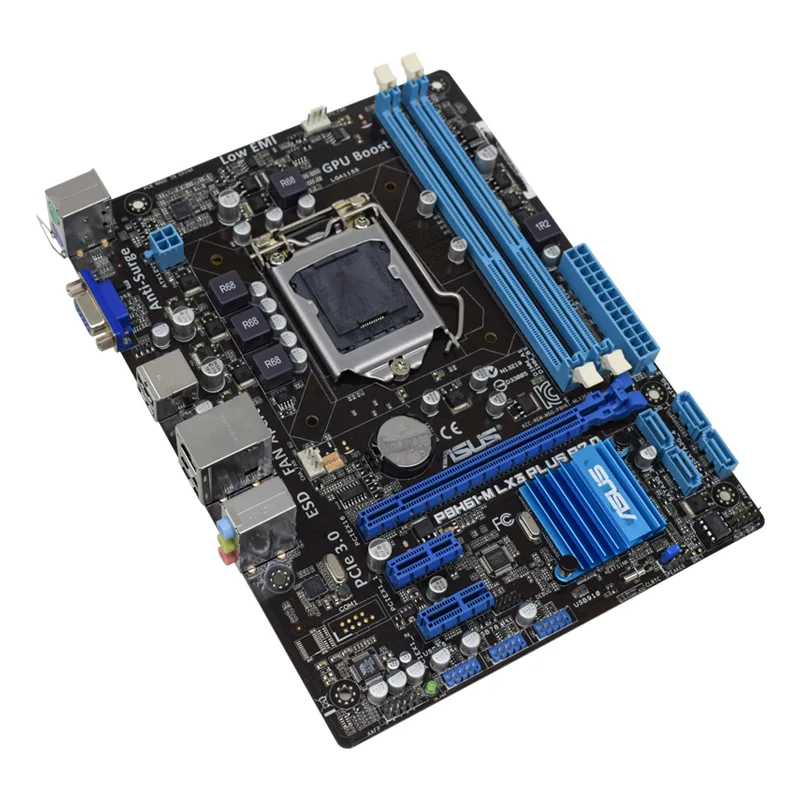

ASUS P8H61-M LX3 PLUS R2.0 LGA 1155 H61 DDR3 Micro ATX Intel motherboard
A micro-ATX board for LGA 1155 CPUs with two DDR3 slots up to 16 GB, one PCI Express x16 slot, four SATA ports and VGA output
- CPU Socket TypeLGA 1155
- CPU Type2nd-3rd Gen Core i7/Core i5/Core i3/Pentium/Celeron
- ChipsetIntel H61
- Number of Memory Slots2×DDR3 DIMM
- Memory StandardDDR3 2200/2133/2000/1866/1600/1333/1066MHz
- Maximum Memory Supported16GB
- Supports 2nd-3rd Gen Intel Core i7/i5/i3/Pentium/Celeron CPUs on LGA 1155 socket
- Dual-channel DDR3 memory up to 16 GB across two DIMM slots
- Micro ATX form factor measures 22.6×17.2 cm for compact builds
- Integrated VGA output and four rear USB 2.0/1.1 ports for display and peripherals
- One PCIe x16 slot plus two PCIe x1 slots for graphics and expansion cards

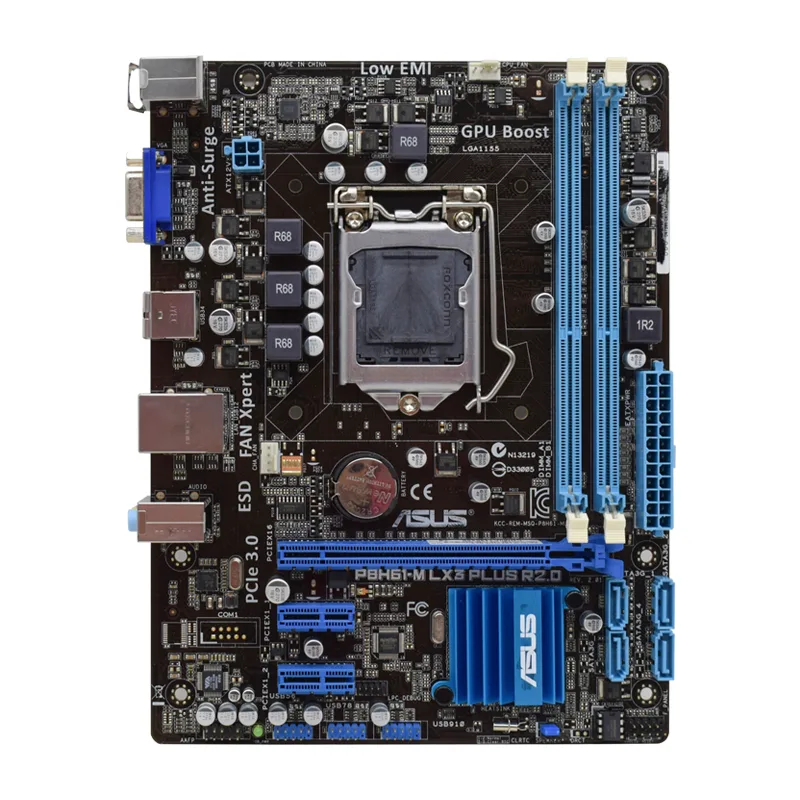

Socket LGA 1155 Micro ATX board

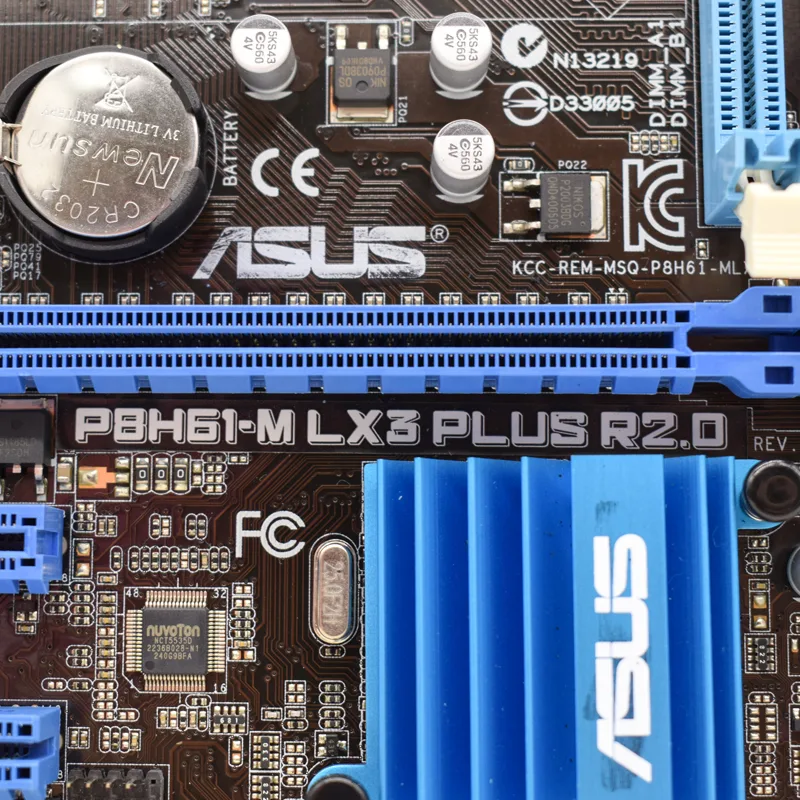

The ASUS P8H61-M LX3 PLUS R2.0 is a Micro ATX motherboard built on the Intel H61 chipset for LGA 1155 processors. It accepts 2nd and 3rd generation Core i7, i5, i3, Pentium and Celeron CPUs. Two DDR3 DIMM slots support up to 16 GB in dual-channel mode. A single PCI Express x16 slot and two PCI Express x1 slots provide expansion room. The board measures 22.6×17.2 cm and uses a 24-pin power connector.
Memory speed ceiling
DDR3 memory runs at 1066, 1333, 1600, 1866, 2000, 2133 or 2200 MHz depending on the installed modules and CPU. Dual-channel operation is supported when both slots are populated. The maximum supported capacity is 16 GB across the two slots. Choose modules that match the required frequency to avoid downclocking.
Sustained operation characteristics
The H61 chipset and simple voltage regulation handle typical desktop workloads without active chipset cooling. Four SATA II ports and ten USB 2.0 headers supply steady connectivity for storage and peripherals. Video output is limited to a single VGA port. Under continuous load the board relies on case airflow to keep component temperatures in check.
Highlights
- Supports 2nd-3rd Gen Intel Core i7/i5/i3/Pentium/Celeron CPUs on LGA 1155 socket
- Dual-channel DDR3 memory up to 16 GB across two DIMM slots
- Micro ATX form factor measures 22.6×17.2 cm for compact builds
- Integrated VGA output and four rear USB 2.0/1.1 ports for display and peripherals
- One PCIe x16 slot plus two PCIe x1 slots for graphics and expansion cards
Specifications
| Brand | ASUS |
|---|---|
| Model | P8H61-M LX3 PLUS R2.0 |
| CPU Socket Type | LGA 1155 |
| CPU Type | 2nd-3rd Gen Core i7/Core i5/Core i3/Pentium/Celeron |
| Chipset | Intel H61 |
| Number of Memory Slots | 2×DDR3 DIMM |
| Memory Standard | DDR3 2200/2133/2000/1866/1600/1333/1066MHz |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
| PCI Express x1 | 2 x PCI Express x1 |
| Other Slots | 4×SATA II |
| Back I/O Ports | 4 x USB 2.0/1.1 |
| Video Ports | VGA |
| USB 1.1/2.0 | 10×USB2.0 |
| Form Factor | Micro ATX |
| Dimensions (W x L) | 22.6×17.2cm |
| Power Pin | 24 Pin |
| Package Contents | Only the motherboard and a IO shield |
Questions about this item
What does the 16GB maximum memory mean when I install it in a working system?
The board accepts two DDR3 DIMMs up to 16GB total, running in dual-channel mode at speeds from 1066 up to 2200MHz.
How does the SATA interface limit drive performance on this board?
Four SATA II ports are provided, so any connected drive will be capped at the SATA II transfer rate.
What space and mounting points does the Micro ATX board need in a case?
It measures 22.6×17.2cm and uses standard Micro ATX screw holes with a 24-pin power connector.
