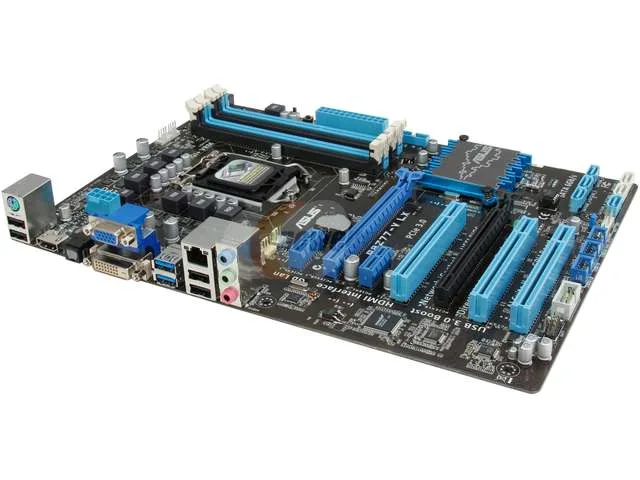

ATX motherboard with black PCB and silver heatsinks

ASUS

ASUS P8Z77-V LX Intel motherboard

SKU CH-TSP7-DFX75

ATX board with LGA 1155 socket, Intel Z77 chipset, four DDR3 slots up to 2400 MT/s, dual-channel support to 32 GB, one PCIe 3.0 x16 slot, two SATA 6Gb/s ports.

  • CPU Socket TypeLGA 1155
  • CPU TypeCore i7 / i5 / i3 (LGA1155)
  • Supported CPU TechnologiesTurbo Boost Technology 2.0
  • ChipsetIntel Z77
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4×240pin
  • Supports up to 32 GB DDR3 memory
  • Intel Z77 chipset enables overclocking on unlocked CPUs
  • LGA 1155 socket fits Core i7 i5 i3 processors
  • Two SATA 6Gb/s ports for fast storage
  • Realtek 8111E LAN plus 8 channel audio

Socket LGA 1155 ATX board

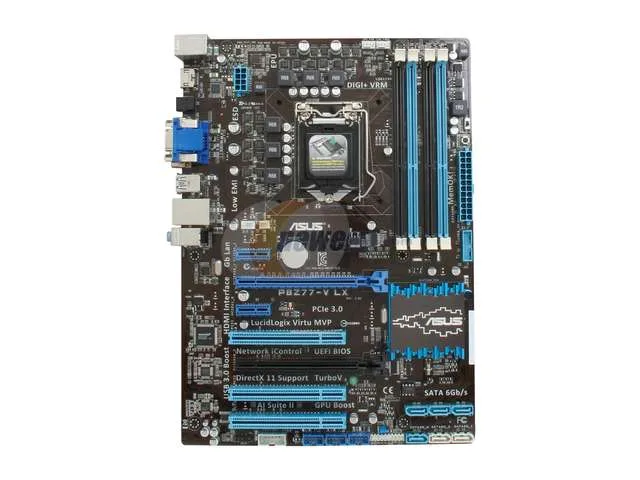

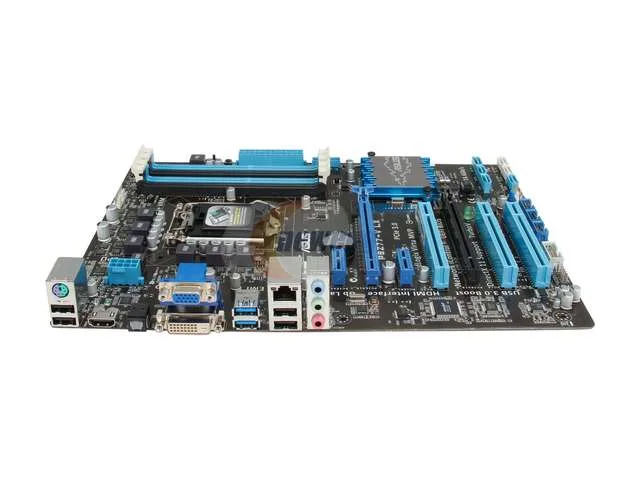

The ASUS P8Z77-V LX is an ATX motherboard built on the Intel Z77 chipset for LGA 1155 processors. It accepts Core i7, i5 and i3 CPUs and supports Turbo Boost Technology 2.0. The board targets builders assembling a desktop around second- or third-generation Intel Core chips who need a full-size layout with legacy PCI slots.

Straightforward ATX install

Installation follows the standard ATX pattern: mount the board on nine standoffs, connect the 24-pin and 4-pin power headers, then seat the CPU and DDR3 modules in the four 240-pin slots. The I/O shield is not included, so reuse the one from your case or source a replacement. Legacy PCI cards fit the three PCI slots, while the single PCI Express 3.0 x16 slot and one x4 slot handle modern graphics or add-in cards.

Check CPU cooler clearance and DDR3 stock

Verify that your CPU cooler fits the LGA 1155 retention frame and does not overhang the four memory slots. The board runs DDR3 only, with supported speeds from 1333 up to 2400 MHz when overclocked, so have compatible modules ready. Two SATA 6 Gb/s ports and RAID 0, 1, 5, 10 are available for storage, while the Realtek 8111E LAN and ALC887 8-channel audio handle networking and sound.

Highlights

  • Supports up to 32 GB DDR3 memory
  • Intel Z77 chipset enables overclocking on unlocked CPUs
  • LGA 1155 socket fits Core i7 i5 i3 processors
  • Two SATA 6Gb/s ports for fast storage
  • Realtek 8111E LAN plus 8 channel audio

Specifications

BrandASUS
ModelP8Z77-V LX
CPU Socket TypeLGA 1155
CPU TypeCore i7 / i5 / i3 (LGA1155)
Supported CPU TechnologiesTurbo Boost Technology 2.0
ChipsetIntel Z77
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4×240pin
Memory StandardDDR3 2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333
Maximum Memory Supported32GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express 2.0 x161 @x4
PCI Express x12 x PCI Express x1
PCI Slots3 x PCI Slots
Serial ATA (SATA)2 x SATA 6Gb/s
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC887
Audio Channels8 Channels
LAN ChipsetRealtek 8111E
Max LAN Speed10/100/1000Mbps
Back I/O Ports1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.0 / 4 x USB 2.0/1.1
PS/21 x PS/2 keyboard/mouse port
Video PortsD-Sub + DVI
HDMI1 x HDMI
USB 3.02 x USB 3.0
USB 1.1/2.04 x USB 2.0
S/PDIF Out1 x Optical
Audio Ports3 Ports
Onboard USB2 x USB 3.0 + 6 x USB 2.0
Other Connectors1 x COM port(s) connector(s) 1 x CPU Fan connector(s) (4 -pin) 2 x Chassis Fan connector(s) (4 -pin) 1 x Power Fan connector(s) (3 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x MemOK! button(s) 1 x GPU Boost switch(es) 1 x Clear CMOS jumper(s)
Form FactorATX
Dimensions (W x L)12" x 8.6"
FeaturesDIGI+ VRM Digital Power Design USB 3.0 Boost - Faster USB 3.0 Transmission with UASP(170%) Network iControl LucidLogix Virtu Universal MVP GPU Boost
Package ContentsNo accessories or backplate.

Questions about this item

How can I verify the board is working after installing a CPU and memory?

Power on and confirm the POST screen appears showing the installed processor model, memory capacity and BIOS version.

What does the board include and what must I source separately?

The board ships alone with no accessories or I/O backplate; you must supply CPU, DDR3 memory, storage, power supply, case, cooler and an I/O shield.

Which memory speed should I select for this Z77 board?

DDR3 modules rated 1333, 1600, 1866 or 2133 MHz run natively; 1800, 2000, 2200 and 2400 MHz require manual overclocking in the BIOS.
