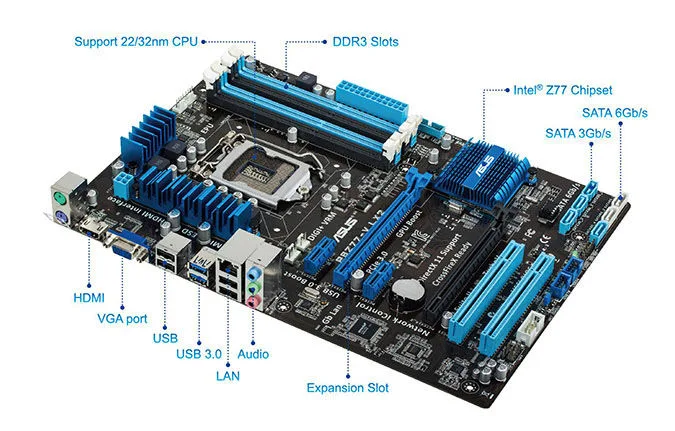

ATX motherboard in black and blue with silver heatsinks and rear I/O panel

ASUS

ASUS P8Z77-V LX2 LGA 1155 Intel Z77 Motherboard

SKU CH-209P-ZP9XW

LGA 1155 ATX board with Intel Z77 chipset, four DDR3 slots up to 32 GB, one PCIe 3.0 x16 slot, two SATA 6Gb/s ports, HDMI, Gigabit LAN and USB 3.0

  • CPU Socket TypeLGA 1155
  • CPU TypeIntel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/
  • ChipsetIntel® Z77
  • Number of Memory Slots4 x DIMM
  • Memory StandardDDR3 2400(O.C.)/2200(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333/1
  • Maximum Memory Supported32GB
  • Supports 32 GB DDR3 for large workloads
  • PCI Express 3.0 x16 slot for modern graphics cards
  • Two SATA 6Gb/s ports for fast storage
  • Realtek 8111F Gigabit LAN for wired networking
  • USB 3.0 Boost for quicker file transfers

Socket 1155 Z77 ATX board for 2nd

The ASUS P8Z77-V LX2 is an ATX motherboard built on the Intel Z77 chipset and fitted with an LGA 1155 socket. It accepts 2nd and 3rd Generation Intel Core i7, i5, i3, Pentium and Celeron processors. Four DIMM slots support up to 32 GB of DDR3 memory running at speeds up to 2400 MHz when overclocked. A single PCIe 3.0 x16 slot, a second x16 slot wired at x4, two PCIe x1 slots and two legacy PCI slots provide expansion room.

Builders reusing Ivy Bridge or Sandy Bridge parts

This board suits enthusiasts upgrading an existing LGA 1155 system or assembling a budget workstation around a used processor. Integrated graphics users benefit from the HDMI output and GPU Boost feature. Overclockers gain DIGI+ VRM digital power control. Buyers needing modern connectivity such as USB 3.1, M.2 storage or newer CPU generations should select a current-platform motherboard instead.

Check CPU cooler clearance

The product ships without an I/O shield or any accessories, so verify that your case includes a compatible shield or source one separately. Confirm that your chosen CPU cooler fits the LGA 1155 mounting pattern and does not block the four memory slots. Ensure the power supply provides the standard 24-pin ATX and 8-pin CPU connectors required by the board.

Highlights

  • Supports 32 GB DDR3 for large workloads
  • PCI Express 3.0 x16 slot for modern graphics cards
  • Two SATA 6Gb/s ports for fast storage
  • Realtek 8111F Gigabit LAN for wired networking
  • USB 3.0 Boost for quicker file transfers

Specifications

BrandASUS
ModelP8Z77-V LX2
CPU Socket TypeLGA 1155
CPU TypeIntel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
ChipsetIntel® Z77
Number of Memory Slots4 x DIMM
Memory StandardDDR3 2400(O.C.)/2200(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture
Maximum Memory Supported32GB
PCI Express 3.0 x161 x PCIe 3.0/2.0 x16 (blue)
PCI Express 2.0 x161 x PCIe 2.0 x16 (x4 mode, black)
PCI Express x12 x PCIe 2.0 x1
PCI Slots2 x PCI
Serial ATA (SATA)2 x SATA 6Gb/s port(s), gray
SATA RAIDSupport Raid 0, 1, 5, 10
Audio ChipsetRealtek® ALC887
Audio Channels8 Channels
LAN ChipsetRealtek® 8111F, 1 x Gigabit LAN Controller(s)
Back I/O Ports1 x HDMI / 2 x USB 3.0 / 4 x USB 2.0/1.1
HDMI1 x HDMI
USB 3.04 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
USB 1.1/2.08 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board)
Form FactorATX
Dimensions (W x L)12 inch x 8.4 inch ( 30.5 cm x 21.3 cm )
FeaturesASUS EPU : - EPU ASUS Power Design : - 4 +1 Phase Power Design TurboV GPU Boost ASUS Exclusive Features : - AI Suite II - Anti-Surge - Low EMI Solution - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Network iControl - USB 3.0 Boost - Disk Unlocker ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert+ ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2
Package ContentsNo accessories or backplate.

Questions about this item

Which CPU socket must the processor match for this ASUS P8Z77-V LX2 board?

The board uses an LGA 1155 socket, so the installed processor must be a 2nd or 3rd Generation Intel Core i7, i5, i3, Pentium or Celeron in that same package.

Will a graphics card placed in the black PCIe 2.0 x16 slot run at full x16 speed?

No, that slot is wired for x4 mode only; the blue PCIe 3.0/2.0 x16 slot provides the full x16 link for a single GPU.

How can I confirm the onboard Realtek ALC887 audio is active after assembly?

Open Windows Device Manager or the Realtek HD Audio Manager and verify that the ALC887 8-channel device appears without error codes.
