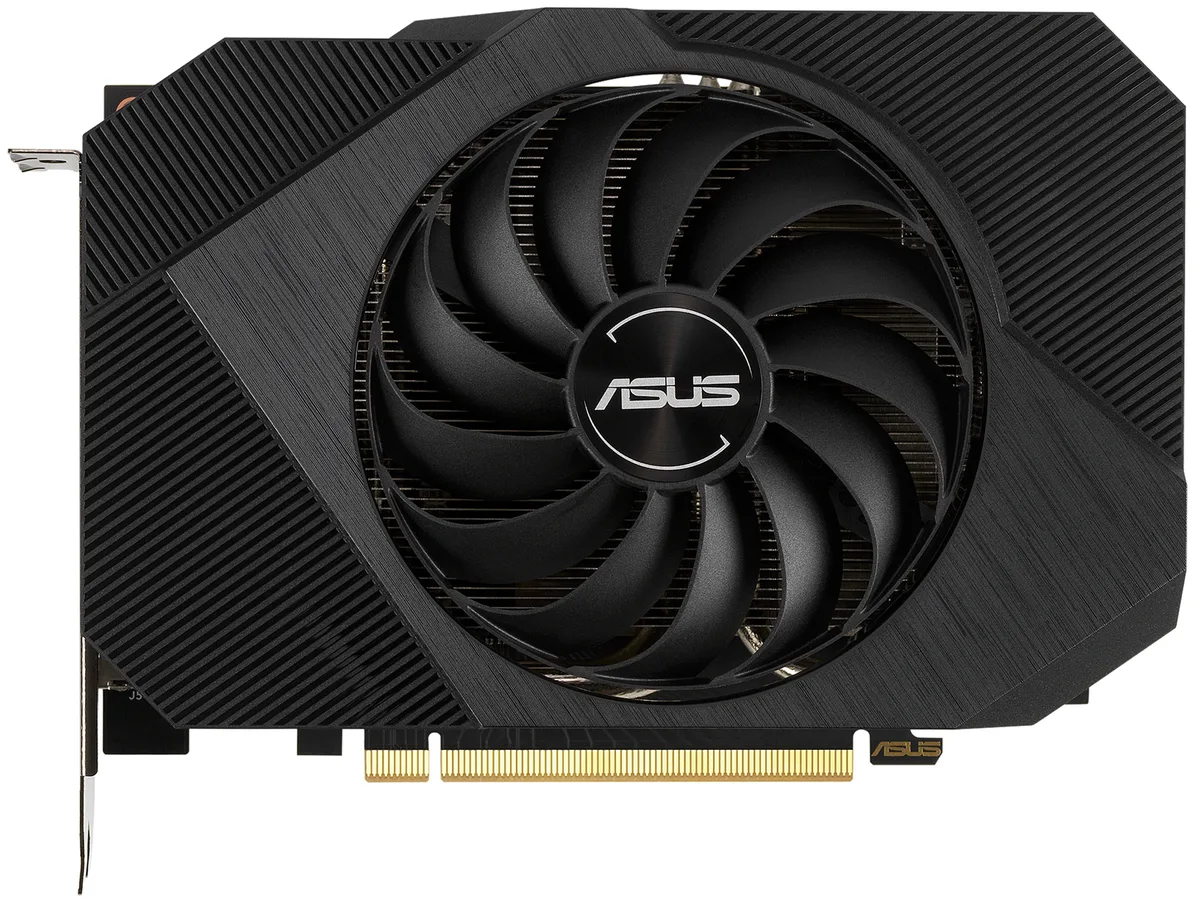

Black ASUS Phoenix RTX 3060 graphics card with single axial-tech fan and protective backplate

ASUS

ASUS PH-RTX3060-12G-V2 graphics card

SKU CH-S0QW-SBMGS MPN PH-RTX3060-12G-V2

A refurbished GeForce RTX 3060 with 12GB GDDR6 on a 192-bit bus, PCIe 4.0 interface, 3584 CUDA cores, boost clocks up to 1807 MHz, one HDMI 2.1 and three DisplayPort 1.4a outputs, single axial-tech

  • InterfacePCI Express 4.0
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 30 Series
  • GPUGeForce RTX 3060
  • Boost ClockOC Mode: 1807 MHz Gaming Mode: 1777 MHz
  • CUDA Cores3584
  • 12 GB GDDR6 memory supports high-resolution textures
  • Boost clock reaches 1807 MHz in OC mode for responsive gaming
  • 3584 CUDA cores accelerate ray tracing and compute workloads
  • HDMI 2.1 and three DisplayPort 1.4a outputs drive up to four displays
  • PCI Express 4.0 interface doubles bandwidth over the previous generation

Phoenix RTX 3060 12GB for 1080p and 1440p gaming

The ASUS Phoenix GeForce RTX 3060 V2 delivers 12GB of GDDR6 memory across a 192-bit bus and 3584 CUDA cores for mainstream gaming and creative workloads. A PCI Express 4.0 interface connects the card to modern platforms while a single 8-pin power connector draws up to 170W under load. The dual-mode boost clock reaches 1807 MHz in OC mode and 1777 MHz in Gaming mode for flexible performance targets.

Sustained load behaviour with Axial-tech cooling

The single axial-tech fan uses dual ball bearings to maintain airflow during extended sessions while the protective backplate adds structural rigidity and helps dissipate heat from the PCB. A 650W power supply is recommended to keep the 170W TDP stable over long rendering or gaming periods. The Auto-Extreme manufacturing process reduces thermal variance between units for consistent clock holding.

Compact single-fan layout with modern display

One HDMI 2.1 port and three DisplayPort 1.4a connectors drive up to four displays at a maximum resolution of 7680 x 4320. The single-slot bracket and short PCB suit smaller chassis without blocking adjacent expansion slots. HDCP 2.3 compliance ensures protected content playback across the supported outputs.

Highlights

  • 12 GB GDDR6 memory supports high-resolution textures
  • Boost clock reaches 1807 MHz in OC mode for responsive gaming
  • 3584 CUDA cores accelerate ray tracing and compute workloads
  • HDMI 2.1 and three DisplayPort 1.4a outputs drive up to four displays
  • PCI Express 4.0 interface doubles bandwidth over the previous generation

Specifications

BrandASUS
SeriesPhoenix
ModelPH-RTX3060-12G-V2
InterfacePCI Express 4.0
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 30 Series
GPUGeForce RTX 3060
Boost ClockOC Mode: 1807 MHz
Gaming Mode: 1777 MHz
CUDA Cores3584
Effective Memory Clock15 Gbps
Memory Size12GB
Memory Interface192-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1
DisplayPort3 x DisplayPort 1.4a
ColorBlack
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
CoolerSingle Fan
Thermal Design Power170W
Recommended PSU Wattage650W
Power Connector1 x 8-pin
HDCP Ready2.3
FeaturesNVIDIA Ampere Streaming Multiprocessors: The building blocks for the world's fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
Axial-tech fan design has been tuned
Max GPU Length177 mm

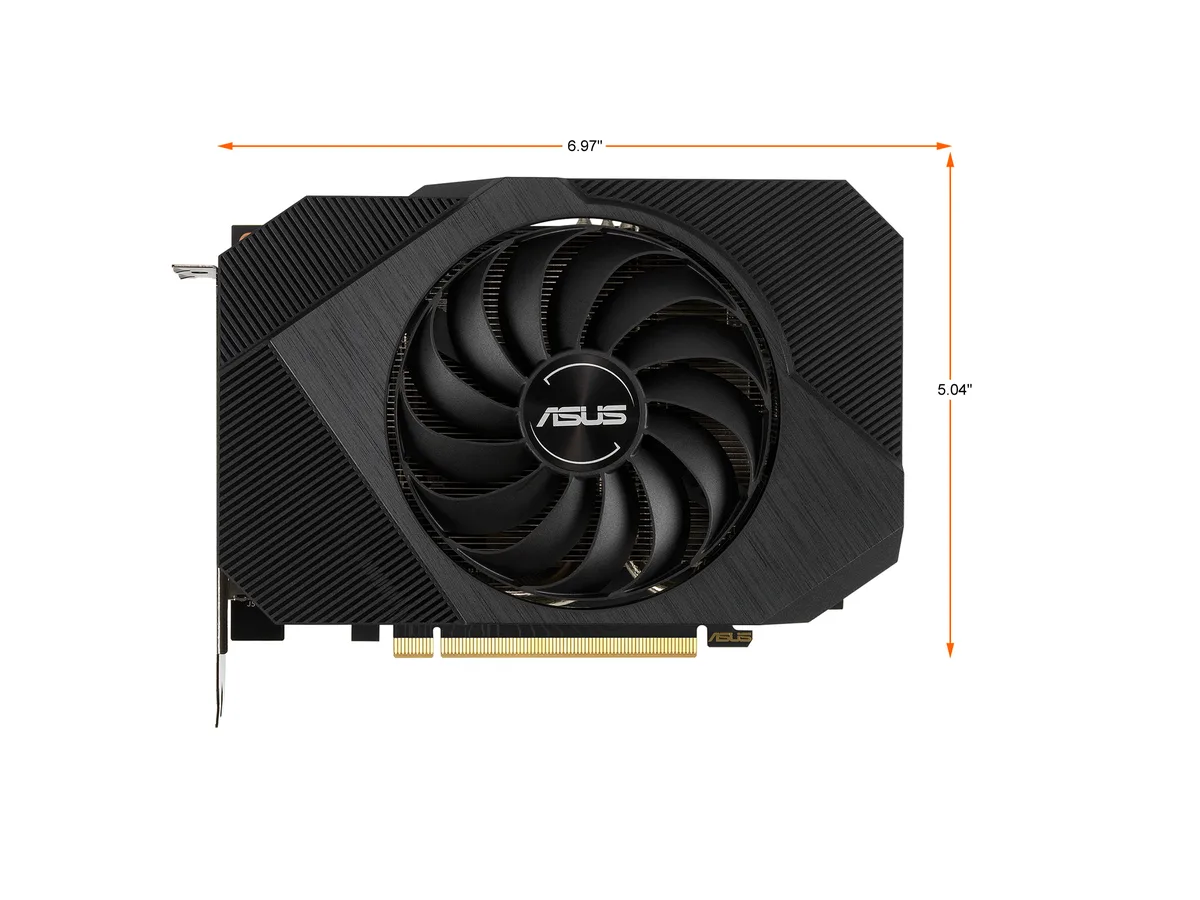

Card Dimensions (L x H)6.97" x 5.04"
Slot Width2.55 Slot
Shipping weight1.02 kg
Package size363 × 217 × 66 mm

Questions about this item

How much heat does the 170W card push into the case during long sessions?

The board is rated at 170W TDP and uses a single axial-tech fan with dual ball bearings to exhaust that heat; ensure your chassis airflow can move the warm air away.

What power supply and connector does the 8-pin GPU require?

A 650W PSU with one free 8-pin PCIe power cable is recommended for stable operation.

Will the PCI Express 4.0 interface run at full speed on my older PCIe 3.0 motherboard?

The card is backward compatible and will operate at PCIe 3.0 speeds on a 3.0 slot with negligible impact on gaming performance.
