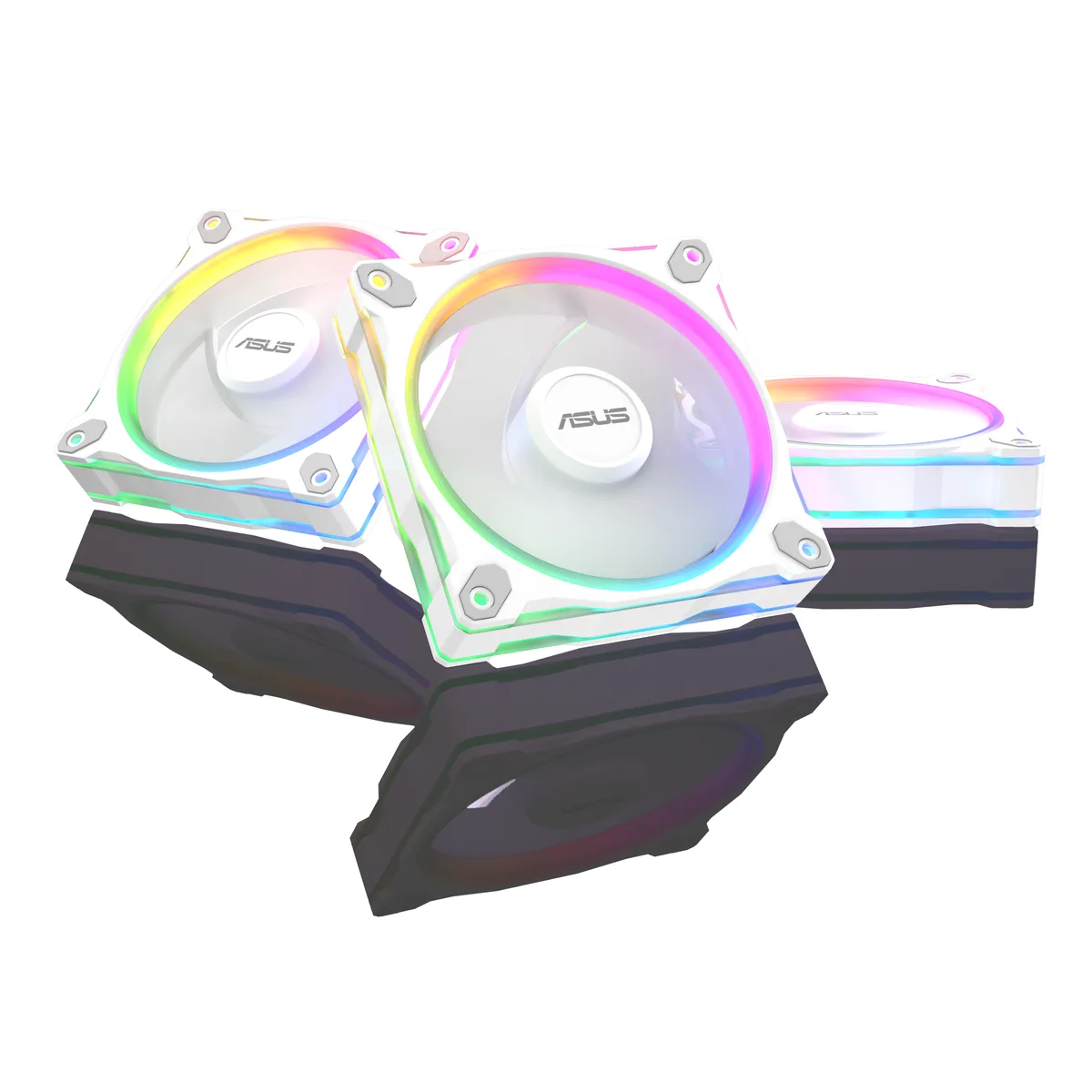

Three white 120mm ARGB case fans with thick 28mm frames and dual-sided lighting

ASUS

ASUS Prime 90DA00L3-B08020 120mm ARGB case fan triple pack 28mm white

SKU CH-BM0T-C7WFC MPN PRIME MR120 FAN ARGB REVERSE WHITE 3IN1

Triple pack of 120 mm case fans with 28 mm thick frames, 20 addressable RGB LEDs per fan, PWM control up to 1600 RPM, 55-60 CFM airflow and 23 dBA noise

  • Fan Counts3 Fans
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size120mm
  • Fan Thickness28mm
  • Extra-thick 28mm frame boosts airflow to 55-60 CFM
  • Quiet sleeve bearing keeps noise at 23 dBA at 1600 RPM
  • 20 addressable RGB LEDs per fan light both frame sides
  • Aura Sync ties lighting effects across compatible hardware
  • Triple white pack with 4-pin PWM gives flexible speed control

Extra-thick 28 mm frame

Three 120 mm fans with a 28 mm deep frame deliver 55-60 CFM airflow and 1.38 mmAq static pressure. Each unit spins up to 1600 RPM while producing 23 dBA noise. The sleeve bearing design keeps operation smooth at this thickness.

20 addressable RGB LEDs per fan

Twenty LEDs arranged in a circular pattern light both sides of the frame for dual-sided illumination. Aura Sync compatibility lets the lighting coordinate with other Aura-capable hardware. No separate fan controller is included in the pack.

PWM 4-pin headers and case clearance

Verify that your motherboard has enough 4-pin PWM headers for three fans or plan a splitter. Confirm the case can accommodate 28 mm thick fans at every intended mount point. The white and black colour scheme suits builds that want a coordinated look.

Highlights

  • Extra-thick 28mm frame boosts airflow to 55-60 CFM
  • Quiet sleeve bearing keeps noise at 23 dBA at 1600 RPM
  • 20 addressable RGB LEDs per fan light both frame sides
  • Aura Sync ties lighting effects across compatible hardware
  • Triple white pack with 4-pin PWM gives flexible speed control

Specifications

BrandASUS
SeriesPrime
Model90DA00L3-B08020
Fan Counts3 Fans
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCase
Fan Size120mm
Fan Thickness28mm
Bearing TypeSleeve Bearing
RPM1600 RPM
Air Flow55-60 CFM
Air Pressure1.38 mmAq
Noise Level23 dBA
Power Connector4-pin PWM
ColorBlack / White ARGB
LEDAddressable RGB
Sports Team3 Packs
Dimensions120 x 120 x 28 mm
Shipping weight0.68 kg
Package size171 × 123 × 95 mm

Questions about this item

Will the 28mm thick frame fit my case's 120mm mounting points?

The fans measure 120 x 120 x 28 mm, so they need cases with 120mm holes and at least 28mm clearance behind the mount.

How do I connect the 4-pin PWM and ARGB cables without a bundled controller?

Plug each fan's 4-pin PWM into a motherboard fan header and the 3-pin 5V ARGB into a 5V addressable RGB header; set control in BIOS or Aura Sync software.

When should I expect to replace the sleeve bearing fans?

Sleeve bearings typically last several years at 23 dBA; replace any fan that develops rattling, grinding or a drop below the 55-60 CFM airflow range.
