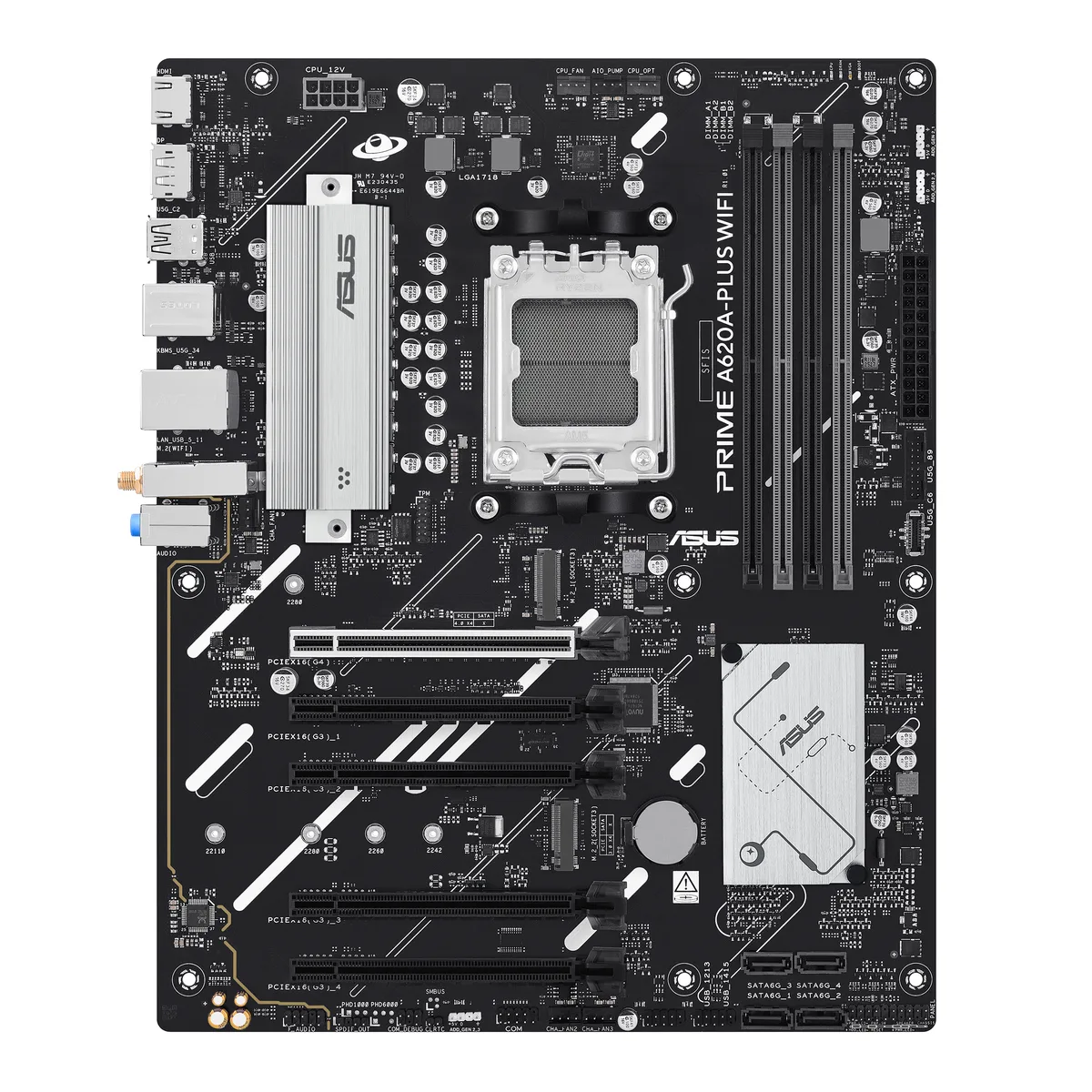

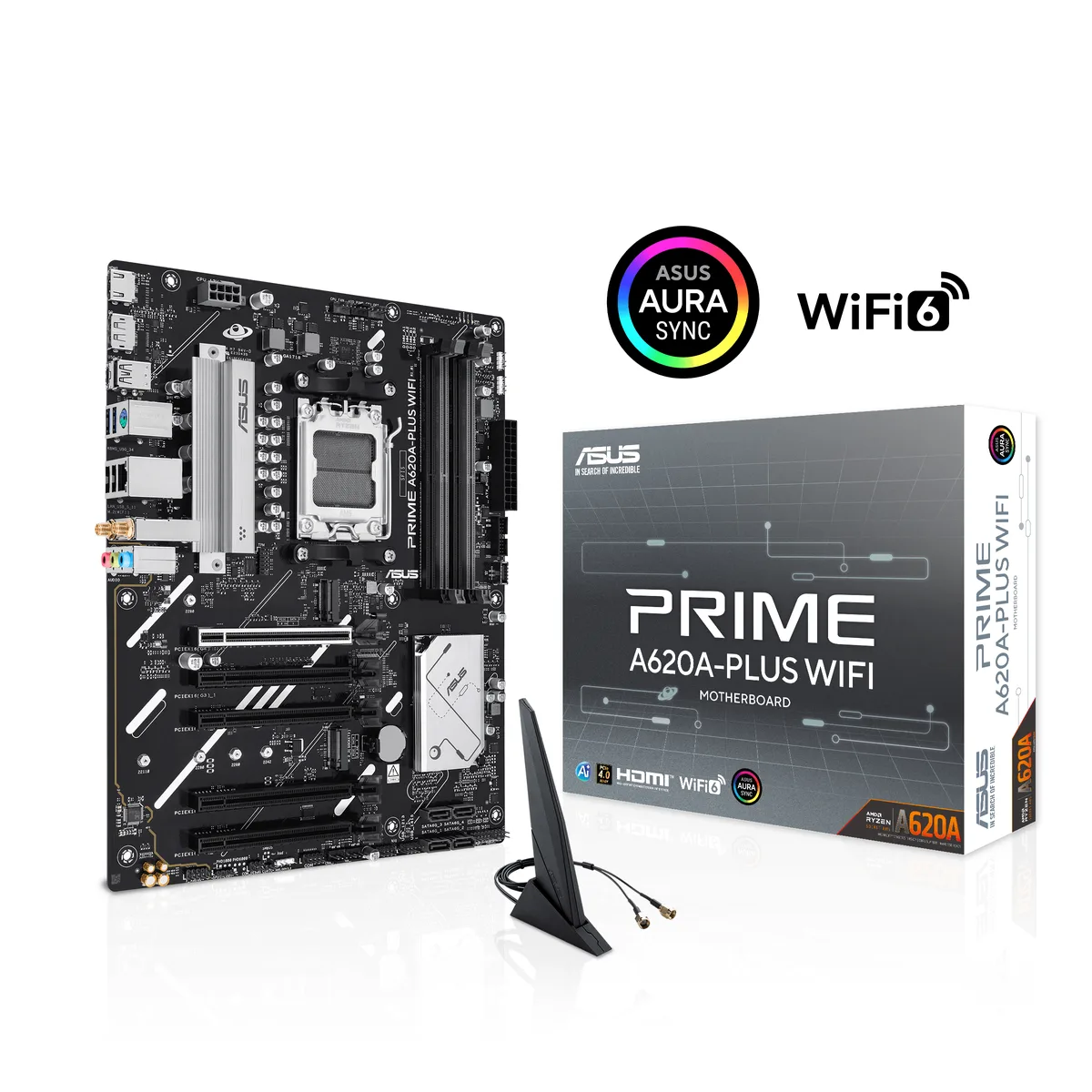

ATX motherboard in matte black with silver heatsinks, four DDR5 slots, two M.2 sockets, rear I/O shield showing HDMI, DisplayPort

ASUS

ASUS PRIME A620A-PLUS WIFI AMD motherboard

SKU CH-9QY0-94ZMJ MPN PRIME A620A-PLUS WIFI

An AM5 board for Ryzen 7000, 8000 and 9000 CPUs with DDR5 7600 support up to 256 GB, a PCIe 4.0 x16 slot, two M.2 sockets, Wi-Fi 6 and 1 Gb Ethernet

  • CPU Socket TypeAM5
  • CPU TypeRyzen 9000 Series, Ryzen 8000 Series, Ryzen 7000 Series
  • ChipsetAMD A620A
  • South BridgeAMD A620A
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 7600
  • AM5 socket supports Ryzen 7000, 8000 and 9000 series processors
  • 8+2+1 digital power phases deliver stable energy to the CPU
  • Four DDR5 slots accept up to 256 GB at 7600 MT/s
  • Two M.2 slots plus four SATA 6 Gb/s ports provide flexible storage
  • Wi-Fi 6 and Realtek 1 Gb Ethernet give reliable wired and wireless networking

AM5 Platform Ready

The ASUS PRIME A620A-PLUS WIFI is an ATX motherboard built for AMD Ryzen 9000, 8000 and 7000 series processors using the AM5 socket. It targets builders who want a stable foundation for everyday computing and AI-ready workloads without overclocking headroom. The A620A chipset delivers essential features for home and office systems.

DDR5 256GB Dual Channel

Four 288-pin slots support up to 256 GB of DDR5 memory at 7600 MT/s via AMD EXPO or ASUS AEMP profiles. Dual-channel architecture feeds integrated graphics and productivity apps smoothly. Unbuffered ECC modules are accepted for data-integrity tasks. The board caps at 256 GB, so heavy virtualisation or workstation datasets will need a higher-tier chipset.

PCIe 4.0 x16 Plus Dual M.2

A single PCIe 4.0 x16 slot handles modern graphics cards, while three additional PCIe 3.0 x16 slots and four x1 slots provide legacy expansion. Two M.2 sockets accept PCIe 4.0 x4 or 3.0 x4 drives for fast OS and scratch storage. Four SATA 6 Gbps ports with RAID 0/1/5/10 round out drive options. Rear and front USB 5 Gbps Type-C, WiFi 6, 1 Gb Ethernet and 7.1 audio complete the I/O.

Highlights

  • AM5 socket supports Ryzen 7000, 8000 and 9000 series processors
  • 8+2+1 digital power phases deliver stable energy to the CPU
  • Four DDR5 slots accept up to 256 GB at 7600 MT/s
  • Two M.2 slots plus four SATA 6 Gb/s ports provide flexible storage
  • Wi-Fi 6 and Realtek 1 Gb Ethernet give reliable wired and wireless networking

Specifications

BrandASUS
SeriesPrime
CPU Socket TypeAM5
CPU TypeRyzen 9000 Series, Ryzen 8000 Series, Ryzen 7000 Series
ChipsetAMD A620A
South BridgeAMD A620A
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 7600
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / ASUS AEMP
ECC SupportedYes
Buffer SupportedUn-buffered
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express 3.0 x163 x PCI Express 3.0 x16
PCI Express x164 x PCI Express x16
PCI Express x14 x PCI Express x1
Serial ATA (SATA)4 x SATA 6Gb/s
M.22 x M.2 (Support PCIe 4.0 x4 & PCIe 3.0 x4)
SATA RAID0/1/5/10
Onboard Video ChipsetDepends on AMD Ryzen Processor Integrated Graphics
Audio ChipsetRealtek 7.1 Surround Sound High Definition Audio CODEC
Audio Channels7.1 Channels
LAN ChipsetRealtek 1Gb
Max LAN Speed1Gbps
Wireless LANWiFi IEEE 802.11 a / b / g / n / ac / ax
BluetoothYes
PS/21 x PS/2 keyboard/mouse port
COM1
Video PortsDisplay Port + HDMI
S-VideoNo
HDMI1 x HDMI port
RJ451 x RJ45
DisplayPort1 x DisplayPort
USB 3.17 x USB 3.1
USB 3.07 x USB 3.0
USB 1.1/2.06 x USB 3.0 + 7 x USB 2.0
USB Type-C2 x USB Type-C® port, with USB 5Gbps support
S/PDIF OutYes
Audio Ports3 Ports
Onboard USB1 x USB Type-C® header, with USB 5Gbps + 1 x USB 5Gbps header + 2 x USB 2.0 headers
Form FactorATX
LED LightingRGB
Dimensions (W x L)12" x 9.6"
Power Pin24 Pin
Windows 11Supported
Shipping weight1.36 kg
Package size342 × 273 × 69 mm

Questions about this item

Can I keep my existing Ryzen 7000 series processor when upgrading to this AM5 motherboard?

Yes, the board supports Ryzen 7000, 8000 and 9000 series CPUs on the AM5 socket.

How can I verify the 8+2+1 power-stage VRM and WiFi 6 are functioning after the first boot?

Enter the BIOS to confirm the VRM phase count and check Device Manager for a Wi-Fi 6 (802.11ax) adapter with active connection.

Which cables and modules are included and what must I source separately for a complete build?

The box contains the motherboard, I/O shield, SATA cables, Wi-Fi antennas and documentation; you must buy DDR5 memory, CPU, cooler, storage drives and power supply separately.
