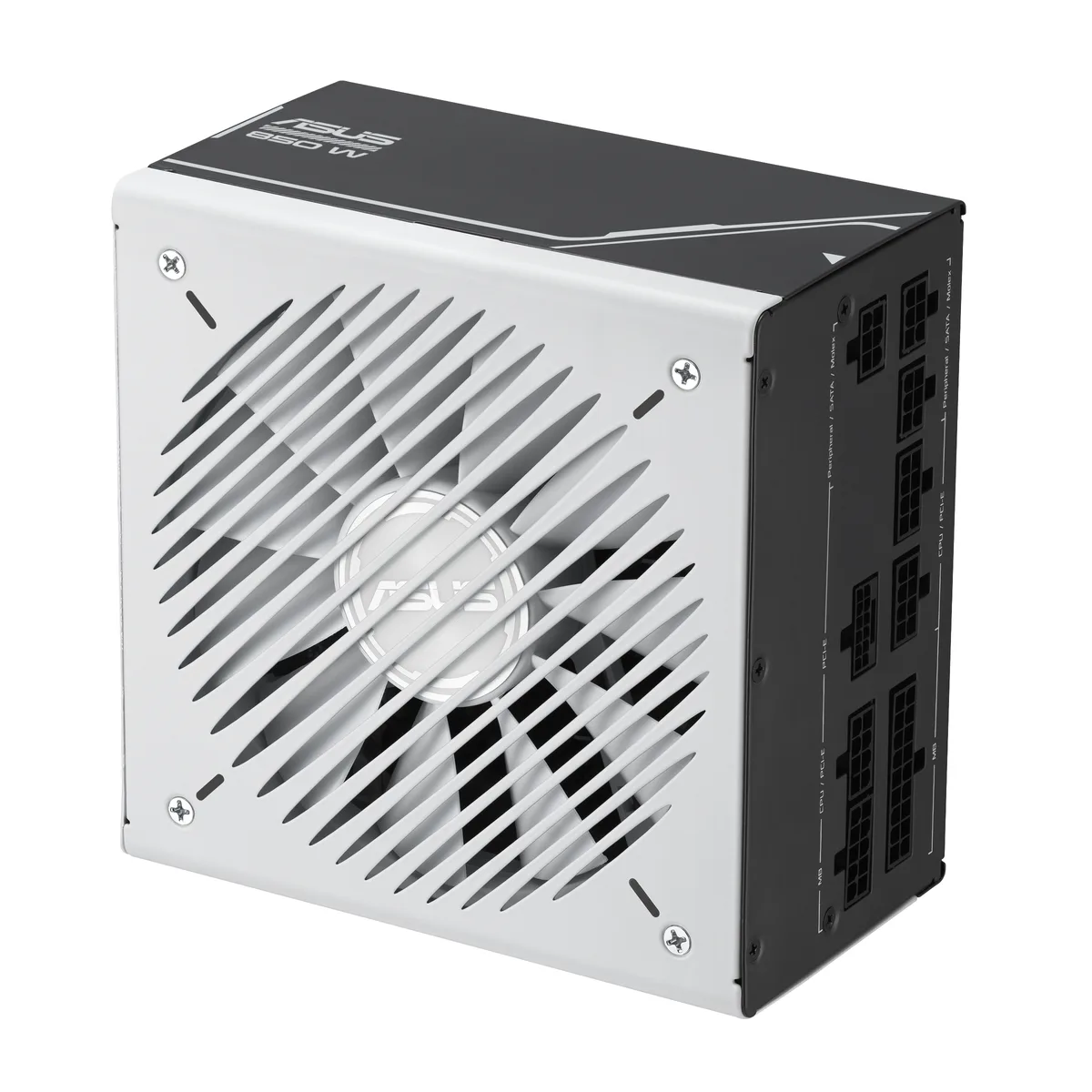

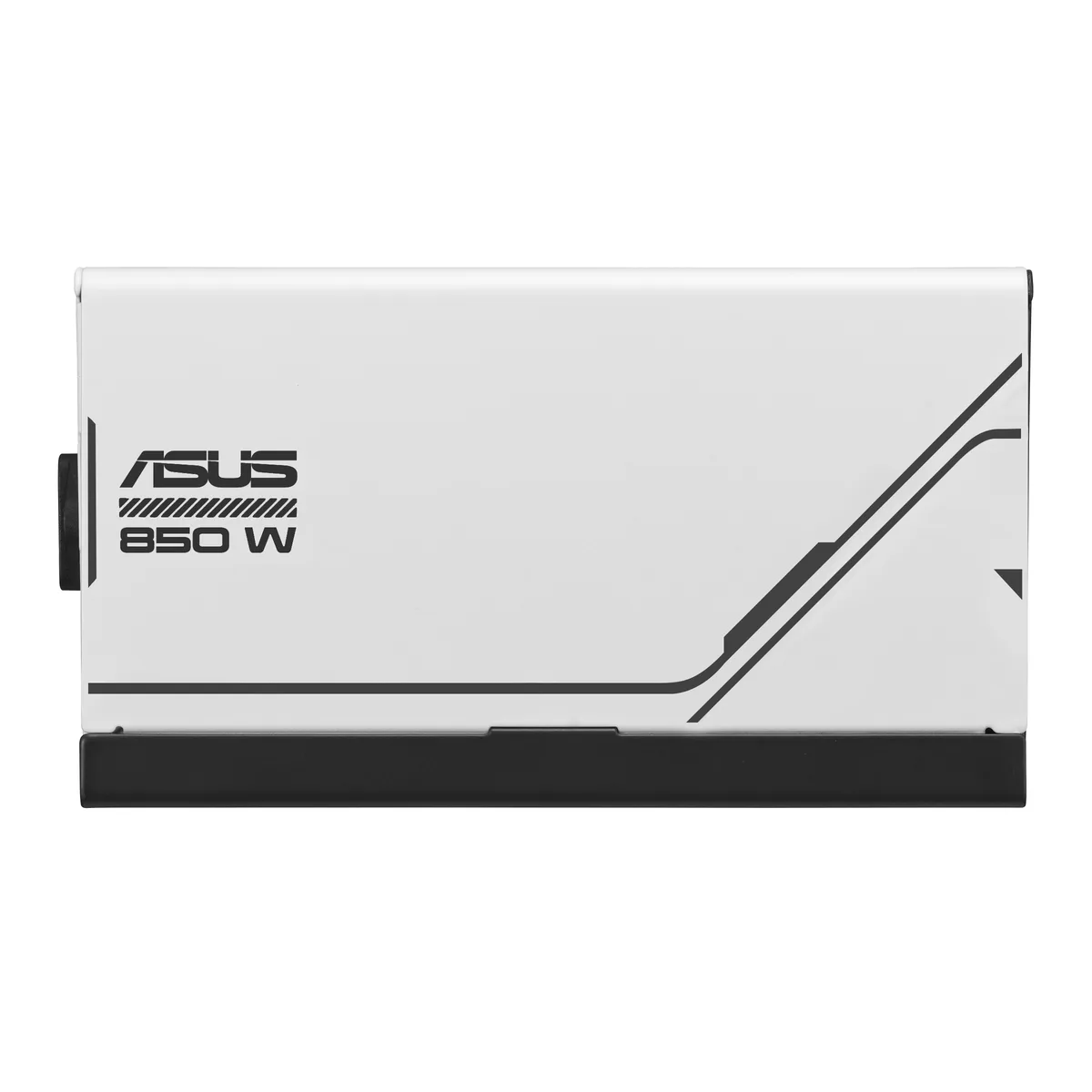

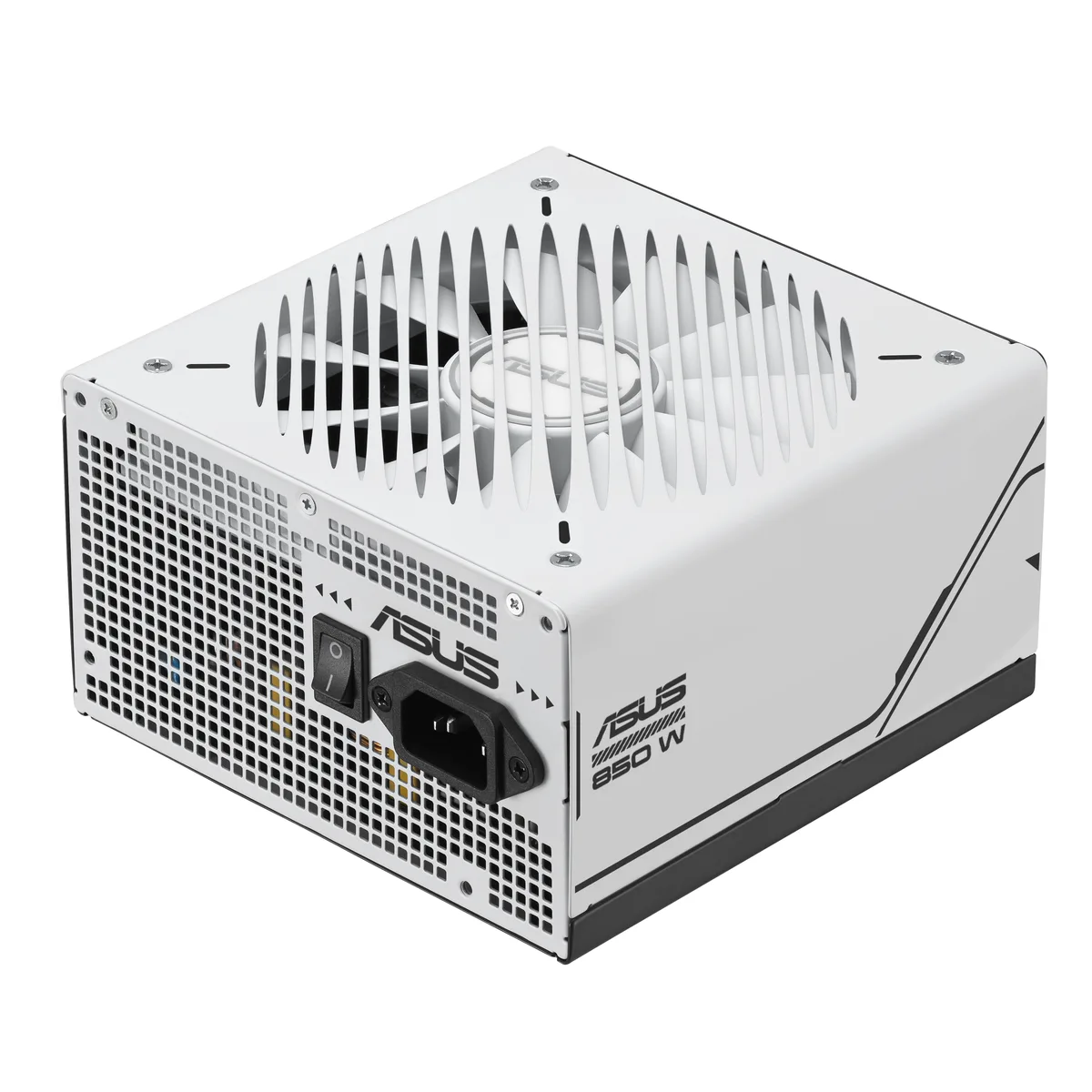

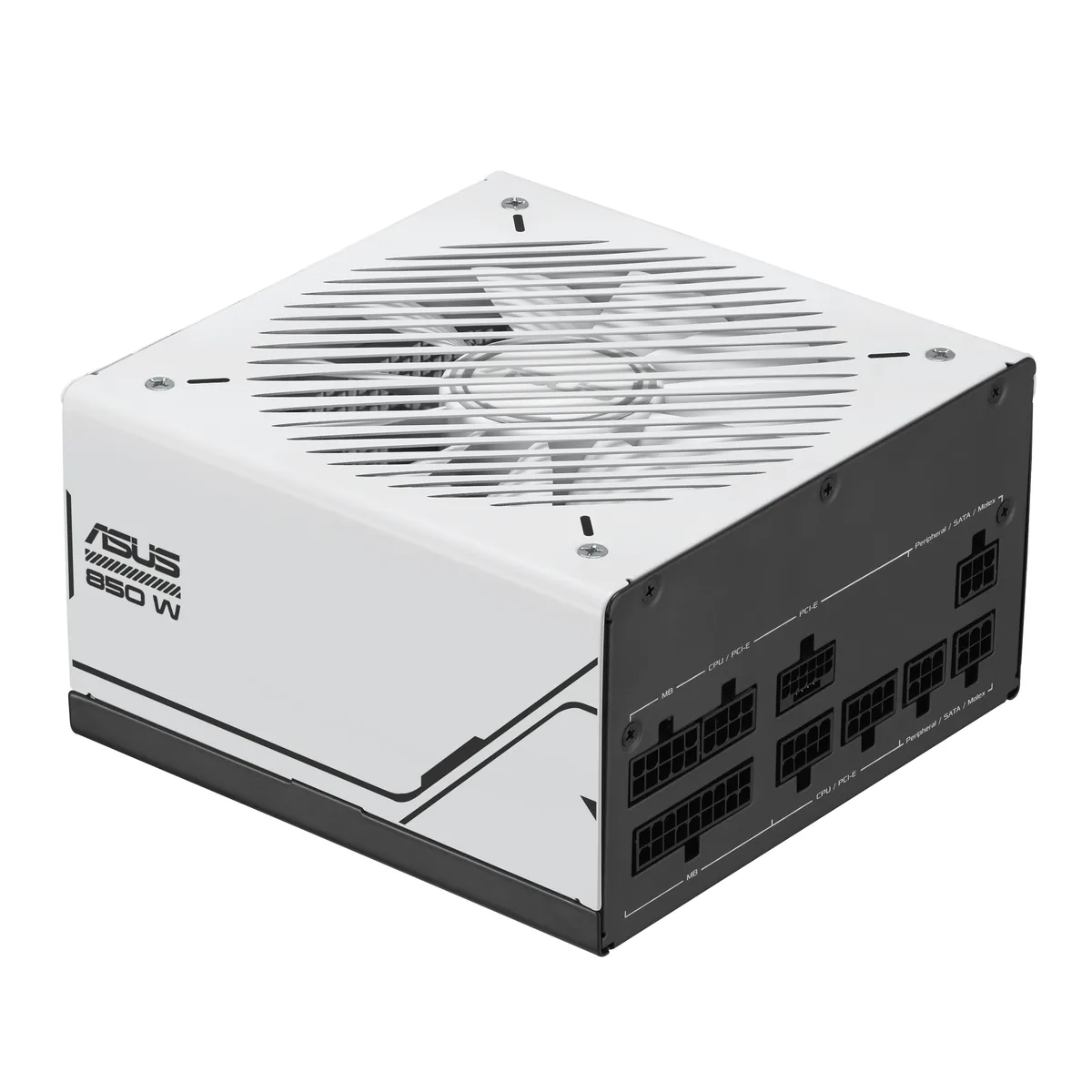

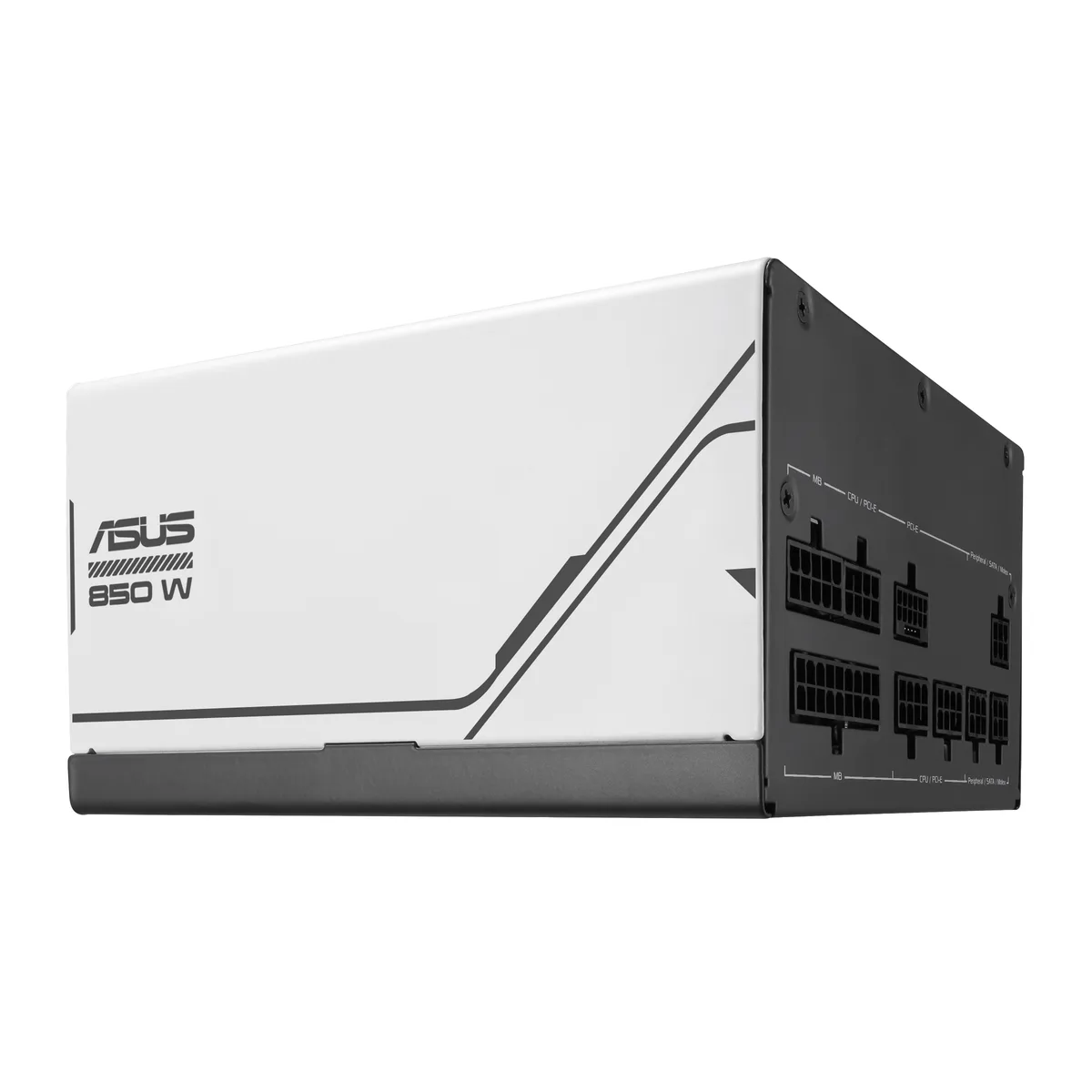

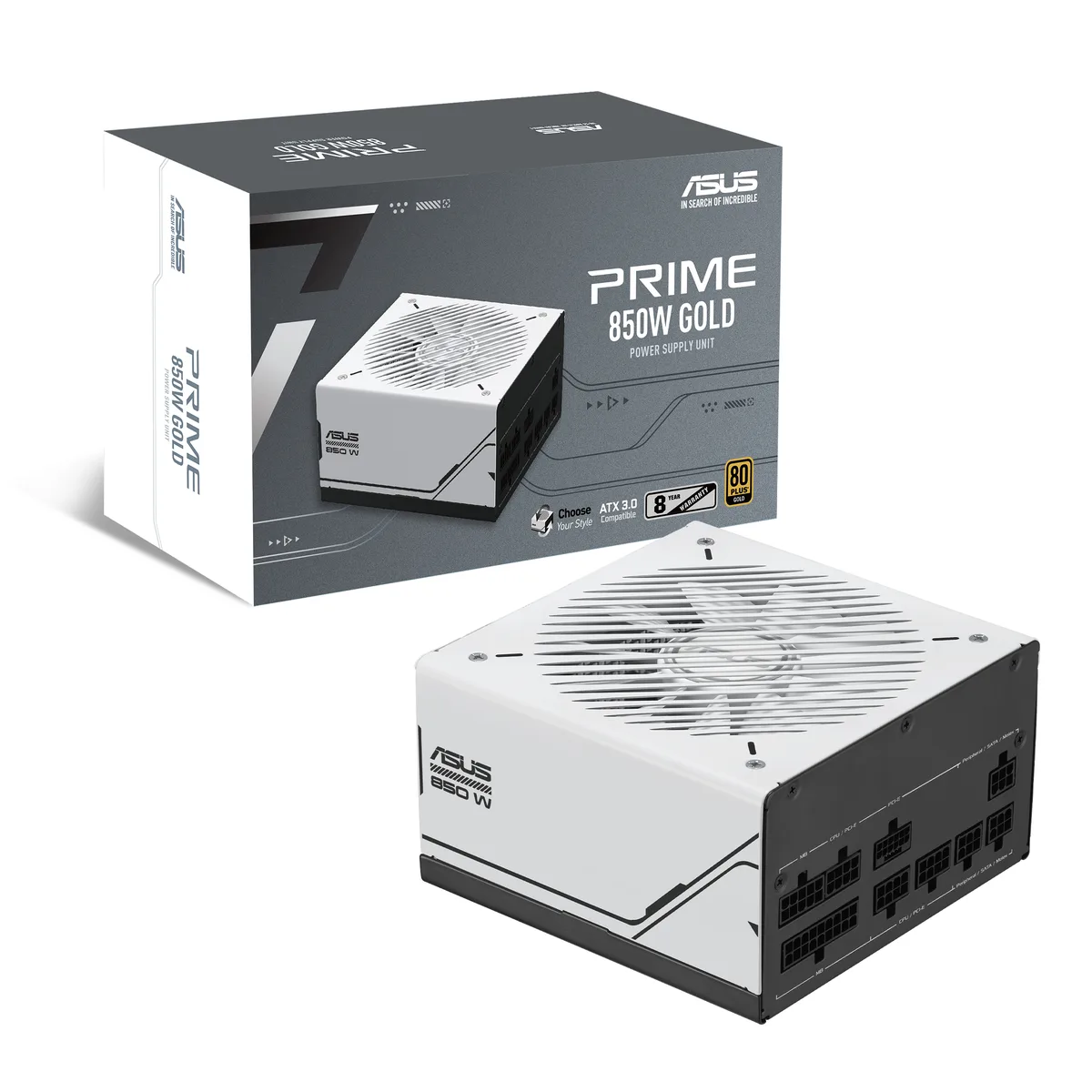

Rectangular black ATX power supply with 135 mm fan and modular cable sockets

ASUS

ASUS Prime AP-850G 850W ATX 3.0 fully modular power supply

SKU CH-VBXW-PTFAG MPN AP-850G

Fully modular 850 W ATX 3.0 power supply with 80 Plus Gold efficiency, 135 mm fan, 16-pin PCIe Gen 5 cable and dual ball bearings

  • TypeATX12V
  • Maximum Power850 W
  • Fans1 x 135 mm
  • Max PSU Length150 mm
  • ModularFull Modular
  • Energy-Efficient80 PLUS GOLD Certified

Options 850W

  • Delivers 850 W for demanding builds
  • 80 Plus Gold certification ensures high efficiency
  • ATX 3.0 compliant with 16-pin PCIe Gen 5 cable
  • Fully modular design keeps cabling tidy
  • Dual ball-bearing fan offers extended lifespan

ATX 3.0 power delivery

This fully modular ATX 3.0 power supply provides 850 W of continuous output with 80 Plus Gold efficiency. It includes a native 16-pin PCIe Gen 5.0 cable for modern graphics cards and uses dual ball-bearing fan technology for extended lifespan. The compact 150 mm depth fits most standard cases.

Suited for single-GPU builds.

Builders assembling a system with one high-end GPU and a modern CPU will find the two CPU 4+4-pin connectors and single 16-pin connector convenient. Systems that require two or more 16-pin connections, or more than three 8-pin PCIe cables, should look at a higher-wattage unit with additional native connectors.

Native 16-pin PCIe Gen 5.0 connector included

The bundled 16-pin cable plugs directly into PCIe Gen 5.0 graphics cards without adapters, satisfying the ATX 3.0 power-excursion requirements. If your graphics card uses only traditional 8-pin inputs, the package also supplies a 16-pin-to-dual-8-pin cable and a separate 1-to-1 8-pin cable.

Highlights

  • Delivers 850 W for demanding builds
  • 80 Plus Gold certification ensures high efficiency
  • ATX 3.0 compliant with 16-pin PCIe Gen 5 cable
  • Fully modular design keeps cabling tidy
  • Dual ball-bearing fan offers extended lifespan

Specifications

BrandASUS
ModelAP-850G
TypeATX12V
Maximum Power850 W
Fans1 x 135 mm
Max PSU Length150 mm
ModularFull Modular
Energy-Efficient80 PLUS GOLD Certified
ProtectionOPP/OVP/UVP/SCP/OCP/OTP
Input Voltage100 - 240 V
Output+3.3V@20A, +5V@20A, [email protected] , [email protected] , [email protected]
ConnectorsMB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & connector side)
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 3
Dimensions150 x 150 x 86 mm
Weight1.502 kg (single PSU)
Package ContentPower Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 1 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-3 Cable x 1 (400+150+150mm)
User Manual x 1
Shipping weight3.02 kg
Package size305 × 216 × 142 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much power does the 850 W rating actually deliver to the components in my build?

The unit provides up to 850 W total, with 20 A on the 3.3 V rail, 20 A on the 5 V rail and 0.3 A on the 5 VSB rail.

What does the ATX 3.0 label mean for the 16-pin connector in daily use?

The PSU follows ATX 3.0 guidelines and includes a 16-pin PCIe cable ready for PCIe 5.0 graphics cards.

Will the 150 mm length and 86 mm height fit my mid-tower case?

The PSU measures 150 mm long, 150 mm wide and 86 mm high, matching standard ATX dimensions.
