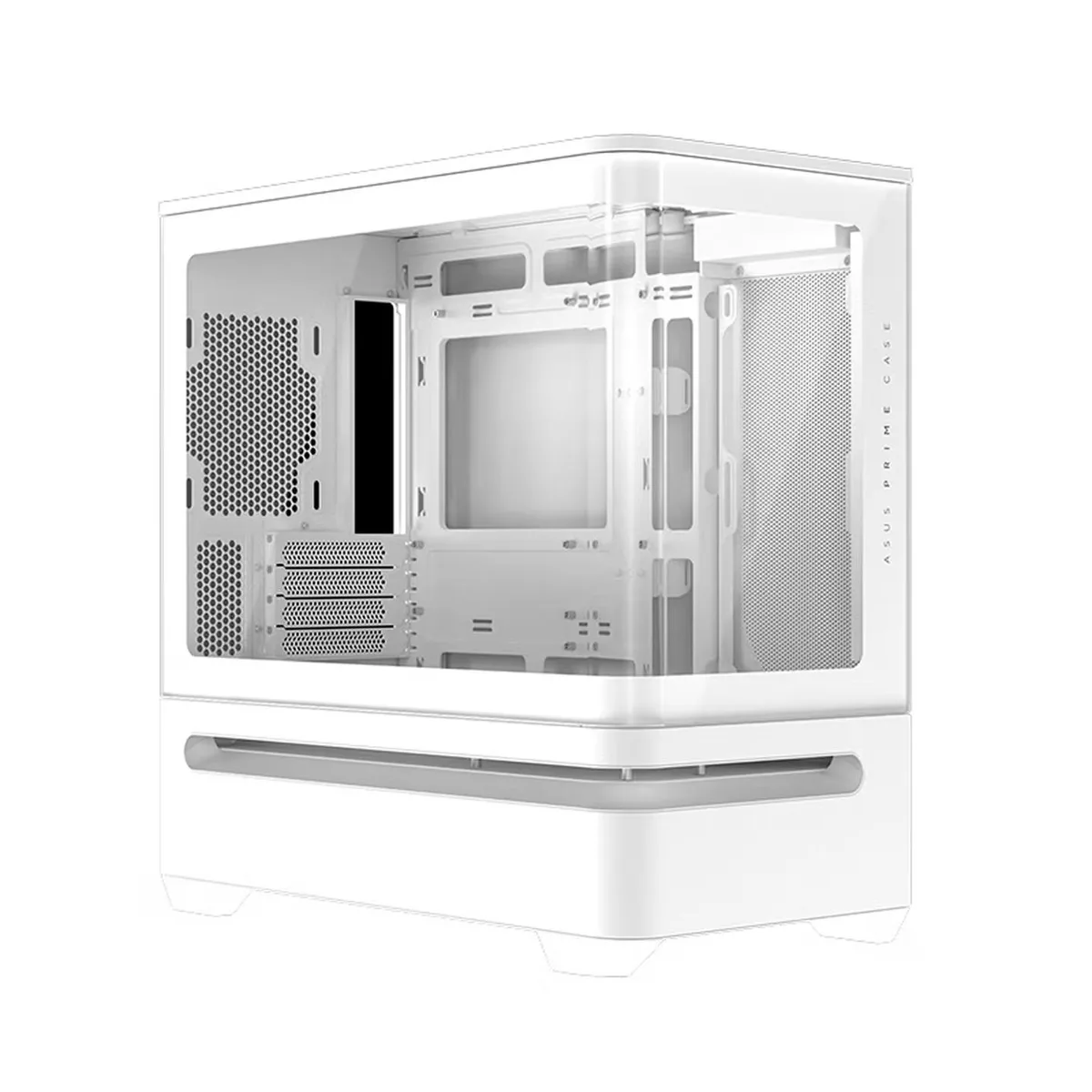

White mid-tower PC case with curved tempered glass side panel and floating bottom design

ASUS

ASUS PRIME AP202 Ocean View PC case, white

SKU CH-DDNS-P4P5S

A white steel-and-tempered-glass chassis for Micro-ATX or Mini-ITX builds, offering a 420 mm GPU limit, 175 mm cooler height, top 360 mm radiator support and a front USB 3.2 Gen 2×2 Type-C port

  • Motherboard CompatibilityMicro-ATX Mini-ITX
  • ColorWhite
  • Case MaterialSteel, Plastic, Tempered Glass
  • With Power SupplyNo
  • Front Ports1 x Headphones / Microphone 2 x USB 3.2 Gen 2x2 Type-C 4 x U
  • Supports Micro-ATX and Mini-ITX builds for compact systems
  • Patented floating bottom design improves internal airflow and cable routing
  • Shatter-resistant curved tempered glass panel shows components clearly
  • Front USB 3.2 Gen 2×2 Type-C port delivers 20 Gbps bandwidth
  • Top and bottom dust filters keep the interior clean

Compact white chassis for Micro-ATX builds

The ASUS PRIME AP202 Ocean View is a white steel and tempered glass case that accepts Micro-ATX and Mini-ITX motherboards. It provides four PCIe slots and a maximum graphics card length of 420 mm. Two 3.5/2.5 drive bays are included for storage. The design suits builders who want a compact tower with a curved glass panel.

Thermal layout with top and side mounting

The case supports liquid cooling radiators up to 360 mm at the top and fan arrays of 2×140 mm or 3×120 mm in the same position. Side mounts accept 2×120 mm fans while rear and bottom locations each take 120 mm units. A CPU cooler height limit of 175 mm and a power supply length limit of 200 mm define the component envelope. Dust filters cover the top and bottom intakes.

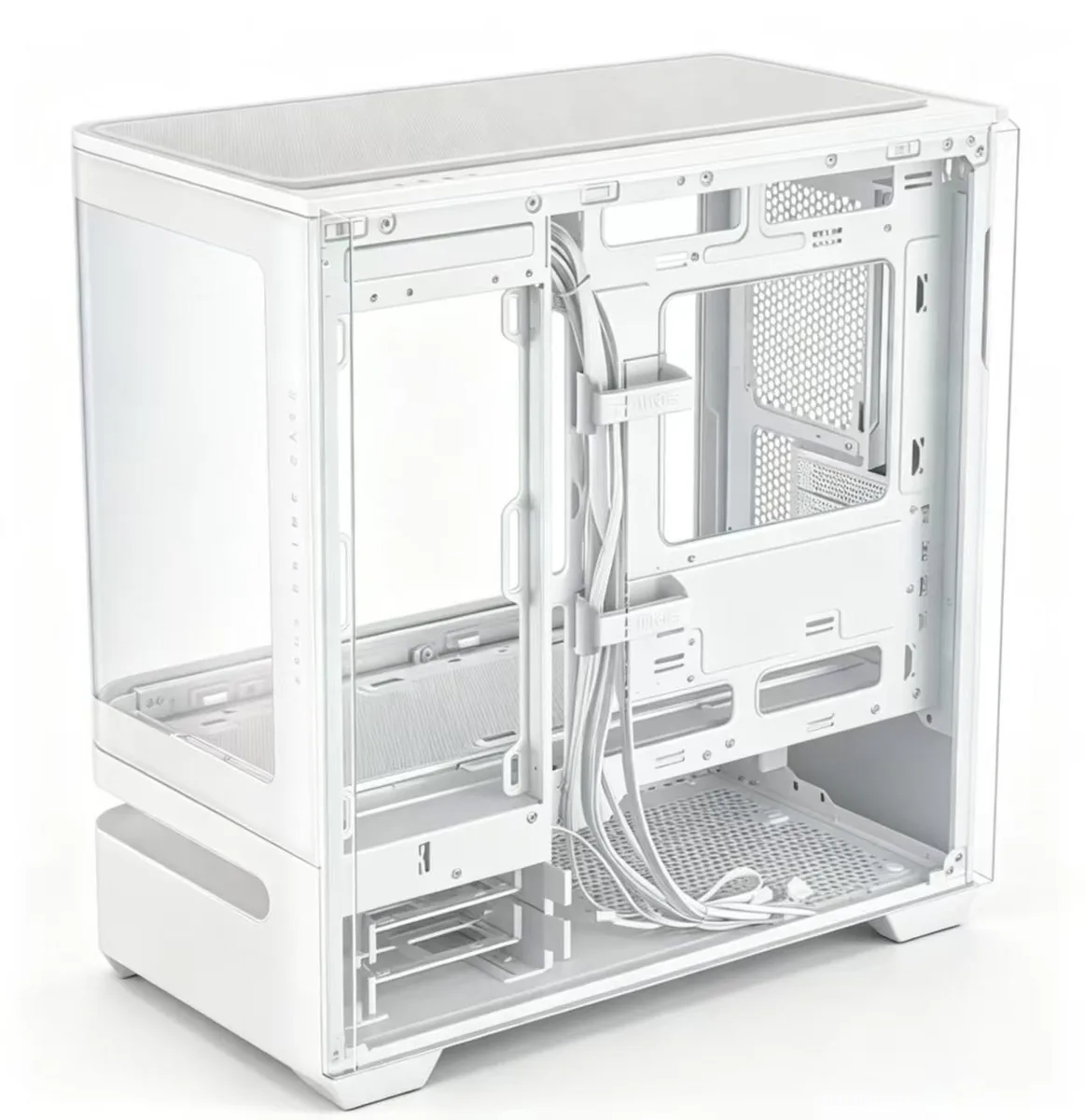

Floating bottom design and front I/O

A patented floating bottom creates a separate chamber that isolates the power supply and cables from the main compartment. The rear cable management space measures 30 mm for tidy routing. Front panel I/O includes one USB 3.2 Gen 2×2 Type-C port, two USB 3.0 ports and a combined headphone and microphone jack. No power supply is bundled.

Highlights

  • Supports Micro-ATX and Mini-ITX builds for compact systems
  • Patented floating bottom design improves internal airflow and cable routing
  • Shatter-resistant curved tempered glass panel shows components clearly
  • Front USB 3.2 Gen 2×2 Type-C port delivers 20 Gbps bandwidth
  • Top and bottom dust filters keep the interior clean

Specifications

Motherboard CompatibilityMicro-ATX
Mini-ITX
ColorWhite
Case MaterialSteel, Plastic, Tempered Glass
With Power SupplyNo
Front Ports1 x Headphones / Microphone
2 x USB 3.2 Gen 2x2 Type-C
4 x USB 3.2 Gen 1
BrandASUS

Questions about this item

How do I install the motherboard with the floating bottom design and where is the 30 mm cable routing space?

Mount the motherboard on the standard standoffs first; the patented floating bottom panel sits underneath and is secured separately. Route cables behind the motherboard tray through the cut-outs, keeping them within the 30 mm depth allowance so the side glass panel closes flush.

What maintenance will the dust filters and RGB light strip need later?

Slide the magnetic top and bottom dust filters out for regular cleaning with compressed air or a soft brush. The built-in RGB strip connects to a standard 5 V addressable header; if the LEDs degrade, the strip can be unplugged and replaced without removing the motherboard.

What thermal limit appears first when running a 420 mm GPU and 360 mm top radiator under sustained load?

The 175 mm CPU cooler height clearance becomes the limiting factor; a thick 360 mm radiator plus fans on top can reduce space for the cooler, so verify combined thickness stays within 175 mm to avoid throttling.
