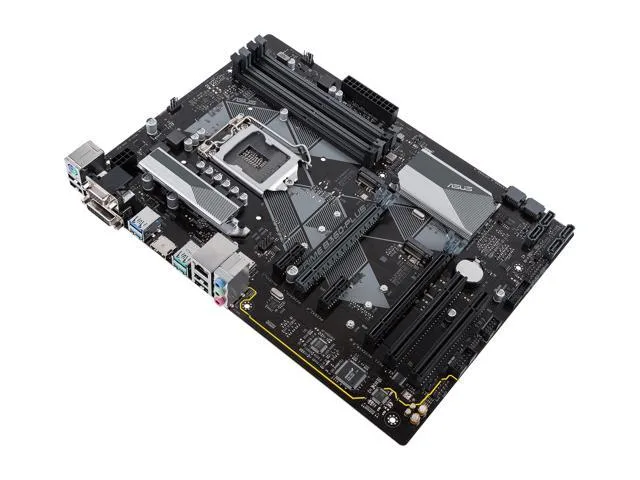

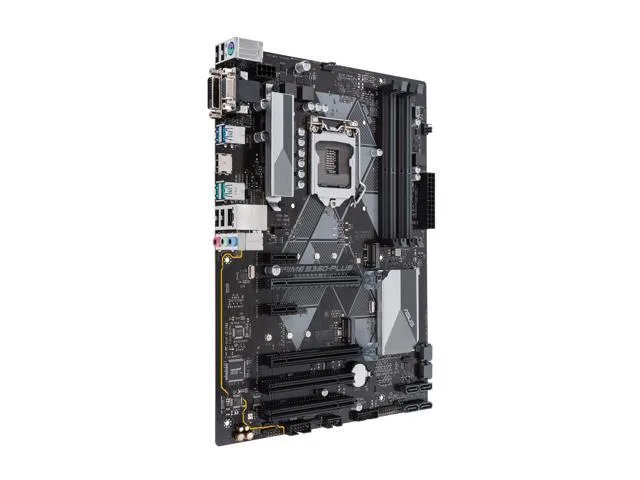

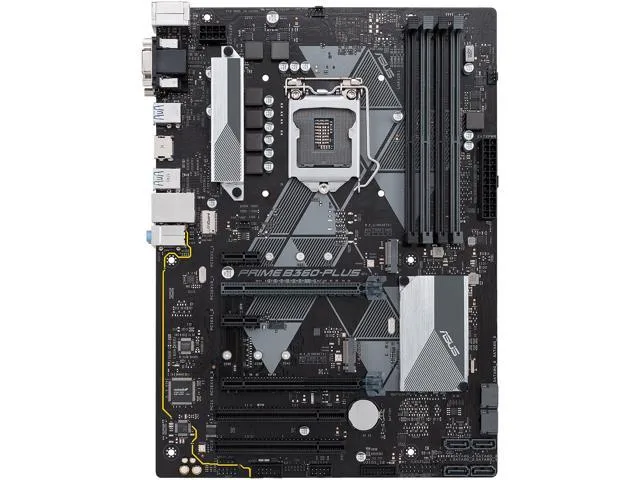

ATX motherboard, dark PCB, silver heatsinks, four DDR4 slots, dual M.2, HDMI DVI VGA, six SATA ports, LGA1151 socket

ASUS

ASUS PRIME B360-PLUS LGA1151 (300 Series) Intel motherboard

SKU CH-7006-NJCJB

ATX board for 8th gen Intel CPUs with dual M.2 slots, USB 3.1 Gen2, 5X Protection III and 64 GB DDR4 support

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeLGA1151 socket for 8th Generation Intel Core i7/ i5/ i3, Pen
  • Supported CPU TechnologiesTurbo Boost Technology 2.0* The Intel Turbo Boost Technology
  • ChipsetIntel B360
  • Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics supportMul
  • Number of Memory Slots4x288pin (DDR4)
  • Supports 8th Gen Intel Core processors via LGA 1151 socket
  • Dual M.2 slots accept 2242, 2260, 2280 drives with SATA or PCIe x2/x4 modes
  • Intel Optane Memory ready for faster system responsiveness
  • Four DDR4 slots up to 64 GB in dual-channel configuration
  • 5X Protection III hardware safeguards plus FanXpert 2+ dynamic cooling control

8th Gen Intel Foundation

The ASUS PRIME B360-PLUS is an ATX motherboard built for 8th Generation Intel Core i7, i5, i3, Pentium and Celeron processors using the LGA 1151 (300 Series) socket. It is not backward compatible with older LGA 1151 CPUs. The Intel B360 chipset provides a stable platform for mainstream desktop builds.

DDR4 2666 Dual Channel Limit

Four 288-pin DDR4 slots support up to 64 GB in dual channel mode at 2666, 2400 or 2133 MT/s. Memory speed depends on the installed processor; 2666 MT/s is only reached with 8th Gen 6-core or higher CPUs. A single M.2 Socket 3 M Key accepts 2242, 2260 and 2280 drives in SATA or PCIe x2 and x4 modes, with bandwidth shared when a SATA device is used.

Standard ATX Install Routine

The board fits standard ATX mounting points and uses a 24-pin ATX plus 8-pin EPS power layout. One full-size PCIe 3.0 x16 slot runs at x16, a second runs at up to x4 and shares bandwidth with the two x1 slots. Two legacy PCI slots remain for older add-in cards. Six SATA 6.0 Gb/s ports and front-panel USB 3.1 Gen 2 headers complete the I/O.

Highlights

  • Supports 8th Gen Intel Core processors via LGA 1151 socket
  • Dual M.2 slots accept 2242, 2260, 2280 drives with SATA or PCIe x2/x4 modes
  • Intel Optane Memory ready for faster system responsiveness
  • Four DDR4 slots up to 64 GB in dual-channel configuration
  • 5X Protection III hardware safeguards plus FanXpert 2+ dynamic cooling control

Specifications

BrandASUS
ModelPRIME B360-PLUS
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeLGA1151 socket for 8th Generation Intel Core i7/ i5/ i3, Pentium and Celeron processors* Not backward compatible with older generation of LGA 1151 CPUs** Refer to www.asus.com for Intel CPU support list
Supported CPU TechnologiesTurbo Boost Technology 2.0* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
ChipsetIntel B360
Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics supportMulti-VGA output support: HDMI/DVI-D/D-sub port- Supports HDMI 1.4b with max. resolution 4096 x 2160@24Hz / 2560 x 1600@60Hz- Supports DVI-D with max. resolution of 1920 x 1200 @60Hz- Supports D-sub with max. resolution 1920 x 1200@60HzSupports Intel InTru 3D / Quick Sync Video / Clear Video HD Technology / InsiderSupports up to 3 displays simultaneouslyMaximum shared memory of 1024MB (for iGPU exclusively)
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 2666/ 2400/ 2133* The maximum memory frequency supported varies by processor.** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel 8th Gen. 6-core or higher processors.*** Refer to www.asus.com for the latest Memory QVL (Qualified Vendors List).
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0/2.0 x16 slot (at x 16 mode)1 x PCI Express 3.0/2.0 x16 slot (max. at x4 mode, compatible with PCIe x1, x2 and x4 devices)** The PCIe x1_1, PCIe x1_2 slots share bandwidth with PCIe x16_2. The PCIe x16_2 slot runs at x2 mode as default. Please check BIOS for more configuration.
PCI Express x12 x PCI Express 3.0/2.0 x1 slots
PCI Slots2 x PCI Slots
Serial ATA (SATA)6 x SATA 6.0Gb/s ports (gray)
M.21 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X2 PCIE mode)*1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (X4 PCIE mode)* When a device in SATA mode is installed on the M.2_1 socket, SATA_2 port cannot be used.
Intel Optane ReadyYes
Audio ChipsetRealtek ALC887
Audio Channels8 Channels* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
LAN ChipsetRealtek 8111H
Max LAN Speed1Gbps
PS/21 x PS/2 keyboard/mouse port
Video Ports1 x DVI-D port1 x D-sub port
HDMI1 x HDMI
RJ451 x RJ45
USB 3.12 x USB 3.1 Gen 2 (up to 10Gbps) Type A (teal blue)2 x USB 3.1 Gen 1 (up to 5Gbps) Type A (blue)
USB 1.1/2.04 x USB 2.0
Audio Ports3-Jack 8-Channel Audio I/O ports
Onboard USB1 x USB 3.1 Gen 1 (up to 5Gbps) connectors support additional 2 USB ports (19-pin)1 x USB 2.0 connectors support additional 2 USB ports
Other Connectors1 x 4-pin CPU Fan connector (PWM mode)2 x 4-pin Chassis Fan connectors for 3-pin (DC mode) and 4-pin (PWM mode) coolers control1 x Front panel audio connector (AAFP)1 x System panel connector1 x S/PDIF out header1 x COM Header1 x Clear CMOS jumper
Form FactorATX
Dimensions (W x L)12.0" x 8.7"
Power Pin1 x 24-pin EATX Power connector1 x 8-pin EATX 12V Power connector
FeaturesMulti-GPU Support:Supports AMD CrossFireX TechnologyASUS Special Features:ASUS 5X PROTECTION III:- ASUS SafeSlot Core: Fortified PCIe with solid soldering- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!- ASUS Overvoltage Protection: World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!- ASUS DIGI+ VRM: 6 Phase digital power designSuperb Performance:ASUS OptiMem- Improved DDR4 stabilityM.2 onboard- The latest transfer technologies with up to 32Gb/s data transfer spee
Package ContentsAccessories- 2 x SATA 6Gb/s cables- 1 x I/O Shield- 2 x M.2 screws- 1 x Support DVD- 1 x User's manual

Questions about this item

Will this board accept a 7th-generation Intel Core i5?

The socket is LGA 1151 300 Series, which is keyed for 8th-generation Intel Core i7, i5, i3, Pentium and Celeron processors only. Earlier LGA 1151 CPUs are not electrically compatible.

What DDR4 speeds can I run with an 8th-generation 6-core processor?

The board supports DDR4 2666, 2400 and 2133. With an 8th-generation 6-core or higher CPU, modules rated above 2666 will operate at 2666.

Can I install two M.2 drives at the same time?

The specifications list one M.2 Socket 3 with M Key supporting 2242, 2260 and 2280 devices in SATA or PCIe x2 mode, plus a second M.2 Socket 3 with M Key for 2242, 2260 and 2280 devices in PCIe x4 mode.
