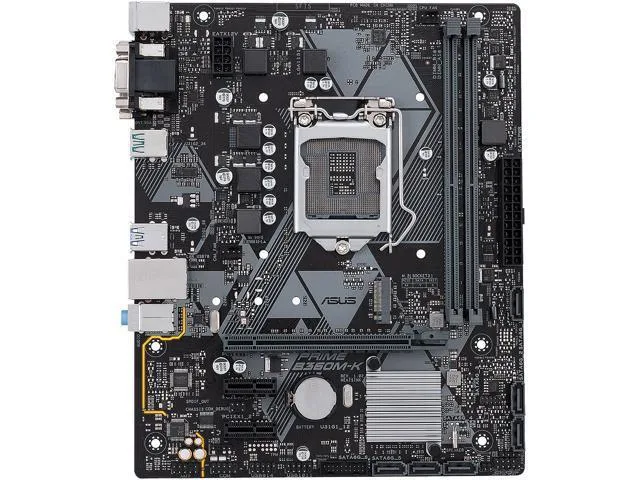

ASUS PRIME B360M-K micro ATX motherboard, black PCB with silver heatsinks and rear I/O shield

ASUS

ASUS PRIME B360M-K Intel Motherboard

SKU CH-EAV9-XC3MH

A micro-ATX board for 8th-generation Intel Core CPUs on the B360 chipset with dual-channel DDR4 2666 support up to 32 GB, one M.2 slot, six SATA ports, Gigabit LAN and 8-channel audio

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeCore i7 / i5 / i3 (8th Gen, LGA1151)
  • Supported CPU TechnologiesTurbo Boost Technology 2.0
  • ChipsetIntel B360
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots2x288pin (DDR4)
  • Supports 8th Gen Intel Core i7, i5, i3 processors via LGA 1151 socket
  • Dual-channel DDR4 2666 memory up to 32 GB across two 288-pin slots
  • PCI Express 3.0 x16 slot plus two PCIe x1 slots for expansion cards
  • Six SATA 6Gb/s ports and one M.2 slot for storage devices
  • Realtek ALC887 8-channel audio and Realtek 8111H Gigabit LAN built in

Socket and generation

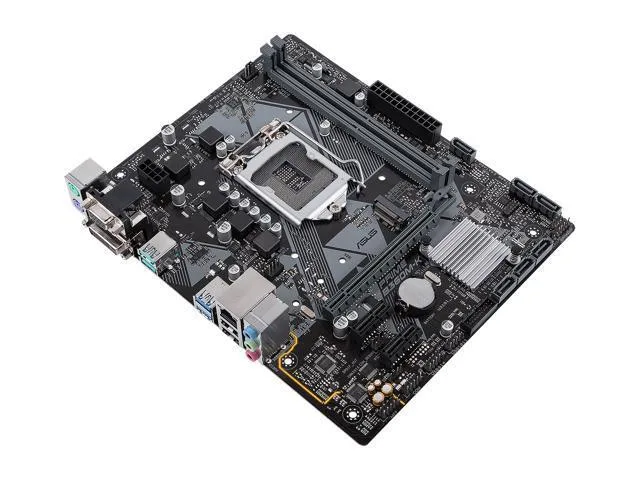

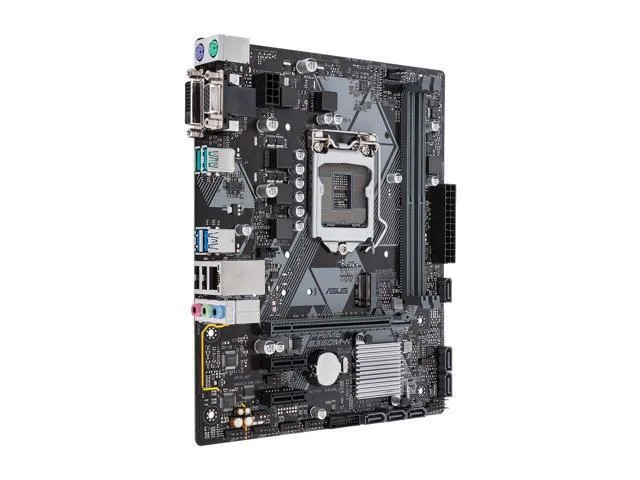

This micro-ATX motherboard uses the LGA 1151 (300 Series) socket and Intel B360 chipset for 8th generation Core i7, i5 and i3 processors. It supports Turbo Boost Technology 2.0 and provides a compact foundation for office or home builds.

Memory and storage headroom

Two 288-pin DDR4 slots run dual-channel up to 2666 and a maximum of 32GB, enough for mainstream multitasking but limiting for heavy content creation. Six SATA 6Gb/s ports and a single M.2 slot cover typical SSD and hard-drive arrays.

Bundled software and safeguards

FanXpert 2+ adds dynamic fan control through the UEFI, while 5X Protection III hardware safeguards aim to extend component life. ASUS OptiMem isolates memory traces for better signal integrity, and the Realtek ALC887 codec delivers 8-channel HD audio without extra cards.

Highlights

  • Supports 8th Gen Intel Core i7, i5, i3 processors via LGA 1151 socket
  • Dual-channel DDR4 2666 memory up to 32 GB across two 288-pin slots
  • PCI Express 3.0 x16 slot plus two PCIe x1 slots for expansion cards
  • Six SATA 6Gb/s ports and one M.2 slot for storage devices
  • Realtek ALC887 8-channel audio and Realtek 8111H Gigabit LAN built in

Specifications

BrandASUS
ModelPRIME B360M-K
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeCore i7 / i5 / i3 (8th Gen, LGA1151)
Supported CPU TechnologiesTurbo Boost Technology 2.0
ChipsetIntel B360
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots2x288pin (DDR4)
Memory StandardDDR4 2666
Maximum Memory Supported32GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x12 x PCI Express x1
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x M.2
Audio ChipsetRealtek ALC887
Audio Channels8 Channels
LAN ChipsetRealtek 8111H
Max LAN Speed1Gbps
PS/22
Video PortsD-Sub + DVI
RJ451 x RJ45
USB 3.14 x USB 3.1
USB 1.1/2.02 x USB 2.0
Audio Ports3 Ports
Onboard USB2 x USB 3.1 + 4 x USB 2.0
Other Connectors1 x 4-pin CPU Fan connector for 4-pin (PWM mode) coolers control1 x 4-pin Chassis Fan connectors for 3-pin (DC mode) and 4-pin (PWM mode) coolers control1 x Front Panel Audio connector (AAFP)1 x System panel connector1 x S/PDIF out header1 x Speaker header1 x Clear CMOS header1 x COM header
Form FactorMicro ATX
Dimensions (W x L)8.9" x 7.3"
Power Pin24 Pin
FeaturesASUS Special Features:ASUS 5X PROTECTION III:- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges- ASUS Overvoltage Protection: World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability- ASUS DIGI+ VRM: 5 Phase digital power designSuperb Performance:ASUS OptiMem- Improved DDR4 stabilityM.2 onboard- The latest transfer technologies with up to 32Gb/s data transfer speedsASUS EPU- EPUUEFI BIOS- Most advanced options with f
Package ContentsAccessories:- 2 x Serial ATA 6.0Gb/s cables- 1 x I/O Shield- 1 x M.2 Anchor- 1 x Support DVD- 1 x User's manual

Questions about this item

Will my existing DDR4 2666 memory modules fit the two 288-pin slots on this board?

Yes, the board has two 288-pin DDR4 slots that support DDR4 2666 modules in dual-channel mode up to 32GB total.

How can I confirm the Realtek 8111H LAN is running at 1Gbps after I build the system?

Check the network adapter status in Windows or the BIOS network section; it should report a 1Gbps link speed when connected to a gigabit switch or router.

Does the box include an M.2 screw and standoff, or do I need to buy them separately?

The motherboard ships with the M.2 mounting screw and standoff pre-installed or in the accessory bag, so no separate purchase is required for M.2 installation.
