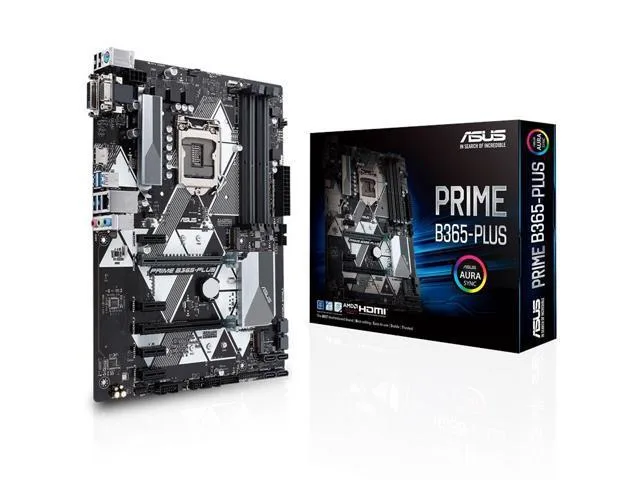

ATX motherboard dark PCB silver heatsinks four memory slots multiple PCIe slots M.2 sockets SATA ports rear I/O panel

ASUS

ASUS PRIME B365-PLUS Intel B365 ATX Motherboard

SKU CH-HE74-QDMX6

ATX board for LGA 1151 CPUs with four DDR4 slots up to 64 GB, dual M.2, six SATA ports and HDMI, DVI-D, D-Sub video outputs

  • Supports up to 64 GB DDR4 memory for heavy multitasking
  • Dual-channel DDR4 up to 2666 MHz keeps data flowing smoothly
  • Two M.2 slots with PCIe 3.0 x4 and x2 modes speed up storage
  • Six SATA 6 Gb/s ports plus RAID 0, 1, 5, 10 protect and expand data
  • HDMI 1.4b outputs 4096 x 2160 at 30 Hz for sharp 4K visuals

Socket 1151 9th/8th gen Intel board

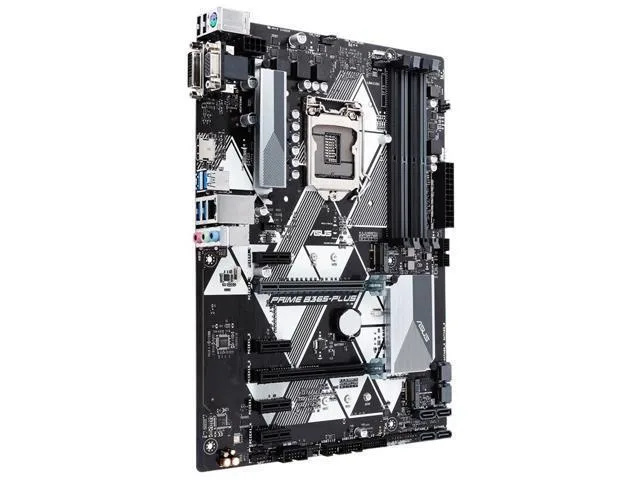

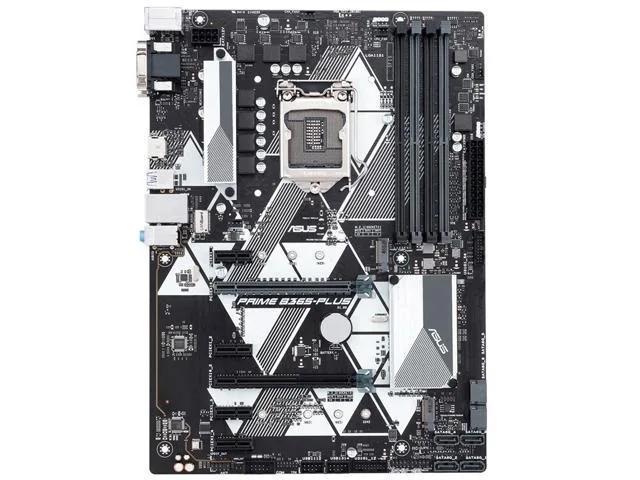

The ASUS PRIME B365-PLUS is an ATX motherboard built for Intel Socket 1151 processors from the 9th and 8th generation Core, Pentium Gold and Celeron lines. It targets builders who need a standard desktop platform with integrated graphics support and room for multiple expansion cards. The board delivers the essential connectivity for a general-purpose system without specialist overclocking features.

Dual M.2 slots with mixed modes

Storage flexibility hinges on two M.2 Socket 3 slots that accept 2242, 2260, 2280 and 22110 form-factor drives. One slot operates in SATA or PCIe 3.0 x2 mode, the other in PCIe 3.0 x4 mode, while six SATA 6Gb/s ports add traditional drive support. RAID 0, 1, 5 and 10 are available across the SATA array for redundancy or speed.

Straightforward ATX installation

Standard ATX mounting points and a conventional I/O shield make physical fitting routine for any builder familiar with desktop cases. The four DDR4 DIMM slots use ASUS OptiMem trace routing and equal-length T-design to ease high-frequency memory stability. The primary PCIe x16 slot runs at full x16 electrical width, while the second x16-sized slot is limited to x4, so dual-graphics plans must account for the reduced bandwidth on the lower slot.

Highlights

  • Supports up to 64 GB DDR4 memory for heavy multitasking
  • Dual-channel DDR4 up to 2666 MHz keeps data flowing smoothly
  • Two M.2 slots with PCIe 3.0 x4 and x2 modes speed up storage
  • Six SATA 6 Gb/s ports plus RAID 0, 1, 5, 10 protect and expand data
  • HDMI 1.4b outputs 4096 x 2160 at 30 Hz for sharp 4K visuals

Specifications

No published specifications for this item yet.

Questions about this item

What does 64GB DDR4 2666 mean once the board is in a real machine?

You can install up to four unbuffered non-ECC DDR4 modules and the board will run them in dual-channel mode at speeds up to 2666 MHz, giving a total capacity of 64GB.

What does the PCIe 3.0 x4 M.2 slot cap in practice?

The second M.2 socket operates at PCIe 3.0 x4, so a compatible drive is limited to that bandwidth regardless of its own rated speed.

What does the ATX form factor need to fit or mount?

The board measures standard ATX dimensions and mounts with the usual nine screw holes in any ATX-compatible chassis.
