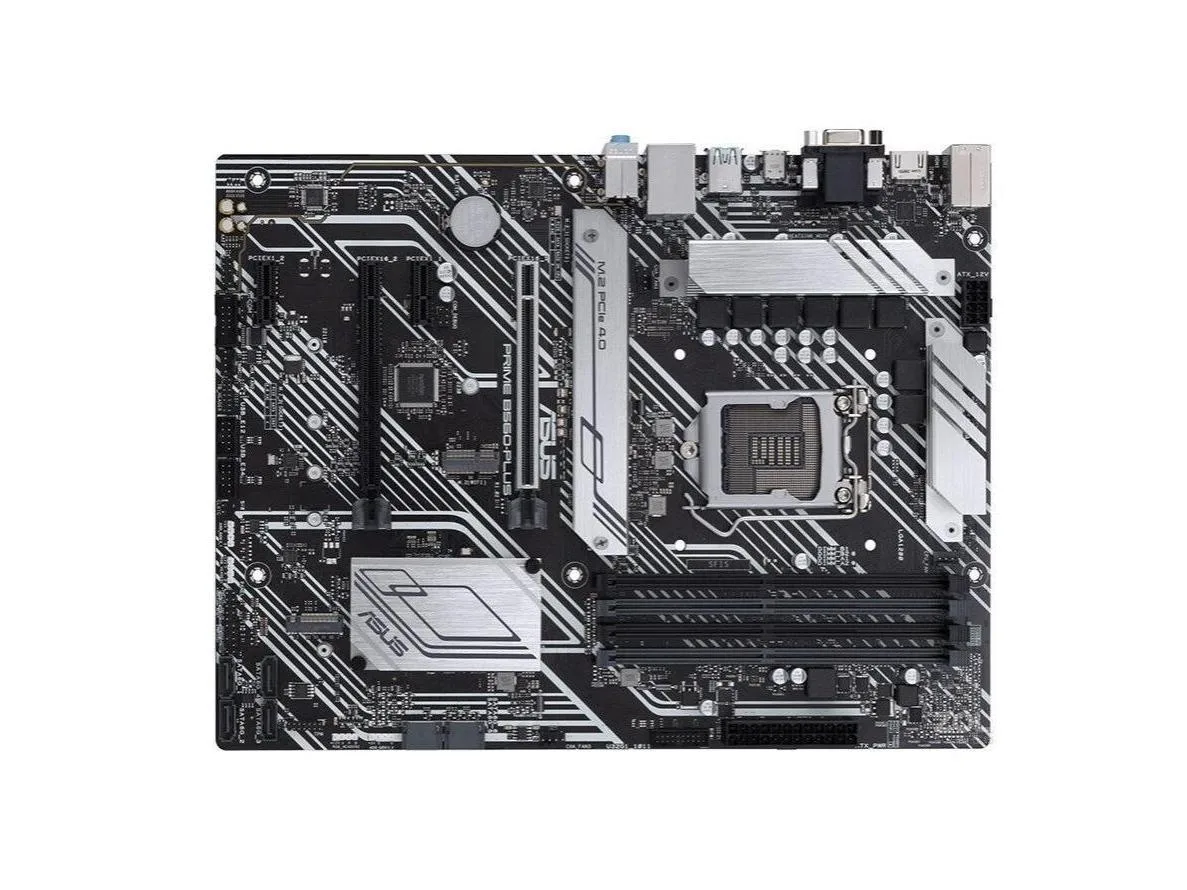

ATX motherboard in black with silver heatsinks and blue PCB accents

ASUS

ASUS PRIME B560-PLUS LGA 1200 DDR4 128GB ATX Intel motherboard

SKU CH-EY3H-636TP

ATX motherboard with LGA 1200 socket and Intel B560 chipset supporting dual-channel DDR4 up to 5000 MHz and 128 GB capacity

  • CPU Socket TypeLGA 1200
  • ChipsetIntel B560
  • Memory StandardSupport dual channel DDR4 5000 (OC)/4800 (OC)/4600 (OC)/4400
  • Maximum Memory Supported128GB
  • SATA RAID2XM.2 interface, 6xSATA III interface
  • Supports up to 128GB DDR4 for large workloads
  • Dual-channel DDR4 up to 5000 (OC) for high memory bandwidth
  • LGA 1200 socket fits compatible Intel processors
  • Intel B560 chipset provides mainstream platform features
  • ATX form factor 30.5x21.8cm fits standard cases

Target Build

The ASUS PRIME B560-PLUS is an ATX Intel motherboard with an LGA 1200 socket and the B560 chipset. It supports dual-channel DDR4 memory up to 128 GB across four slots, with validated speeds ranging from 2133 to 5000 MT/s including overclocked profiles. Storage connectivity includes two M.2 interfaces and six SATA III ports for mixed drive configurations.

Suitability

This board suits builders assembling a new system on the LGA 1200 platform who need four memory slots, multiple M.2 positions and a full complement of SATA ports in a standard ATX layout. Buyers who require integrated Wi-Fi, additional M.2 slots beyond two, or a smaller form factor such as micro-ATX should consider other options.

Deciding Spec

The maximum supported memory capacity of 128 GB across four DDR4 slots is the specification that determines whether this board fits the planned build. If the intended workload needs more memory channels, a different memory generation, or a higher total capacity, this motherboard will not meet those requirements.

Highlights

  • Supports up to 128GB DDR4 for large workloads
  • Dual-channel DDR4 up to 5000 (OC) for high memory bandwidth
  • LGA 1200 socket fits compatible Intel processors
  • Intel B560 chipset provides mainstream platform features
  • ATX form factor 30.5x21.8cm fits standard cases

Specifications

BrandASUS
SeriesASUS PRIME B560-PLUS
ModelASUS PRIME B560-PLUS
CPU Socket TypeLGA 1200
ChipsetIntel B560
Memory StandardSupport dual channel DDR4 5000 (OC)/4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3333 (OC)/3200/2933/2800/2666/2400/2133 memory
Maximum Memory Supported128GB
SATA RAID2XM.2 interface, 6xSATA III interface

Questions about this item

What size ATX case will fit the 30.5x21.8cm board?

The board measures 30.5 by 21.8 centimetres, so any case that accepts a standard ATX form factor will accommodate it.

Which memory speeds are supported on the four DDR4 slots?

The four DDR4 slots support dual-channel speeds from 2133 up to 5000 (OC) including 2400, 2666, 2933, 3200, 3600, 4000, 4400, 4800 and 5000 MT/s.

What storage cables are included for the six SATA III ports?

One SATA cable is supplied in the box; additional cables will be needed if you populate more than one of the six SATA III connectors.
