Green MicroATX motherboard with silver LGA 1200 socket, black PCIe x16 slot, two M.2 slots, rear DisplayPort and USB 3.1 Type-A

ASUS

ASUS PRIME B560M-A Intel B560 LGA 1200 MicroATX motherboard

SKU CH-V65H-2E8QA

MicroATX board for 10th and 11th Gen Intel Core CPUs with B560 chipset, dual M.2 slots, PCIe 4.0 x16 and up to 128 GB DDR4

  • CPU Socket TypeLGA 1200
  • CPU TypeCore i9 / i7 / i5 / i3 (11th / 10th Gen, LGA1200)
  • ChipsetIntel B560
  • Memory StandardDDR4
  • Maximum Memory Supported128GB
  • PCI Express x161
  • Supports 10th and 11th Gen Intel Core processors via LGA 1200 socket
  • Four DDR4 slots accept up to 128 GB system memory
  • PCI Express 4.0 x16 slot ready for modern graphics cards
  • Two M.2 sockets provide fast storage expansion
  • MicroATX form factor fits compact chassis builds

MicroATX board for 10th and 11th Gen Intel Core

The ASUS PRIME B560M-A uses the Intel B560 chipset and an LGA 1200 socket to support 10th and 11th Gen Core i9, i7, i5 and i3 processors in a MicroATX form factor. It accepts up to 128 GB of DDR4 memory and provides a single PCI Express 4.0 x16 slot plus one legacy PCI slot.

Connectors and mounting reflect a minimal bundle

The board ships without an I/O shield or any accessories, so builders must supply their own rear bracket and cables. Rear I/O includes one DisplayPort and one USB 3.1 Gen 2 Type-A port alongside a single RJ45 network jack. Two M.2 slots are available on the board for storage expansion.

Thermals and power draw follow standard B560

The chipset and voltage-regulation circuitry are cooled passively, relying on case airflow rather than an active fan. Power delivery is designed for the supported 10th and 11th Gen CPUs at their rated specifications. Acoustic output is therefore limited to the system fans chosen by the builder.

Highlights

  • Supports 10th and 11th Gen Intel Core processors via LGA 1200 socket
  • Four DDR4 slots accept up to 128 GB system memory
  • PCI Express 4.0 x16 slot ready for modern graphics cards
  • Two M.2 sockets provide fast storage expansion
  • MicroATX form factor fits compact chassis builds

Specifications

BrandASUS
ModelPRIME B560M-A
CPU Socket TypeLGA 1200
CPU TypeCore i9 / i7 / i5 / i3 (11th / 10th Gen, LGA1200)
ChipsetIntel B560
Memory StandardDDR4
Maximum Memory Supported128GB
PCI Express x161
PCI Slots1 x PCI Slot

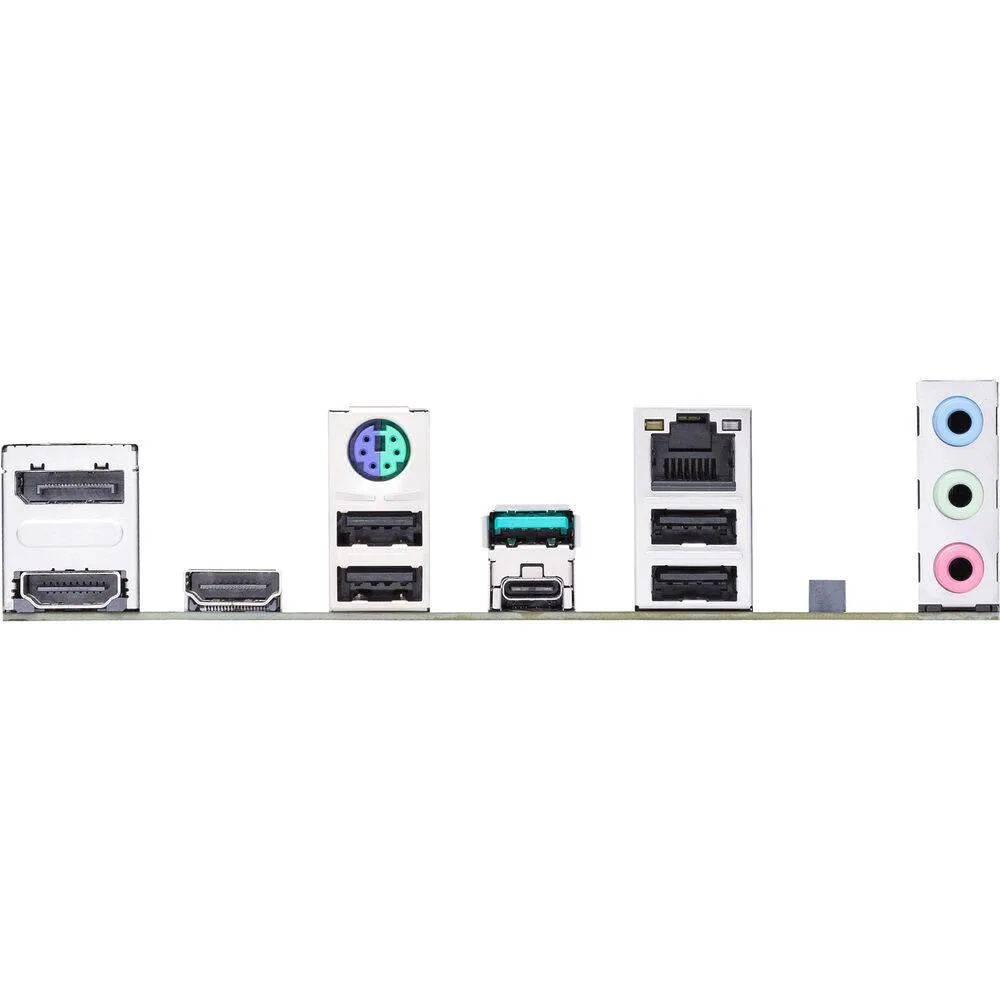

Back I/O Ports1 x DisplayPort / 1 x USB 3.1 Gen 2 Type-A
RJ451 x RJ45
DisplayPort1 x DisplayPort
USB 3.11 x USB 3.1
Form FactorMicro ATX

Questions about this item

What speed does the PCIe 4.0 x16 slot on this B560 board run at with an 11th Gen CPU?

The PCIe 4.0 x16 slot operates at full 4.0 speed when paired with an 11th Gen Core processor in the LGA 1200 socket.

Does the MicroATX form factor fit in a standard ATX case?

Yes, the MicroATX board mounts in any ATX or MicroATX case using the standard standoff pattern.

How is the M.2 drive secured if no screw is included with the motherboard-only package?

You must supply your own M.2 standoff and screw; insert the drive at an angle, press flat, then fasten the screw.
