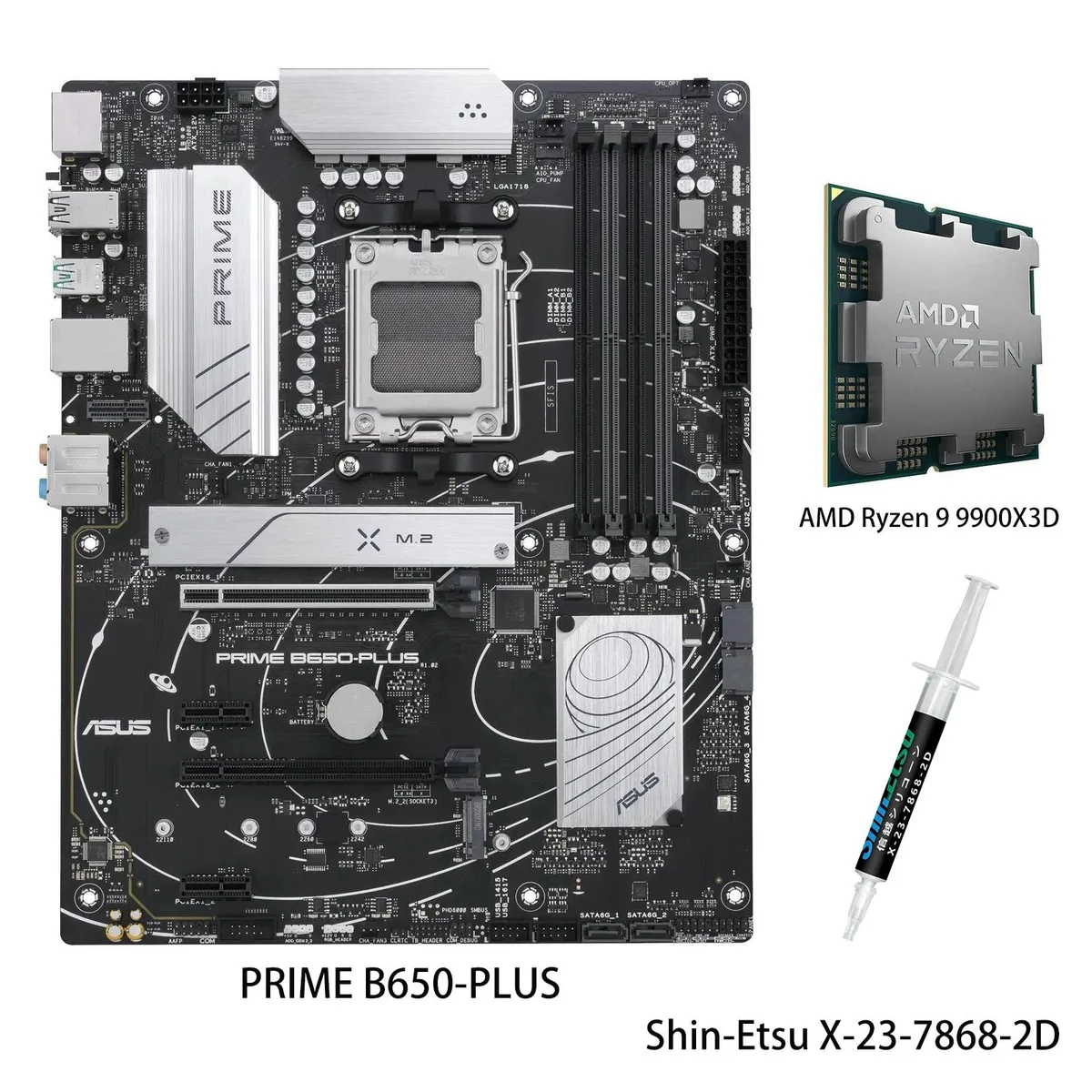

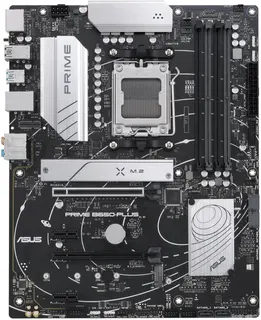

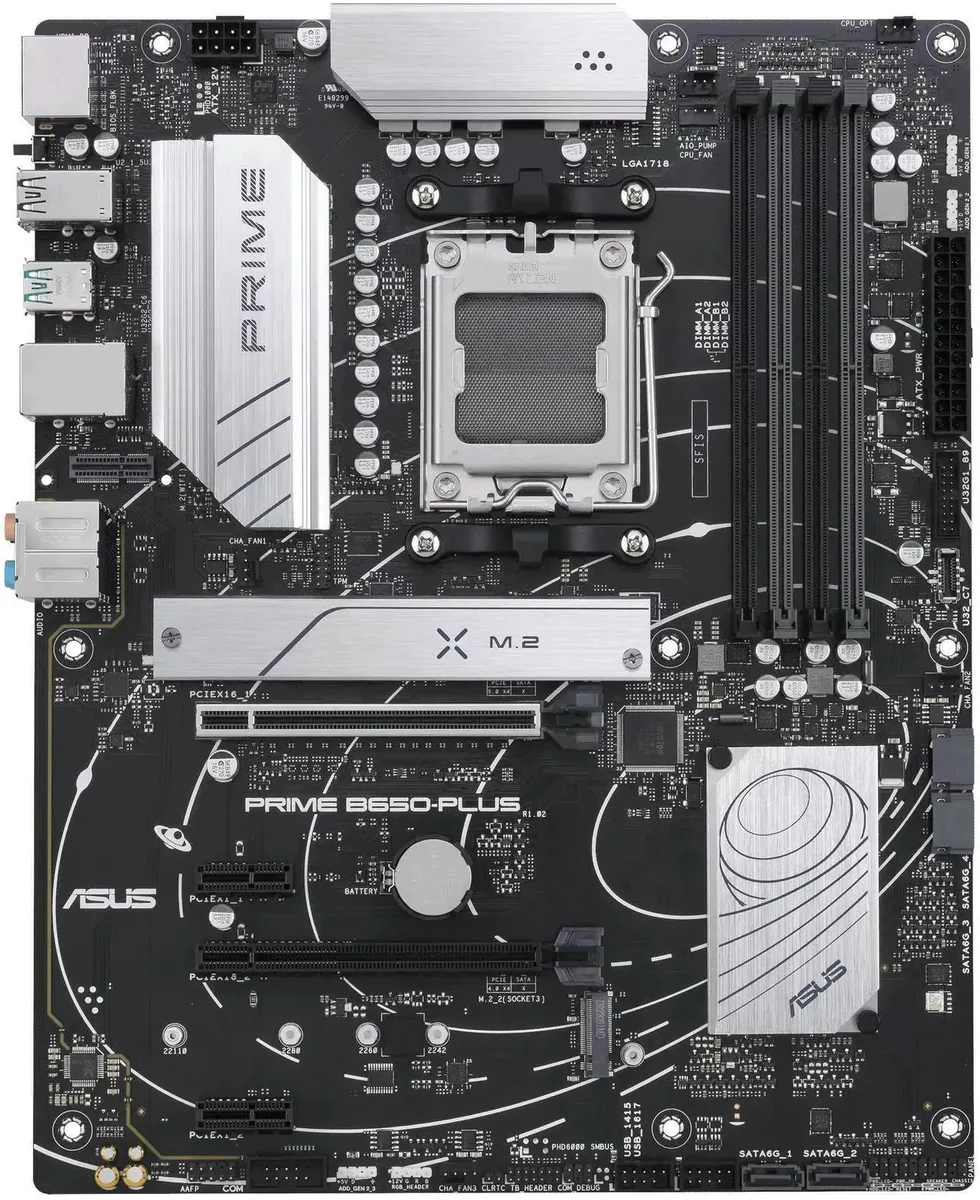

ATX motherboard with silver heatsinks, black PCB, AM5 socket, four DDR5 slots, PCIe slots, M.2 heatsink, rear I/O panel

ASUS

ASUS PRIME B650-PLUS + Ryzen 9 9900X3D AMD motherboard CPU combo

SKU CH-4KZ9-3E21X

AM5 motherboard and 12-core Ryzen 9 9900X3D CPU combo with DDR5 support to 6400, PCIe 5.0 M.2, 2.5Gb LAN and USB4

  • CPU Socket TypeAM5
  • CPU TypeSupports AMD Ryzen 7000 Series Desktop Processors* * Refer t
  • ChipsetAMD B650
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) /
  • Maximum Memory Supported256GB

model PRIME B650-PLUS

+CPU +Ryzen 9 9900X3D

  • Ready for AMD Ryzen 9000, 8000 and 7000 series processors with AM5 socket
  • 128 MB L3 cache on the Ryzen 9 9900X3D for high gaming performance
  • PCIe 5.0 M.2 slot enables ultrafast storage speeds
  • 5 Gbps LAN provides fast wired networking
  • DDR5 memory support up to 6400 MT/s with EXPO profiles

Ready for Ryzen 9000 and 7000 Series

This bundle pairs an ASUS PRIME B650-PLUS motherboard with a Ryzen 9 9900X3D processor. The AM5 socket supports AMD Ryzen Desktop 9000, 8000 and 7000 Series CPUs. A BIOS update may be required for 9000 and 8000 Series chips. The board delivers dual-channel DDR5 memory support up to 256 GB and includes PCIe 5.0 M.2, 2.5 Gbps LAN and USB4 support.

128 MB L3 cache and DDR5 headroom

The CPU provides 128 MB of L3 cache and 12 MB of L2 cache on a 120 W TSMC 4 nm Zen 5 die. Memory runs at DDR5 4800 out of the box and scales through EXPO profiles up to DDR5 6400+(OC). Four 288-pin slots accept un-buffered modules with ECC capability. The primary M.2 slot operates at PCIe 5.0 x4 for the fastest drives, while the second runs at PCIe 4.0 x4.

VRM heatsink M.2 heatsink PCH heatsink

Comprehensive cooling covers the VRM, the primary M.2 slot and the chipset with dedicated heatsinks. Hybrid fan headers and Fan Xpert 2+ software give per-header control. Rear I/O includes HDMI, DisplayPort, 2.5 Gbps Ethernet, USB 3.2 Gen 2 Type-C and a USB BIOS FlashBack button that updates firmware without a CPU or memory installed. Onboard addressable Gen 2 and standard RGB headers sync with Aura Sync lighting gear.

Highlights

  • Ready for AMD Ryzen 9000, 8000 and 7000 series processors with AM5 socket
  • 128 MB L3 cache on the Ryzen 9 9900X3D for high gaming performance
  • PCIe 5.0 M.2 slot enables ultrafast storage speeds
  • 5 Gbps LAN provides fast wired networking
  • DDR5 memory support up to 6400 MT/s with EXPO profiles

Specifications

BrandASUS
SeriesPrime
ModelPRIME B650-PLUS+R9 9900X3D
CPU Socket TypeAM5
CPU TypeSupports AMD Ryzen 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.
ChipsetAMD B650
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800*
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureSupports AMD EXTended Profiles for Overclocking (EXPO)
OptiMem II
PCI Express 4.0 x16AMD Ryzen 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check the PCIe bifurcation table on the ASUS support site
PCI Express x12 x PCIe 4.0 x1 slots
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
SATA RAIDAMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
Audio ChannelsRealtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
Max LAN Speed2.5Gbps
Wireless LANVertical M.2 slot only (Key E, PCIe)*
* Wi-Fi module is sold separately.
Back I/O Ports4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Vertical M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
Onboard USB1 x USB 3.2 Gen 1 connector (supports USB Type-C )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt (USB4) header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Windows 11Supported
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- Safeslot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Package Contents1 x AMD Ryzen 9 9900X3D CPU
1 x Shin-Etsu X-23-7868-2D (1.8g)
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
Documentation
1 x User guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the included Ryzen 9 9900X3D work out of the box, or do I need to update the BIOS first?

The motherboard supports AMD Ryzen 9000 series processors, but a BIOS update may be required. The board includes BIOS FlashBack, which lets you update the firmware using a USB stick without installing a CPU or memory.

What DDR5 memory speeds can I run with this combo, and how many modules does it support?

The board has four 288-pin DDR5 slots supporting up to 256 GB in dual-channel mode. Supported speeds range from 4800 up to 6400+(OC) depending on the CPU and memory configuration. EXPO profiles are supported for easier overclocking.

How many M.2 drives can I install, and which slot gives PCIe 5.0 speeds?

Two M.2 slots are available, both accepting 2242, 2260, 2280 and 22110 form factors. The first slot runs at PCIe 5.0 x4 from the CPU, while the second runs at PCIe 4.0 x4 from the chipset.
