Green Micro-ATX board with silver heatsinks, four DDR4 slots, two M.2 covers, rear I/O shield, RGB accent

ASUS

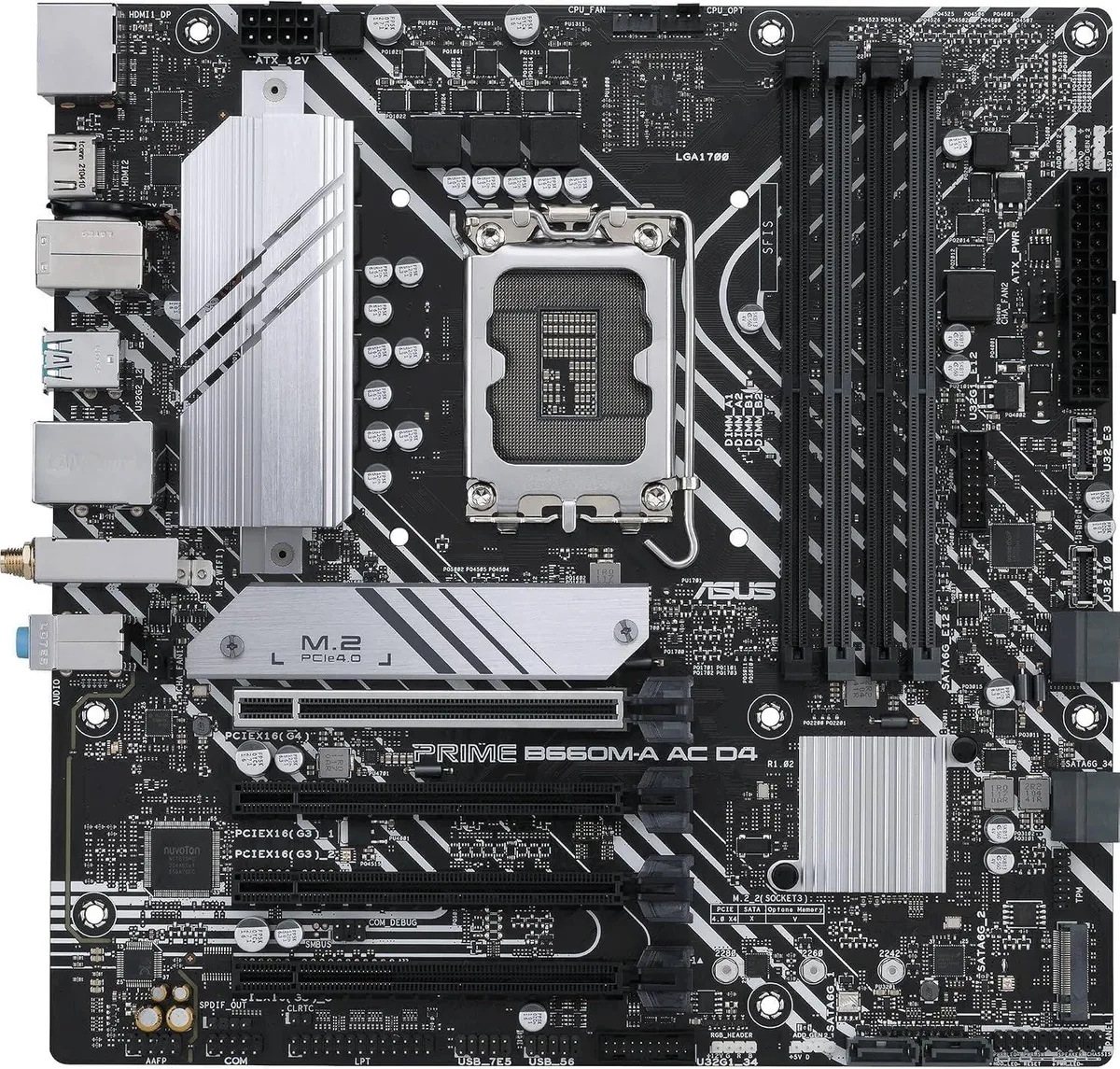

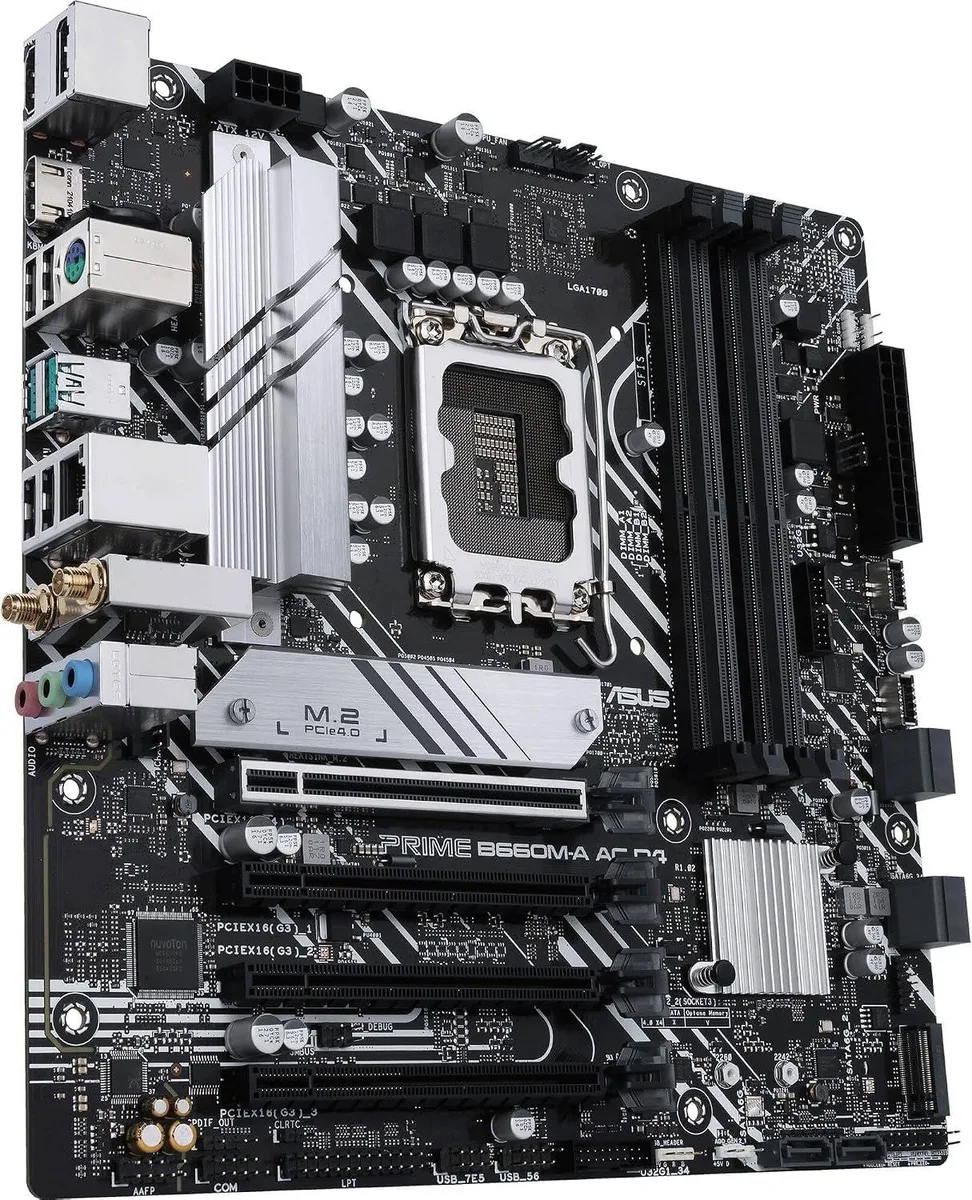

ASUS PRIME B660M-A AC D4 Intel B660 motherboard

SKU CH-2P0V-7S05T

Micro-ATX Intel B660 board with LGA 1700 socket, four DDR4 slots up to 128 GB, PCIe 4.0 x16, dual M.2, six SATA ports, Wi-Fi 5, Bluetooth 5.1, Intel Gigabit Ethernet, HDMI 2.1, DisplayPort 1.4.

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel Core Processors, Pentium Gold and Celeron Processors
  • ChipsetIntel B660
  • Channel SupportedDual Channel
  • PCI Express x161 x PCI Express 4.0 x16, 3 x PCI Express 3.0 x16
  • LAN ChipsetIntel 1Gb Ethernet
  • Supports 12th and 13th Gen Intel Core processors via LGA 1700 socket and B660 chipset
  • Four DDR4 DIMM slots accept up to 128 GB memory with overclocking to 5333 MHz
  • Dual PCIe 4.0 M.2 slots plus six SATA 6 Gb/s ports with RAID 0/1/5/10 support
  • Integrated Wi-Fi 5, Bluetooth 5.1, Intel Gigabit Ethernet, HDMI 2.1, DisplayPort 1.4 and USB 3.2 connectivity
  • ASUS Aura Sync RGB lighting, SafeSlot Core+, DIGI+ VRM, OptiMem II and Fan Xpert 2+ for stable, customisable operation

Micro-ATX LGA 1700 DDR4 Board

The ASUS PRIME B660M-A AC D4 is a Micro-ATX motherboard built on the Intel B660 chipset with an LGA 1700 socket. It supports 12th and 13th Gen Intel Core, Pentium Gold and Celeron processors for everyday computing, gaming and productivity tasks. Four 288-pin DDR4 slots accept up to 128 GB of memory with overclocking headroom to 5333 MHz.

Check CPU Cooler Clearance And Power Connectors

Verify that your chassis can accommodate the 9.6 by 9.6 inch Micro-ATX form factor and that the CPU cooler mounting holes match LGA 1700. The board requires a 24-pin ATX main power connector and an 8-pin ATX 12V CPU power connector from your power supply. Ensure your case front-panel headers provide a USB Type-C connection if you plan to use the onboard header.

Upgrade From Older B-Series Or H-Series Boards

This board replaces earlier B-series or H-series platforms that lack PCIe 4.0 support and integrated Wi-Fi 5 with Bluetooth 5.1. The jump is worthwhile when you need dual PCIe 4.0 M.2 slots, six SATA 6Gb/s ports with RAID 0, 1, 5, 10, and modern rear I/O including HDMI 2.1, DisplayPort 1.4 and USB 3.2.

Highlights

  • Supports 12th and 13th Gen Intel Core processors via LGA 1700 socket and B660 chipset
  • Four DDR4 DIMM slots accept up to 128 GB memory with overclocking to 5333 MHz
  • Dual PCIe 4.0 M.2 slots plus six SATA 6 Gb/s ports with RAID 0/1/5/10 support
  • Integrated Wi-Fi 5, Bluetooth 5.1, Intel Gigabit Ethernet, HDMI 2.1, DisplayPort 1.4 and USB 3.2 connectivity
  • ASUS Aura Sync RGB lighting, SafeSlot Core+, DIGI+ VRM, OptiMem II and Fan Xpert 2+ for stable, customisable operation

Specifications

ModelPRIME B660M-A AC D4
CPU Socket TypeLGA 1700
CPU TypeIntel Core Processors, Pentium Gold and Celeron Processors
ChipsetIntel B660
Channel SupportedDual Channel
PCI Express x161 x PCI Express 4.0 x16, 3 x PCI Express 3.0 x16
LAN ChipsetIntel 1Gb Ethernet
Max LAN Speed1Gbps
Wireless LANWi-Fi 5
BluetoothYes
Back I/O Ports1 x DisplayPort
HDMI2 x HDMI
RJ451 x RJ45
Form FactorMicro ATX
LED LightingASUS Aura Sync RGB
Dimensions (W x L)9.6" x 9.6"
Power Pin1 × 24-pin ATX Main Power Connector
1 × 8-pin ATX 12V CPU Power Connector
