ASUS

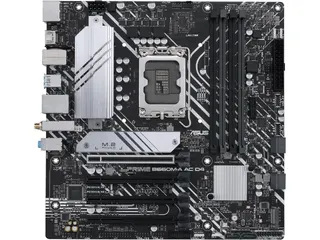

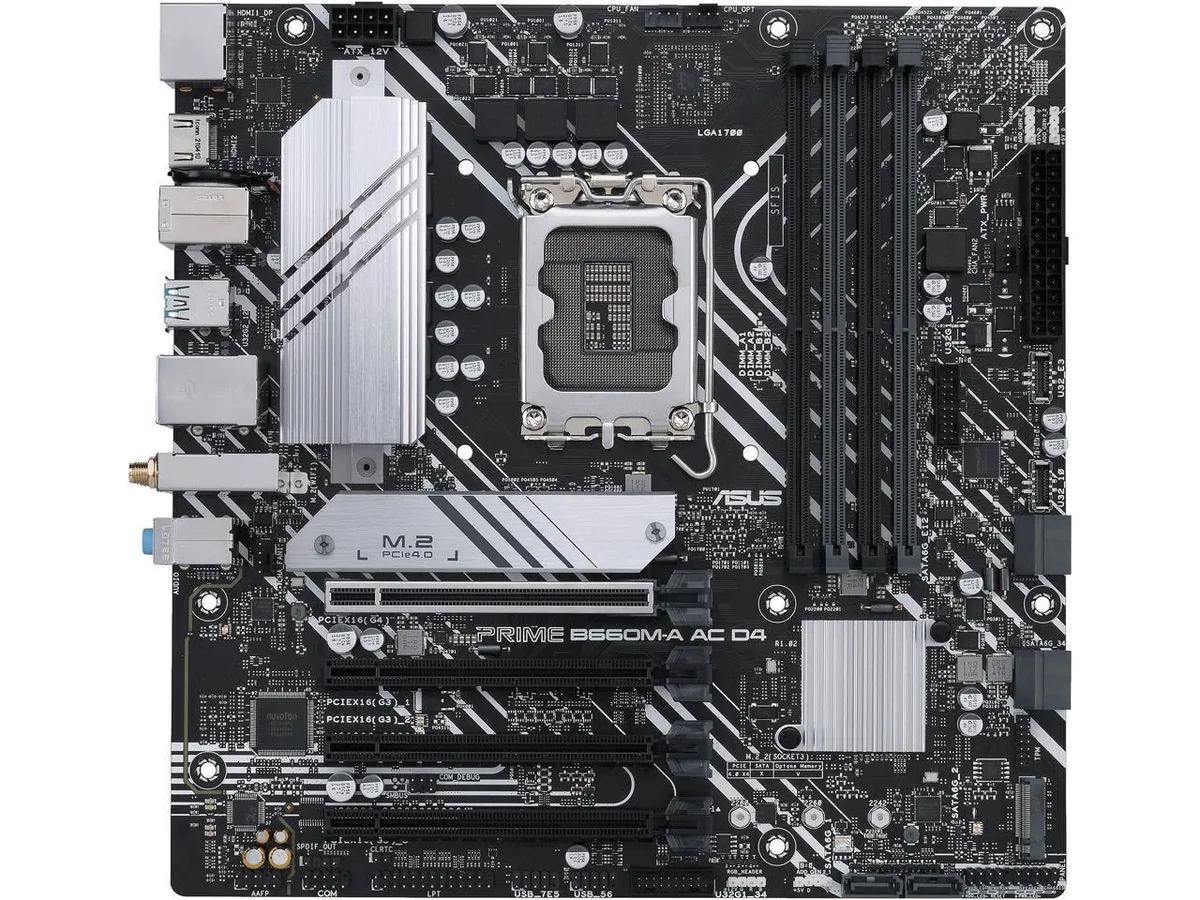

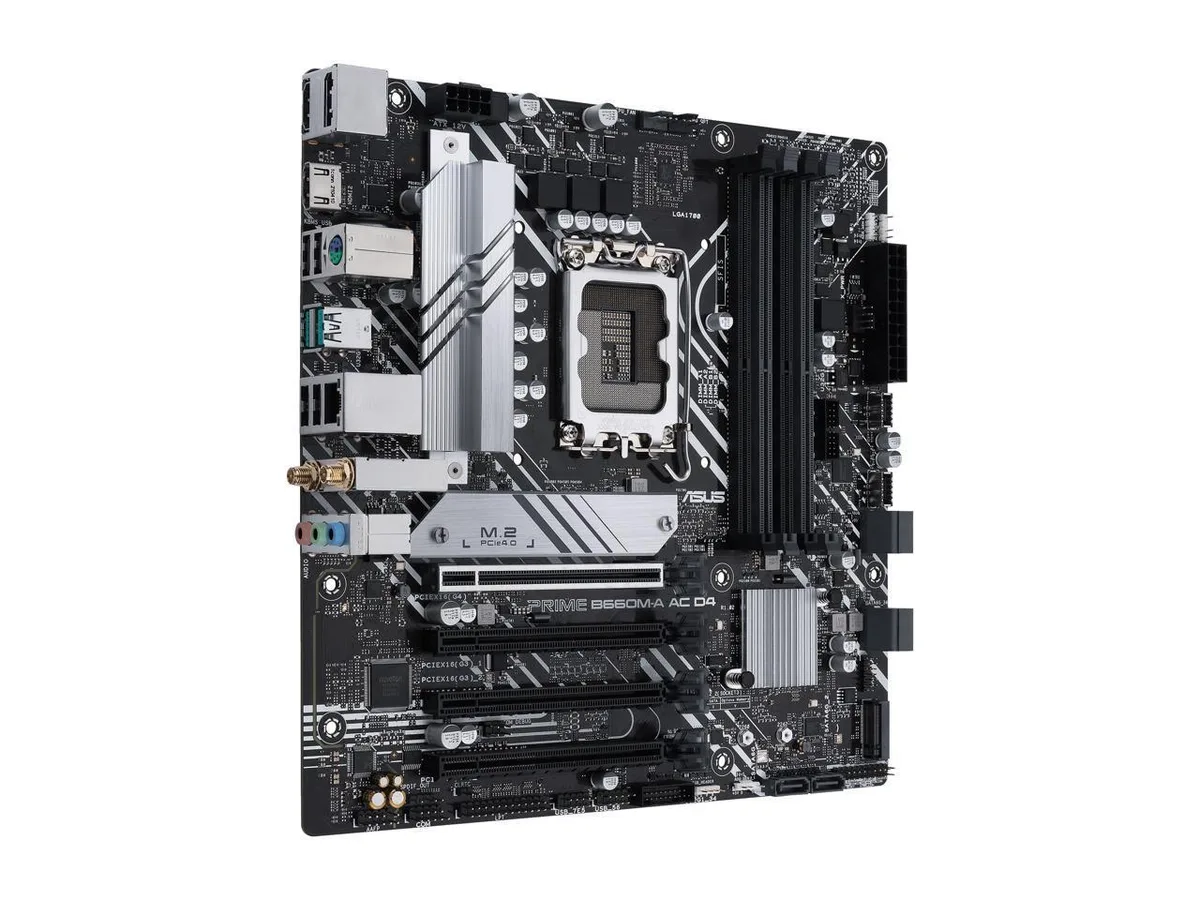

ASUS PRIME B660M-A AC D4 Intel motherboard

SKU CH-QT2B-FJ14C

Micro-ATX board for 12th- and 13th-Gen Intel CPUs with DDR4 support to 5333 MT/s, two M.2 slots, Intel Wi-Fi 5 and 1 Gb Ethernet

  • CPU Socket TypeLGA 1700 * Dedicated LGA1700 mounting bracket is required.
  • CPU TypeSupports 13th / 12th Gen Intel Core Processors, Pentium Gold
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Bo
  • ChipsetIntel B660
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR4)
  • Supports 12th and 13th Gen Intel Core CPUs via LGA 1700 socket
  • Dual-channel DDR4 memory up to 128 GB with speeds to 5333 MT/s
  • Two M.2 slots accepting 2242, 2260 or 2280 drives with PCIe 4.0 x4
  • Intel Wi-Fi 5 and 1 Gb Ethernet for reliable wireless and wired networking
  • Front-panel USB 3.2 Gen 1 Type-C plus rear USB 3.2 Gen 2 Type-A for fast peripherals

Ready for 12th and 13th Gen Intel Core

This microATX board fits the LGA 1700 socket and accepts 12th and 13th Gen Intel Core, Pentium Gold and Celeron processors. A BIOS update may be needed before a 13th Gen CPU will boot. It targets builders who want a compact platform with wired and wireless networking.

Memory standard DDR4 up to 5333 OC

Four 288-pin slots run dual-channel DDR4 at speeds from 2133 to 5333 when overclocked. The maximum supported capacity is 128 GB. ASUS OptiMem II trace routing helps preserve signal integrity at higher frequencies.

Two M.2 slots and one PCIe 4.0 x16

The primary M.2 slot connects through the CPU and supports 2242, 2260 and 2280 drives at PCIe 4.0 x4 with 12th Gen processors. A second chipset-linked M.2 slot also runs PCIe 4.0 x4. The single PCIe 4.0 x16 slot handles one graphics card; three additional slots operate at PCIe 3.0 x4 or x1.

Highlights

  • Supports 12th and 13th Gen Intel Core CPUs via LGA 1700 socket
  • Dual-channel DDR4 memory up to 128 GB with speeds to 5333 MT/s
  • Two M.2 slots accepting 2242, 2260 or 2280 drives with PCIe 4.0 x4
  • Intel Wi-Fi 5 and 1 Gb Ethernet for reliable wireless and wired networking
  • Front-panel USB 3.2 Gen 1 Type-C plus rear USB 3.2 Gen 2 Type-A for fast peripherals

Specifications

BrandASUS
ModelPRIME B660M-A AC D4
CPU Socket TypeLGA 1700
* Dedicated LGA1700 mounting bracket is required.
CPU TypeSupports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors*
*May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/
* Refer to www.asus.com for CPU support list.
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*
* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel B660
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 5333(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133*
* Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 4.0 x161 x PCI Express 4.0 x16
* Actual support may vary by CPU.
PCI Express 3.0 x163 x PCI Express 3.0 x16
* Supports x4, x1 mode.
Serial ATA (SATA)6 x SATA 6Gb/s
M.2Intel 12th Gen Processors:
M.2_1 slot (Key M), type 2242/2260/2280
- Intel 12th Gen processors support PCIe 4.0 x4 mode.
Intel B660 Chipset *:
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
* Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek 7.1 Surround Sound High Definition Audio CODEC*
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels7.1 Channels
LAN ChipsetIntel 1Gb Ethernet
Max LAN Speed1Gbps
Wireless LANWi-Fi 5
802.11 a/b/g/n/ac
BluetoothBluetooth 5.1
Back I/O Ports2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
2 x HDMI ports
1 x Wi-Fi Module
1 x Intel 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Onboard USB2 x USB 3.2 Gen 1 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
Windows 11Supported
Form FactorMicro ATX
LED LightingRGB
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
FeaturesSpecial Features:
ASUS 5X PROTECTION III
- DIGI+ VRM
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers
Software Features:
ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- FanXpert 2+
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinR
Package ContentsAccessories:
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 Rubber Package
1 x M.2 SSD screw package
Installation Media
1 x Support DVD
Documentation
1 x User guide

Questions about this item

How does the DDR4 5333 OC memory speed translate to actual system performance on this board?

The 5333 MT/s figure is an overclocked ceiling that requires compatible DDR4 modules and manual tuning in the BIOS; real-world stability depends on the memory kit quality and CPU memory controller.

What does the PCIe 4.0 x16 slot cap at when paired with a 12th or 13th Gen Intel Core processor?

With a supported 12th or 13th Gen CPU the primary x16 slot runs at PCIe 4.0 x16, while the three secondary x16 slots operate at PCIe 3.0 x4 or x1 depending on configuration.

What physical space and mounting hardware does the LGA 1700 socket need in a microATX chassis?

The board uses the microATX form factor and requires a dedicated LGA 1700 mounting bracket; ensure the case supports microATX and provides the correct backplate clearance.
