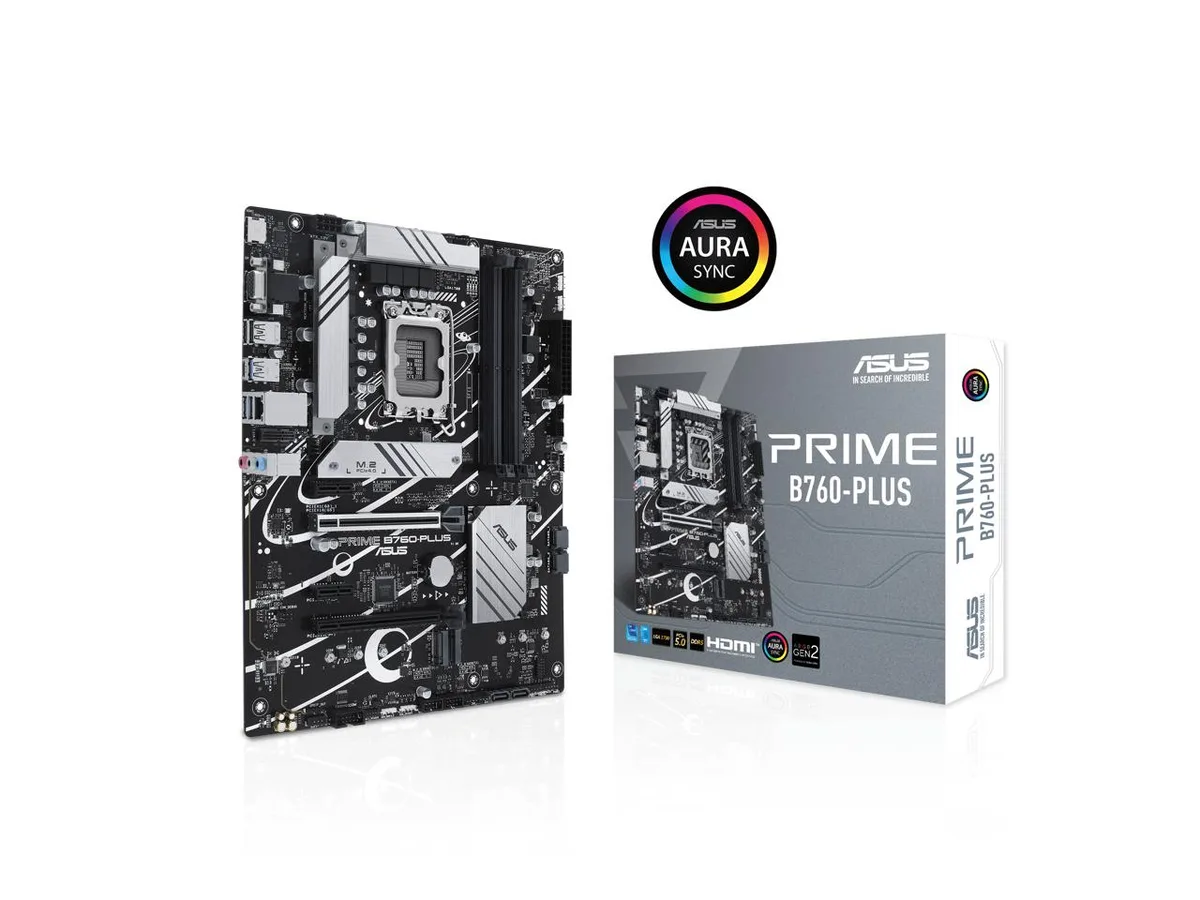

ATX motherboard in dark PCB with silver heatsinks and rear I/O shield

ASUS

ASUS Prime B760-PLUS Intel motherboard

SKU CH-S2KR-M2W11

An ATX motherboard for Intel 12th and 13th Gen processors with DDR5 memory up to 7200 MT/s, PCIe 5.0 graphics slot, three PCIe 4.0 M.2 sockets, 2.5 Gb Ethernet and rear USB 3.2 Gen 2x2 Type-C

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen I
  • ChipsetIntel B760
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/
  • Maximum Memory Supported256GB
  • Supports 13th and 12th Gen Intel Core processors with LGA 1700 socket
  • PCIe 5.0 x16 slot enables high-bandwidth graphics and accelerator cards
  • DDR5 memory up to 7200 MT/s across four slots for 256 GB capacity
  • Three PCIe 4.0 M.2 slots plus four SATA 6 Gbps ports for versatile storage
  • Realtek 2.5 Gb Ethernet and USB 3.2 Gen 2x2 Type-C deliver fast wired connectivity

Socket LGA 1700 DDR5 motherboard

The ASUS Prime B760-PLUS is an ATX board built around the Intel B760 chipset for 12th and 13th Gen Intel Core processors. It provides four DDR5 slots supporting up to 256 GB of memory and a PCIe 5.0 x16 slot for current graphics cards.

Builders needing three M.2 slots and 2.5 Gb Ethernet

This board suits users who want three PCIe 4.0 M.2 slots, Realtek 2.5 Gb Ethernet and rear USB 3.2 Gen 2x2 Type-C. Builders requiring Wi-Fi, Thunderbolt 4 certification or more than four SATA ports should look elsewhere.

PCIe 5.0 x16 slot for graphics

The single PCIe 5.0 x16 slot is the specification that decides compatibility with next-generation graphics cards. If your build relies on a PCIe 4.0 only platform, this slot still operates at the card's rated speed.

Highlights

  • Supports 13th and 12th Gen Intel Core processors with LGA 1700 socket
  • PCIe 5.0 x16 slot enables high-bandwidth graphics and accelerator cards
  • DDR5 memory up to 7200 MT/s across four slots for 256 GB capacity
  • Three PCIe 4.0 M.2 slots plus four SATA 6 Gbps ports for versatile storage
  • Realtek 2.5 Gb Ethernet and USB 3.2 Gen 2x2 Type-C deliver fast wired connectivity

Specifications

BrandASUS
SeriesPrime
ModelPRIME B760-PLUS
Part Number90MB1EF0-M0AAY0
CPU Socket TypeLGA 1700
CPU TypeIntel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel B760
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Maximum Memory Supported256GB
Channel SupportedDual Channel
PCI Express 5.0 x161 x PCIe 5.0 x16 slot
PCI Express 4.0 x161 x PCIe 4.0 x16 slot (supports x4 mode)
PCI Express 3.0 x162 x PCIe 3.0 x1 slots
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
SATA RAID* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio ChannelsRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Max LAN Speed1 x Realtek 2.5Gb Ethernet
Back I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMI™ port
1 x Vertical M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI
Windows 11Windows® 11, Windows® 10 64-bit
Form FactorATX
Dimensions (W x L)12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

Questions about this item

How do I install the CPU into the LGA 1700 socket without bending pins?

Lift the retention lever, align the processor triangle with the socket marker, lower the CPU gently without pressure, close the frame and lock the lever; the common error is forcing the chip before the notches engage.

Which component on the PRIME B760-PLUS will need periodic cleaning or replacement?

The VRM heatsinks, M.2 heatsink, PCH heatsink and all case fans attached to the hybrid headers should be dusted regularly; the CPU cooler mounted on the socket also requires fresh thermal paste every few years.

What limit appears first when the board runs sustained heavy loads?

The VRM and M.2 heatsinks rely on passive cooling, so thermal throttling of the power delivery or the PCIe 4.0 M.2_1 slot typically occurs before any electrical limit is reached.
