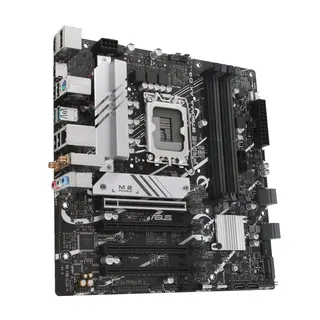

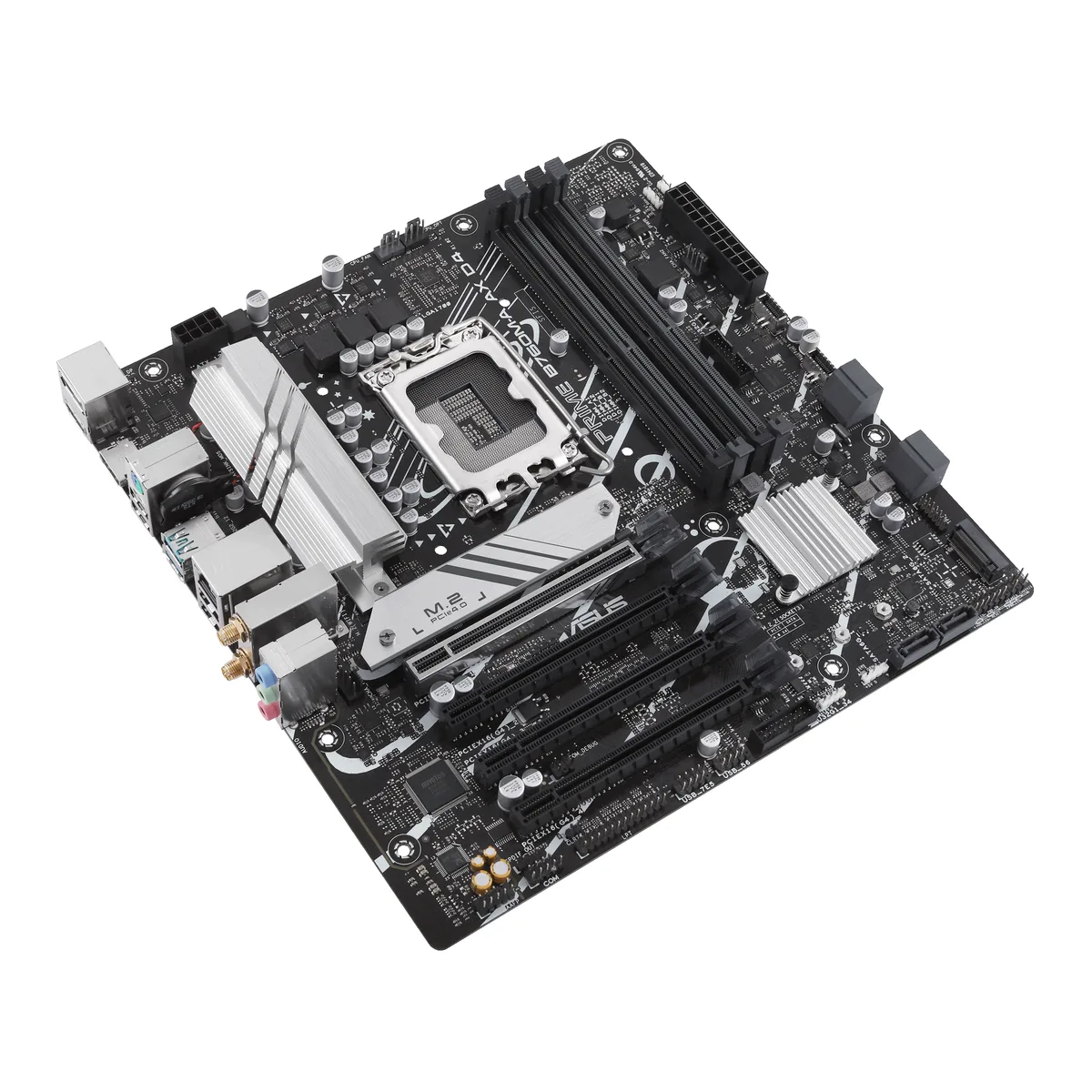

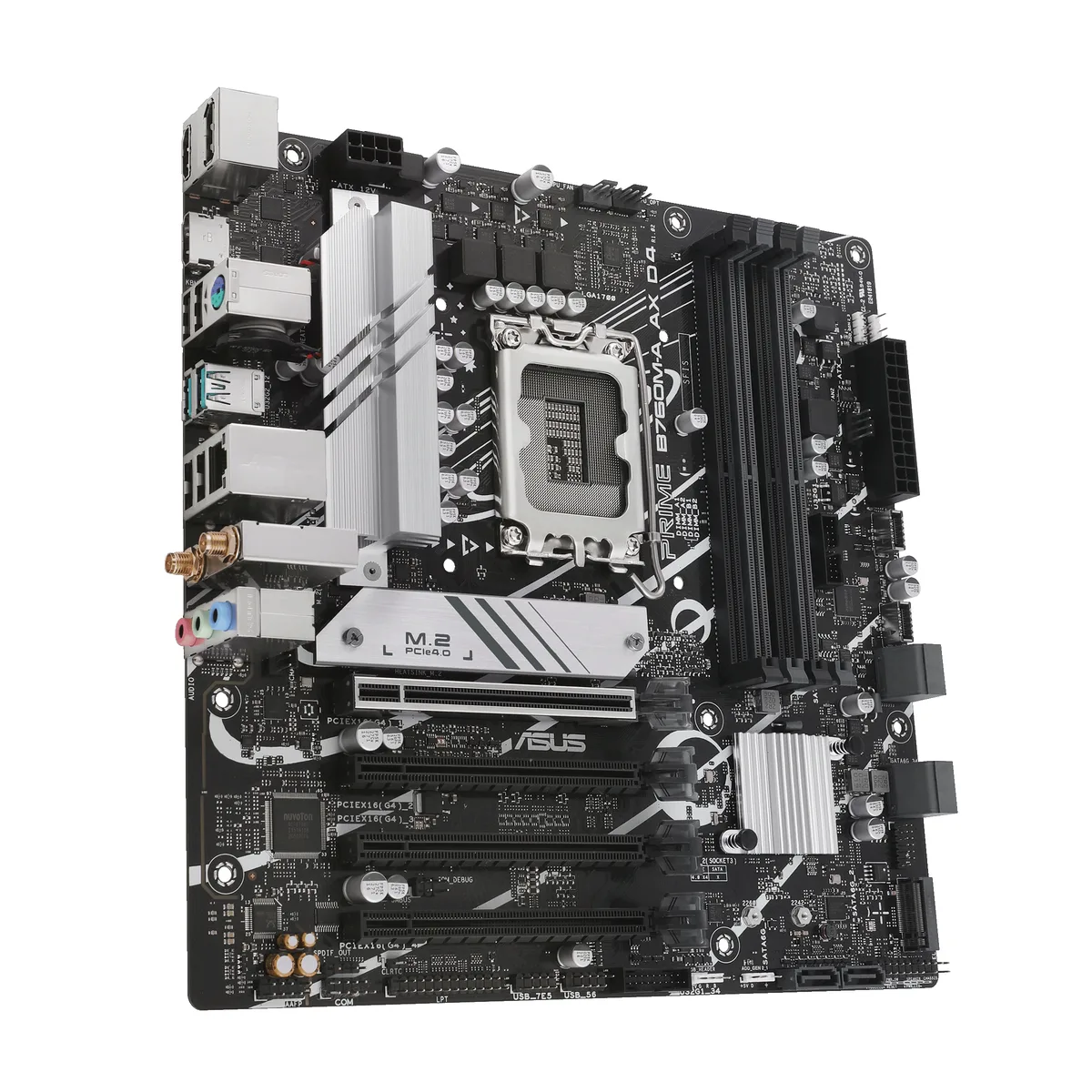

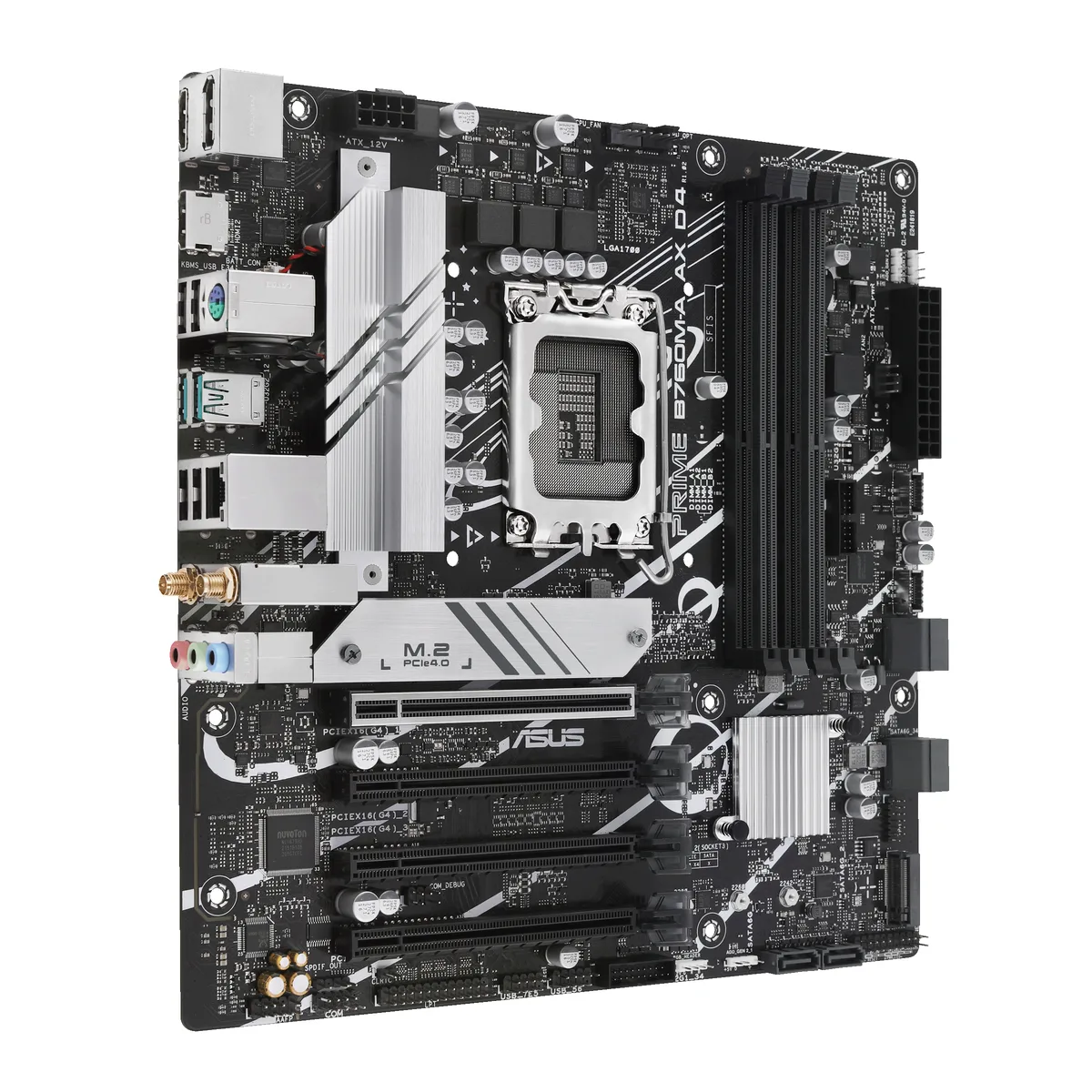

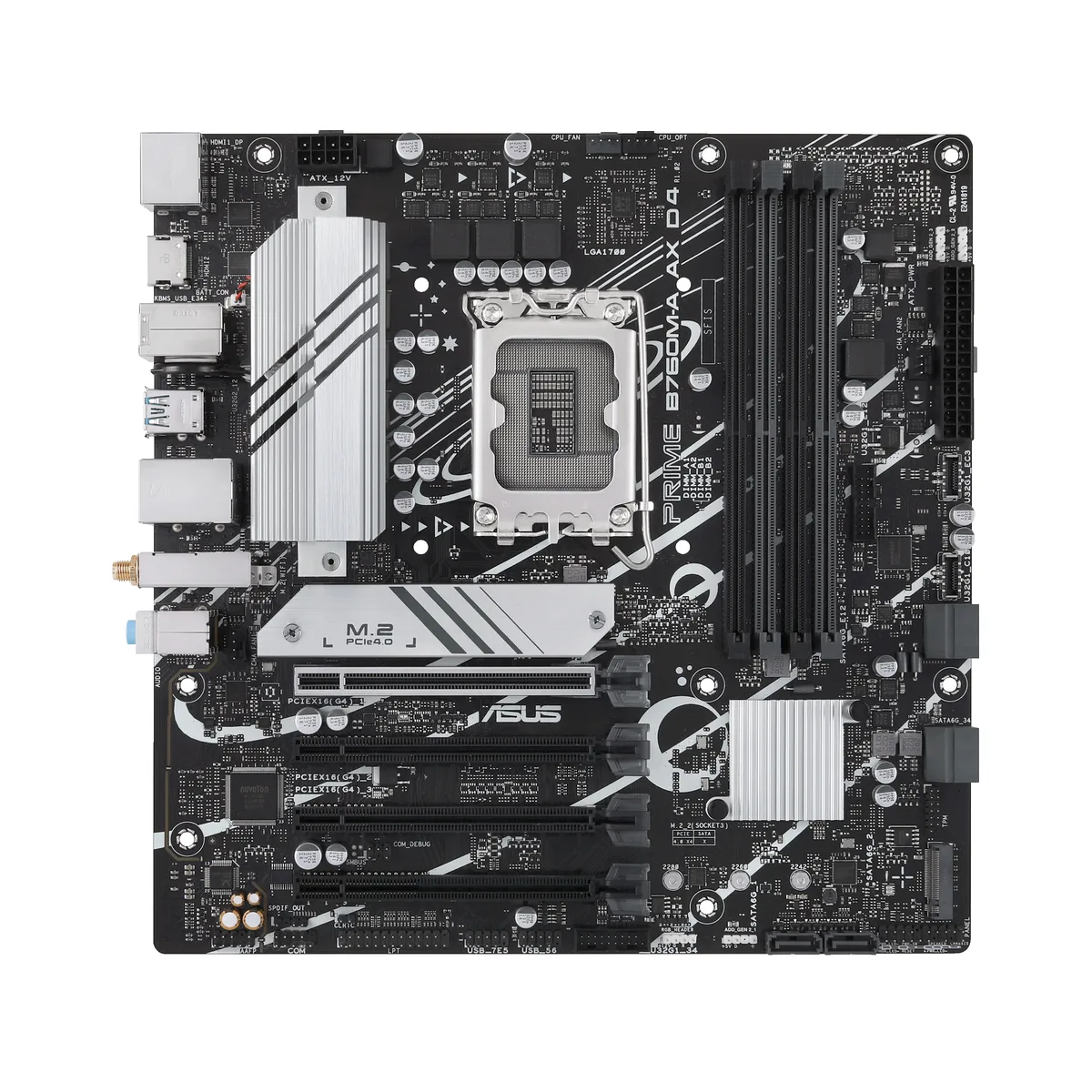

Black mATX motherboard with silver heatsinks and four DDR4 slots

ASUS

ASUS PRIME B760M-A AX D4 Intel motherboard

SKU CH-GSK9-GHN0F MPN PRIME B760M-A AX D4

An LGA 1700 mATX board with DDR4 memory support up to 128 GB, PCIe 4.0, two M.2 slots, 2.5 Gb Ethernet, Wi-Fi 6, and rear USB 3.2 Gen 2

  • CPU Socket TypeLGA 1700
  • CPU TypeCeleron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th G
  • ChipsetIntel B760
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 3200
  • Maximum Memory Supported128GB

Option PRIME B760M-A AX D4

  • ROG STRIX B760-A GAMING WIFI D4
  • ROG STRIX B760-I GAMING WIFI
  • PRIME B760M-A AX D4
  • PRIME B760M-A D4
  • PRIME B760-PLUS D4

Struck-through versions exist but are not stocked here.

  • Supports 13th and 12th Gen Intel Core processors on LGA 1700 socket
  • PCIe 4.0 graphics slot and two M.2 slots for fast storage
  • Realtek 2.5Gb Ethernet and Wi-Fi 6 for high-speed networking
  • DDR4 memory up to 5333 MT/s overclocked across four slots
  • 1-channel Realtek audio with shielding and 24-bit/192 kHz playback

LGA 1700 mATX board with Wi-Fi 6

The ASUS PRIME B760M-A AX D4 is a micro-ATX motherboard built around the Intel B760 chipset for 12th and 13th Gen Core, Pentium Gold and Celeron processors. It provides four DDR4 slots, two M.2 sockets, 2.5 Gb Ethernet, Wi-Fi 6 and rear DisplayPort plus dual HDMI outputs.

Suited for DDR4 memory up to 5333 MT/s

Builders reusing existing DDR4 modules or choosing affordable DDR4 kits will match the four slots that run up to 5333 MT/s when overclocked. The board also supplies six SATA ports and a PCIe 4.0 x16 slot wired from the CPU for modern graphics cards.

CPU socket LGA 1700 decides compatibility

Only processors that fit the LGA 1700 socket and are supported by the B760 chipset will work. Verify the exact CPU model against the ASUS CPU support list before purchase.

Highlights

  • Supports 13th and 12th Gen Intel Core processors on LGA 1700 socket
  • PCIe 4.0 graphics slot and two M.2 slots for fast storage
  • Realtek 2.5Gb Ethernet and Wi-Fi 6 for high-speed networking
  • DDR4 memory up to 5333 MT/s overclocked across four slots
  • 1-channel Realtek audio with shielding and 24-bit/192 kHz playback

Specifications

BrandASUS
ModelPRIME B760M-A AX D4
CPU Socket TypeLGA 1700
CPU TypeCeleron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold
ChipsetIntel B760
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 3200
Maximum Memory Supported128GB
Channel SupportedDual Channel
Memory FeatureDDR4
5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
PCI Express 4.0 x16Intel 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x16 slots (support x1 mode)
Serial ATA (SATA)6 x SATA 6Gb/s
M.2Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
SATA RAIDIntel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio ChipsetRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBluetooth v5.2

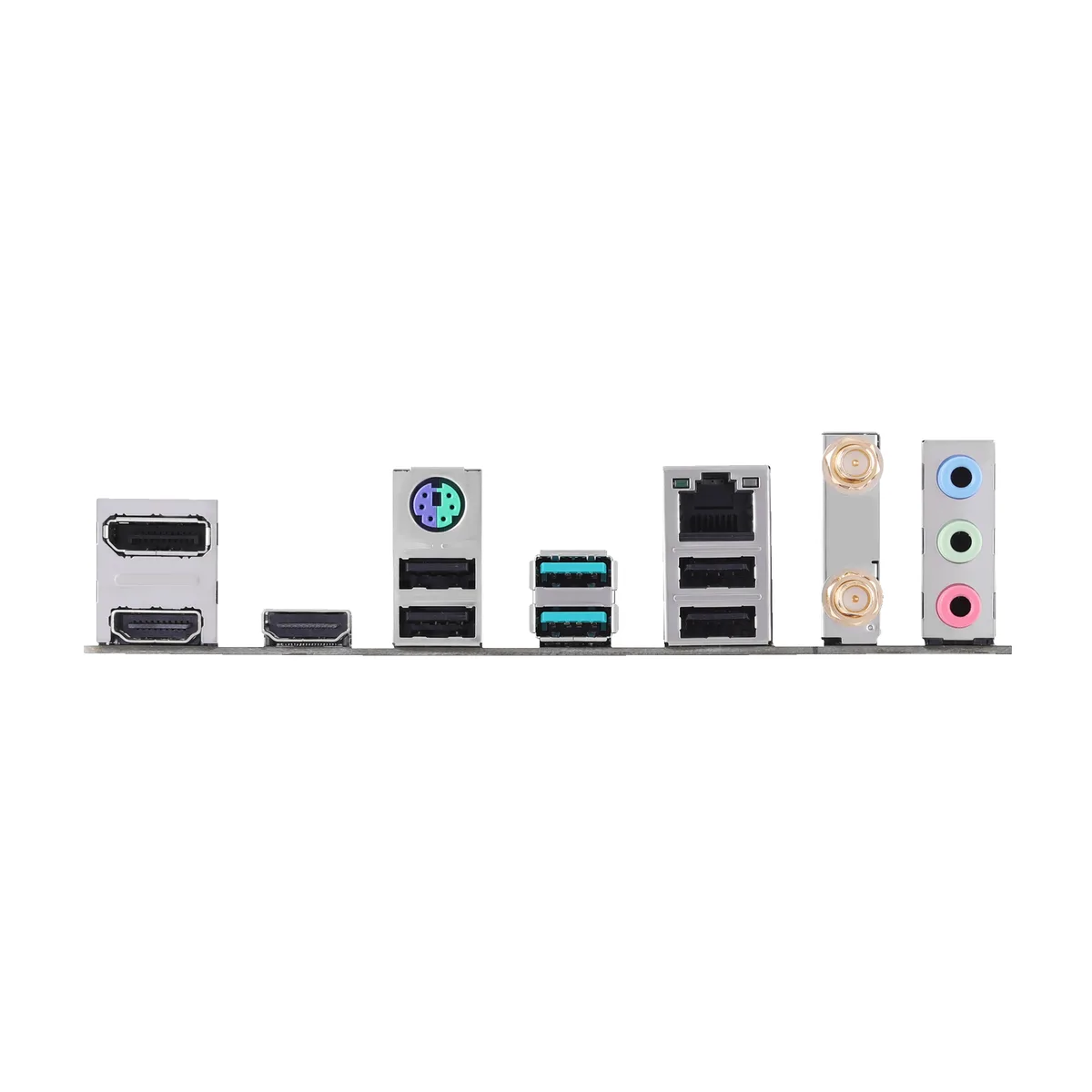

Back I/O Ports2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
2 x HDMI ports
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Onboard USB2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 1 connector (supports USB Type-C)
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
Miscellaneous
3 x Aura Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
Windows 11Supported
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
Aura Sync
- Aura RGB header
- Addressable Gen 2 RGB headers
Package ContentsCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
Documentation
1 x User guide
Shipping weight1.32 kg
Package size279 × 277 × 71 mm

Questions about this item

Will my existing DDR4-3200 memory modules work in the four 288-pin slots on this board?

Yes, the board supports DDR4-3200 natively and accepts up to 128 GB across its four 288-pin slots in dual-channel mode.

Can I keep using my SATA 6 Gbps SSDs and hard drives with the six SATA ports on this motherboard?

All six SATA 6 Gbps ports are fully compatible with existing SATA SSDs and hard drives, and Intel Rapid Storage Technology enables RAID 0, 1, 5 or 10 if desired.

How do I confirm the board is running PCIe 4.0 on the primary x16 slot and both M.2 slots after assembly?

Enter the UEFI and verify the primary PCIe x16 slot reports Gen 4 x16 and both M.2 slots show Gen 4 x4; the OS device manager will also list the link speed as 16 GT/s for each device.
