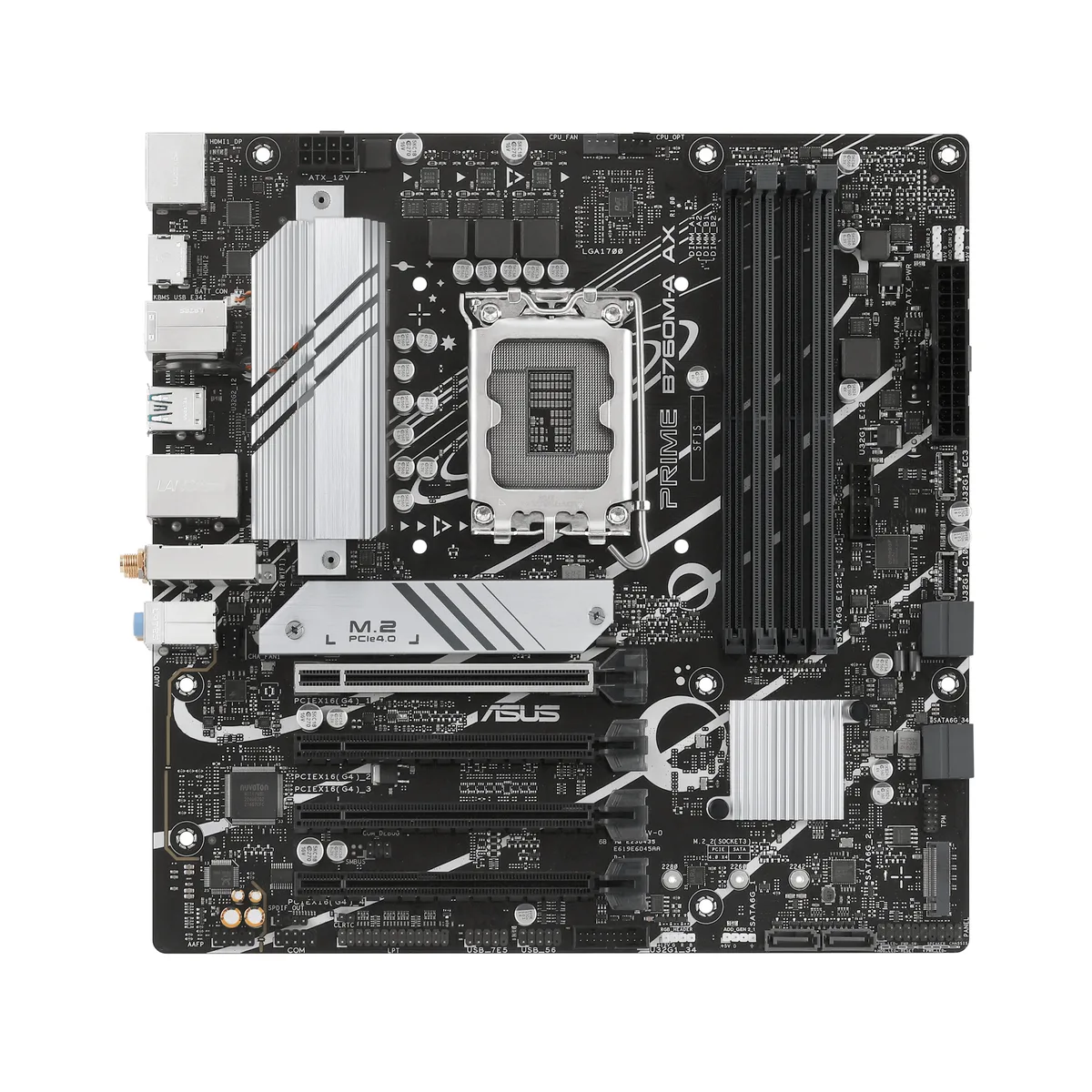

ASUS PRIME B760M-A AX microATX motherboard with silver heatsinks and black PCB

ASUS

ASUS PRIME B760M-A AX Intel motherboard

SKU CH-BWPM-RNHJ3 MPN PRIME B760M-A AX

Micro ATX board for 12th and 13th Gen Intel CPUs with DDR5 up to 7200 MHz, two M.2 slots, 2.5 Gb LAN and WiFi 6

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel Socket LGA1700 for 13th Gen Intel Core Processors & 12
  • ChipsetIntel B760
  • TypeMicro ATX
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/
  • Ready for 12th and 13th Gen Intel CPUs with LGA 1700 socket
  • DDR5 memory up to 7200 MHz overclocked via XMP 3.0 and OptiMem II
  • Two M.2 slots support 2242 2260 2280 drives at PCIe 4.0 x4
  • Realtek 2.5 Gb LAN plus Wi-Fi 6 for fast wired and wireless networking
  • Comprehensive cooling with VRM M.2 and PCH heatsinks plus Fan Xpert 2+ control

Intel LGA 1700 microATX board for 12th

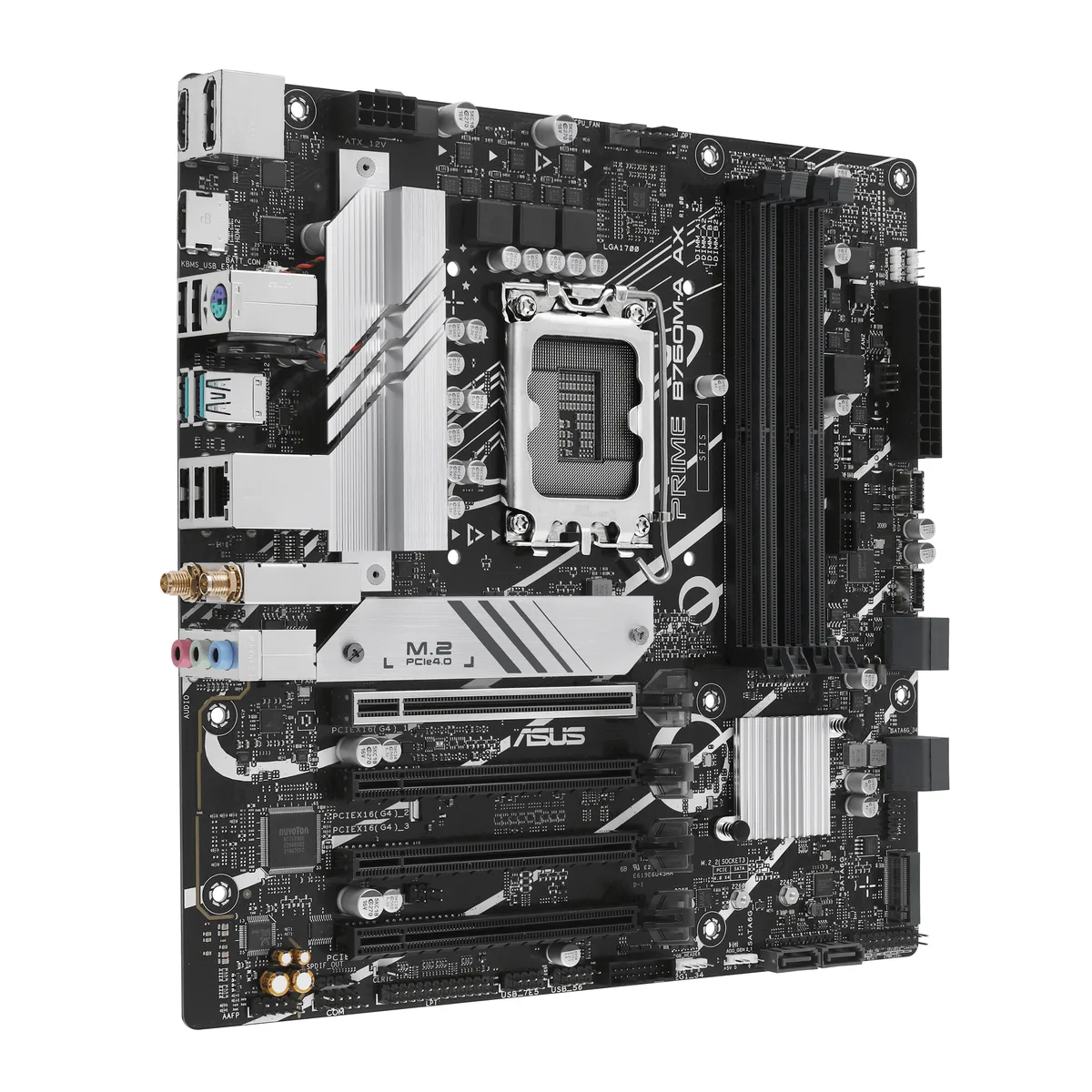

The ASUS PRIME B760M-A AX uses the Intel B760 chipset on a microATX form factor. It supports 12th and 13th Gen Intel Core, Pentium Gold and Celeron processors in the LGA 1700 socket. Four 288-pin DDR5 slots accept up to 256 GB of memory in dual-channel mode. The board targets daily users and DIY builders who want a compact platform with modern I/O.

Check CPU cooler clearance

Verify that your chosen CPU cooler fits the microATX layout and does not block the four memory slots or the primary PCIe 4.0 x16 slot. Ensure any DDR5 kit you select appears on the motherboard QVL for the speeds you intend to run, as supported data rates range from 4800 to 7200+(OC) MHz depending on the processor and module count. Confirm your power supply provides the required 12 V connectors for the board.

Two M.2 heatsinks, 2.5 Gb LAN.

Dual M.2 slots (Key M, type 2242/2260/2280) each run at PCIe 4.0 x4 and include dedicated heatsinks to maintain sustained throughput. The Realtek 2.5 Gb Ethernet controller and Wi-Fi 6 module deliver wired and wireless networking without extra cards. A front-panel USB 3.2 Gen 1 Type-C header and rear USB 3.2 Gen 2 ports simplify connectivity for modern cases and peripherals.

Highlights

  • Ready for 12th and 13th Gen Intel CPUs with LGA 1700 socket
  • DDR5 memory up to 7200 MHz overclocked via XMP 3.0 and OptiMem II
  • Two M.2 slots support 2242 2260 2280 drives at PCIe 4.0 x4
  • Realtek 2.5 Gb LAN plus Wi-Fi 6 for fast wired and wireless networking
  • Comprehensive cooling with VRM M.2 and PCH heatsinks plus Fan Xpert 2+ control

Specifications

BrandASUS
SeriesAORUS
ModelPRIME B760M-A AX
Part Number90MB1EI0-MVAAY0
CPU Socket TypeLGA 1700
CPU TypeIntel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel B760
TypeMicro ATX
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory*
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureSupports Intel Extreme Memory Profile (XMP)
OptiMem II
PCI Express 4.0 x16Intel 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x16 slots (support x1 mode)
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
PCI Express 2.0 x161 x PCI Express 2.0 x16
PCI Express x13 x PCI Express x1
PCI Slots3 x PCI Slots
Serial ATA (SATA)6 x SATA 6Gb/s
M.2Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
SATA RAIDIntel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio ChipsetRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels7.1 Channels
LAN Chipset1 x Realtek 2.5Gb Ethernet
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
BluetoothBluetooth v5.2*
*The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

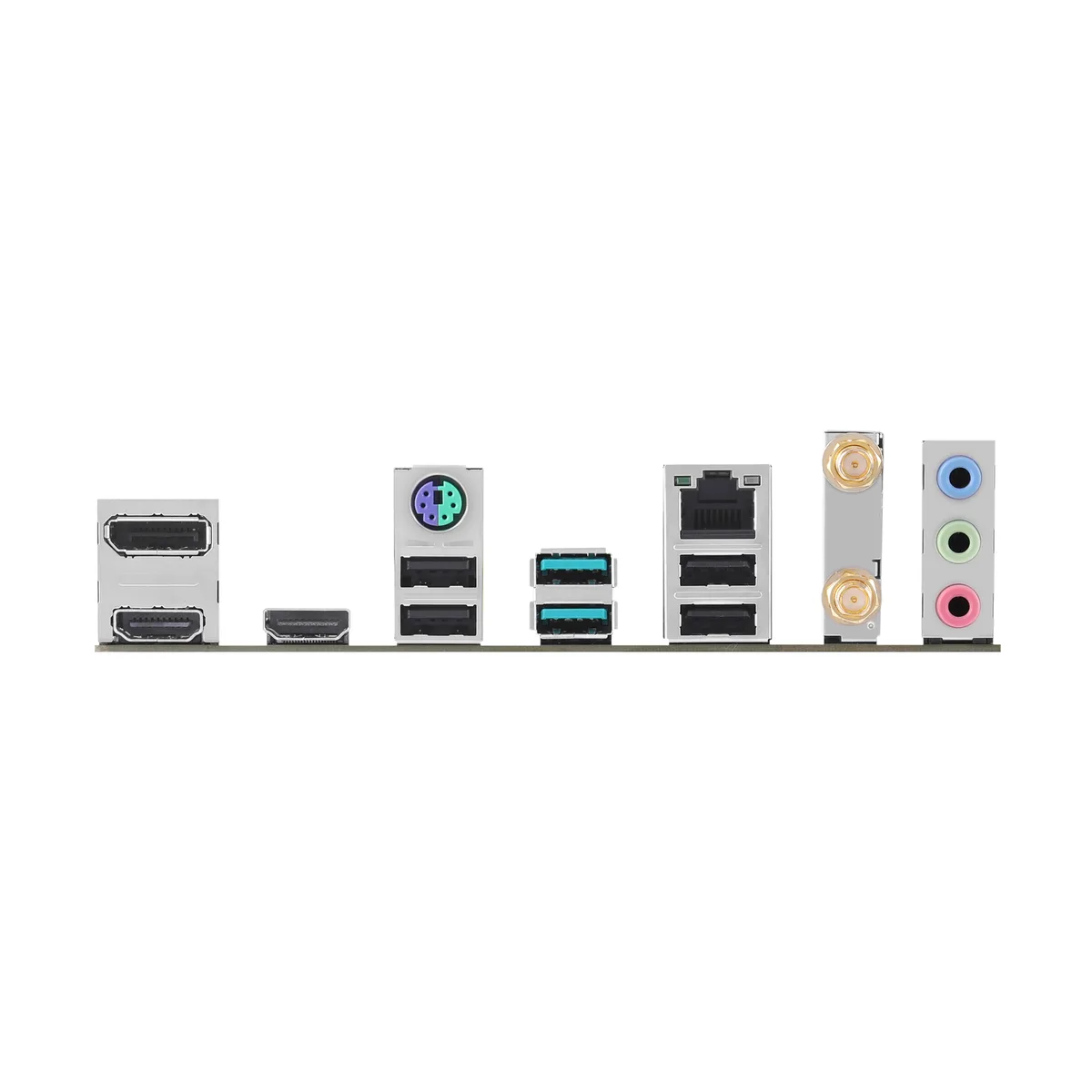

Back I/O Ports2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
2 x HDMI ports
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Video Ports1
HDMI1 x HDMI
RJ451 x RJ45
USB 3.11 x USB 3.1
USB 3.06 x USB 3.0
USB 1.1/2.02 x USB 3.0 + 6 x USB 2.0
Audio Ports2 Ports
Onboard USB2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 1 connector (supports USB Type-C)
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
Miscellaneous
3 x Aura Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
Softwareno_operating_system
Windows 11Supported
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
AURA Sync
- Aura RGB header
- Addressable Gen 2 headers
Package ContentsCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna
1 x I/O Shield
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
Documentation
1 x User guide
Shipping weight1.41 kg
Package size275 × 263 × 66 mm

Questions about this item

What comes in the box with the ASUS PRIME B760M-A AX and what must I buy separately?

The board itself is included; you must supply an LGA 1700 processor, DDR5 memory modules, storage drives, a power supply, a chassis and a CPU cooler.

Which DDR5 speed should I choose for the PRIME B760M-A AX?

The four slots support up to 256 GB and run at 4800 MHz out of the box; XMP 3.0 kits rated up to 7200+(OC) MHz will operate at their advertised speeds when enabled in the BIOS.

What does the 2.5 Gb LAN figure mean once the board is in a working PC?

The Realtek controller provides a wired network link of up to 2.5 Gb/s, so large file transfers and low-latency gaming benefit whenever the router, switch and cabling also support 2.5 Gb/s.
