Dark green mATX motherboard with silver heatsinks and rear I/O shield visible

ASUS

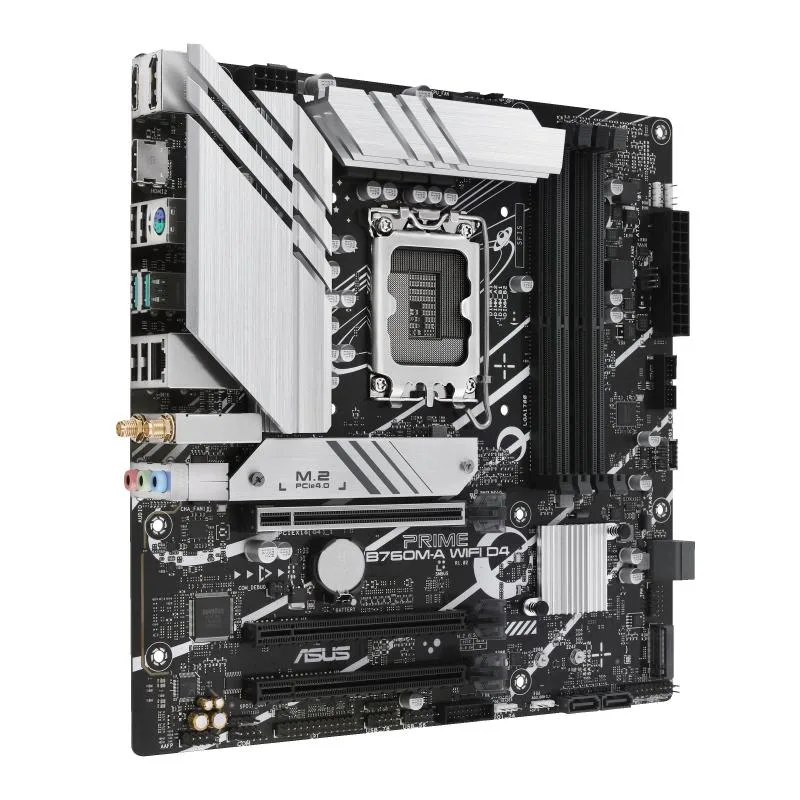

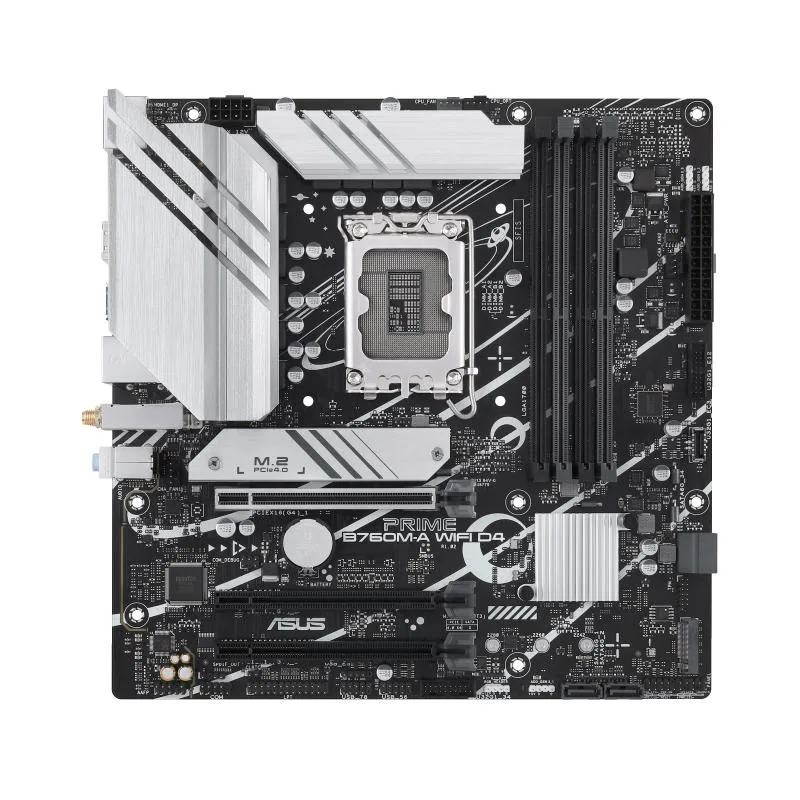

ASUS PRIME B760M-A WIFI D4 LGA 1700 mATX Intel motherboard

SKU CH-DVS9-01C6G

Micro-ATX board with LGA 1700 socket, PCIe 4.0, two M.2 slots, 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2 and front USB 3.2 Gen 1 Type-C

  • CPU Socket TypeLGA 1700
  • Supports 12th, 13th and 14th Gen Intel CPUs via LGA 1700 socket
  • PCIe 4.0 and two M.2 slots enable fast storage expansion
  • Realtek 2.5Gb Ethernet plus Wi-Fi 6 for high-speed networking
  • VRM, M.2 and PCH heatsinks with Fan Xpert 2+ keep temperatures low
  • Aura Sync RGB headers let you synchronise lighting with compatible gear

ASUS PRIME B760M-A WIFI D4 mATX motherboard

This Intel B760 board uses the LGA 1700 socket and supports 12th, 13th and 14th Gen processors in a micro-ATX layout. It targets builders who want current Intel performance without the cost or size of a full ATX platform.

Build quality and daily connectivity

Heatsinks cover the VRM, M.2 and PCH zones while hybrid fan headers and Fan Xpert 2+ manage airflow. Rear I/O includes 2.5 Gb Ethernet, Wi-Fi 6, DisplayPort and USB 3.2 Gen 2 ports; a front-panel USB 3.2 Gen 1 Type-C header and Addressable Gen 2 RGB headers simplify case wiring.

The deciding specification

Two M.2 slots share PCIe 4.0 lanes, so adding a second high-speed drive reduces bandwidth for the first slot. Buyers who need more storage lanes or multiple full-length PCIe cards should consider a larger chipset board.

Highlights

  • Supports 12th, 13th and 14th Gen Intel CPUs via LGA 1700 socket
  • PCIe 4.0 and two M.2 slots enable fast storage expansion
  • Realtek 2.5Gb Ethernet plus Wi-Fi 6 for high-speed networking
  • VRM, M.2 and PCH heatsinks with Fan Xpert 2+ keep temperatures low
  • Aura Sync RGB headers let you synchronise lighting with compatible gear

Specifications

CPU Socket TypeLGA 1700

Questions about this item

What PCIe generation do the two M.2 slots on the PRIME B760M-A WIFI D4 use, and what throughput does that cap each drive at?

Both M.2 slots run on PCIe 4.0, so each drive is limited to the bandwidth of a four-lane Gen 4 link.

What physical clearance does the mATX board need in a case, and which mounting pattern does it follow?

The board uses the standard micro-ATX footprint and mounting holes, so any case that supports mATX will fit it.

How is the Wi-Fi 6 module installed on this board, and what step do builders often miss?

The Wi-Fi 6 controller is soldered on-board; the only installation step is attaching the two supplied external antennas to the rear I/O connectors.
