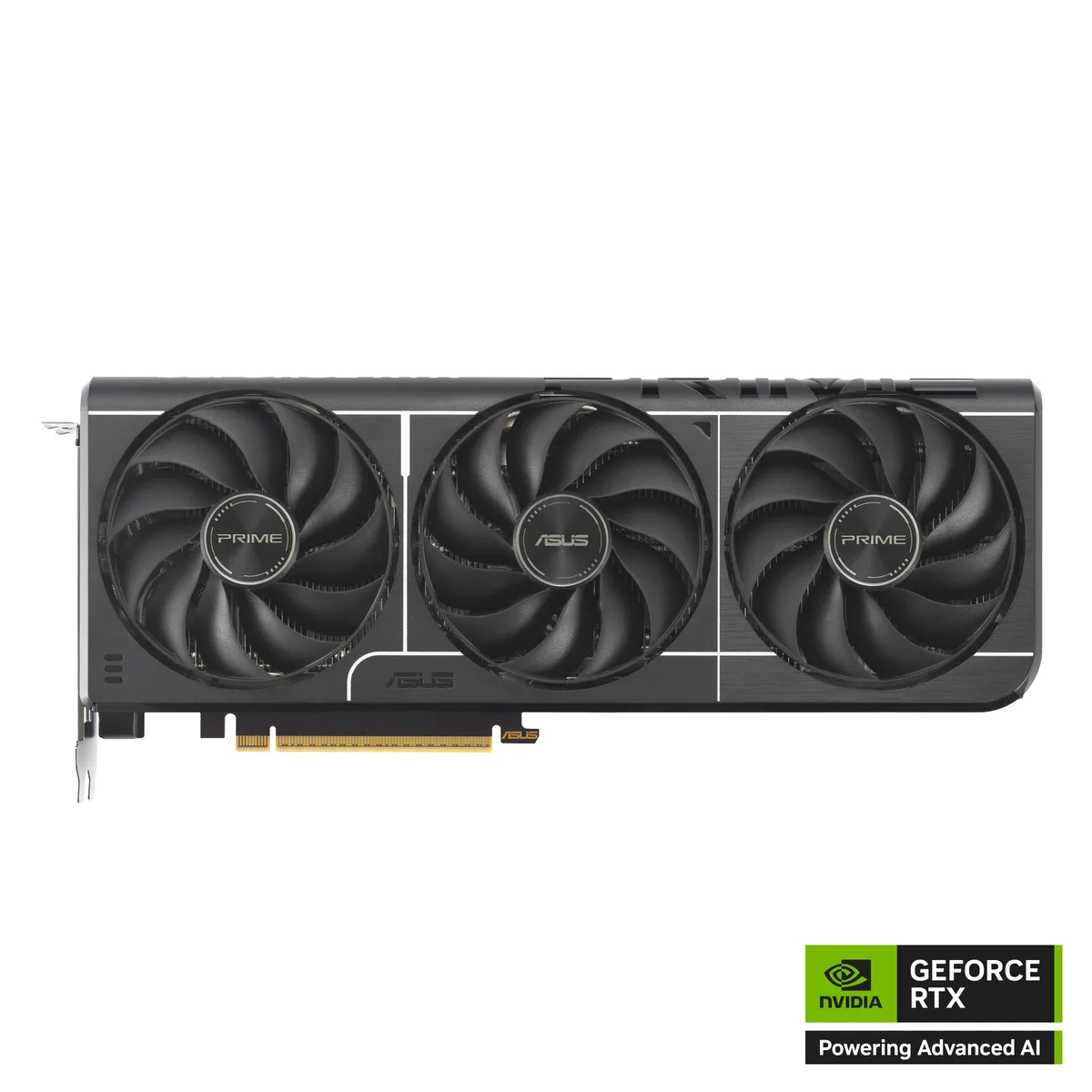

Black triple-fan graphics card, 2.5-slot design, ASUS PRIME GeForce RTX 5060 Ti 8GB

ASUS

ASUS PRIME GeForce RTX 5060 Ti 8GB GDDR7 Triple-Fan Graphics Card PRIME-RTX5060TI-O8G

SKU CH-P26V-8W79D MPN PRIME-RTX5060TI-O8G

Triple-fan GPU with 8 GB GDDR7 on a 128-bit bus, 4608 CUDA cores, PCIe 5.0 x8, HDMI 2.1b and three DisplayPort 2.1b outputs

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060 Ti
  • ArchitectureBlackwell
  • CUDA Cores4608
  • 8GB GDDR7 memory at 28 Gbps for high-speed texture handling
  • 4608 CUDA cores on Blackwell architecture accelerate rendering workloads
  • PCI Express 5.0 x8 interface doubles bandwidth over previous standard
  • HDMI 2.1b plus three DisplayPort 2.1b outputs drive four displays
  • Triple-fan 2.5-slot cooler keeps temperatures low in compact builds

Compact 2.5-slot design

The ASUS PRIME GeForce RTX 5060 Ti occupies a 2.5-slot footprint, making it suitable for smaller chassis builds. Its triple-fan cooler is engineered to move air efficiently across the heatsink. The card targets builders who need strong 1440p performance without a full-length board. It fits the enthusiast segment that values thermal headroom in tight spaces.

PCIe 5.0 x8 and modern display outputs

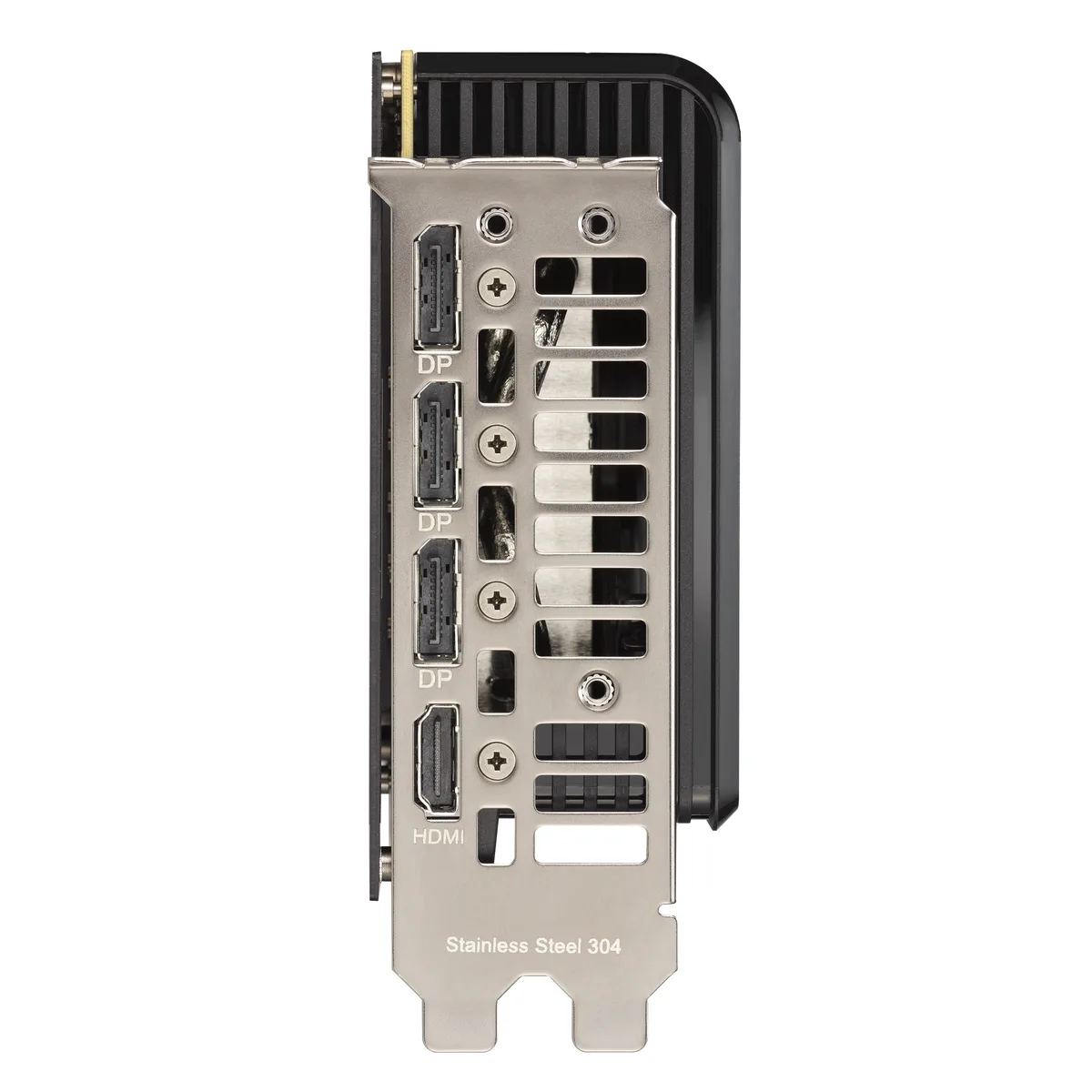

The graphics card connects through a PCI Express 5.0 x8 interface, providing high bandwidth for the Blackwell architecture. One HDMI 2.1b port and three DisplayPort 2.1b connectors drive up to four monitors simultaneously. These latest-standard outputs support high refresh rates at 4K and 8K resolutions. The 128-bit memory bus feeds 8GB of GDDR7 running at an effective 28 Gbps.

4608 CUDA cores and DLSS 4.0

NVIDIA's DLSS 4.0 upscaling technology works with the 4608 CUDA cores to boost frame rates in supported titles. DirectX 12 Ultimate and OpenGL 4.6 compatibility ensure broad API coverage for current and upcoming games. The bundled GPU Tweak III utility lets users adjust clocks, fan curves and monitoring overlays. A reinforced backplate adds structural rigidity and helps dissipate heat from the rear of the PCB.

Highlights

  • 8GB GDDR7 memory at 28 Gbps for high-speed texture handling
  • 4608 CUDA cores on Blackwell architecture accelerate rendering workloads
  • PCI Express 5.0 x8 interface doubles bandwidth over previous standard
  • HDMI 2.1b plus three DisplayPort 2.1b outputs drive four displays
  • Triple-fan 2.5-slot cooler keeps temperatures low in compact builds

Specifications

BrandASUS
SeriesPRIME
ModelPRIME-RTX5060TI-O8G
Part Number90YV0MP0-M0AA00
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060 Ti
ArchitectureBlackwell
CUDA Cores4608
Effective Memory Clock28 Gbps
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerTriple Fans
Recommended PSU Wattage550W
Power Connector8-Pin
Features• AI Performance: 758 AI TOPS
• Powered by the NVIDIA Blackwell architecture and DLSS 4
• SFF-Ready Enthusiast GeForce Card
• Axial-tech fans feature a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
• 2.5-slot design allows for greater build compatibility while maintaining cooling performance
• Dual-ball fan bearings last up to twice as long as standard sleeve bearings
• 0dB technology lets you enjoy light gaming in relative silence
• Dual BIOS switch lets you toggle between Quiet and Performance BIOS profiles
• Auto-Extreme man
Form FactorATX
Max GPU Length304 mm
Card Dimensions (L x H)304 x 120 x 50 mm
11.96 x 4.72 x 1.97 inch
Slot Width2.5 Slots
Shipping weight1.48 kg
Package size405 × 233 × 88 mm

Questions about this item

Does the PCI Express 5.0 x8 interface limit bandwidth on a 5.0 platform?

The card uses a PCI Express 5.0 x8 link, so on a 5.0 motherboard it runs at the full x8 speed; on a 4.0 board it drops to 4.0 x8, which still feeds the GPU adequately.

Will the 2.5-slot triple-fan cooler fit in a compact case?

The 2.5-slot design needs two full expansion slots plus a half-slot clearance; measure from the motherboard PCIe slot to the side panel and ensure at least that depth plus room for the three fans.

What power connector does the card require and where do builders forget it?

A single 12 V connector plugs into the top edge of the board; the step most often missed is seating that connector fully until the latch clicks.
