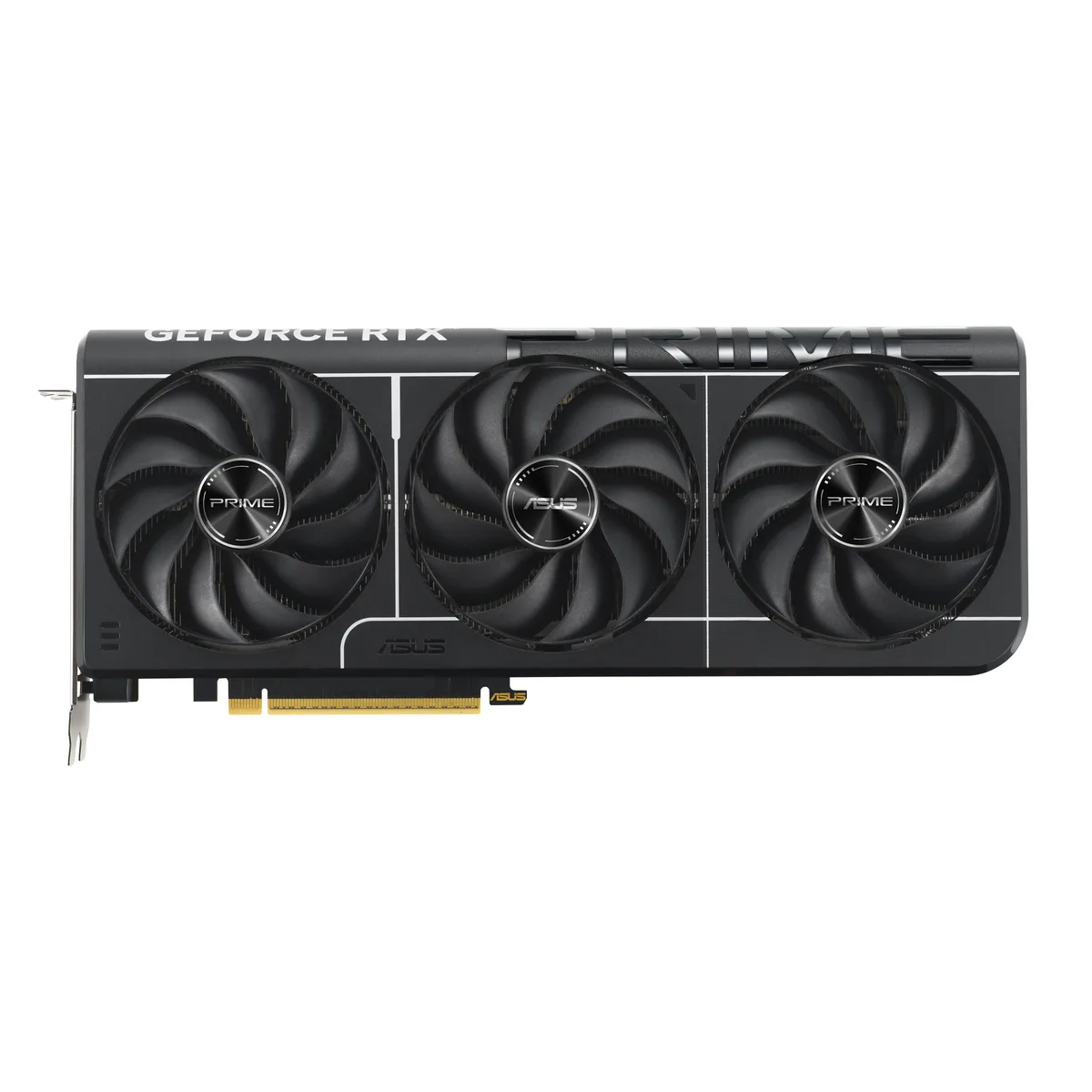

Black triple-fan graphics card with silver accents, full-length ATX form factor

ASUS

ASUS PRIME GeForce RTX 5070 Ti 16GB GDDR7 Triple Fan Graphics Card PRIME-RTX5070TI-16G

SKU CH-48TQ-4GSSB MPN PRIME-RTX5070TI-16G

A GeForce RTX 5070 Ti with 16 GB of 28 Gbps GDDR7 memory on a 256-bit bus, 8960 CUDA cores, triple-fan cooling, PCI Express 5.0 and one HDMI 2.1b plus three DisplayPort 2.1b outputs

  • InterfacePCI Express 5.0
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5070 Ti
  • ArchitectureBlackwell
  • CUDA Cores8960
  • 16GB GDDR7 memory at 28 Gbps feeds high-resolution textures fast
  • 8960 CUDA cores on Blackwell architecture accelerate ray-tracing workloads
  • PCI Express 5.0 interface doubles host bandwidth for modern platforms
  • Triple-fan cooler keeps the 300W TDP card stable under load
  • HDMI 2.1b plus three DisplayPort 2.1b outputs drive four 8K displays

16GB GDDR7 Memory Configuration

The ASUS PRIME GeForce RTX 5070 Ti carries 16GB of GDDR7 memory across a 256-bit interface running at 28 Gbps. It is built for creators and gamers who need high bandwidth for 4K textures and large scene data. The Blackwell architecture brings 8960 CUDA cores and DLSS 4.0 support for AI-accelerated rendering.

Triple-Fan Cooler and 2.5-Slot Form Factor

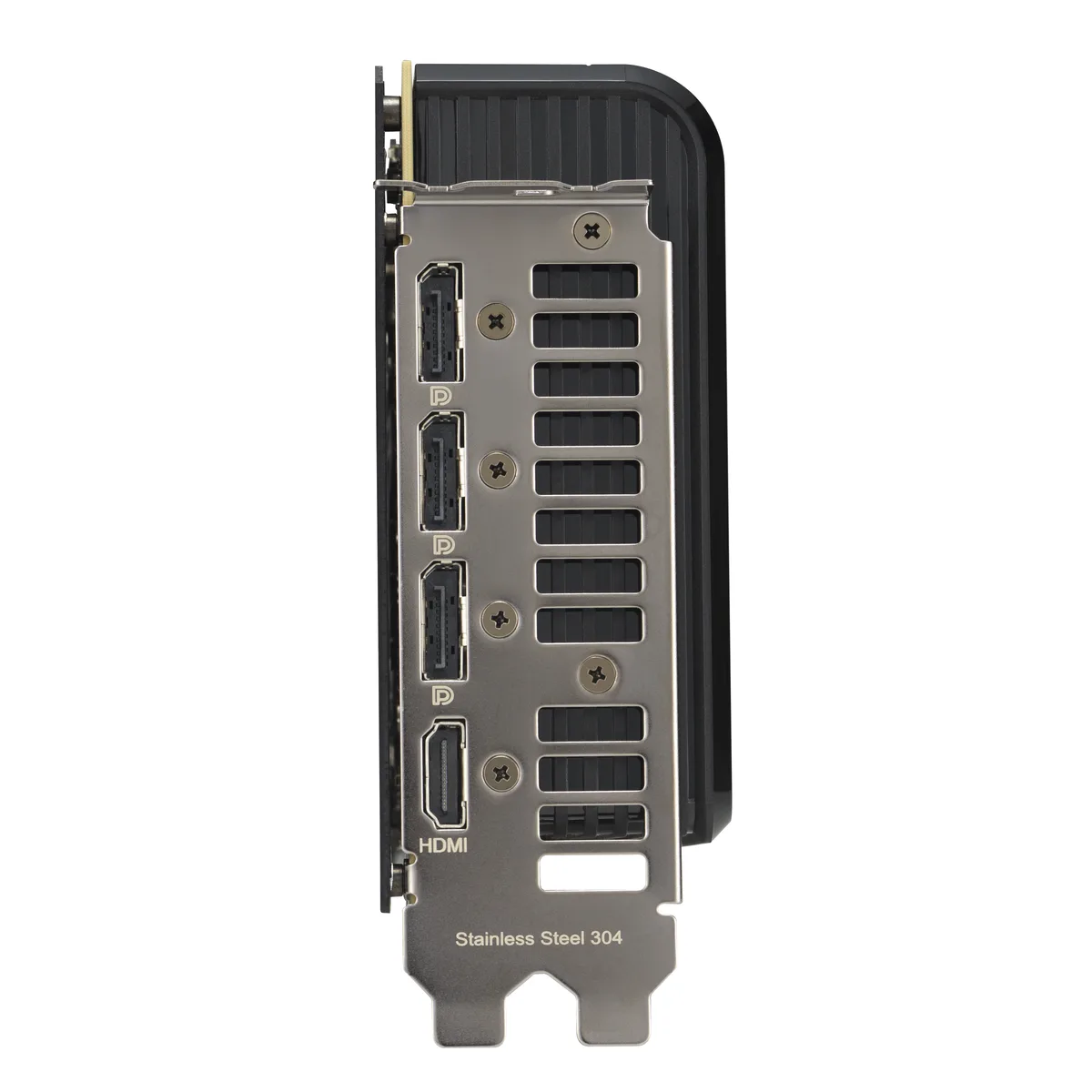

A triple-fan thermal solution dissipates the 300W TDP within an ATX form factor measuring 304 mm long. The card occupies 2.5 slots and draws auxiliary power through a single 16-pin connector, so a 750W supply is recommended. Outputs include one HDMI 2.1b and three DisplayPort 2.1b ports driving up to four displays at 7680 x 4320 resolution.

PCI Express 5.0 Interface Practical Limits

The x16 Gen 5 link provides high theoretical bandwidth for asset streaming and compute workloads. Realised throughput depends on motherboard implementation, CPU lane allocation and signal integrity at 32 GT/s per lane. Systems limited to Gen 4 or x8 electrical width will see reduced peak transfer rates for memory-intensive tasks.

Highlights

  • 16GB GDDR7 memory at 28 Gbps feeds high-resolution textures fast
  • 8960 CUDA cores on Blackwell architecture accelerate ray-tracing workloads
  • PCI Express 5.0 interface doubles host bandwidth for modern platforms
  • Triple-fan cooler keeps the 300W TDP card stable under load
  • HDMI 2.1b plus three DisplayPort 2.1b outputs drive four 8K displays

Specifications

BrandASUS
SeriesPRIME
ModelPRIME-RTX5070TI-16G
Part NumberPRIME-RTX5070TI-16G
InterfacePCI Express 5.0
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5070 Ti
ArchitectureBlackwell
CUDA Cores8960
Effective Memory Clock28 Gbps
Memory Size16GB
Memory Interface256-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerTriple Fans
Thermal Design Power300W
Recommended PSU Wattage750W
Power Connector1 x 16-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length304 mm
Card Dimensions (L x H)12 x 5 x 2 inch
Slot Width2.5 Slots
Shipping weight1.84 kg
Package size406 × 235 × 89 mm

Questions about this item

Does the PCI Express 5.0 x16 interface limit the RTX 5070 Ti to 5.0 speeds on older boards?

The card runs at PCI Express 5.0 when the motherboard supports it and falls back to 4.0 or 3.0 without damage; the 256-bit GDDR7 memory at 28 Gbps keeps internal bandwidth high regardless of slot generation.

Will the 2.5-slot, 304 mm triple-fan cooler fit in a standard ATX case?

It needs a case that clears at least 304 mm in length and has 2.5 expansion slots of width; measure from the motherboard PCIe bracket to the nearest obstruction and check the slot spacing on your chassis.

What is the correct way to connect the single 16-pin power connector so the card posts reliably?

Use the native 12VHPWR cable from a 750 W or larger PSU, seat it fully until the latch clicks, and avoid daisy-chain adapters; a loose or bent pin is the most common reason the GPU fails to initialise.
