Green rectangular ATX motherboard with silver CPU socket and black expansion slots

ASUS

ASUS PRIME H270-PLUS Intel motherboard

SKU CH-3H6Y-8XWV9

An ATX Intel H270 board for LGA 1151 CPUs with four DDR4 slots up to 64 GB, dual PCIe 3.0 x16 slots, six SATA ports, two M.2 sockets, HDMI 1.4b, DVI-D, VGA.

  • CPU Socket TypeLGA 1151
  • CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)
  • Supported CPU TechnologiesTurbo Boost Technology 2.0
  • ChipsetIntel H270
  • Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics support Mu
  • Number of Memory Slots4x288pin (DDR4)
  • Supports up to 64GB DDR4 memory via four 288-pin slots
  • HDMI 1.4b output delivers 4096 x 2160 resolution at 24 Hz
  • Dual M.2 sockets accept 2242, 2260 and 2280 drives in SATA or PCIe modes
  • Six SATA 6Gb/s ports with RAID 0, 1, 5, 10 support
  • Realtek RTL8111H gigabit LAN and ALC887 8-channel audio onboard

Socket LGA 1151 motherboard for 6th

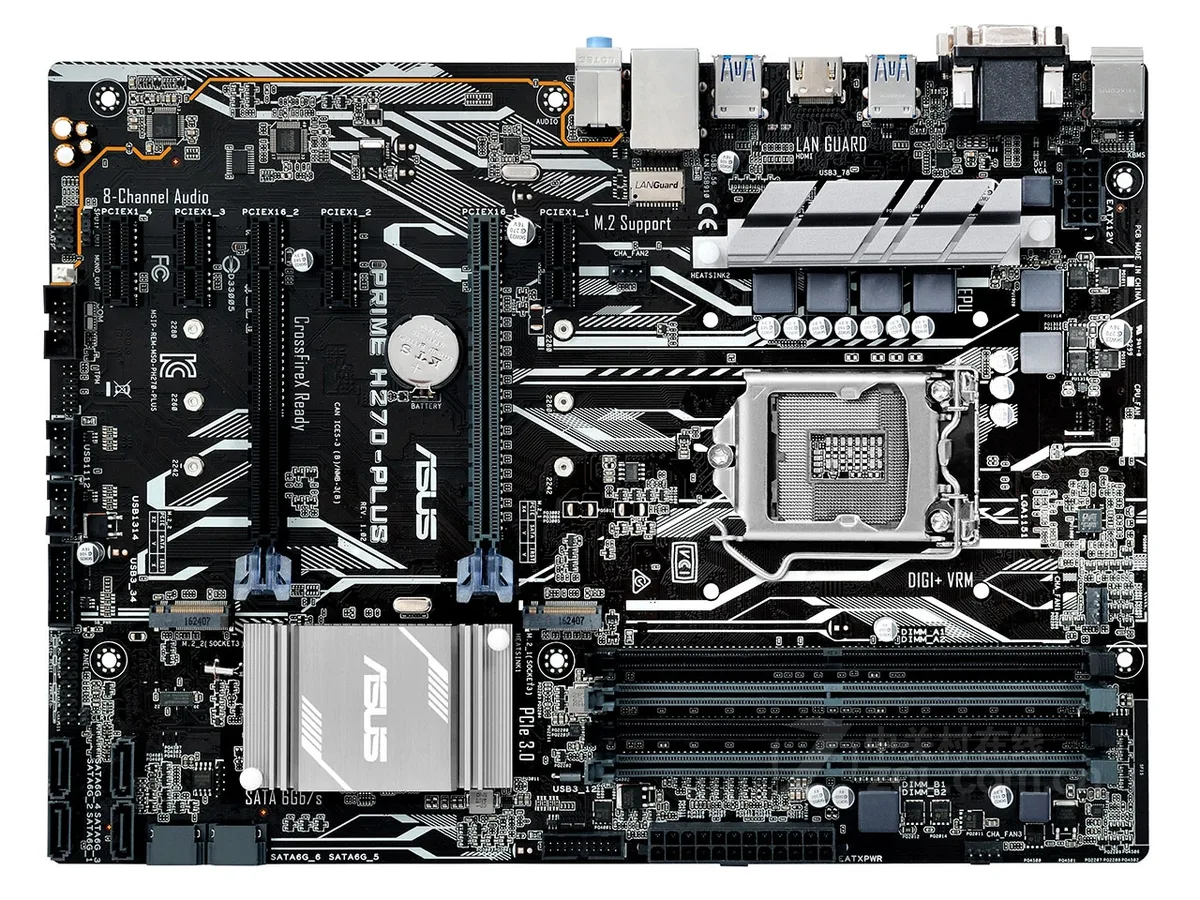

The ASUS PRIME H270-PLUS is an ATX board built on the Intel H270 chipset and fits LGA 1151 processors including Core i7, i5, i3, Pentium and Celeron. It targets system builders who need a stable platform for everyday computing and light content creation.

Four DDR4 slots with 64 GB ceiling

Four 288-pin DIMM sockets run dual-channel DDR4 at 2400 and 2133 MHz, giving 64 GB total capacity. That headroom covers multitasking, virtual machines and moderate creative workloads; beyond 64 GB the board cannot go.

Two M.2 sockets plus six SATA ports and legacy video

One M.2 slot supports x4 PCIe or SATA, the second runs x2 PCIe or SATA, both accepting 2242, 2260 and 2280 drives. Six SATA 6Gb/s ports add RAID 0, 1, 5, 10. Video outputs are HDMI 1.4b, DVI-D and RGB, driven by the CPU integrated graphics. Realtek ALC887 8-channel audio and RTL8111H gigabit LAN complete the I/O.

Highlights

  • Supports up to 64GB DDR4 memory via four 288-pin slots
  • HDMI 1.4b output delivers 4096 x 2160 resolution at 24 Hz
  • Dual M.2 sockets accept 2242, 2260 and 2280 drives in SATA or PCIe modes
  • Six SATA 6Gb/s ports with RAID 0, 1, 5, 10 support
  • Realtek RTL8111H gigabit LAN and ALC887 8-channel audio onboard

Specifications

BrandASUS
ModelPRIME H270-PLUS
CPU Socket TypeLGA 1151
CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)
Supported CPU TechnologiesTurbo Boost Technology 2.0
ChipsetIntel H270
Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics support
Multi-VGA output support: HDMI/DVI-D/RGB ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Supports up to 3 displays simultaneously
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 2400/ 2133
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
PCI Express x14 x PCIe 3.0/2.0 x1
Serial ATA (SATA)6 x SATA 6Gb/s port(s), gray
M.21 x M.2 Socket 3 *1, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 *2, with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode) *1
*1 When a device in SATA mode is installed on the M.2_1 socket, SATA_1 port cannot be used.
*2 When a device in SATA mode is installed on the M.2_2 socket, SATA_6 port cannot be used.
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC887
Audio Channels8 Channels
LAN ChipsetRealtek RTL8111H
Max LAN Speed1Gbps

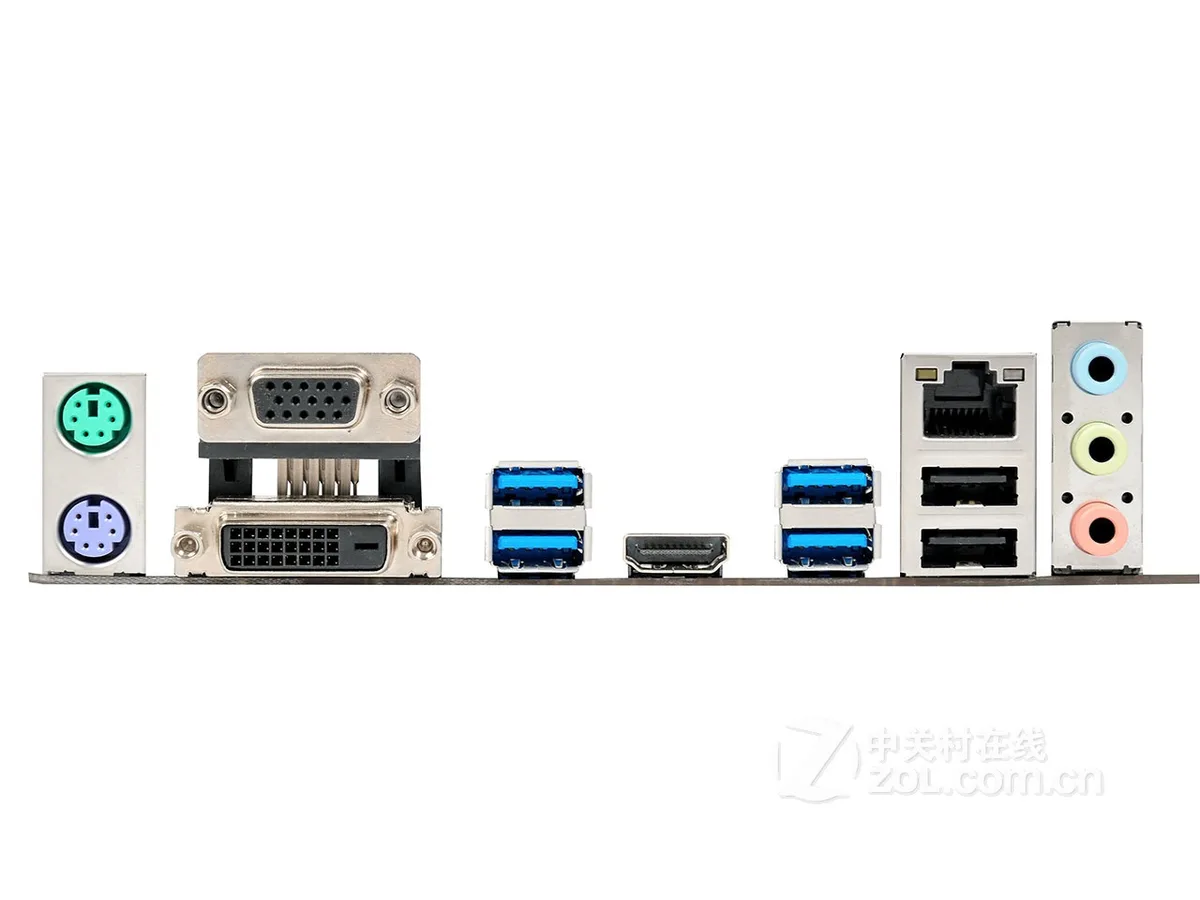

Back I/O Ports1 x HDMI / 2 x PS/2 / 2 x USB 2.0/1.1 / 4 x USB 3.0
PS/21 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
Video Ports1 x DVI-D
1 x D-Sub
HDMI1 x HDMI
RJ451 x RJ45
USB 3.04 x USB 3.0 (blue) Type-A
USB 1.1/2.02 x USB 2.0
Audio Ports1 x 8-channel Audio I/O
Onboard USB2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors1 x TPM header
1 x CPU Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Mono Out header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin24 Pin
FeaturesMulti-GPU Support:
Supports AMD CrossFireX Technology
Special Features:
ASUS 5X Protection III:
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
ASUS EPU:
- EPU
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink sol
Package ContentsAccessories:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
2 x M.2 screws
1 x SCD

Questions about this item

Will my existing DDR4 2133 MHz modules run at their rated speed on the four 288-pin slots of this H270 board?

Yes, the board supports DDR4 2133 and 2400 MHz in dual-channel mode across all four slots, up to 64 GB total.

How can I confirm the integrated Intel HD Graphics is driving my monitor through the HDMI 1.4b port at 2560 x 1600 @ 60 Hz?

Connect the display to the HDMI port, boot with a supported CPU, and check the OS display settings or GPU-Z to verify the 2560 x 1600 @ 60 Hz mode is active.

Which cables and drives must I supply besides the motherboard, I/O shield, SATA cables and M.2 screws that come in the box?

You need a LGA 1151 CPU, DDR4 DIMMs, storage drives (SATA or M.2 2242/2260/2280), a PSU with 24-pin and 8-pin EPS connectors, and a case with ATX standoffs.
