Green micro-ATX motherboard with silver LGA 1200 socket, two black DDR4 slots, single PCIe x16 slot, two PCIe x1 slots

ASUS

ASUS PRIME H410M-K Intel motherboard

SKU CH-0XMD-2TXHN

Micro-ATX board with LGA 1200 socket for 10th Gen Intel Core, Pentium Gold and Celeron CPUs, dual-channel DDR4 to 64 GB, one PCIe 3.0 x16 and two PCIe 3.0 x1 slots, four SATA 6Gb/s ports.

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core Processors Supports Intel Penti
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Bo
  • ChipsetIntel H410
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots2x288pin (DDR4)
  • Supports 10th Gen Intel Core and Pentium Gold processors via LGA 1200 socket
  • Dual-channel DDR4 memory up to 64GB with speeds from 2133 to 2933
  • PCIe 3.0 x16 plus two PCIe 3.0 x1 slots for graphics and add-in cards
  • Four SATA 6Gb/s ports and USB 3.2 Gen 1 for fast storage and peripherals
  • Realtek ALC887/897 7.1-channel audio and RTL8111H 1Gb Ethernet for connectivity

Socket LGA 1200 Micro ATX Board

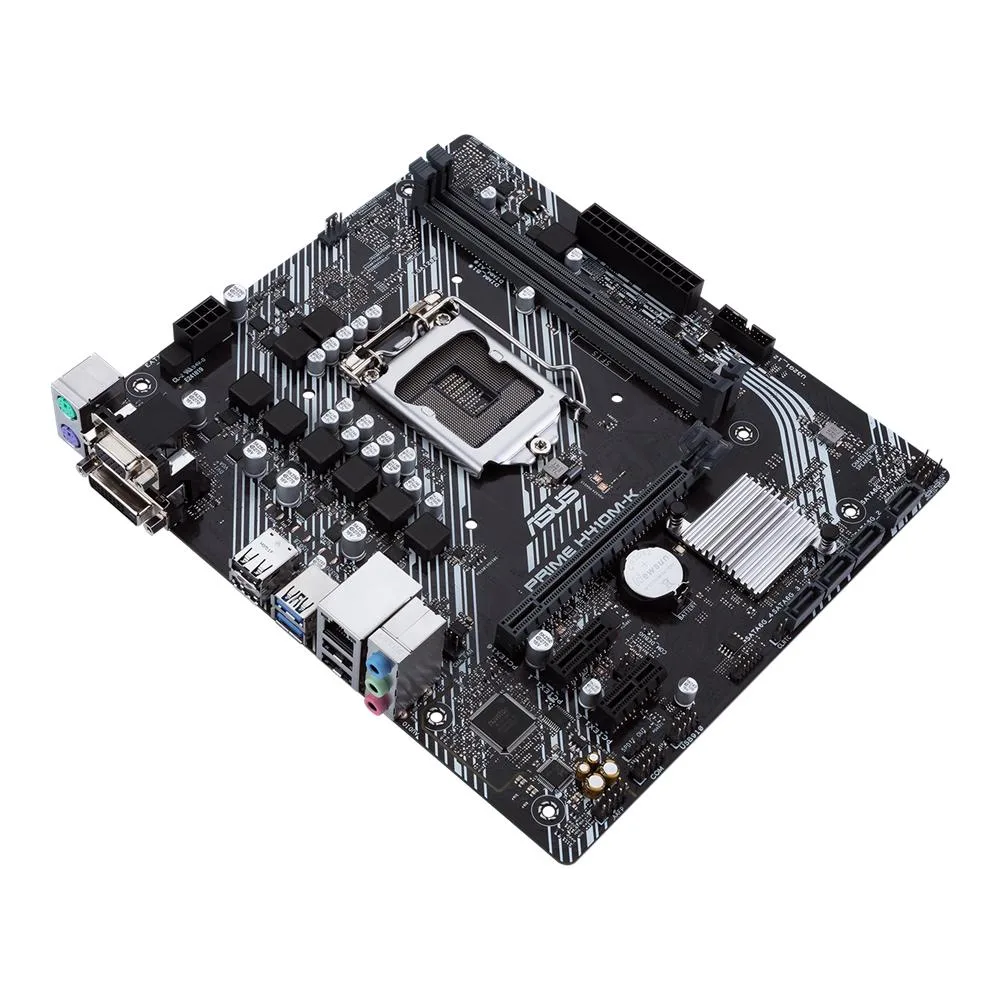

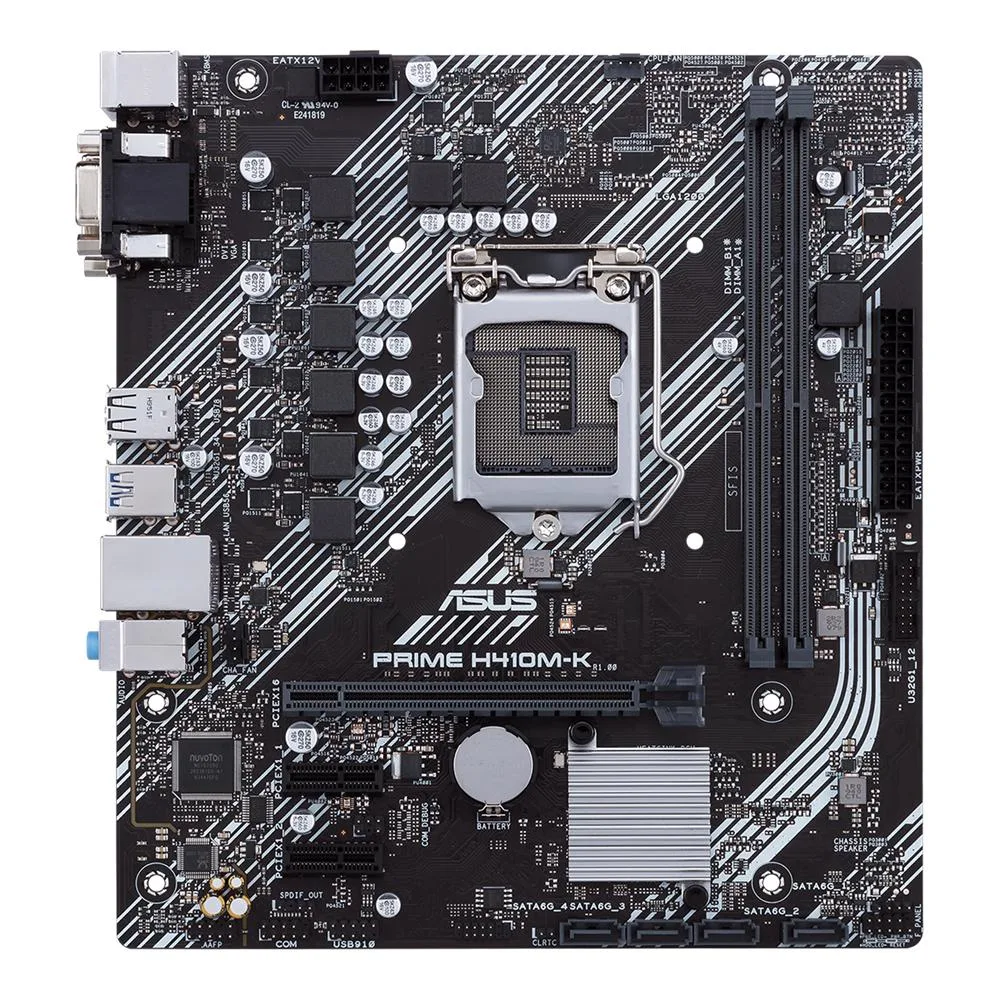

The ASUS PRIME H410M-K is a micro ATX motherboard built around the Intel H410 chipset and LGA 1200 socket. It accepts 10th Gen Intel Core processors plus Pentium Gold and Celeron CPUs. Two DDR4 slots support dual-channel memory up to 64 GB at speeds from 2133 to 2933 MT/s.

Budget Builders and Office Systems

This board suits cost-conscious builders assembling office PCs, home servers or basic gaming rigs with a discrete graphics card. Enthusiasts needing CPU overclocking, more than two memory slots, multiple PCIe x16 lanes or built-in Wi-Fi should consider a different chipset.

Single PCIe 3.0 x16 Slot

Only one full-length PCI Express 3.0 x16 slot is provided, so the board can host a single graphics card or other x16 add-in card. A second x16 device cannot be installed.

Highlights

  • Supports 10th Gen Intel Core and Pentium Gold processors via LGA 1200 socket
  • Dual-channel DDR4 memory up to 64GB with speeds from 2133 to 2933
  • PCIe 3.0 x16 plus two PCIe 3.0 x1 slots for graphics and add-in cards
  • Four SATA 6Gb/s ports and USB 3.2 Gen 1 for fast storage and peripherals
  • Realtek ALC887/897 7.1-channel audio and RTL8111H 1Gb Ethernet for connectivity

Specifications

BrandASUS
ModelPRIME H410M-K
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core Processors
Supports Intel Pentium Gold and Celeron Processors
* Refer to www.asus.com for CPU support list.
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*
* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel H410
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots2x288pin (DDR4)
Memory StandardDDR4 2933 / 2800 / 2666 / 2400 / 2133*
* 10th Gen Intel Core i9 / i7 CPUs support 2933 / 2800 / 2666 / 2400 / 2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCIe 3.0 x16 *
* Actual support may vary by CPU.
PCI Express x12 x PCIe 3.0 x1
Serial ATA (SATA)4 x SATA 6Gb/s
Audio ChipsetRealtek ALC887/897
Audio Channels7.1 Channels
LAN ChipsetRealtek RTL8111H
Max LAN Speed1Gbps
Back I/O Ports1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 1 Type-A
4 x USB 2.0
3 x Audio jack(s)
Onboard USB1 x USB 3.2 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
Other Connectors1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector
Form FactorMicro ATX
Dimensions (W x L)8.9" x 8.0"
Power Pin1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
FeaturesSoftware Features:
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Special Features:
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
Package ContentsAccessories:
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
User manual

Questions about this item

Does the LGA 1200 socket limit PCIe lanes to 3.0 speeds?

The H410 chipset provides one PCIe 3.0 x16 slot and two PCIe 3.0 x1 slots; all expansion cards run at PCIe 3.0 rates.

What case clearance does the Micro ATX form factor need?

The board fits any chassis that accepts Micro ATX dimensions and standard I/O shield cut-outs.

Which way round does the 8-pin CPU power connector go, and what happens if it is reversed?

The keyed 8-pin plug only seats one way; forcing it the wrong way round will damage the socket and prevent the system from posting.
