Green micro ATX motherboard with black heatsinks and silver I/O shield

ASUS

ASUS PRIME H510M-A WIFI Intel motherboard

SKU CH-KA7Y-J6WAW

Micro-ATX board for 10th and 11th Gen Intel CPUs with DDR4, PCIe 4.0, M.2, Wi-Fi 5 and 1 Gb Ethernet

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 11th / 10th Gen Intel Core Processors* Supports Int
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Bo
  • ChipsetIntel H510
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots2x288pin (DDR4)
  • Supports 11th and 10th Gen Intel Core processors on LGA 1200 socket
  • DDR4 memory up to 3200(OC) MHz across two slots for 64GB maximum capacity
  • PCIe 4.0 x16 slot enables high-speed graphics with compatible 11th Gen CPUs
  • Integrated Intel Wi-Fi 5 and 1Gb Ethernet provide dual-band wireless and wired connectivity
  • Realtek audio with 7.1 channel support plus M.2 heatsink for sustained SSD performance

LGA 1200 micro ATX motherboard

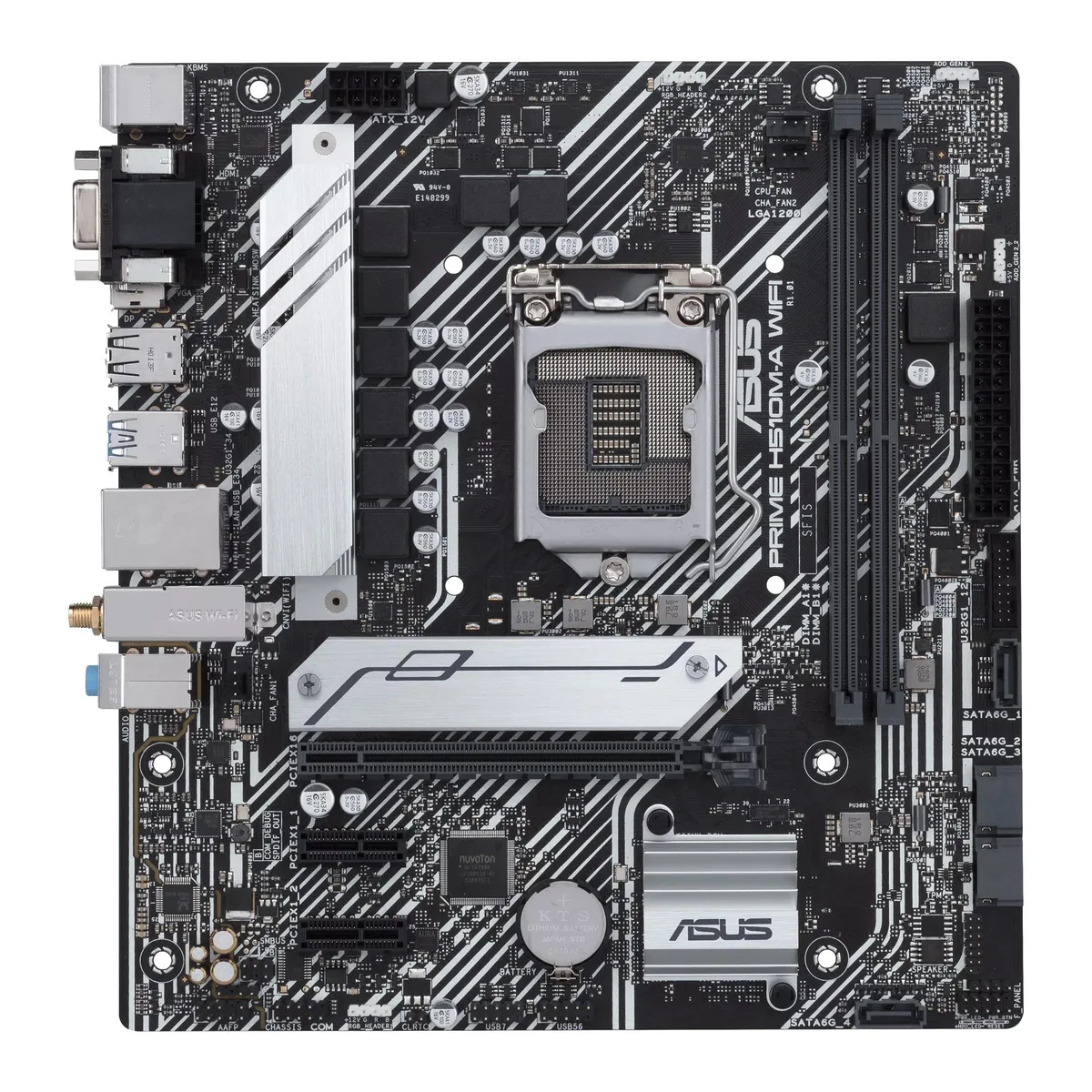

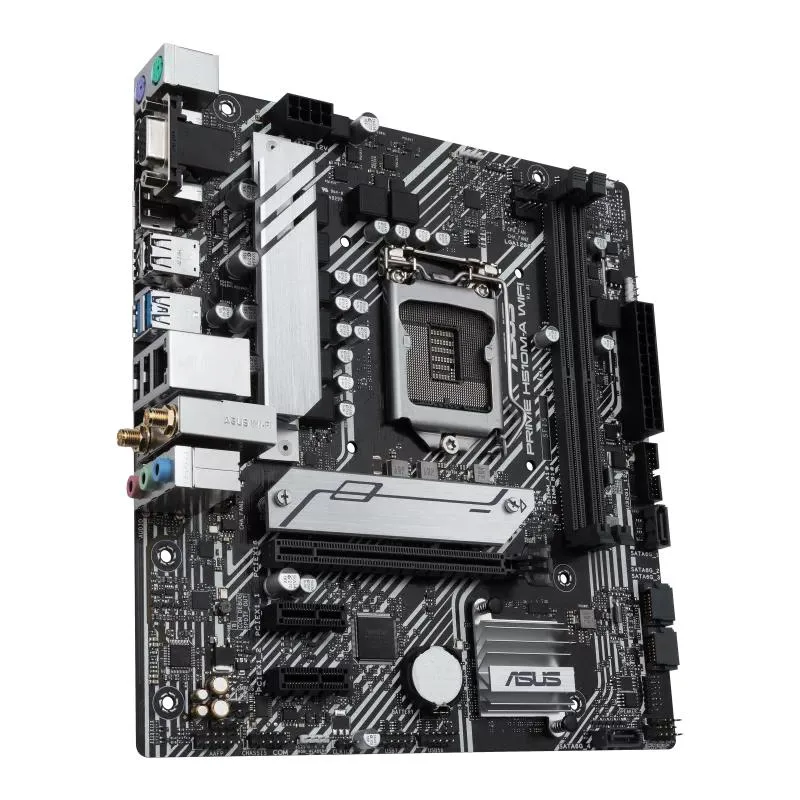

The ASUS PRIME H510M-A WIFI is an LGA 1200 micro ATX board built around the Intel H510 chipset. It supports 10th and 11th Gen Intel Core, Pentium Gold and Celeron processors. Integrated Intel Wi-Fi 5 and 1 Gb Ethernet provide wireless and wired networking.

Entry builds needing wireless

This board suits builders assembling a compact office or home PC that requires integrated Wi-Fi 5 and a single PCIe 4.0 x16 slot for a graphics card. Users who need more than two memory slots, multiple M.2 drives or CPU overclocking should consider a different chipset.

Single PCIe 4.0 x16 slot

The only PCIe 4.0 x16 slot operates at full speed with an 11th Gen processor; with a 10th Gen CPU it reverts to PCIe 3.0. Verify your processor generation to ensure the graphics slot meets your bandwidth expectations.

Highlights

  • Supports 11th and 10th Gen Intel Core processors on LGA 1200 socket
  • DDR4 memory up to 3200(OC) MHz across two slots for 64GB maximum capacity
  • PCIe 4.0 x16 slot enables high-speed graphics with compatible 11th Gen CPUs
  • Integrated Intel Wi-Fi 5 and 1Gb Ethernet provide dual-band wireless and wired connectivity
  • Realtek audio with 7.1 channel support plus M.2 heatsink for sustained SSD performance

Specifications

BrandASUS
ModelPRIME H510M-A WIFI
CPU Socket TypeLGA 1200
CPU TypeSupports 11th / 10th Gen Intel Core Processors*
Supports Intel Pentium Gold and Celeron Processors*
* Refer to www.asus.com for CPU support list.
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*
* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel H510
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots2x288pin (DDR4)
Memory StandardDDR4 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133*
* 11th Gen Intel processors support 2933 / 2800 / 2666 / 2400 / 2133 natively.
* 10th Gen Intel Core i9 / i7 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 4.0 x161 x PCI Express 4.0 x16*
* Actual support may vary by CPU.
PCI Express x12 x PCIe 3.0 x1
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel H510 Chipset:
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
* The M.2 slot shares bandwidth with the SATA6G_2 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_2 port cannot be used.
Audio ChipsetRealtek ALC897/887
Audio Channels7.1 Channels*
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
Wireless LANIntel Wi-Fi 5 9462NGW
Wi-Fi 5 (802.11a/b/g/n/ac)
BluetoothBluetooth 5.1
Back I/O Ports2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x D-Sub port
1 x HDMI port
1 x ASUS Wi-Fi Module
1 x Intel I219-V 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
Onboard USB1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1-pin)
1 x 10-1-pin System Panel header
Form FactorMicro ATX
LED LightingRGB
Dimensions (W x L)8.9" x 8.3"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
FeaturesSpecial Features:
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers
Software Features:
ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 2+
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
MyAsus
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- A
Package ContentsAccessories:
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 Rubber Package
1 x M.2 SSD screw package
Installation Media
1 x Support DVD
Documentation
1 x User manual

Questions about this item

Will my 11th Gen Intel Core processor run the PCIe slot at 4.0 speed?

Yes, the PCIe 4.0 x16 slot operates at full speed when paired with an 11th Gen CPU; with a 10th Gen CPU it runs at PCIe 3.0 speeds.

Can I install a 64 GB DDR4 kit on the two memory slots?

The board supports up to 64 GB across its two DDR4 slots, so a 2 x 32 GB kit will work at speeds up to 3200 OC.

Does the M.2 slot disable a SATA port when used?

The M.2 slot shares bandwidth with the SATA6G_2 port; using a SATA-mode M.2 drive disables that SATA port, while a PCIe-mode drive leaves all four SATA ports active.
