Green mini-ITX board with black VRM heatsink and silver I/O shield

ASUS

ASUS PRIME H610I-PLUS D4-CSM Intel motherboard

SKU CH-AFJK-F24G6 MPN PRIME H610I-PLUS D4-CSM

Mini-ITX board for 12th and 13th Gen Intel Core CPUs with DDR4, PCIe 4.0 x16, 32 Gbps M.2, 1 Gb LAN and triple video outputs

  • CPU Socket TypeLGA 1700
  • CPU TypeSupports 13th / 12th Gen Intel Core Processors, Pentium Gold
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Bo
  • ChipsetIntel H610
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots2x288pin (DDR4)
  • Supports 12th and 13th Gen Intel Core processors via LGA 1700 socket
  • Dual-channel DDR4 memory up to 64 GB with speeds to 3200 MT/s
  • PCIe 4.0 x16 slot plus M.2 Key M slot for 2242, 2260 or 2280 drives
  • Realtek 1 Gb Ethernet and USB 3.2 Gen 1 Type-A ports for wired connectivity
  • Realtek 7.1-channel audio with DisplayPort, HDMI and D-Sub video outputs

Mini-ITX LGA 1700 platform

The ASUS PRIME H610I-PLUS D4-CSM is a mini-ITX motherboard built around the Intel H610 chipset and LGA 1700 socket. It supports 12th and 13th Gen Intel Core, Pentium Gold and Celeron processors, making it suited for compact business or home-office builds. A BIOS update may be required before a 13th Gen CPU will boot.

DDR4 memory ceiling

Two 288-pin slots accept DDR4 modules up to 3200 MT/s and a maximum of 64 GB in dual-channel mode. Intel XMP 2.0 profiles are supported, but the actual data rate depends on the specific processor and memory kit installed.

Connectivity bundle

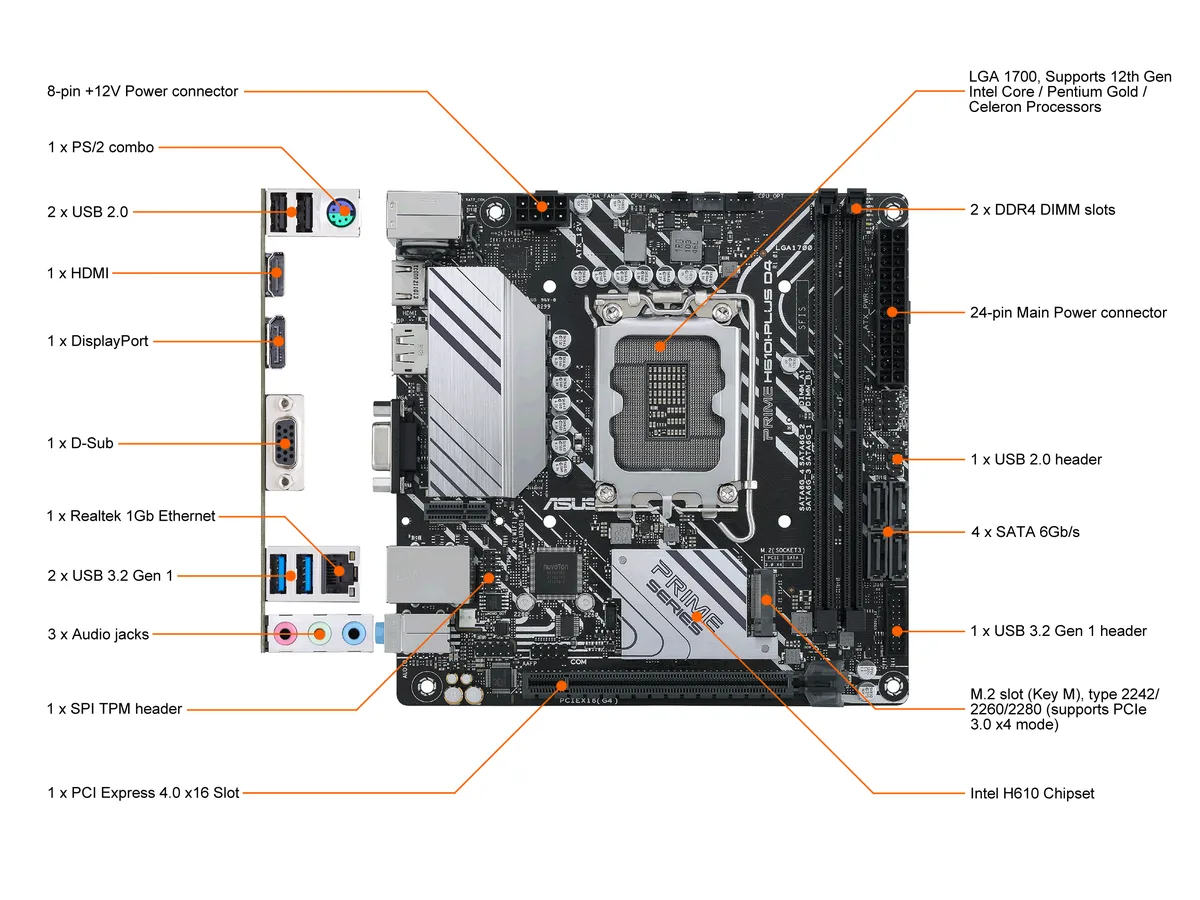

The rear panel provides two USB 3.2 Gen 1 Type-A ports, two USB 2.0 Type-A ports, DisplayPort, HDMI, D-Sub, a Realtek 1 Gb Ethernet jack, three audio jacks and a PS/2 combo port. An M.2 Key M slot (2242/2260/2280) runs at PCIe 3.0 x4 for storage, while a Key E slot allows a Wi-Fi module to be added.

Highlights

  • Supports 12th and 13th Gen Intel Core processors via LGA 1700 socket
  • Dual-channel DDR4 memory up to 64 GB with speeds to 3200 MT/s
  • PCIe 4.0 x16 slot plus M.2 Key M slot for 2242, 2260 or 2280 drives
  • Realtek 1 Gb Ethernet and USB 3.2 Gen 1 Type-A ports for wired connectivity
  • Realtek 7.1-channel audio with DisplayPort, HDMI and D-Sub video outputs

Specifications

BrandASUS
ModelPRIME H610I-PLUS D4-CSM
CPU Socket TypeLGA 1700
CPU TypeSupports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors*
*May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/
* Refer to www.asus.com for CPU support list.
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*
* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel H610
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots2x288pin (DDR4)
Memory StandardDDR4 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 *
* Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported64GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 2.0
PCI Express 4.0 x161 x PCI Express 4.0 x16
* Actual support may vary by CPU.
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel H610 Chipset:
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
Audio ChipsetRealtek 7.1 Surround Sound High Definition Audio CODEC*
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels7.1 Channels
LAN ChipsetRealtek 1Gb Ethernet
Max LAN Speed1Gbps
Back I/O Ports2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (Type-A)
1 x DisplayPort
1 x D-Sub port
1 x HDMI port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Onboard USB1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin Chassis Fan header
Miscellaneous
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x Mono-out header(with Amp IC)
1 x SMBUS header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Windows 11Supported
Form FactorMini ITX
LED LightingNone RGB

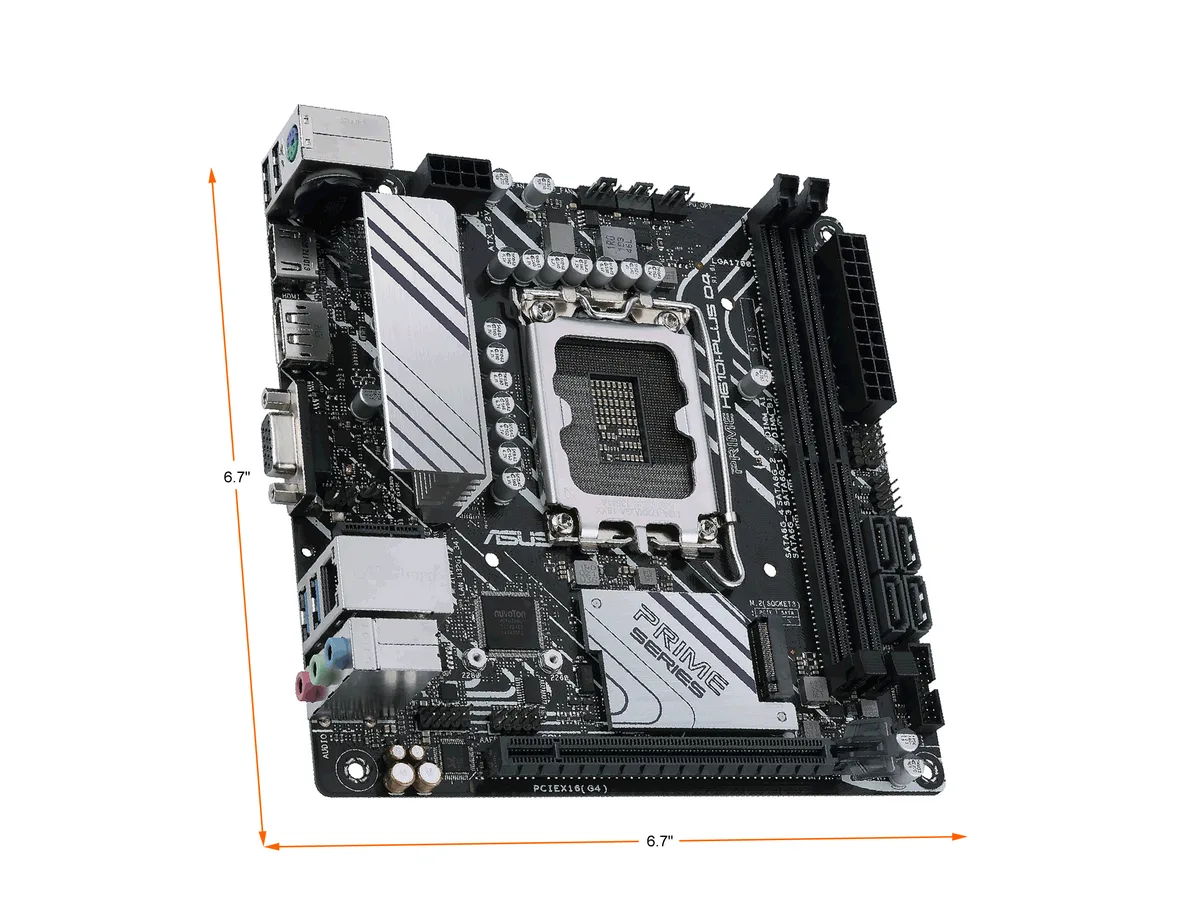

Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
FeaturesSpecial Features:
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
Software Features:
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
Package ContentsAccessories:
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Screw Package
Installation Media
1 x Support DVD
Documentation
1 x User guide
Shipping weight0.73 kg
Package size356 × 267 × 61 mm

Questions about this item

How much DDR4 memory can the board actually use once installed?

The board supports up to 64 GB of DDR4 across its two slots running in dual-channel mode.

What does the PCIe 4.0 x16 slot cap at with a 12th or 13th Gen CPU?

The slot runs at PCIe 4.0 speeds when paired with a compatible 12th or 13th Gen Intel Core processor.

What mounting holes and form factor does the mini-ITX board need in a case?

It uses the standard mini-ITX 170 mm square layout with four mounting holes.
