Green Micro ATX motherboard with silver heatsinks, black slots and rear I/O panel

ASUS

ASUS PRIME H610M-A-CSM Intel motherboard

SKU CH-65DH-60TDP MPN PRIME H610M-A-CSM

Micro-ATX board with Intel H610 chipset, LGA 1700 socket, two DDR5 slots up to 96 GB, two M.2 slots, four SATA ports, HDMI, DisplayPort, VGA, and Intel 1 Gb Ethernet

  • CPU Socket TypeLGA 1700
  • CPU TypeCeleron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th G
  • ChipsetIntel H610
  • Number of Memory Slots2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non
  • Maximum Memory Supported96GB
  • Serial ATA (SATA)4 x SATA 6Gb/s ports
  • Supports 12th, 13th and 14th Gen Intel Core processors via LGA 1700 socket
  • Dual DDR5 slots accept up to 96 GB at speeds up to 5600 MT/s
  • Two M.2 slots for PCIe 3.0 storage, one at x4 and one at x2
  • Realtek 7.1 audio with shielding and premium capacitors for clear sound
  • Six rear USB ports including two 10 Gbps Type-A connections

Designed for Intel LGA 1700 builds

The ASUS PRIME H610M-A-CSM is a Micro ATX motherboard built around the Intel H610 chipset and the LGA 1700 socket. It accepts Intel Core 12th, 13th and 14th Gen processors as well as Pentium Gold and Celeron CPUs. Two DDR5 DIMM slots support up to 96 GB of memory at speeds up to 5600 MT/s.

Suits compact systems needing core connectivity

This board fits builders who want a smaller chassis with four SATA 6Gb/s ports, two M.2 slots, six rear USB ports and Intel 1Gb Ethernet. It is not suited for users who require more than two memory slots, additional PCIe lanes or built-in Wi-Fi.

Two M.2 slots with different PCIe 3.0 widths

The first M.2 slot runs at PCIe 3.0 x4 while the second operates at PCIe 3.0 x2, both accepting 2242, 2260 and 2280 form factors. This lane split determines whether a second drive can reach full x4 throughput.

Highlights

  • Supports 12th, 13th and 14th Gen Intel Core processors via LGA 1700 socket
  • Dual DDR5 slots accept up to 96 GB at speeds up to 5600 MT/s
  • Two M.2 slots for PCIe 3.0 storage, one at x4 and one at x2
  • Realtek 7.1 audio with shielding and premium capacitors for clear sound
  • Six rear USB ports including two 10 Gbps Type-A connections

Specifications

BrandASUS
SeriesPrime
ModelPRIME H610M-A-CSM
Part NumberPRIME H610M-A-CSM
CPU Socket TypeLGA 1700
CPU TypeCeleron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) / Pentium Gold
ChipsetIntel H610
Number of Memory Slots2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory
Maximum Memory Supported96GB
Serial ATA (SATA)4 x SATA 6Gb/s ports
M.2Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H610 Chipset
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
Audio ChipsetRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
Wireless LAN1 x Intel® 1Gb Ethernet
ASUS LANGuard
Video Ports1 x VGA port
HDMI1 x HDMI
DisplayPort1 x DisplayPort

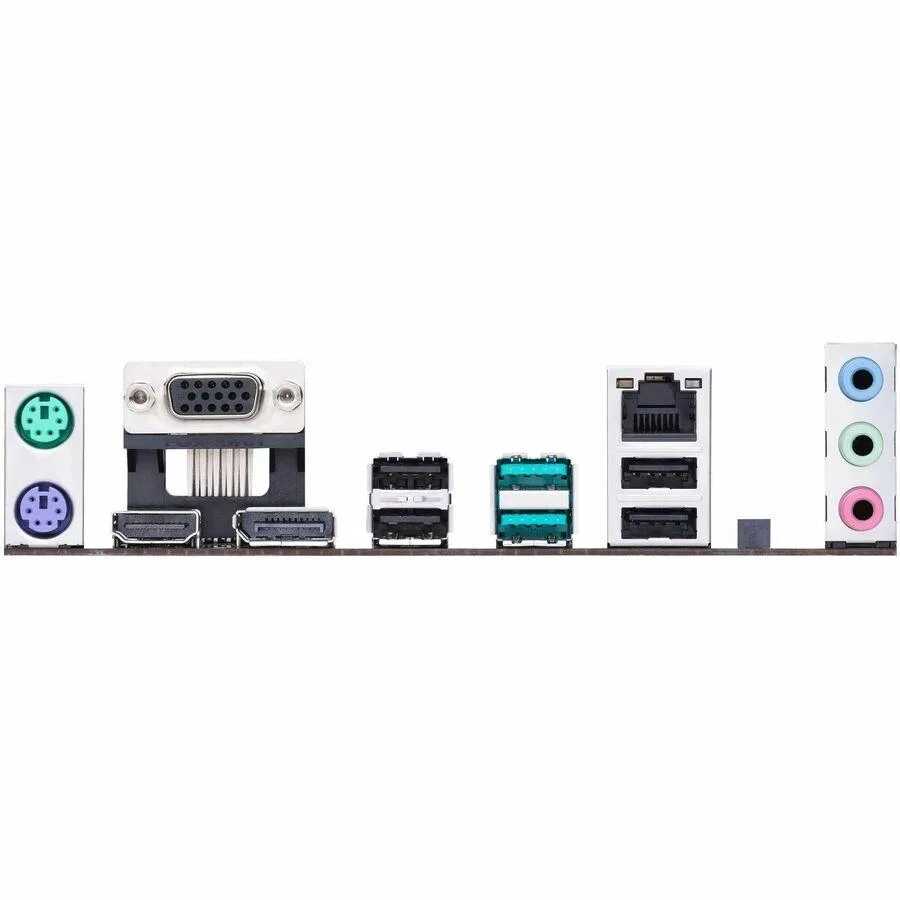

Onboard USBRear USB (Total 6 ports)
2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports)
1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 1 USB 2.0 port
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Shipping weight1.36 kg
Package size269 × 259 × 51 mm

Questions about this item

Will a 12th Gen Core i5 fit the LGA 1700 socket on this board?

Yes. The socket supports 12th, 13th and 14th Gen Core processors as well as Pentium Gold and Celeron CPUs.

Can I install two 48 GB DDR5 modules to reach the 96 GB limit?

The board has two DIMM slots and accepts DDR5 up to 5600 MT/s, so two 48 GB non-ECC unbuffered modules will hit the maximum.

Does the primary M.2 slot run at PCIe 3.0 x4 or x2?

The M.2_1 slot operates at PCIe 3.0 x4 while the second M.2_2 slot runs at x2, both accepting 2242, 2260 and 2280 drives.
