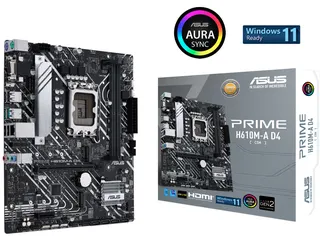

ASUS PRIME H610M-A D4-CSM Intel motherboard
Micro-ATX LGA 1700 board with Intel H610 chipset, dual DDR4 slots up to 64 GB, PCIe 4.0 x16, two M.2 slots, four SATA ports and Intel 1 Gb LAN
- CPU Socket TypeLGA 1700 * Dedicated LGA1700 mounting bracket is required.
- CPU TypeSupports 13th / 12th Gen Intel Core Processors, Pentium Gold
- Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Bo
- ChipsetIntel H610
- Onboard Video ChipsetSupported only by CPU with integrated graphic
- Number of Memory Slots2x288pin (DDR4)
Option PRIME H610M-A D4-CSM
- PRIME H610M-A D4-CSM
- PRIME H610M-E D4
Struck-through versions exist but are not stocked here.
- Supports 12th and 13th Gen Intel Core processors on LGA 1700 socket
- PCIe 4.0 x16 slot and two M.2 slots for fast GPU and storage expansion
- Intel 1 Gb Ethernet and rear USB 3.2 Gen 2 ports for reliable wired connectivity
- ASUS CSM programme provides up to 36-month supply and controlled change management
- Self-recovering BIOS and dedicated debug header simplify troubleshooting and recovery
LGA 1700 Micro-ATX for 12th and 13th Gen Intel Core

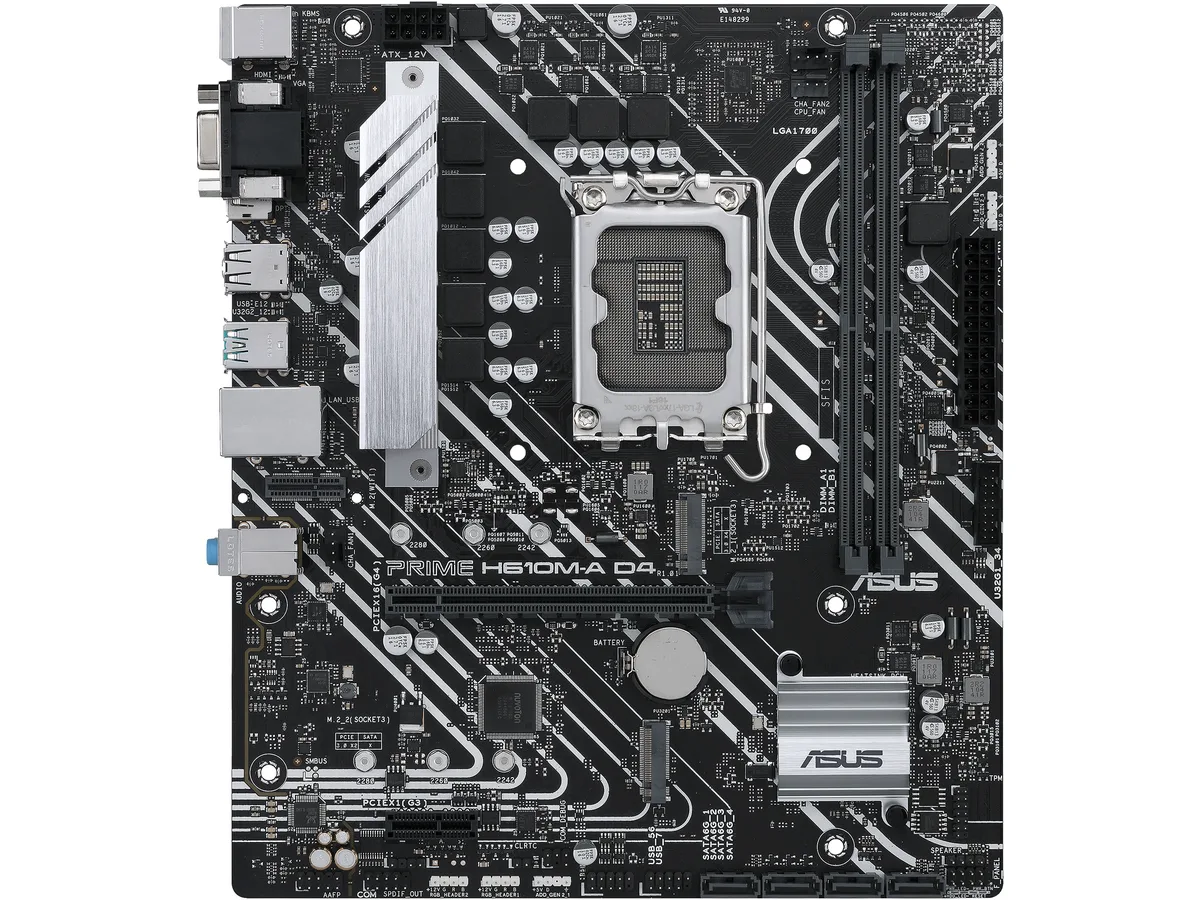

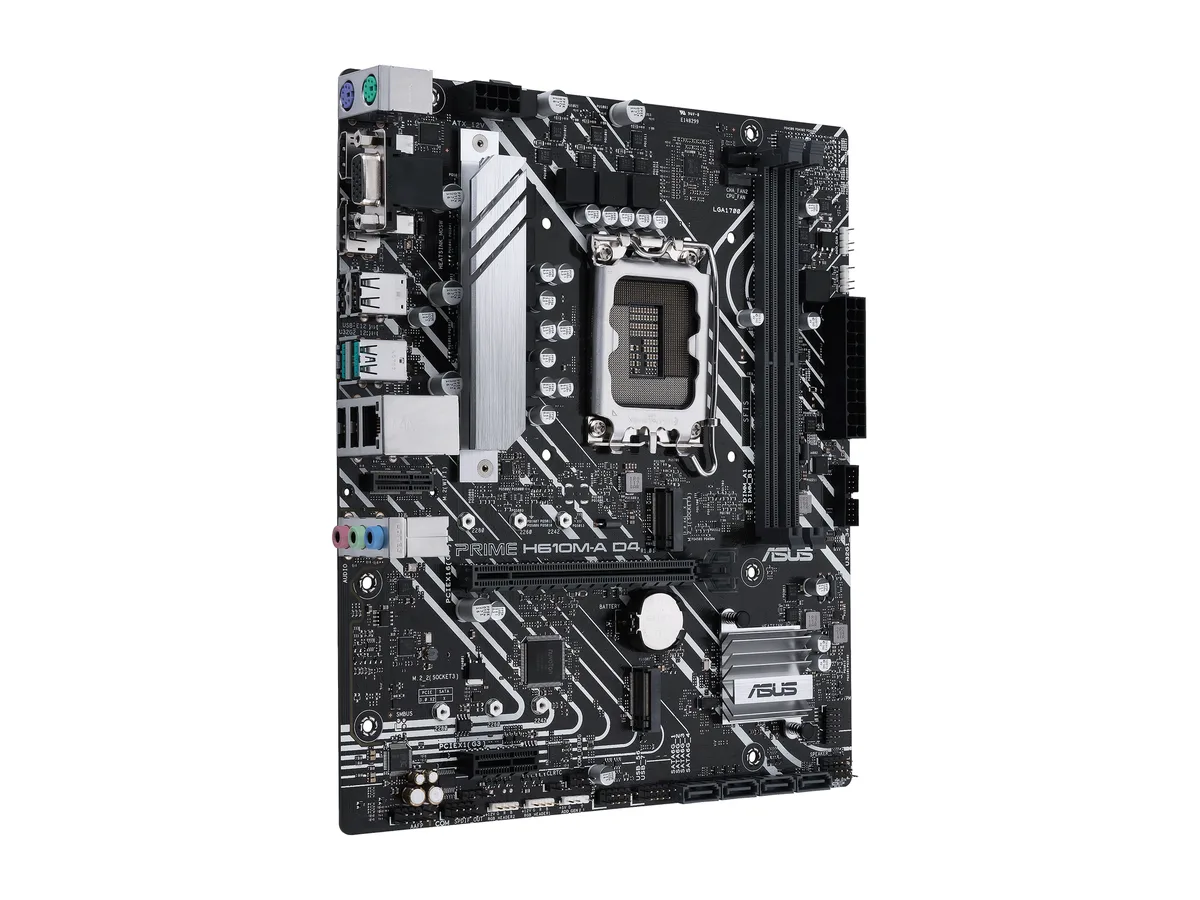

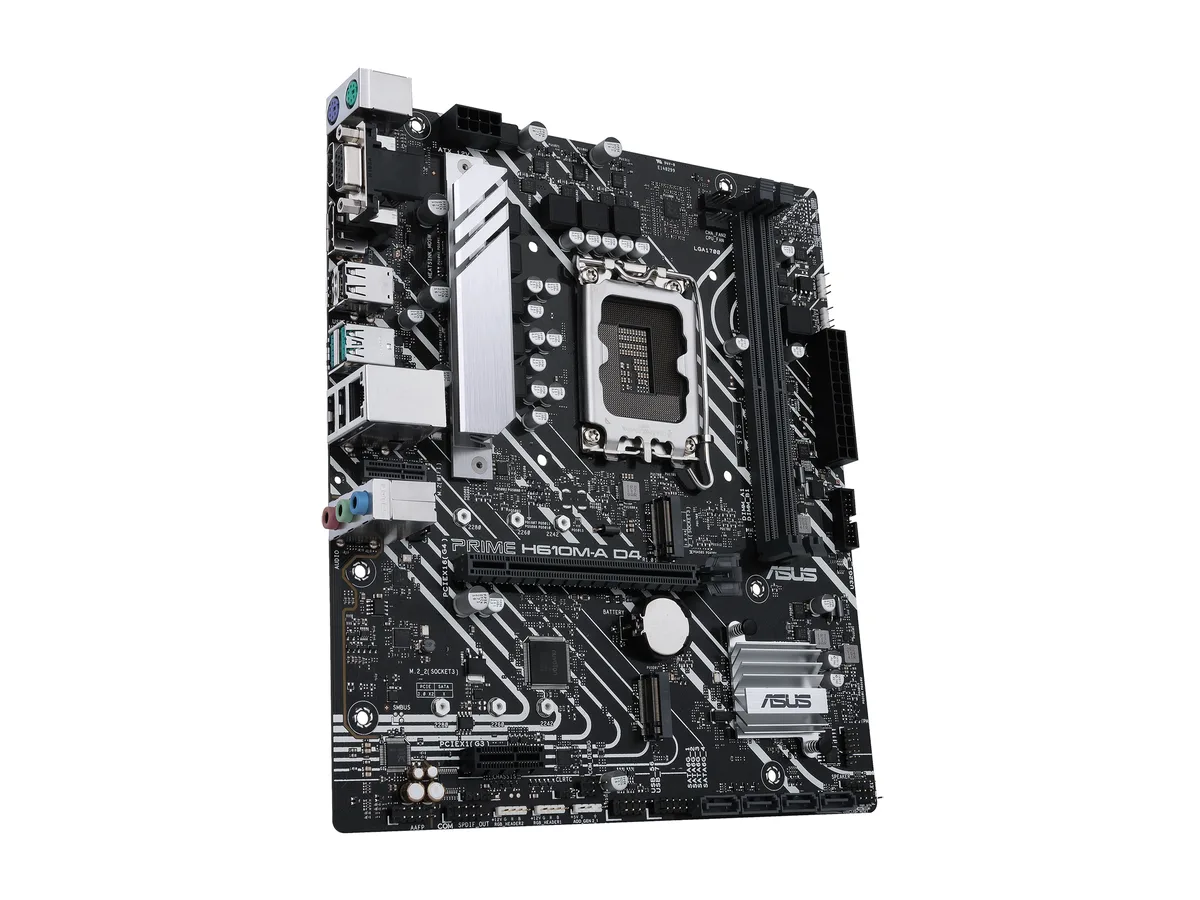

This ASUS PRIME H610M-A D4-CSM motherboard fits the LGA 1700 socket and supports 12th and 13th Generation Intel Core, Pentium Gold and Celeron processors. It uses the Intel H610 chipset and provides a Micro-ATX form factor for compact builds. A dedicated LGA 1700 mounting bracket is required for cooler installation.
Verify BIOS version and cooler bracket before
A BIOS update may be needed to boot 13th Generation Intel Core desktop processors. The board has two 288-pin DDR4 slots with a maximum capacity of 64 GB in dual-channel mode. Memory speeds range from 2133 to 3200 MT/s depending on the CPU and DRAM modules. Expansion includes one PCIe 4.0 x16 slot, one PCIe 3.0 x1 slot, four SATA 6Gb/s ports and two M.2 slots supporting 2242, 2260 and 2280 form factors.
Moisture-resistant coating and CSM stability for
The motherboard features an innovative moisture-resistant coating to protect against harsh environments. ASUS Corporate Stable Model validation provides up to 36-month supply, end-of-life notice and engineering change control. ASUS Control Center Express enables IT endpoint management, while the self-recovering BIOS technology automatically restores firmware from a verified backup. Realtek 7.1 surround audio and Intel 1 Gb Ethernet complete the feature set.
Highlights
- Supports 12th and 13th Gen Intel Core processors on LGA 1700 socket
- PCIe 4.0 x16 slot and two M.2 slots for fast GPU and storage expansion
- Intel 1 Gb Ethernet and rear USB 3.2 Gen 2 ports for reliable wired connectivity
- ASUS CSM programme provides up to 36-month supply and controlled change management
- Self-recovering BIOS and dedicated debug header simplify troubleshooting and recovery
Specifications
| Brand | ASUS |
|---|---|
| Model | PRIME H610M-A D4-CSM |
| CPU Socket Type | LGA 1700 * Dedicated LGA1700 mounting bracket is required. |
| CPU Type | Supports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors* *May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/ * Refer to www.asus.com for CPU support list. |
| Supported CPU Technologies | Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel H610 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Number of Memory Slots | 2x288pin (DDR4) |
| Memory Standard | DDR4 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 * * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | Intel XMP 2.0 |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 * Actual support may vary by CPU. |
| PCI Express x1 | 1 x PCI Express 3.0 x1 |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode) |
| Audio Chipset | Realtek 7.1 Surround Sound High Definition Audio CODEC* * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel 1Gb Ethernet |
| Max LAN Speed | 1Gbps |

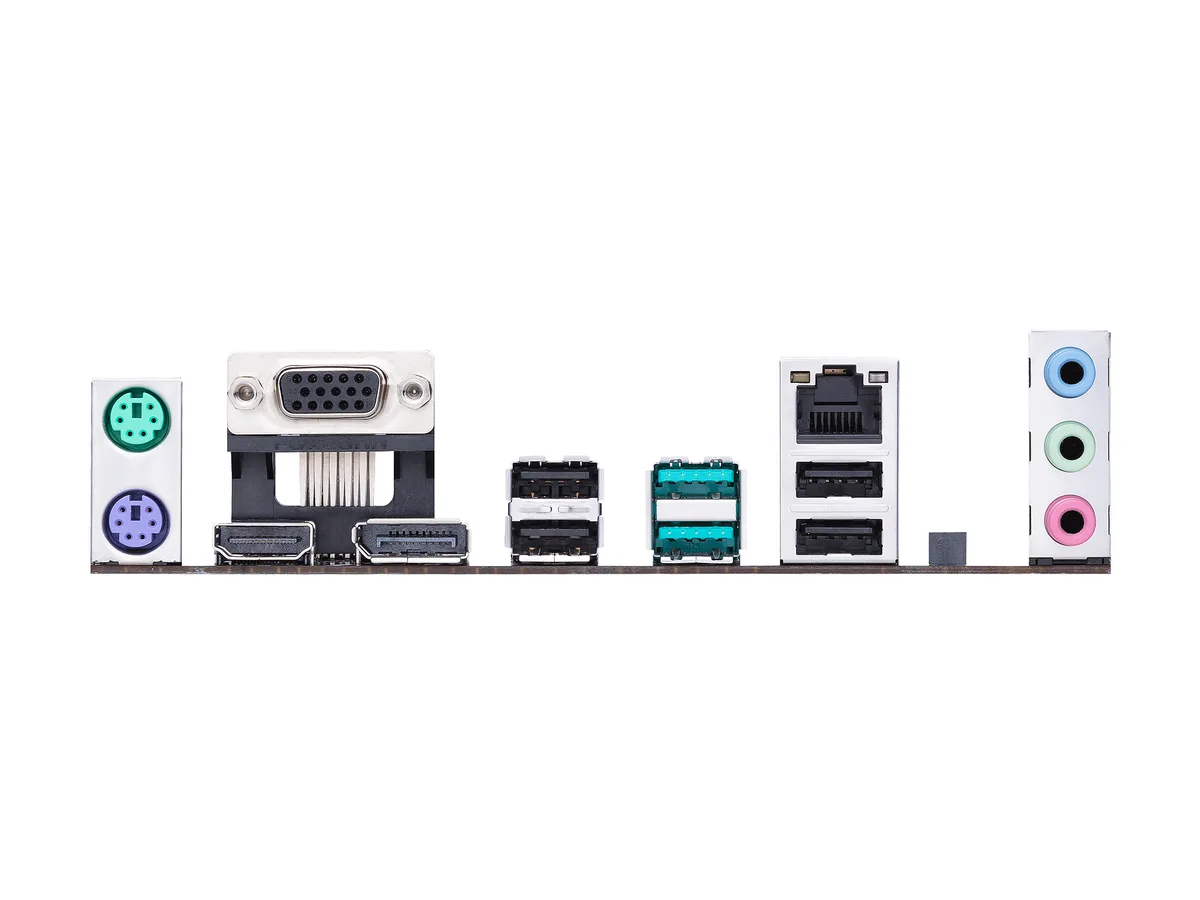

| Back I/O Ports | 2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x D-Sub port 1 x V-M.2 slot (Key E) 1 x Intel 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
| Onboard USB | 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports |
| Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x COM Port header 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Windows 11 | Supported |
| Form Factor | Micro ATX |
| LED Lighting | RGB |

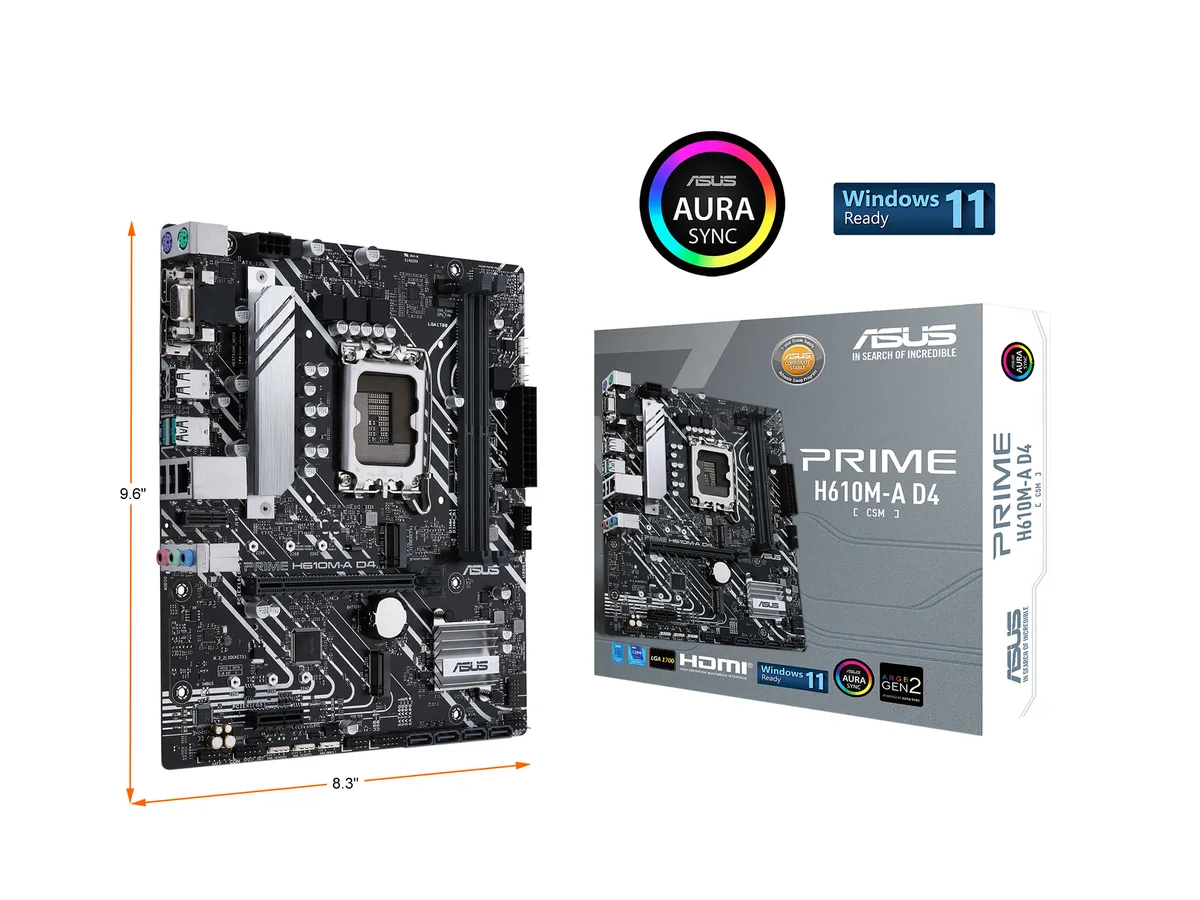

| Dimensions (W x L) | 9.6" x 8.3" |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector |
| Features | Special Features: ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - VRM heatsink design AURA Sync - AURA RGB headers - Addressable Gen 2 headers Software Features: ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ M |
| Package Contents | Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package Installation Media 1 x Support DVD Documentation 1 x User guide |
| Shipping weight | 0.98 kg |
| Package size | 270 × 260 × 52 mm |
Questions about this item
Does the board ship with a CPU cooler mounting bracket or do I need to buy a separate LGA 1700 bracket?
A dedicated LGA 1700 mounting bracket is required and is not included with the motherboard.
Which M.2 slot should I use for the fastest PCIe 3.0 x4 SSD?
Use the M.2_1 slot; it supports PCIe 3.0 x4 mode while M.2_2 is limited to PCIe 3.0 x2.
What is the highest DDR4 speed I can reach with a 13th Gen Core i5 and two modules?
The board lists DDR4 3200 as the top rated speed; actual frequency depends on the CPU and the memory kit, so check the ASUS QVL for validated 3200 modules.
