Green Micro-ATX board with silver LGA 1700 socket, two DDR4 slots, one PCIe x16 slot, four SATA ports, two M.2 slots

ASUS

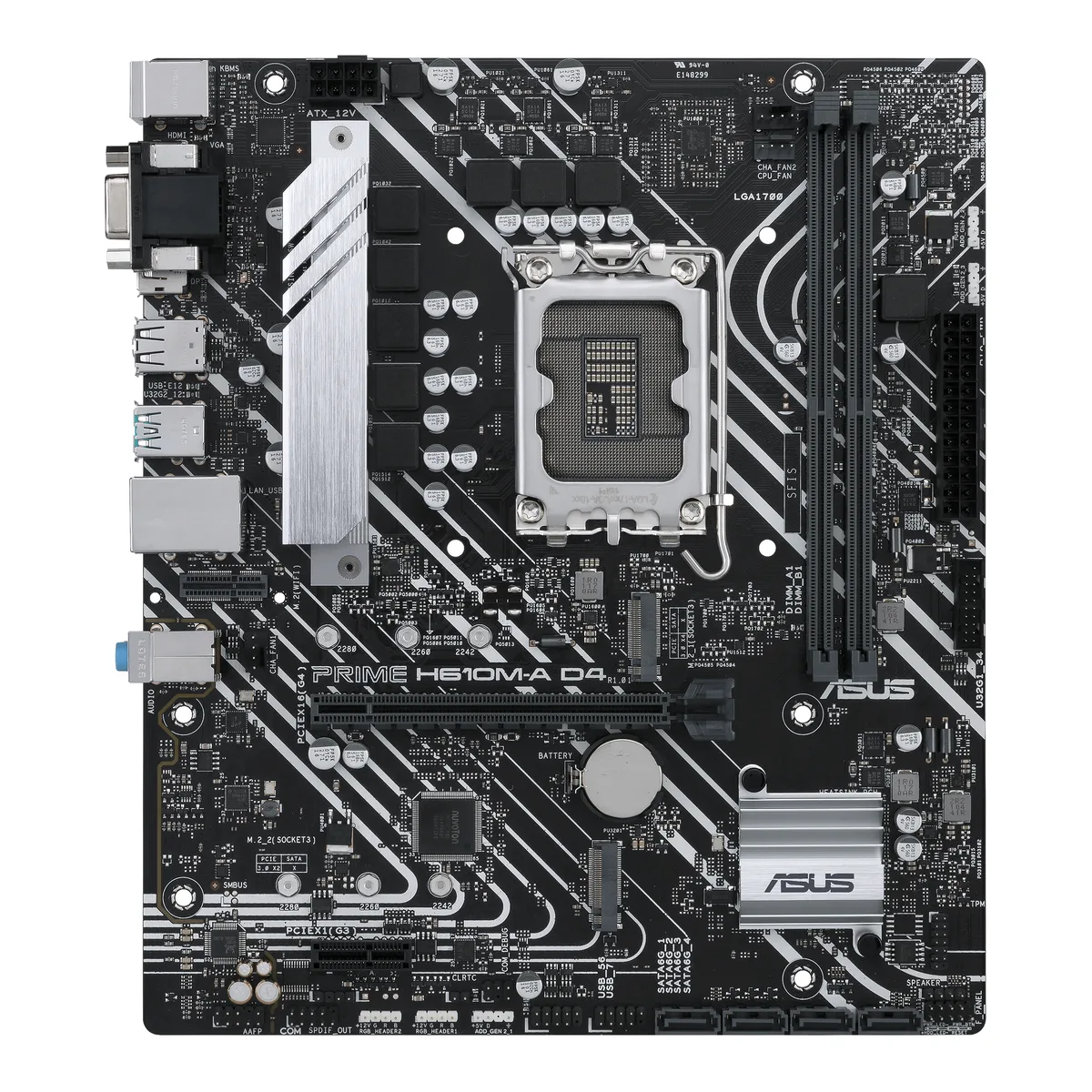

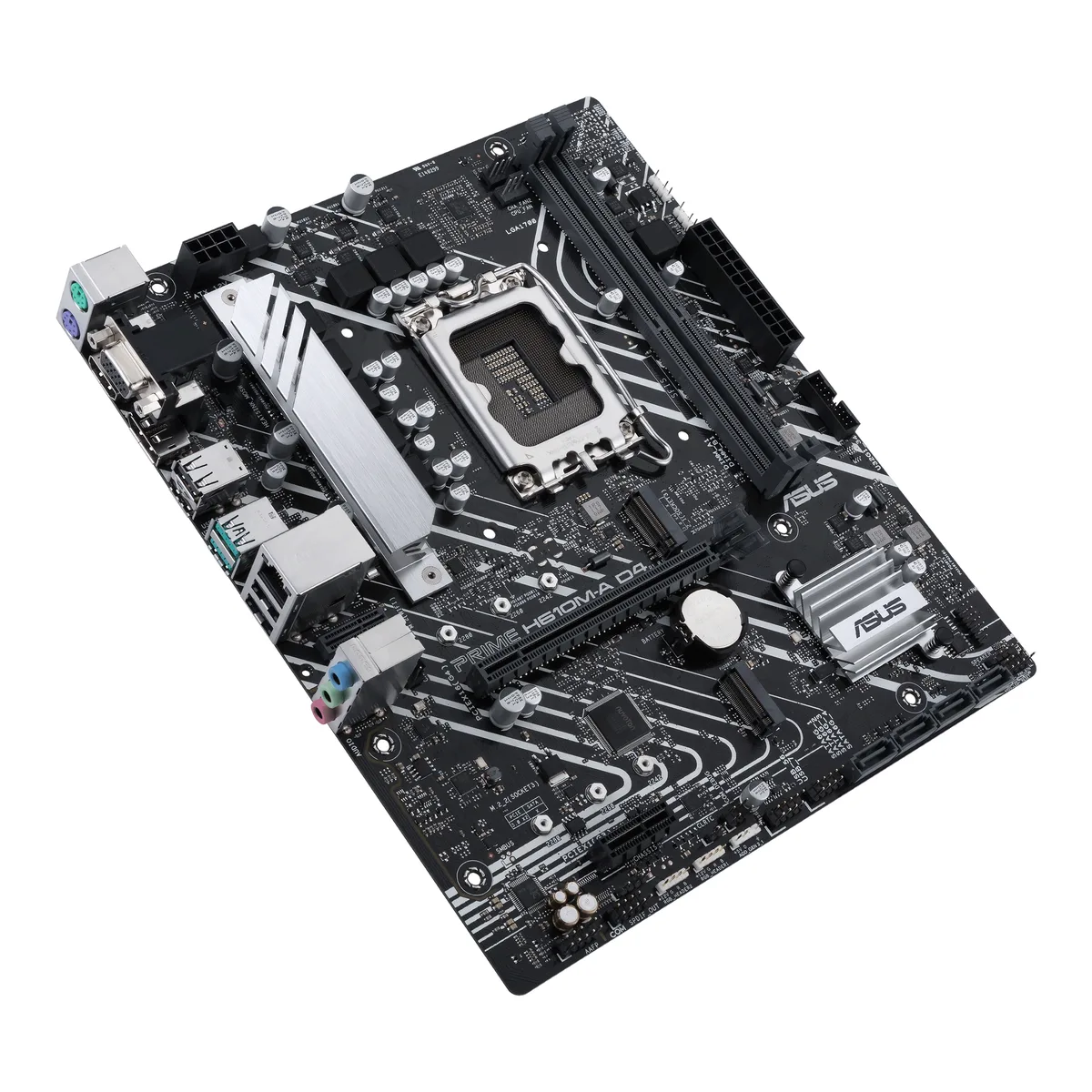

ASUS PRIME H610M-A D4-CSM LGA 1700 Intel motherboard

SKU CH-41T4-4VRVW MPN PRIME H610M-A D4-CSM

Micro-ATX board for 12th and 13th Gen Intel CPUs with DDR4 memory, PCIe 4.0, dual M.2 slots and commercial-grade stability features

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 17
  • ChipsetIntel H610
  • Number of Memory Slots2x288pin (DDR4)
  • Memory StandardDDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered
  • Maximum Memory Supported64GB
  • Supports 12th and 13th Gen Intel Core processors via LGA 1700 socket
  • PCIe 4.0 x16 slot enables high-speed graphics and storage expansion
  • Dual M.2 slots provide flexible SSD mounting options
  • CSM programme guarantees 36-month supply lifecycle with EOL notice and ECN control
  • Self-recovering BIOS restores firmware automatically from a verified backup

Commercial Micro-ATX Board

The ASUS PRIME H610M-A D4-CSM is a Micro-ATX motherboard built on the Intel H610 chipset for LGA 1700 processors. It supports 12th and 13th Gen Intel Core CPUs and targets commercial deployments that value long-term supply stability. The board includes ASUS CSM program benefits such as up to 36-month availability and controlled engineering changes.

DDR4 Memory Ceiling

Two 288-pin DDR4 slots accept non-ECC unbuffered modules at speeds from 2133 to 3200 MT/s. The chipset caps total system memory at 64 GB and limits the board to dual-channel operation with only two slots. Intel XMP 2.0 profiles are supported for automatic overclock configuration within those boundaries.

Single PCIe 4.0 x16 Slot

Expansion relies on one PCI Express 4.0 x16 slot driven directly by the CPU, which determines the graphics or accelerator bandwidth available. Four SATA 6 Gb/s ports and two M.2 sockets provide storage connectivity, while rear USB 3.2 Gen 2 Type-A ports handle high-speed peripherals.

Highlights

  • Supports 12th and 13th Gen Intel Core processors via LGA 1700 socket
  • PCIe 4.0 x16 slot enables high-speed graphics and storage expansion
  • Dual M.2 slots provide flexible SSD mounting options
  • CSM programme guarantees 36-month supply lifecycle with EOL notice and ECN control
  • Self-recovering BIOS restores firmware automatically from a verified backup

Specifications

BrandASUS
Part NumberH610M-A D4-CSM
CPU Socket TypeLGA 1700
CPU TypeIntel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700)
ChipsetIntel H610
Number of Memory Slots2x288pin (DDR4)
Memory StandardDDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Maximum Memory Supported64GB
Memory Performance ProfileIntel XMP 2.0
PCI Express 4.0 x161 x PCI Express 4.0 x16
Serial ATA (SATA)4 x SATA 6Gb/s
M.22 x M.2
Form FactorMicro ATX
Shipping weight0.91 kg
Package size267 × 267 × 25 mm

Questions about this item

Should I pick the D4 or another version of this board?

The D4 in the model name means this board uses DDR4 memory only, with two slots supporting up to 64 GB at speeds up to 3200 MT/s.

What does PCIe 4.0 x16 actually give me on this H610 board?

One full-length slot runs at PCIe 4.0 x16 speeds, so a modern graphics card or high-speed add-in card gets the full 4.0 bandwidth the chipset provides.

How fast are the rear USB 3.2 Gen 2 ports in practice?

They operate at up to 10 Gbps, capped by the USB 3.2 Gen 2 standard the board implements.
