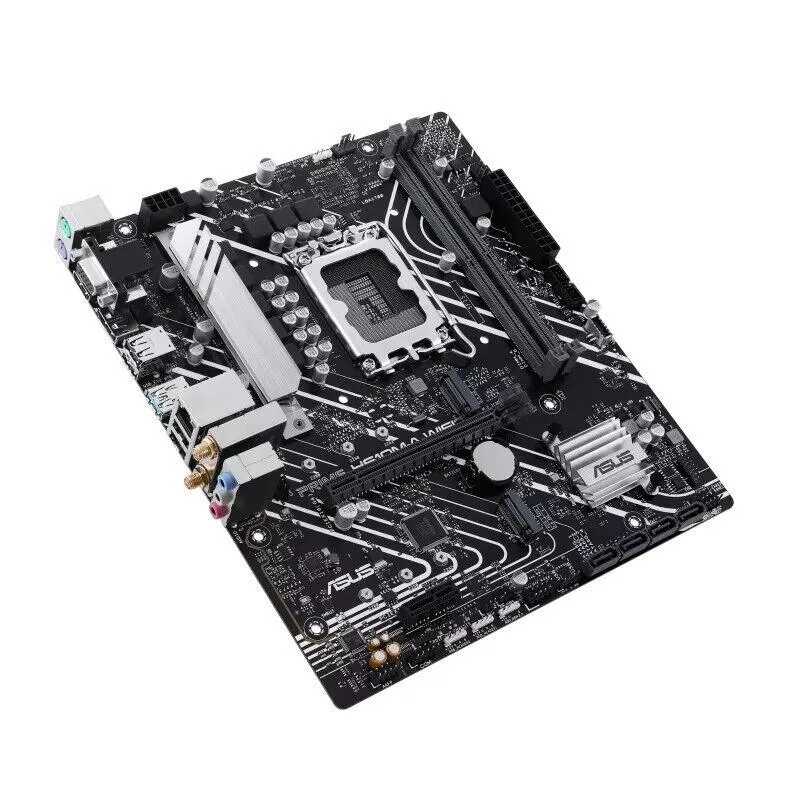

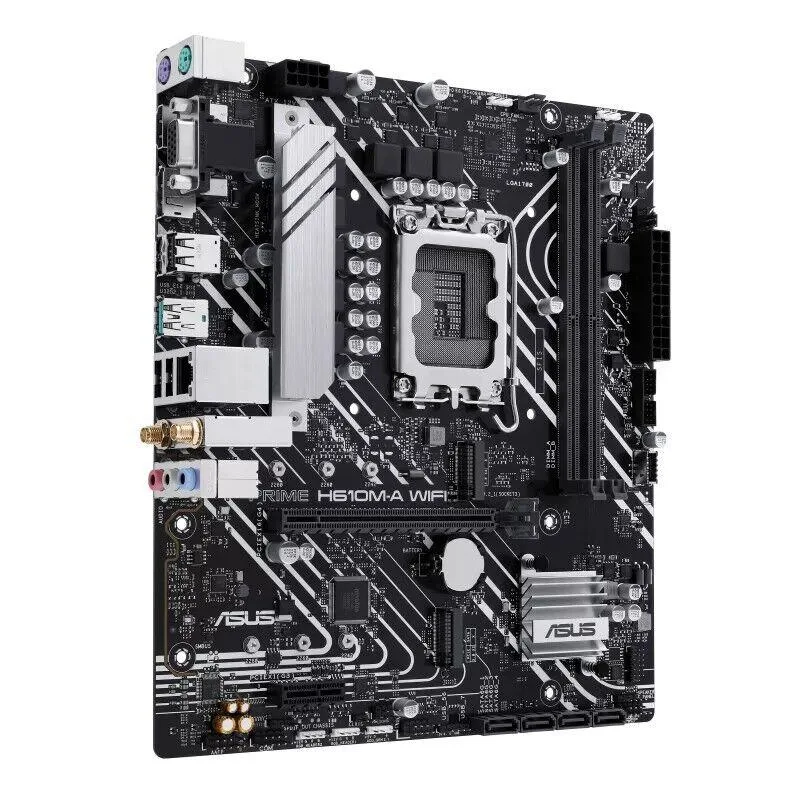

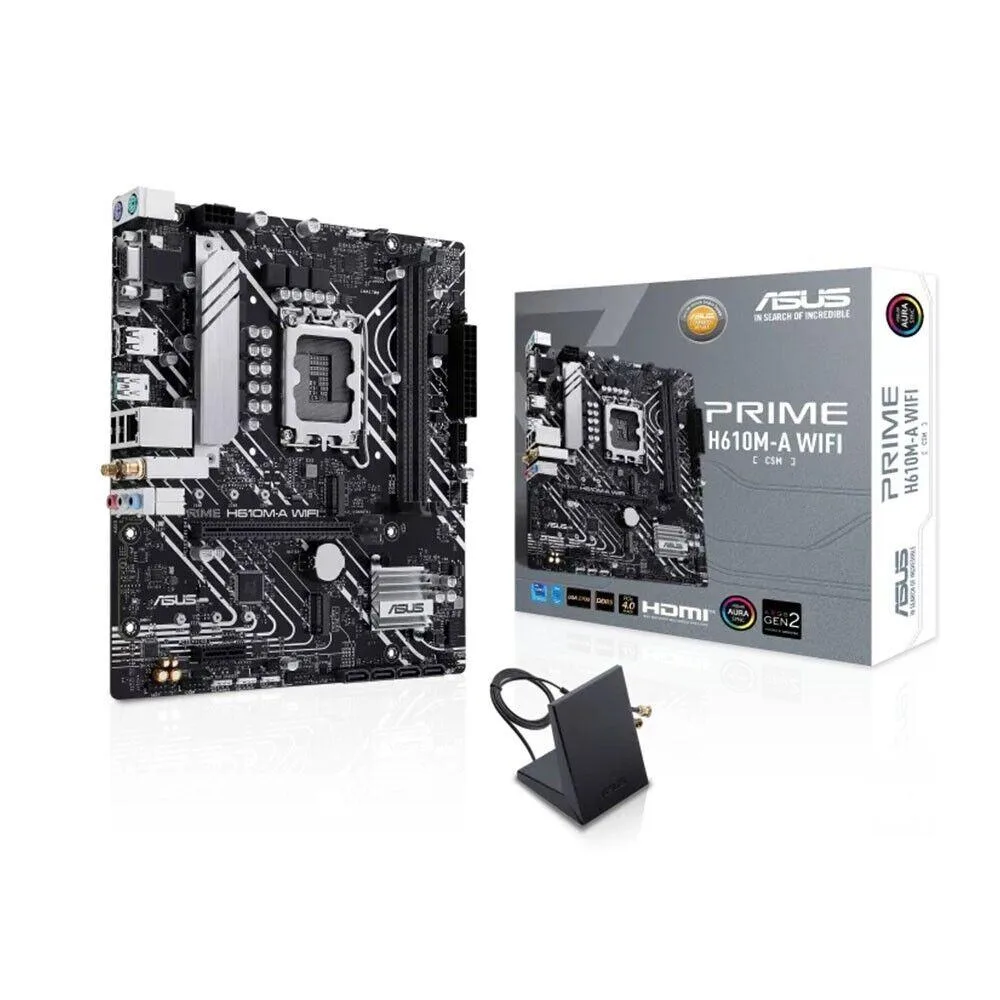

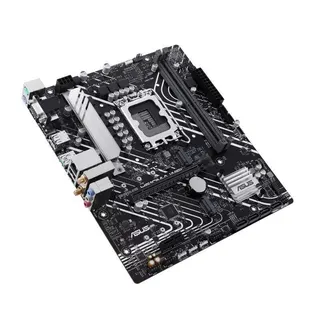

Green Micro ATX motherboard with silver heatsinks, black PCB, LGA 1700 socket, four DDR4 slots, DisplayPort HDMI VGA outputs

ASUS

ASUS PRIME H610M-A D4-CSM WIFI Intel motherboard

SKU CH-D44J-A47TM

Micro-ATX board with LGA 1700 socket for 12th and 13th Gen Intel Core, four DDR4 slots up to 64 GB, DisplayPort 1.4, HDMI 2.1, VGA, one PCIe 4.0 x16 slot, two M.2 slots, four SATA 6 Gb/s ports.

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel Core 12th Gen (LGA 1700)
  • ChipsetIntel
  • TypeMicro ATX
  • Number of Memory Slots4
  • Memory StandardDDR4
  • Supports 13th and 12th Gen Intel Core processors via LGA 1700 socket
  • DDR4 memory up to 64 GB with XMP support across speeds 2133 to 3200
  • PCIe 4.0 x16 slot for modern graphics cards
  • Dual 4K 60 Hz video outputs via HDMI 2.1 and DisplayPort 1.4
  • Two M.2 slots plus four SATA 6 Gb/s ports for flexible storage

Intel LGA 1700 Micro ATX board for 12th

The ASUS PRIME H610M-A D4-CSM fits Intel Core, Pentium Gold and Celeron processors from the 12th and 13th generations. It uses the Intel H610 chipset in a Micro ATX form factor. Four DDR4 DIMM slots support up to 64 GB of memory with XMP profiles. Integrated graphics outputs include DisplayPort 1.4, HDMI 2.1 and D-Sub for 4K at 60 Hz.

Suits office builds and basic home PCs.

This board targets budget systems needing wired and WIFI 5 connectivity plus legacy video ports. It provides one PCIe 4.0 x16 slot from the CPU and one PCIe 3.0 x1 slot from the chipset. Users planning multiple graphics cards, high-end storage arrays or extreme memory tuning should consider a Z-series or B-series alternative.

Check CPU cooler clearance

Verify your chosen LGA 1700 processor appears on the ASUS support list for this model. Confirm the DDR4 kit matches a validated speed from 2133 to 3200 MT/s on the memory QVL. Ensure the case accommodates Micro ATX dimensions and that the 24-pin plus 8-pin power connectors reach the board layout.

Highlights

  • Supports 13th and 12th Gen Intel Core processors via LGA 1700 socket
  • DDR4 memory up to 64 GB with XMP support across speeds 2133 to 3200
  • PCIe 4.0 x16 slot for modern graphics cards
  • Dual 4K 60 Hz video outputs via HDMI 2.1 and DisplayPort 1.4
  • Two M.2 slots plus four SATA 6 Gb/s ports for flexible storage

Specifications

BrandASUS
SeriesIntel
ModelPRIME H610M-A D4-CSM
Part NumberPRIME H610M-A D4-CSM
CPU Socket TypeLGA 1700
CPU TypeIntel Core 12th Gen (LGA 1700)
ChipsetIntel
TypeMicro ATX
Number of Memory Slots4
Memory StandardDDR4
Maximum Memory Supported1 GB
Memory Feature2133 MHz
PCI Express 5.0 x162
PCI Express 4.0 x162
PCI Express 3.0 x161 x PCIe 3.0 x16 Slot
PCI Express 2.0 x161 x PCI Express 2.0 x16
PCI Express x161 x PCI Express x16
PCI Express x42
PCI Express x12
PCI Slots2
Serial ATA (SATA)14 x SATA 6Gb/s
Max LAN Speed1Gbps
Wireless LANPRIME H610M-A D4-CSM
Back I/O Ports1 x 6.3mm Headphone
PS/21
COM1
Video Ports1
HDMI1
RJ451 x RJ45
USB 3.16 x USB 3.1
USB 3.06 x USB 3.0
USB 1.1/2.06
S/PDIF Out1 x Optical, 1 x Coaxial
S/PDIF In1 x Optical, 1 x Coaxial
Game/MIDI Ports1
Audio Ports2 Ports
Onboard USBTotal USB Ports: 6
Other ConnectorsOptical, ATX, 6, 1, 4, 2
Softwarewindows_11
Form FactorMicro ATX
Dimensions (W x L)5.3 in x 26.4 in x 27.1 in
Power PinATX
FeaturesH610, LGA 1700, DDR4, 64 GB, Micro ATX, 4, 6, 2, 1, Optical, pci_e, ATX, Socket LGA-1700
Package Contents1

Questions about this item

Which DDR4 modules and CPU cooler do I need to run the PRIME H610M-A D4-CSM WIFI?

The board has four DDR4 DIMM slots supporting up to 64 GB at speeds up to 3200 MHz; you also need an LGA 1700 CPU cooler for the 12th or 13th Gen Intel Core processor you install.

Can I keep my PCIe 3.0 graphics card and SATA SSDs with this H610 board?

Yes, the board provides one PCIe 4.0 x16 slot that is backward compatible with PCIe 3.0 cards and four SATA 6Gb/s ports for existing SATA drives.

How do I confirm the integrated graphics outputs are working after assembly?

Connect a display to the HDMI 2.1 or DisplayPort 1.4 port, enter the BIOS to enable the iGPU, boot into the OS and verify the monitor shows a 4K 60 Hz signal.
