ASUS
ASUS PRIME H610M-E D4-CSM Intel motherboard
LGA 1700 mATX board for 12th and 13th Gen Intel CPUs with DDR4 3200, PCIe 4.0 x16, two M.2 slots, 1 Gb LAN and CSM stability
- CPU Socket TypeLGA 1700
- CPU TypeReady for 12th&13th Gen Intel® Core™, Pentium® Gold and Cele
- ChipsetIntel H610
- Number of Memory Slots2x288pin (DDR4)
- Memory StandardDDR4 3200
- Maximum Memory Supported64GB
- Ready for 12th and 13th Gen Intel Core processors with LGA 1700 socket
- Dual-channel DDR4 memory up to 64 GB at 3200 MT/s
- PCIe 4.0 x16 slot plus PCIe 3.0 x1 slot for graphics and add-in cards
- Two M.2 slots supporting 2242, 2260 and 2280 drives with PCIe 3.0 x4 and x2 modes
- Realtek 1 Gb Ethernet, USB 3.2 Gen 1, DisplayPort, HDMI and D-Sub on the rear I/O
Socket and Chipset

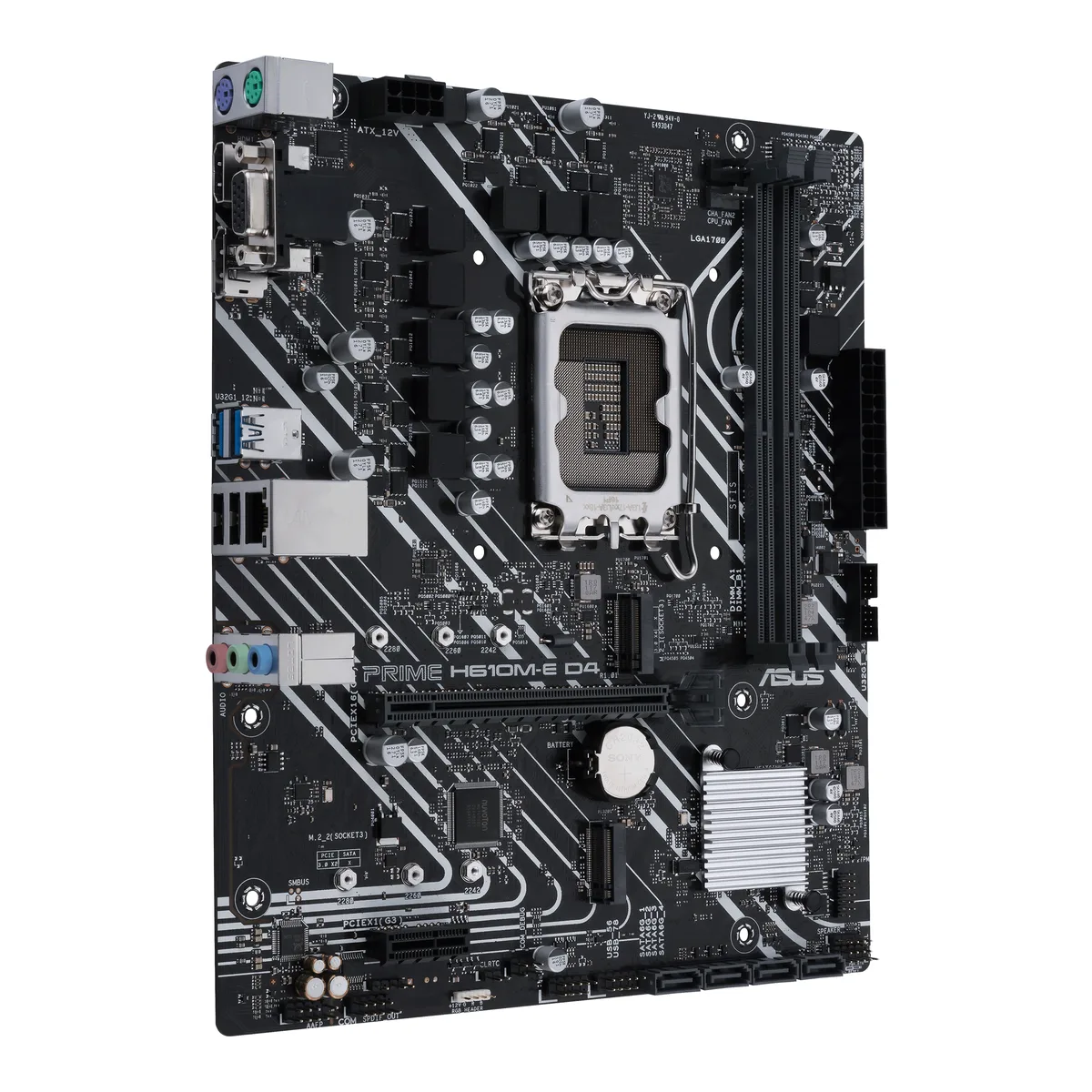

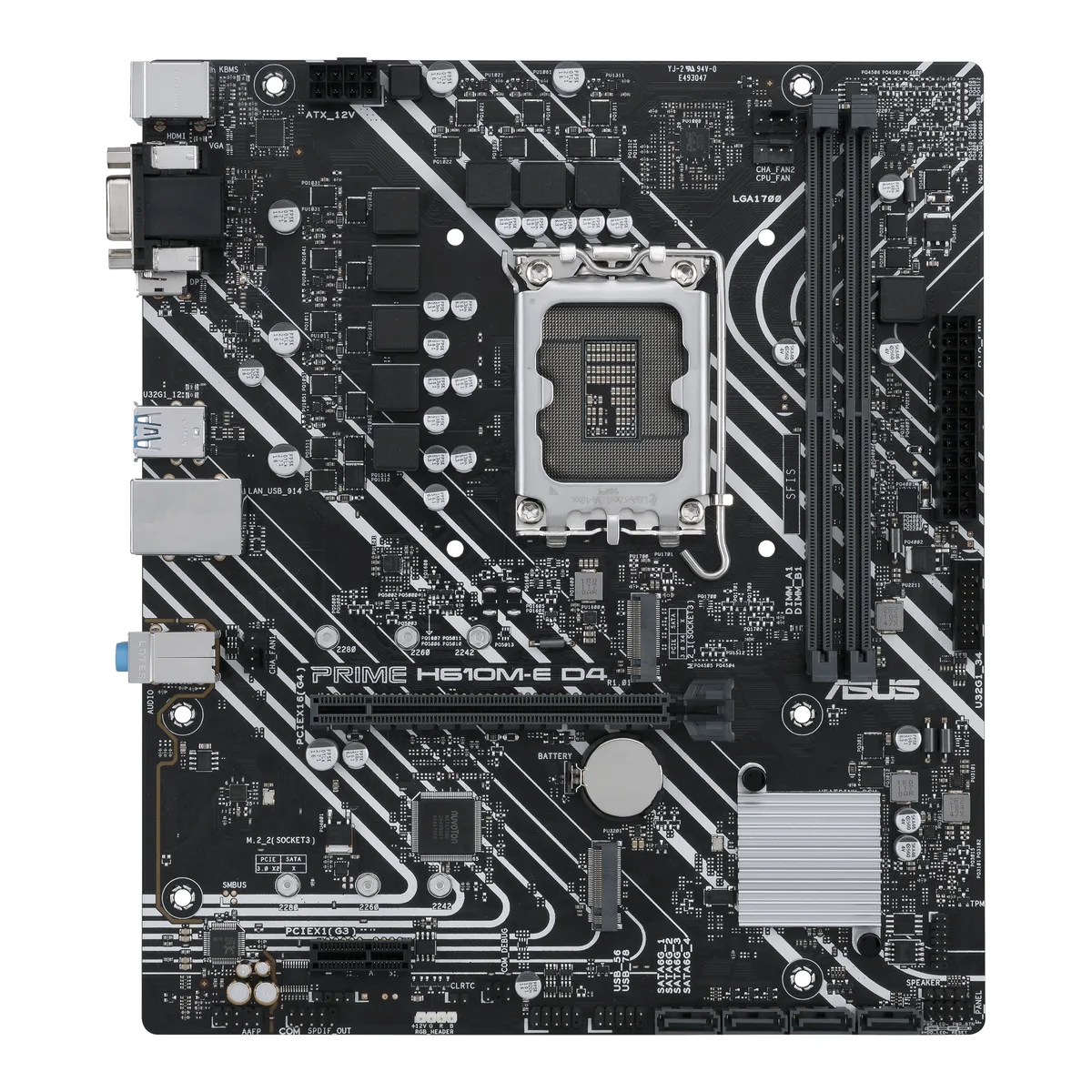

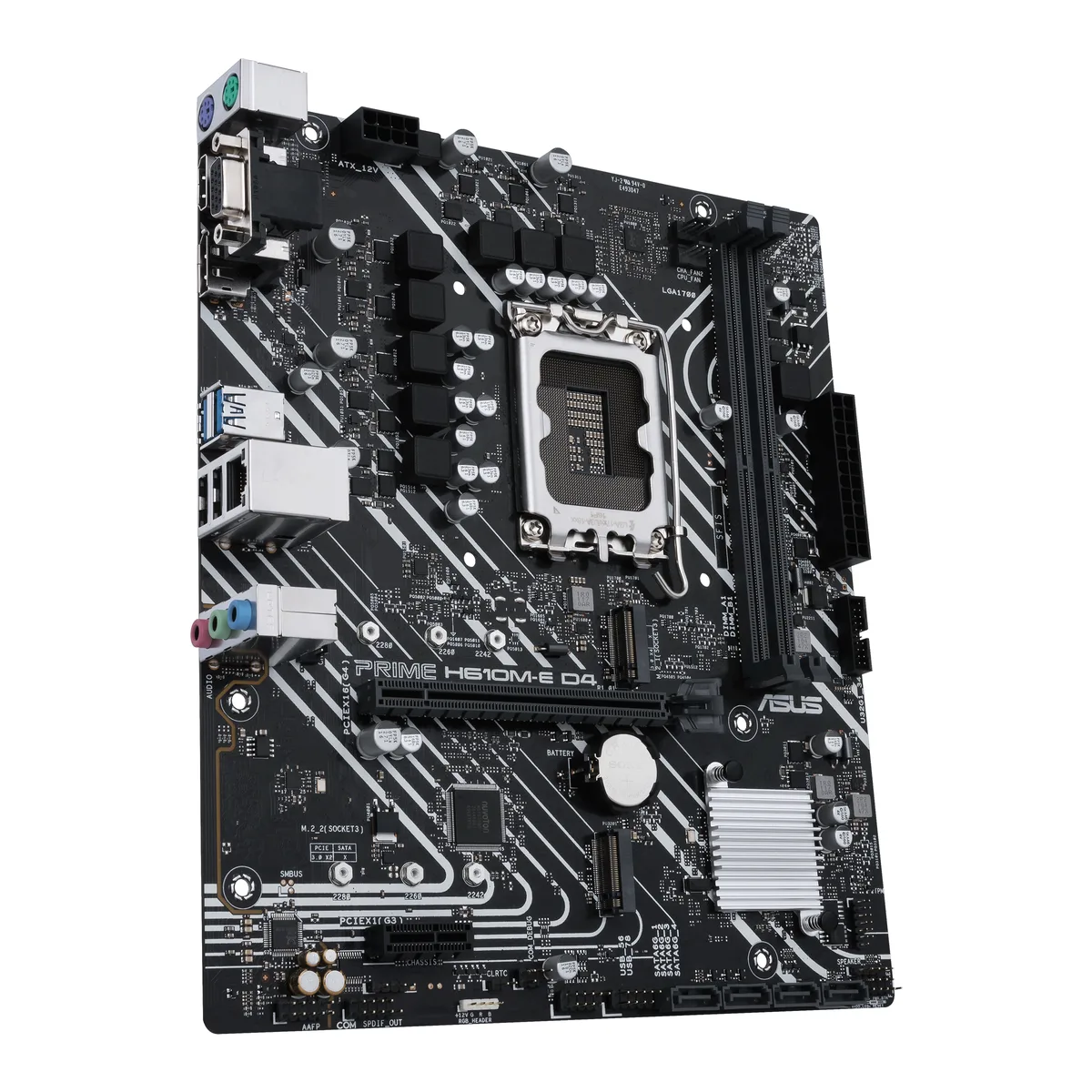

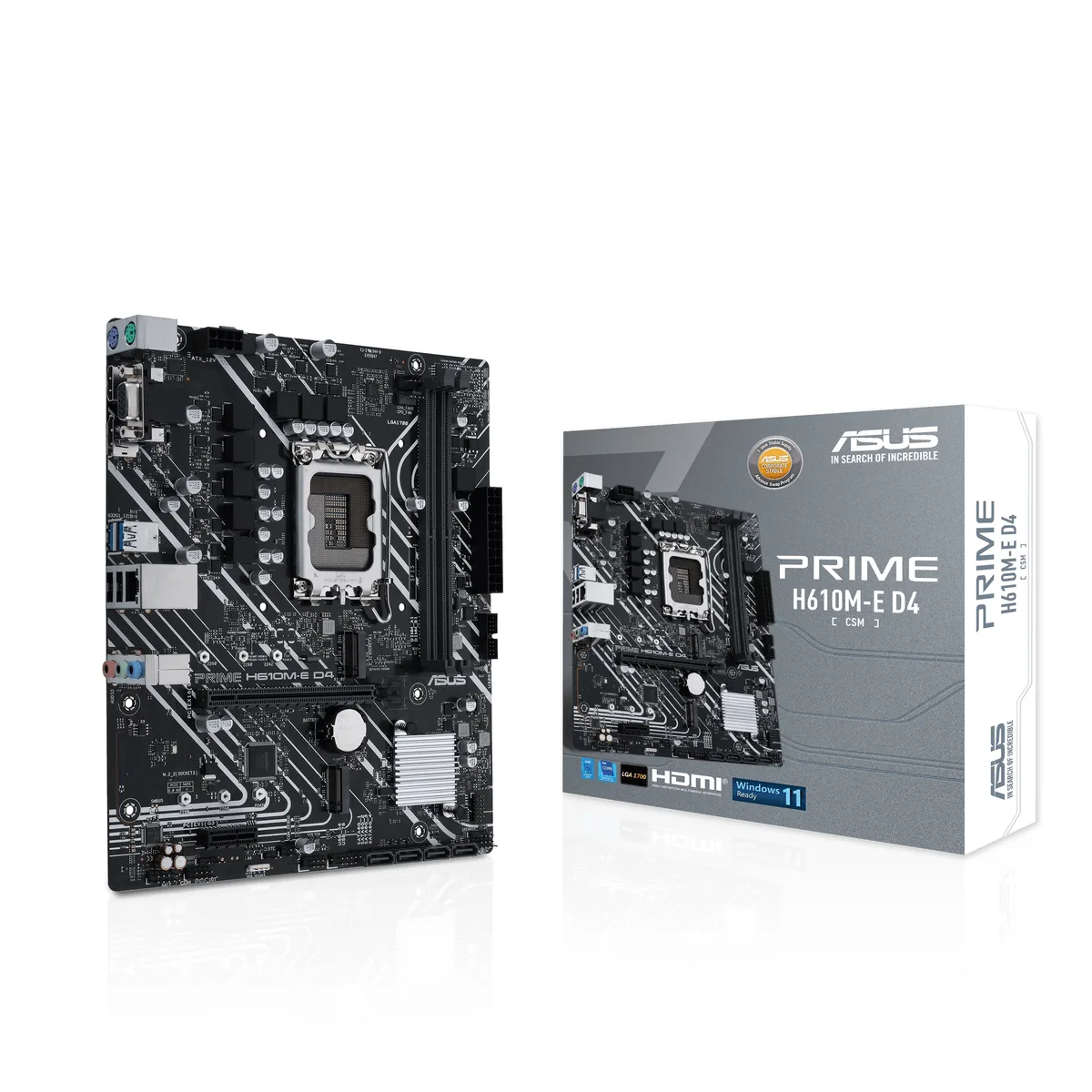

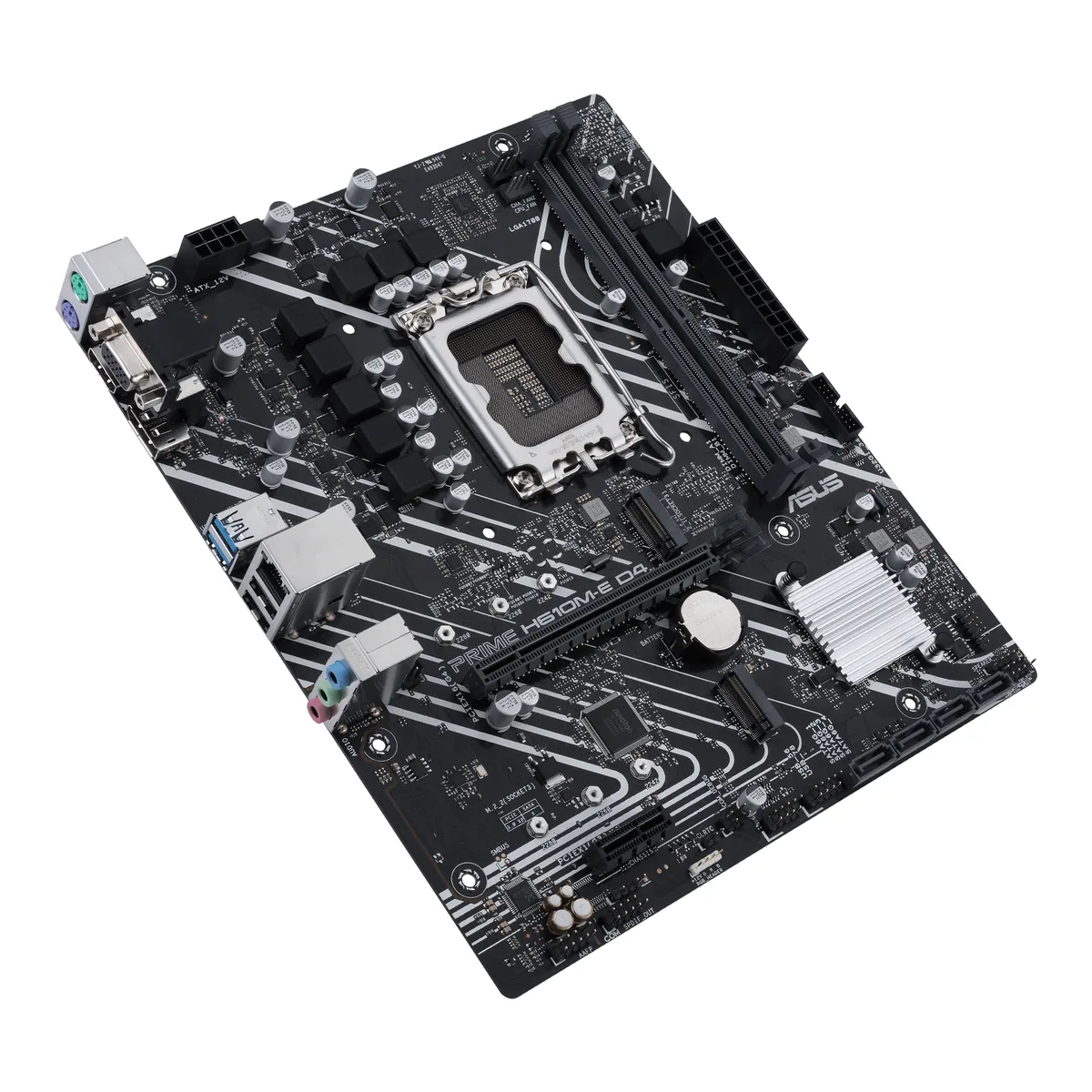

The ASUS PRIME H610M-E D4-CSM is a micro-ATX motherboard built around the Intel H610 chipset and LGA 1700 socket. It supports 12th and 13th Generation Intel Core, Pentium Gold and Celeron processors. The board targets commercial and entry-level builds that need stable, long-term availability.
Memory and Expansion Limits
Two 288-pin DDR4 slots accept up to 64 GB in dual-channel mode at speeds up to 3200 MT/s with XMP 2.0 profiles. A single PCIe 4.0 x16 slot handles the graphics card while a PCIe 3.0 x1 slot adds secondary expansion. Storage connects through four SATA 6 Gb/s ports and two M.2 Key M sockets; the first runs at PCIe 3.0 x4 and the second at PCIe 3.0 x2, both accepting 2242, 2260 or 2280 modules.
Installation Notes
The 24-pin and 8-pin power connectors sit along the right and top edges for straightforward cable routing. Two M.2 slots share space with the primary PCIe lane budget so populating both can reduce the second slot to x2 speed. Legacy PS/2, COM header and DisplayPort, HDMI, D-Sub video outputs simplify migration in managed fleets.
Highlights
- Ready for 12th and 13th Gen Intel Core processors with LGA 1700 socket
- Dual-channel DDR4 memory up to 64 GB at 3200 MT/s
- PCIe 4.0 x16 slot plus PCIe 3.0 x1 slot for graphics and add-in cards
- Two M.2 slots supporting 2242, 2260 and 2280 drives with PCIe 3.0 x4 and x2 modes
- Realtek 1 Gb Ethernet, USB 3.2 Gen 1, DisplayPort, HDMI and D-Sub on the rear I/O
Specifications
| Brand | ASUS |
|---|---|
| Series | Prime |
| Model | PRIME H610M-E D4-CSM |
| Part Number | 90MB19N0-M1AAYC |
| CPU Socket Type | LGA 1700 |
| CPU Type | Ready for 12th&13th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel H610 |
| Number of Memory Slots | 2x288pin (DDR4) |
| Memory Standard | DDR4 3200 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Memory Performance Profile | Intel XMP 2.0 |
| PCI Express 4.0 x16 | 1 x PCIe 4.0 x16 slot |
| PCI Express 3.0 x16 | 1 x PCIe 3.0 x1 slot |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode) |
| Audio Channels | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Max LAN Speed | 1 x Realtek 1Gb Ethernet |

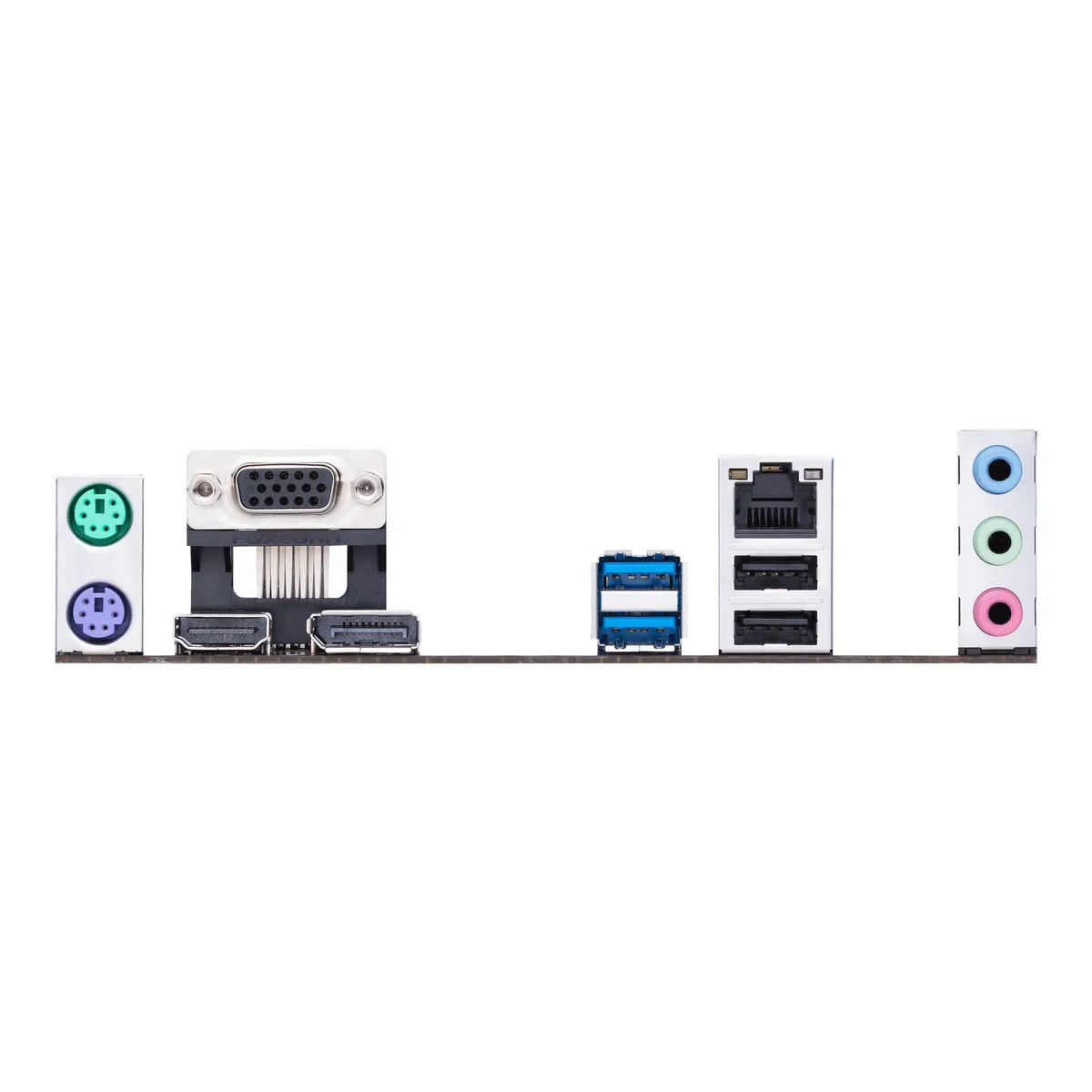

| Back I/O Ports | 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x D-Sub port 1 x HDMI® port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
| Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x COM Port header 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Windows 11 | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | mATX Form Factor |
| Dimensions (W x L) | 9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm ) |
| Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS Lighting Control - RGB header |
| Shipping weight | 1.13 kg |
| Package size | 279 × 279 × 64 mm |
Questions about this item
Should I pick the 3200 MHz DDR4 kit or a slower 2666 MHz kit for this board?
The board runs DDR4 up to 3200 MHz with XMP 2.0; a 3200 MHz kit will operate at its rated speed while a 2666 MHz kit will run at 2666 MHz, so choose the faster kit if you want maximum throughput.
What does the single PCIe 4.0 x16 slot mean for my graphics card once installed?
A modern GPU plugged into the PCIe 4.0 x16 slot will communicate at full 4.0 bandwidth, giving the card the same link speed it would have on a higher-end chipset.
How fast can the M.2_1 slot actually run an SSD in this system?
The M.2_1 slot is wired for PCIe 3.0 x4, capping sequential transfers at the PCIe 3.0 x4 limit regardless of the drive's own rating.
