Green micro-ATX board with silver PCIe slot, two black DDR4 slots, M.2 cover, HDMI port, and PCH heatsink

ASUS

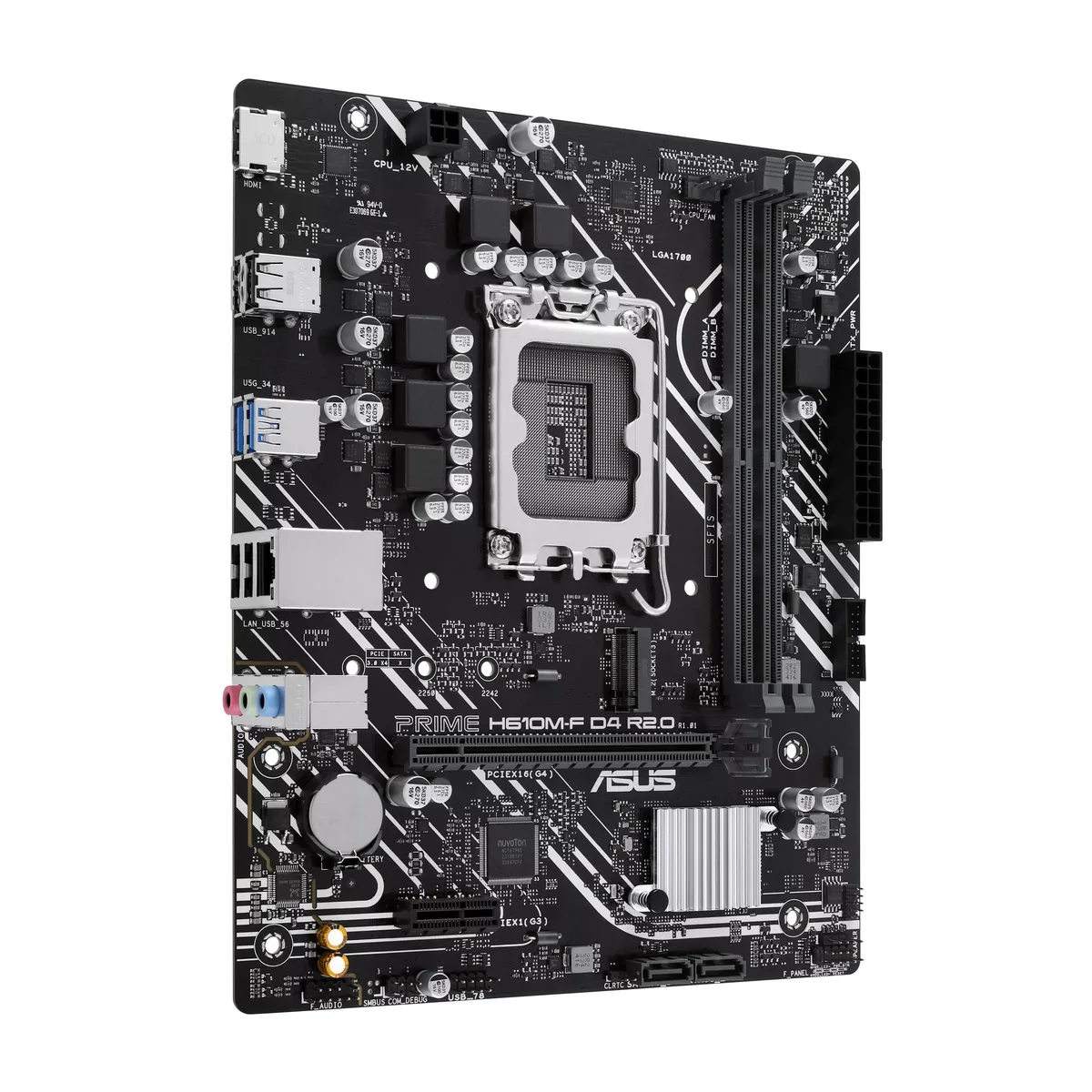

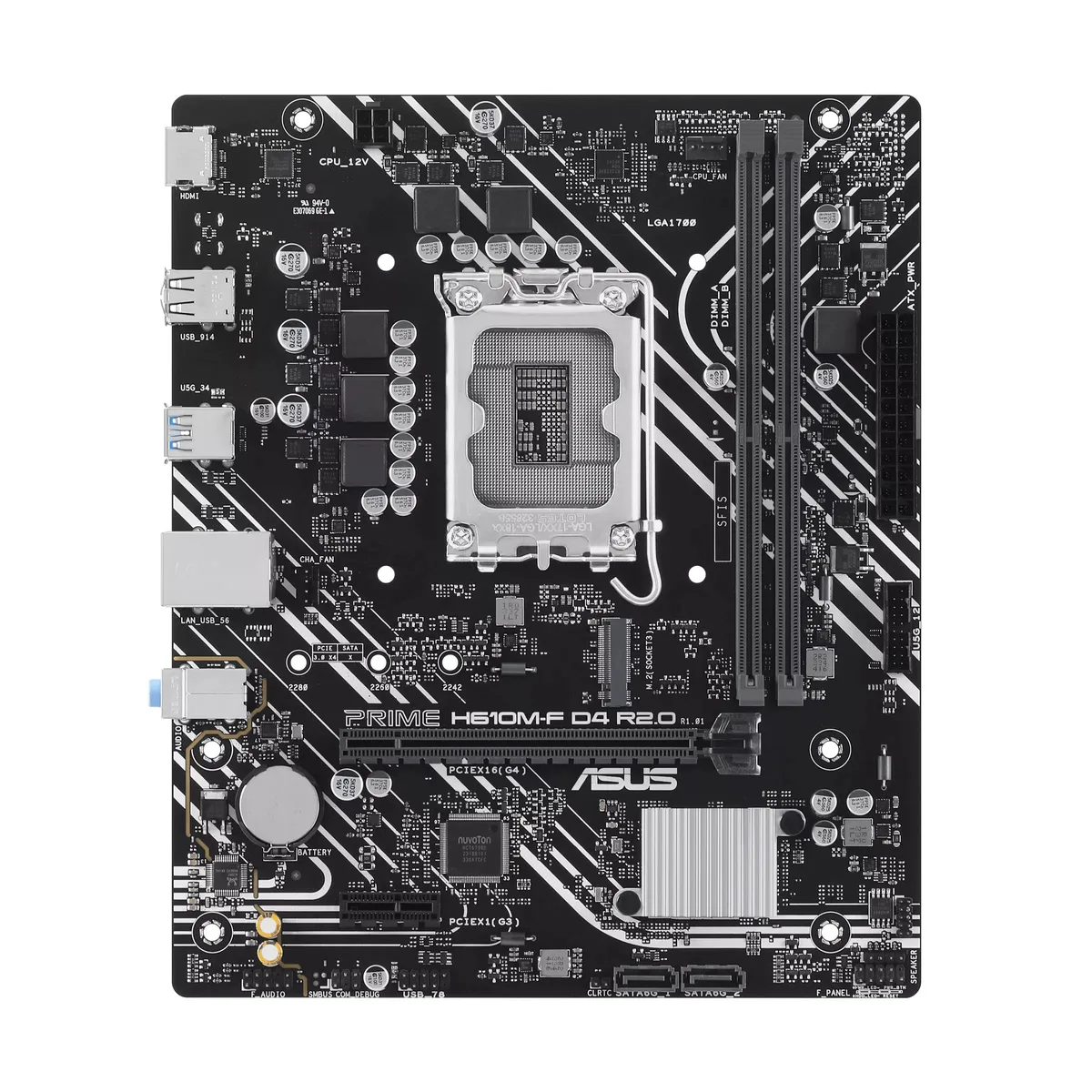

ASUS PRIME H610M-F D4 R2.0 Intel motherboard

SKU CH-XTAM-8DCDK

Micro-ATX board for 12th, 13th and 14th Gen Intel CPUs with DDR4 memory, PCIe 4.0 x16 slot, 32Gbps M.2, HDMI 2.1 and USB 3.2 Gen 1

  • Supports 12th, 13th and 14th Gen Intel processors on LGA 1700 socket
  • PCIe 4.0 x16 slot for modern graphics cards
  • M.2 slot with 32 Gbps bandwidth for high-speed storage
  • HDMI 2.1 port delivers 4K video at 60 Hz
  • USB 3.2 Gen 1 ports provide 5 Gbps data throughput

Socket and platform

This ASUS PRIME H610M-F D4 R2.0 motherboard uses the Intel LGA 1700 socket with the H610 chipset. It supports 12th, 13th and 14th generation Intel Core, Pentium Gold and Celeron processors up to 65 W. A BIOS update may be required for newer CPUs. The micro-ATX form factor fits compact builds that need basic expandability.

Memory and storage check

Verify that you have DDR4 modules rated between 2133 and 3200 MT/s; the board has two DIMM slots for up to 64 GB in dual channel. XMP profiles are supported. For M.2 storage, the single slot runs at PCIe 4.0 x4 (32 Gbps). SATA 6 Gbps ports are also available for additional drives.

Thermals and power in use

A PCH heatsink handles chipset heat under normal loads. The 65 W CPU limit keeps total board power modest, so a standard case airflow setup is usually sufficient. Fan headers let you tune speeds for quieter operation. Realtek 1 Gb Ethernet and USB 3.2 Gen 1 ports add minimal extra draw.

Highlights

  • Supports 12th, 13th and 14th Gen Intel processors on LGA 1700 socket
  • PCIe 4.0 x16 slot for modern graphics cards
  • M.2 slot with 32 Gbps bandwidth for high-speed storage
  • HDMI 2.1 port delivers 4K video at 60 Hz
  • USB 3.2 Gen 1 ports provide 5 Gbps data throughput

Specifications

No published specifications for this item yet.

Questions about this item

Does the board include a CPU cooler or memory modules, or must those be purchased separately?

The motherboard ships without a CPU cooler or DDR4 memory; both must be purchased separately to complete the build.

Should I choose the 64 GB maximum capacity or a lower amount for a typical desktop build?

The board supports up to 64 GB across two DDR4 slots; 32 GB (2 x 16 GB) is a common sweet spot for gaming and productivity, while 64 GB suits heavy multitasking or content creation.

What does the 32 Gbps M.2 figure mean for actual drive performance in this system?

The M.2 slot runs at PCIe 4.0 x4, delivering up to 32 Gbps bandwidth so compatible drives can reach their rated sequential speeds.
