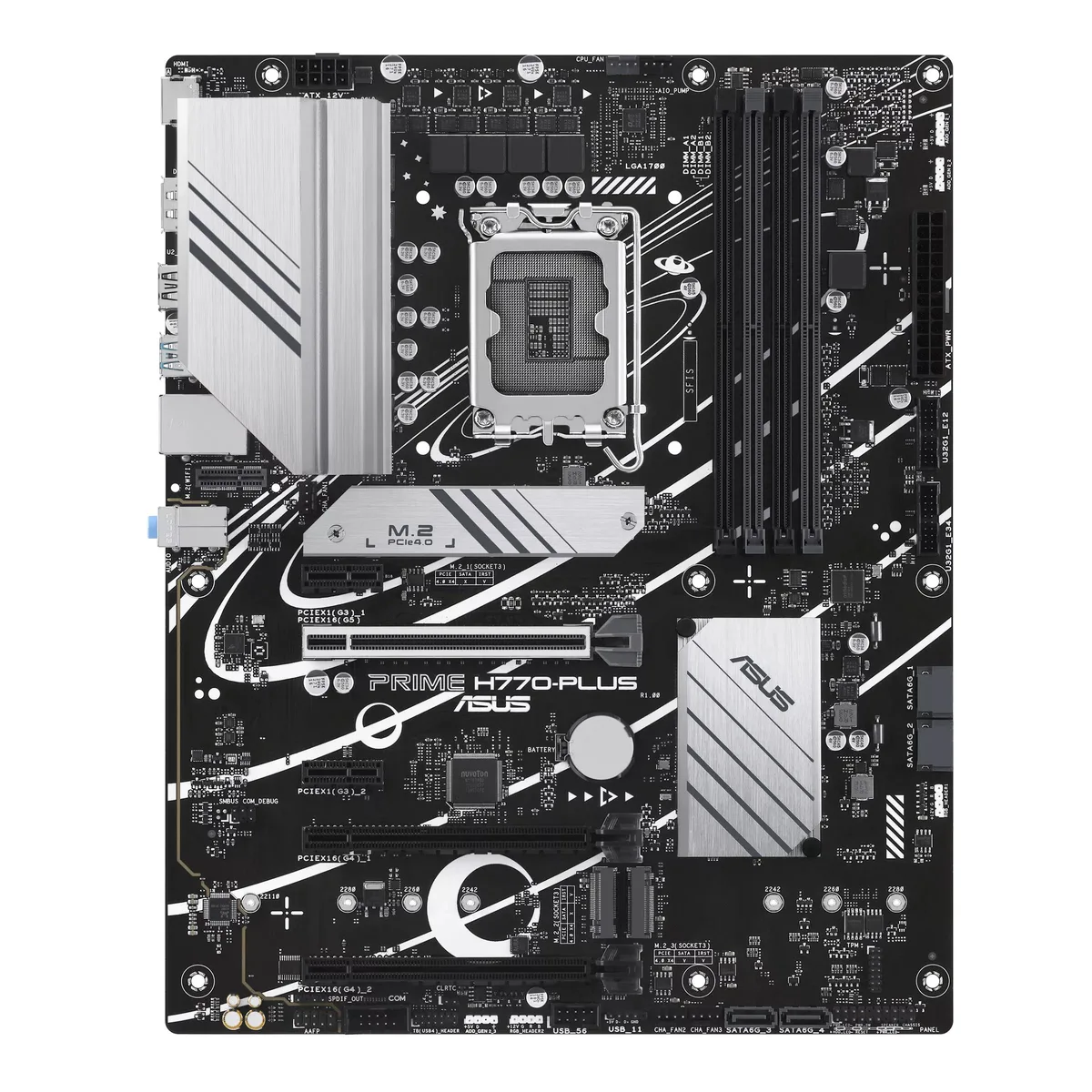

ATX motherboard with dark PCB, silver VRM heatsinks, black M.2 shields and silver rear I/O cover

ASUS

ASUS Prime H770-PLUS D5 Intel motherboard

SKU CH-SQKZ-DY1CW

An Intel LGA 1700 ATX motherboard with H770 chipset, PCIe 5.0 graphics slot, three PCIe 4.0 M.2 slots, four DDR5 DIMM slots supporting up to 192 GB, 2.5 Gb Ethernet and Thunderbolt header support

  • CPU Socket TypeLGA 1700
  • ChipsetIntel H770
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)
  • Maximum Memory Supported192GB
  • Channel SupportedDual Channel
  • Supports 13th and 12th Gen Intel Core processors via LGA 1700 socket
  • PCIe 5.0 x16 slot enables high-speed graphics and expansion cards
  • Three PCIe 4.0 M.2 slots support 2242, 2260, 2280 and 22110 form factors
  • DDR5 memory up to 7200 MT/s overclocked across four slots with 192 GB maximum capacity
  • Realtek 2.5Gb Ethernet and USB 3.2 Gen 2 Type-C with Thunderbolt header support fast wired connectivity

LGA 1700 DDR5 motherboard for Intel Core 12 13 14

The ASUS Prime H770-PLUS D5 is an ATX board built around the Intel H770 chipset and the LGA 1700 socket. It accepts 12th 13th and 14th Gen Intel Core Pentium Gold and Celeron processors. Four 288 pin DDR5 slots support up to 192 GB in dual channel mode with speeds from 4800 to 7200 MT/s when overclocked.

Who this suits and who should look elsewhere

Builders who want PCIe 5.0 graphics bandwidth three PCIe 4.0 M.2 slots 2.5 Gb Ethernet and a Thunderbolt USB4 header without paying for a Z series chipset will find the feature set matched to a mid range workstation or gaming rig. Users who need integrated Wi Fi or CPU overclocking should consider a Z770 model or a board with onboard wireless.

The deciding specification

The single spec that decides fit is the Intel H770 chipset which enables PCIe 5.0 on the primary x16 slot and three PCIe 4.0 M.2 slots while locking CPU multiplier overclocking. If your build relies on an unlocked K series CPU and you need that headroom choose a Z770 board instead.

Highlights

  • Supports 13th and 12th Gen Intel Core processors via LGA 1700 socket
  • PCIe 5.0 x16 slot enables high-speed graphics and expansion cards
  • Three PCIe 4.0 M.2 slots support 2242, 2260, 2280 and 22110 form factors
  • DDR5 memory up to 7200 MT/s overclocked across four slots with 192 GB maximum capacity
  • Realtek 2.5Gb Ethernet and USB 3.2 Gen 2 Type-C with Thunderbolt header support fast wired connectivity

Specifications

BrandASUS
ModelPRIME H770-PLUS D5
CPU Socket TypeLGA 1700
ChipsetIntel H770
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC?Un-buffered ??*
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory FeatureDDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC?Un-buffered ??*
PCI Express 5.0 x16Intel 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
PCI Express 4.0 x16Intel H770 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
PCI Express x1Intel H770 Chipset
2 x PCIe 3.0 x1 slots
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel H770 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
SATA RAID* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Audio ChipsetRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels7.1 Channels
Max LAN Speed1 x Realtek 2.5Gb Ethernet
Wireless LANVertical M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module is sold separately.
Back I/O Ports3 x USB 3.2 Gen 2 (10G) ports (2 x Type-A + 1 x USB Type-C®)
3 x USB 3.2 Gen 1 (5G) ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Vertical M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
Onboard USB2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x Aura RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4) header
Windows 11Supported
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
FeaturesASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
AI Suite 3
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

Questions about this item

Will my existing DDR5 memory kits run at their rated speeds on the ASUS Prime H770-PLUS D5?

The board supports DDR5 speeds from 4800 up to 7200+(OC) across its four 288-pin slots, with a maximum capacity of 192GB in dual-channel mode.

How can I confirm the PCIe 5.0 x16 slot is active after installing a 13th or 14th Gen Intel processor?

The primary x16 slot operates at PCIe 5.0 with 13th and 14th Gen CPUs; verify the link width and generation in the BIOS or via a system information utility in your OS.

What accessories are included in the box and what must be purchased separately for wireless connectivity?

A Wi-Fi module is not included; the vertical M.2 Key E slot accepts a compatible CNVi or PCIe module that must be bought separately.
