Green mATX motherboard with silver heatsinks and black slots

ASUS

ASUS PRIME H810M-A CSM Intel H810 LGA 1851 mATX motherboard

SKU CH-Y356-QBV7A MPN PRIME H810M-A CSM

mATX board for Intel Core Ultra Series 2 CPUs with DDR5 up to 6400, PCIe 4.0 x16, two M.2 slots and rear USB 10Gbps

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel H810
  • Number of Memory Slots2x288pin (DDR5)
  • Memory StandardDDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 /
  • Maximum Memory Supported96GB
  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • Dual-channel DDR5 memory up to 96GB with XMP 3.0 and AEMP II
  • Two PCIe 4.0 M.2 slots for fast storage expansion
  • Rear USB 10Gbps Type-A and front USB 5Gbps Type-C connectivity
  • CSM programme ensures long-term stability and reliable supply

Built for Intel Core Ultra Series 2

This mATX board uses the Intel H810 chipset and an LGA 1851 socket to support Intel Core Ultra processors (Series 2). It targets commercial and small-form-factor builders who need a stable, long-life platform. The CSM programme guarantees extended availability and validated reliability for business deployments.

Memory support decides compatibility

Two 288-pin DDR5 slots run in dual-channel mode up to 96 GB total. Supported data rates span 4400 through 6400 MT/s in 200 MT/s steps. Intel XMP 3.0 and ASUS AEMP II profiles are both available for automatic overclocking.

Front USB Type-C header adds modern case support

One onboard USB 5 Gbps header drives a front-panel Type-C port, while a second USB 5 Gbps header supplies two additional Type-A ports. A USB 2.0 header adds two more legacy ports. Rear I/O already includes two USB 10 Gbps Type-A ports, so case connectivity is covered without adapters.

Highlights

  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • Dual-channel DDR5 memory up to 96GB with XMP 3.0 and AEMP II
  • Two PCIe 4.0 M.2 slots for fast storage expansion
  • Rear USB 10Gbps Type-A and front USB 5Gbps Type-C connectivity
  • CSM programme ensures long-term stability and reliable supply

Specifications

BrandASUS
ModelPRIME H810M-A CSM
Part Number90MB1KK0-M0AAYC
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel H810
Number of Memory Slots2x288pin (DDR5)
Memory StandardDDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400
Maximum Memory Supported96GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureDual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)
PCI Express 4.0 x16Intel Core Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot
PCI Express x1Intel H810 Chipset
1 x PCIe 4.0 x1 slot
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel H810 Chipset
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
Audio ChannelsRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Max LAN Speed1Gbps

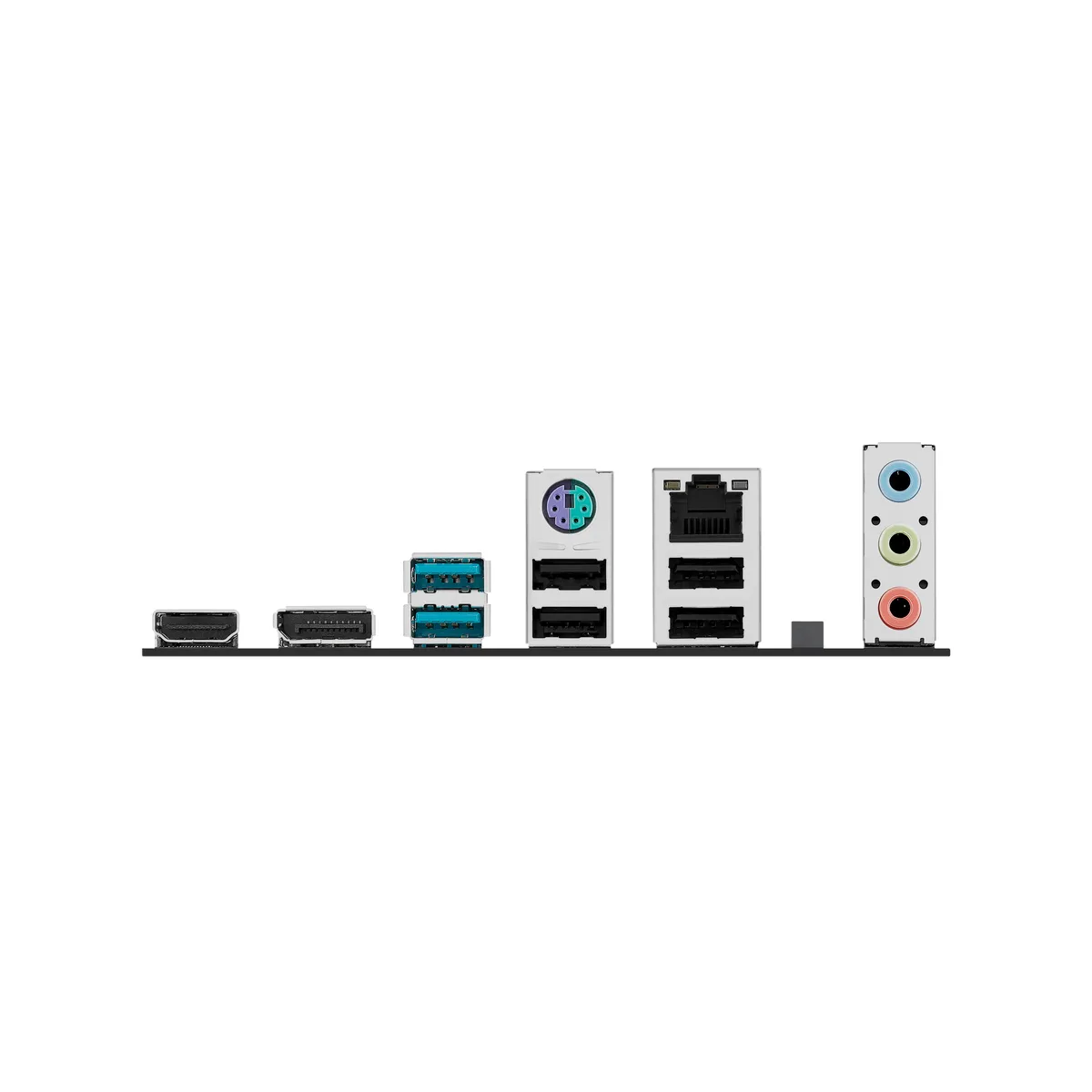

Back I/O Ports2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Intel 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 keyboard/mouse combo port
Onboard USB1 x USB 5Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System header
BIOS Feature256 (128+128) Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS DriverHub
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Windows 11Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
Form FactorMicro ATX
Dimensions (W x L)9.6" x 8.75"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core+
- Stainless-steel back I/O
ASUS Q-Design
- Q-DIMM
- Q-Dashboard
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
Aura Sync
- Addressable Gen2 headers
Shipping weight0.93 kg
Package size273 × 267 × 55 mm

Questions about this item

What does the 96 GB maximum memory mean for a build using this board?

You can install up to 96 GB of DDR5 across the two 288-pin slots, running in dual-channel mode at speeds from 4400 up to 6400 MT/s with XMP 3.0 or AEMP II profiles.

How does the PCIe 4.0 x16 slot and the two M.2 slots share bandwidth on the H810 chipset?

The x16 slot connects directly to the Core Ultra Series 2 CPU at PCIe 4.0 x16, while M.2_1 runs at PCIe 4.0 x4 and M.2_2 at PCIe 4.0 x2, both wired through the H810 chipset.

What mounting holes and form factor does this mATX board use for case compatibility?

It follows the standard micro-ATX layout with four mounting holes, fitting any chassis that supports mATX or larger ATX form factors.
