Green mATX motherboard with silver heatsinks, black PCB, LGA 1851 socket, two DDR5 slots, PCIe x16 slot, two M.2 slots, rear I/O shield

ASUS

ASUS PRIME H810M-A CSM Intel motherboard

SKU CH-2EGT-BF1RA MPN PRIME H810M-A CSM

Micro-ATX board for Intel Core Ultra Series 2 processors with DDR5 memory up to 96 GB, two PCIe 4.0 M.2 slots and rear USB 10 Gbps ports

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel H810
  • Number of Memory Slots2x288pin (DDR5)
  • Memory StandardDDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 /
  • Maximum Memory Supported96GB
  • Stable supply for business builds with 36‑month lifecycle commitment
  • Strong DDR5 performance up to 6400 MT/s via XMP 3.0 and AEMP II
  • Two PCIe 4.0 M.2 slots for fast storage expansion
  • Rear USB 10Gbps and front USB 5Gbps Type‑C for quick data transfers
  • Robust 6+1+1+1 discrete MOS power design with 8‑pin connectors for reliable delivery

Socket and processor fit

The board uses the LGA 1851 socket and Intel H810 chipset for Intel Core Ultra Processors Series 2. It is built for commercial buyers who need a stable, long-life platform in a micro-ATX form factor.

Memory ceiling and speed

Two DDR5 slots support up to 96 GB in dual-channel mode with XMP 3.0 profiles from 4400 to 6400 MT/s. This capacity limit is the single figure that decides whether the board fits the planned workload.

Install experience

The mATX layout keeps the PCIe 4.0 x16 slot and two M.2 sockets within easy reach. Q-DIMM latches and Q-LED Core diagnostics help first-time builders, while the single 8-pin CPU power connector must be seated firmly to avoid boot failures.

Highlights

  • Stable supply for business builds with 36‑month lifecycle commitment
  • Strong DDR5 performance up to 6400 MT/s via XMP 3.0 and AEMP II
  • Two PCIe 4.0 M.2 slots for fast storage expansion
  • Rear USB 10Gbps and front USB 5Gbps Type‑C for quick data transfers
  • Robust 6+1+1+1 discrete MOS power design with 8‑pin connectors for reliable delivery

Specifications

BrandASUS
ModelPRIME H810M-A CSM
Part Number90MB1KK0-M0AAYC
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel H810
Number of Memory Slots2x288pin (DDR5)
Memory StandardDDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400
Maximum Memory Supported96GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureDual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)
PCI Express 4.0 x16Intel Core Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot
PCI Express x1Intel H810 Chipset
1 x PCIe 4.0 x1 slot
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel H810 Chipset
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
Audio ChannelsRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Max LAN Speed1Gbps

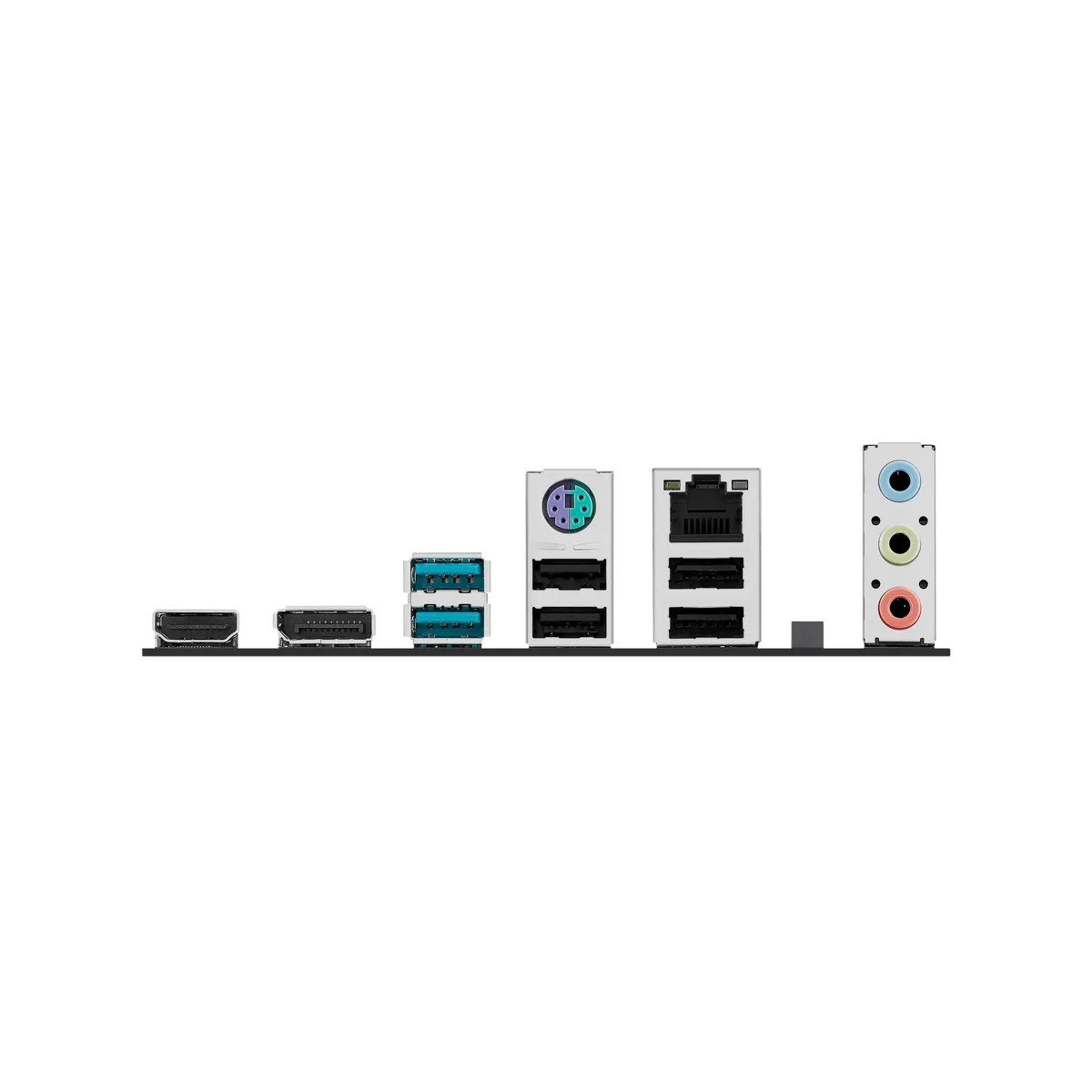

Back I/O Ports2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Intel 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 keyboard/mouse combo port
Onboard USB1 x USB 5Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System header
BIOS Feature256 (128+128) Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS DriverHub
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Windows 11Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
Form FactorMicro ATX
Dimensions (W x L)9.6" x 8.75"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core+
- Stainless-steel back I/O
ASUS Q-Design
- Q-DIMM
- Q-Dashboard
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
Aura Sync
- Addressable Gen2 headers
Package ContentsCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna

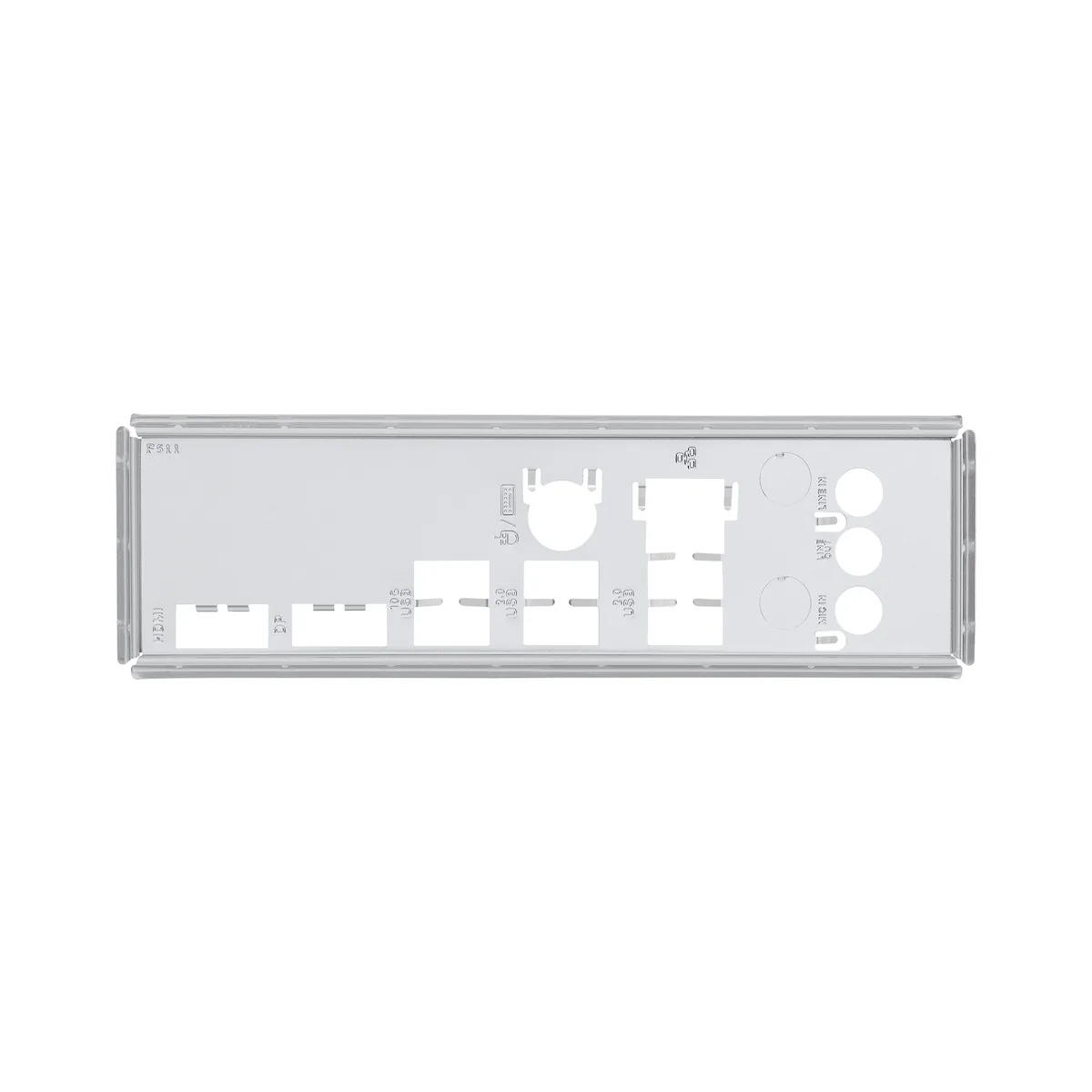

1 x I/O shield
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide
Shipping weight0.93 kg
Package size273 × 267 × 55 mm

Questions about this item

What does the 96 GB DDR5 limit mean for a system built on this board?

The board has two DDR5 slots supporting up to 96 GB total in dual-channel mode, with speeds from 4400 to 6400 MT/s and XMP 3.0 or AEMP II profiles.

How does the PCIe 4.0 interface affect the M.2 slots and expansion cards?

The primary M.2 slot runs at PCIe 4.0 x4 and the second at x2, while the single x16 graphics slot and the x1 slot also operate at PCIe 4.0 speeds.

What physical space and mounting points does the mATX form factor need in a case?

The micro-ATX board fits standard mATX or larger cases, uses the LGA 1851 socket for Intel Core Ultra Series 2 CPUs, and provides four SATA 6 Gb/s ports plus two M.2 slots (2280 and 2242/2260/2280).
