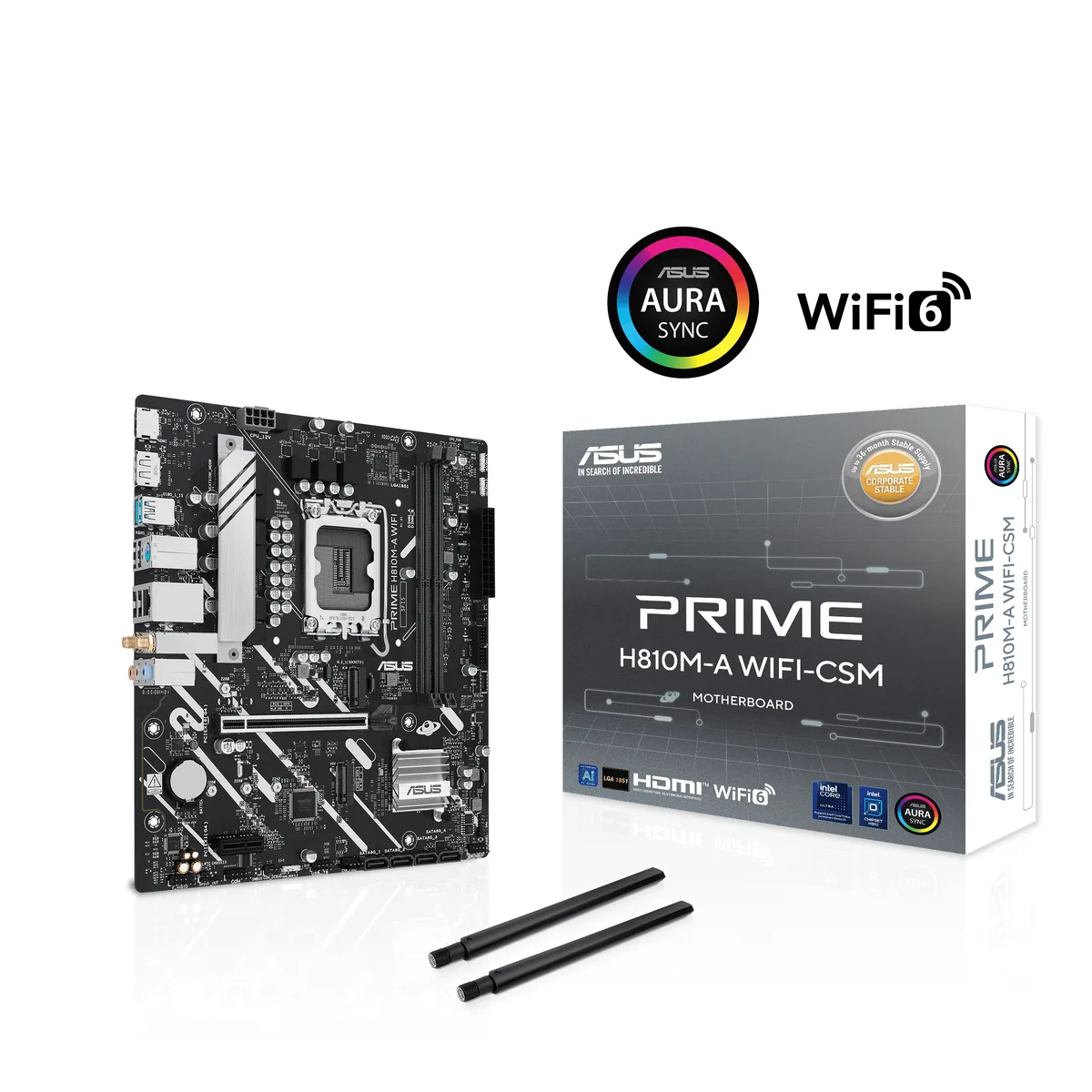

Green mATX motherboard with silver heatsinks, black PCB, LGA 1851 socket, two DDR5 slots, PCIe x16 slot, two M.2 slots

ASUS

ASUS PRIME H810M-A WIFI-CSM Intel motherboard

SKU CH-PV11-AZ0DK MPN PRIME H810M-A WIFI-CSM

LGA 1851 mATX board for Intel Core Ultra Series 2 with DDR5 up to 6400, two PCIe 4.0 M.2 slots, 1 Gb Ethernet and Wi-Fi 6

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel H810
  • Number of Memory Slots2x288pin (DDR5)
  • Memory StandardDDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 /
  • Maximum Memory Supported96GB
  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • 6+1+1+1 discrete MOS power design with 8-pin connectors for stable delivery
  • Two PCIe 4.0 M.2 slots including 2280 and 2242/2260/2280 form factors
  • Wi-Fi 6 and Bluetooth 5.3 plus Intel 1 Gb Ethernet for fast connectivity
  • CSM program offers 36-month lifecycle and 6-month end-of-life notice

CSM motherboard for Intel Core Ultra Series 2

The ASUS PRIME H810M-A WIFI-CSM is an Intel H810 mATX board built for Intel Core Ultra Processors (Series 2) on the LGA 1851 socket. It is part of the Corporate Stable Model programme, which provides up to 36-month product lifecycle support and a 6-month end-of-life notice for predictable procurement cycles.

Suited for managed deployments and AI-ready builds

This board fits IT teams that need long-term supply stability and developers targeting Advanced AI PC workloads. Builders who require more than two M.2 slots, additional PCIe expansion beyond one x16 and one x1, or CPU-attached PCIe 5.0 lanes should look at higher-tier chipsets.

Dual DDR5 slots with broad speed support

Two 288-pin DDR5 slots accept up to 96 GB in dual-channel mode and run at JEDEC speeds from 4400 to 6400 MT/s. Intel XMP 3.0 and ASUS AEMP II profiles are supported for automatic overclocking of compatible memory kits.

Highlights

  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • 6+1+1+1 discrete MOS power design with 8-pin connectors for stable delivery
  • Two PCIe 4.0 M.2 slots including 2280 and 2242/2260/2280 form factors
  • Wi-Fi 6 and Bluetooth 5.3 plus Intel 1 Gb Ethernet for fast connectivity
  • CSM program offers 36-month lifecycle and 6-month end-of-life notice

Specifications

BrandASUS
ModelPRIME H810M-A WIFI-CSM
Part Number90MB1KJ0-M0AAYC
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel H810
Number of Memory Slots2x288pin (DDR5)
Memory StandardDDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400
Maximum Memory Supported96GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureDual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)
PCI Express 4.0 x16Intel Core Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot
PCI Express x1Intel H810 Chipset
1 x PCIe 4.0 x1 slot
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel H810 Chipset
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
Audio ChannelsRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Max LAN Speed1Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBluetooth 5.3

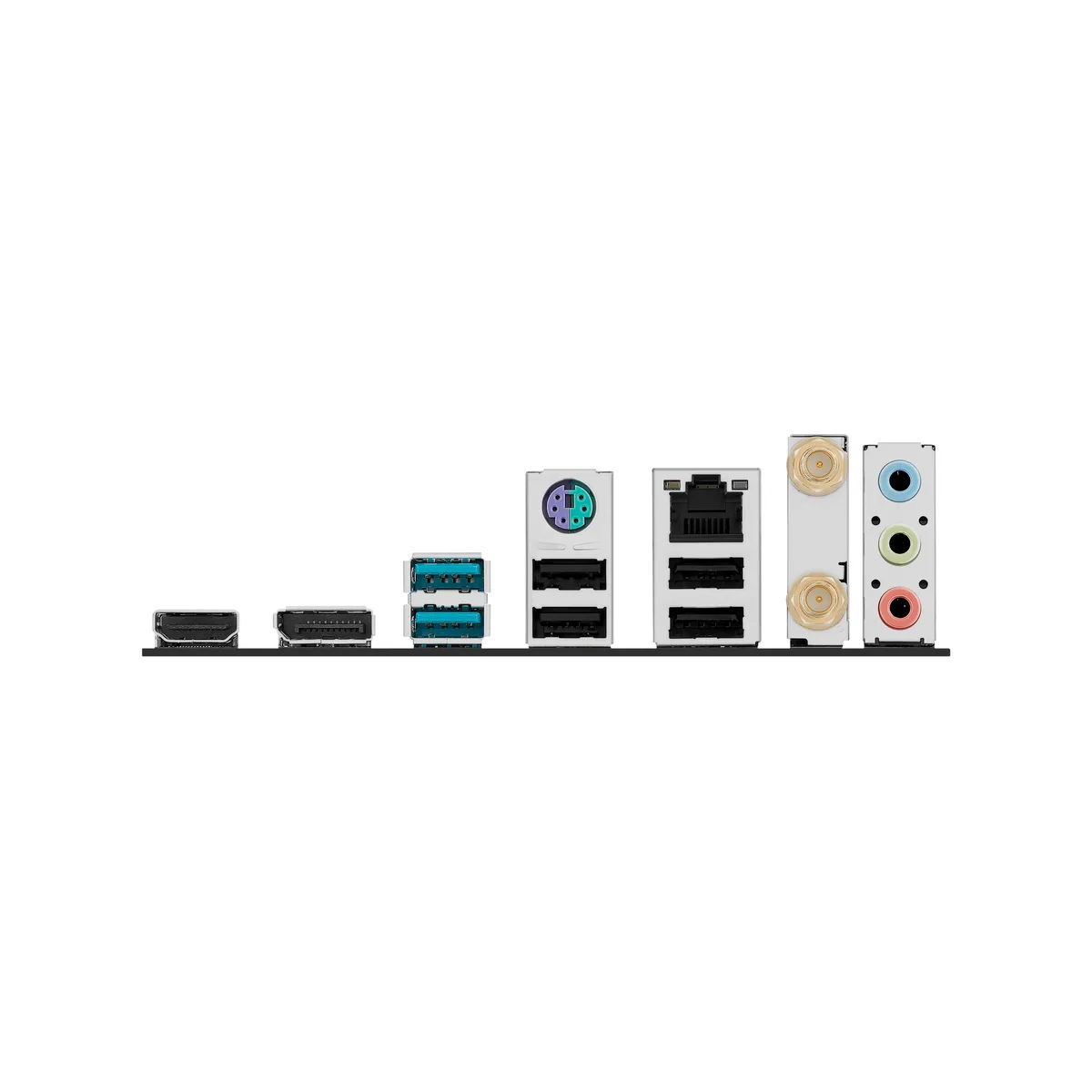

Back I/O Ports2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Intel 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 keyboard/mouse combo port
Onboard USB1 x USB 5Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System header
BIOS Feature256 (128+128) Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS DriverHub
ASUS GlideX
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Windows 11Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
Form FactorMicro ATX
Dimensions (W x L)9.6" x 8.75"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core+
- Stainless-steel back I/O
ASUS Q-Design
- Q-DIMM
- Q-Dashboard
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
Aura Sync
- Addressable Gen2 headers
Package ContentsCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna

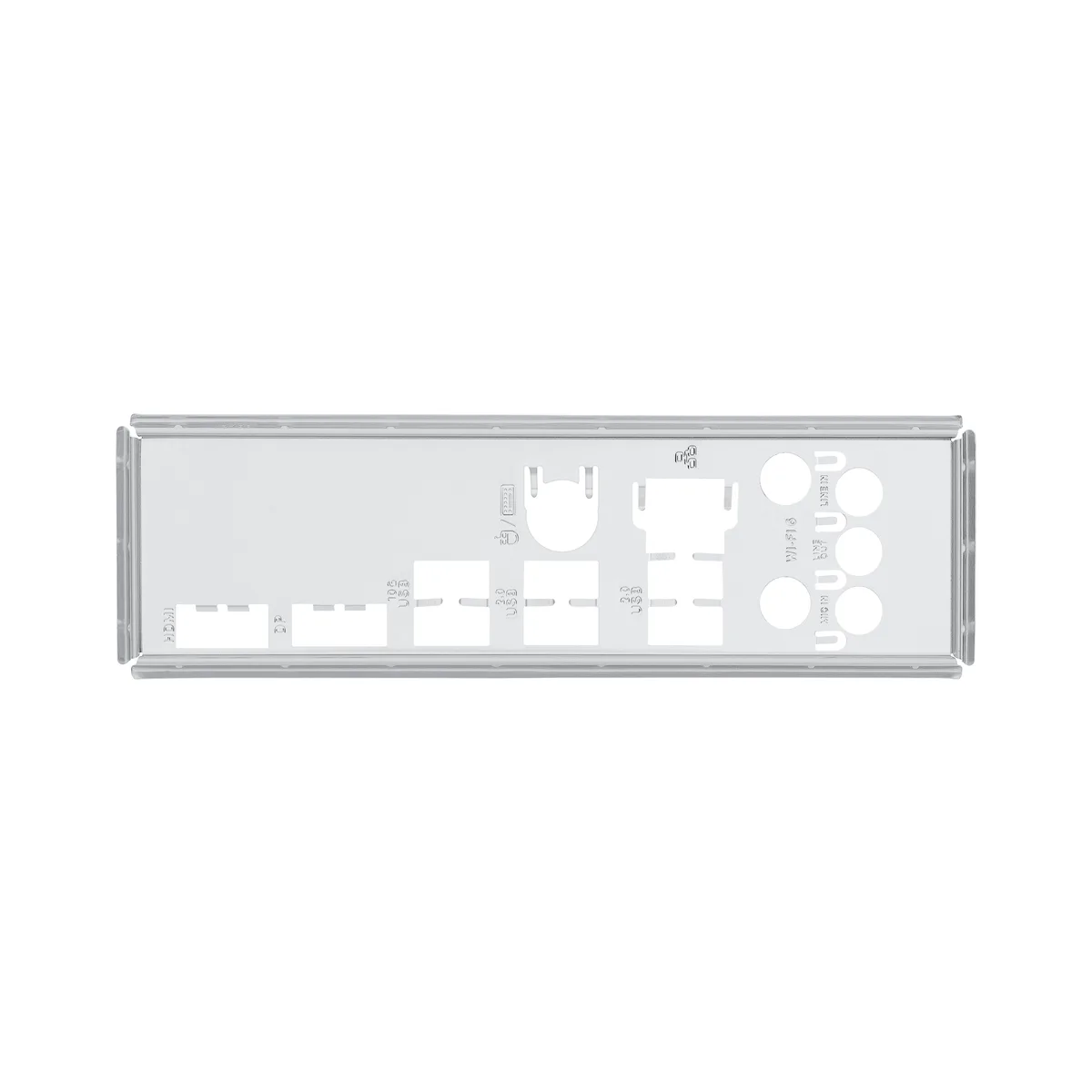

1 x I/O shield
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide
Shipping weight0.98 kg
Package size273 × 267 × 55 mm

Questions about this item

Which Intel processor socket must I already have to install this board?

The board uses the LGA 1851 socket, so you need an Intel Core Ultra Processor (Series 2) that fits that socket.

Will my existing SATA drives and PCIe 4.0 add-in cards work with the H810 chipset?

Yes, the board provides four SATA 6Gb/s ports, one PCIe 4.0 x16 slot and one PCIe 4.0 x1 slot for those devices.

How can I confirm the memory is running at the rated DDR5 speed after I build the system?

Enable Intel XMP 3.0 or ASUS AEMP II in the BIOS, then check the reported memory frequency matches one of the supported speeds such as 5600 or 6000 MT/s.
