ASUS PRIME Radeon RX 9060 XT 16GB GDDR6 PCI Express 5.0 x16 PRIME-RX9060XT-O16G graphics card

16GB RDNA 4 graphics card

The ASUS PRIME Radeon RX 9060 XT delivers 16GB of GDDR6 memory on a 128-bit interface for 1440p gaming and content creation. Its 2048 stream processors run on the AMD RDNA 4 architecture with a 20 Gbps effective memory clock. The PCI Express 5.0 x16 connection provides full bandwidth on current platforms. It targets builders who need high VRAM without moving to a larger physical card.

Sustained load behaviour

The 16GB frame buffer keeps texture data resident during extended sessions, reducing stutter when assets exceed smaller VRAM pools. GDDR6 at 20 Gbps feeds the 2048 processors steadily across long renders or multi-hour gameplay. The 128-bit bus width is fixed, so memory throughput scales with clock stability rather than burst headroom. Thermal limits will determine final boost duration under continuous compute or gaming loads.

Installation notes

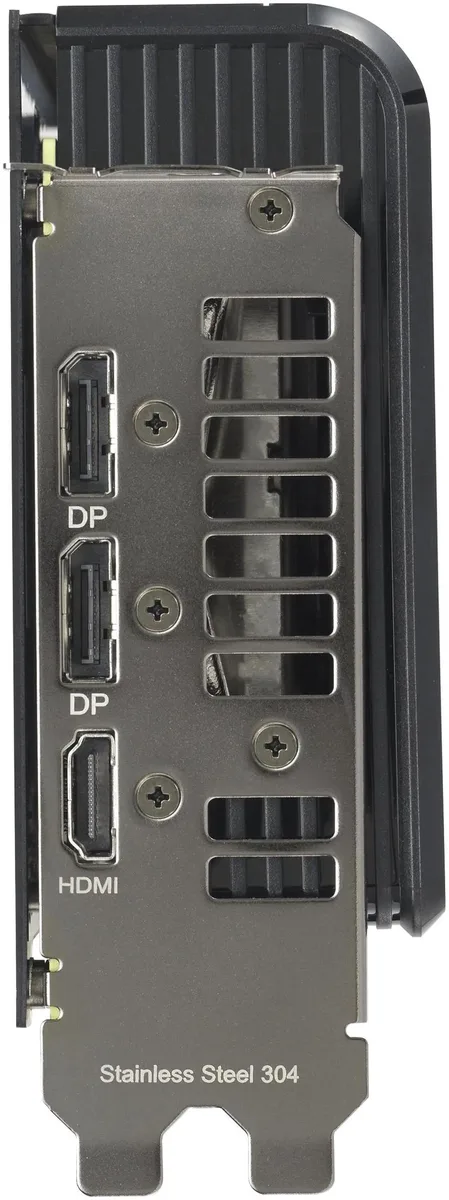

The card fits standard ATX layouts with a dual-slot bracket carrying one HDMI 2.1b and two DisplayPort 2.1a outputs. PCI Express 5.0 x16 is backward compatible with 4.0 and 3.0 slots, though bandwidth reduces accordingly. A 12VHPWR or dual 8-pin power connection is typical for this class; verify your PSU cables before mounting. Driver support for RDNA 4 requires a current AMD Adrenalin release.
