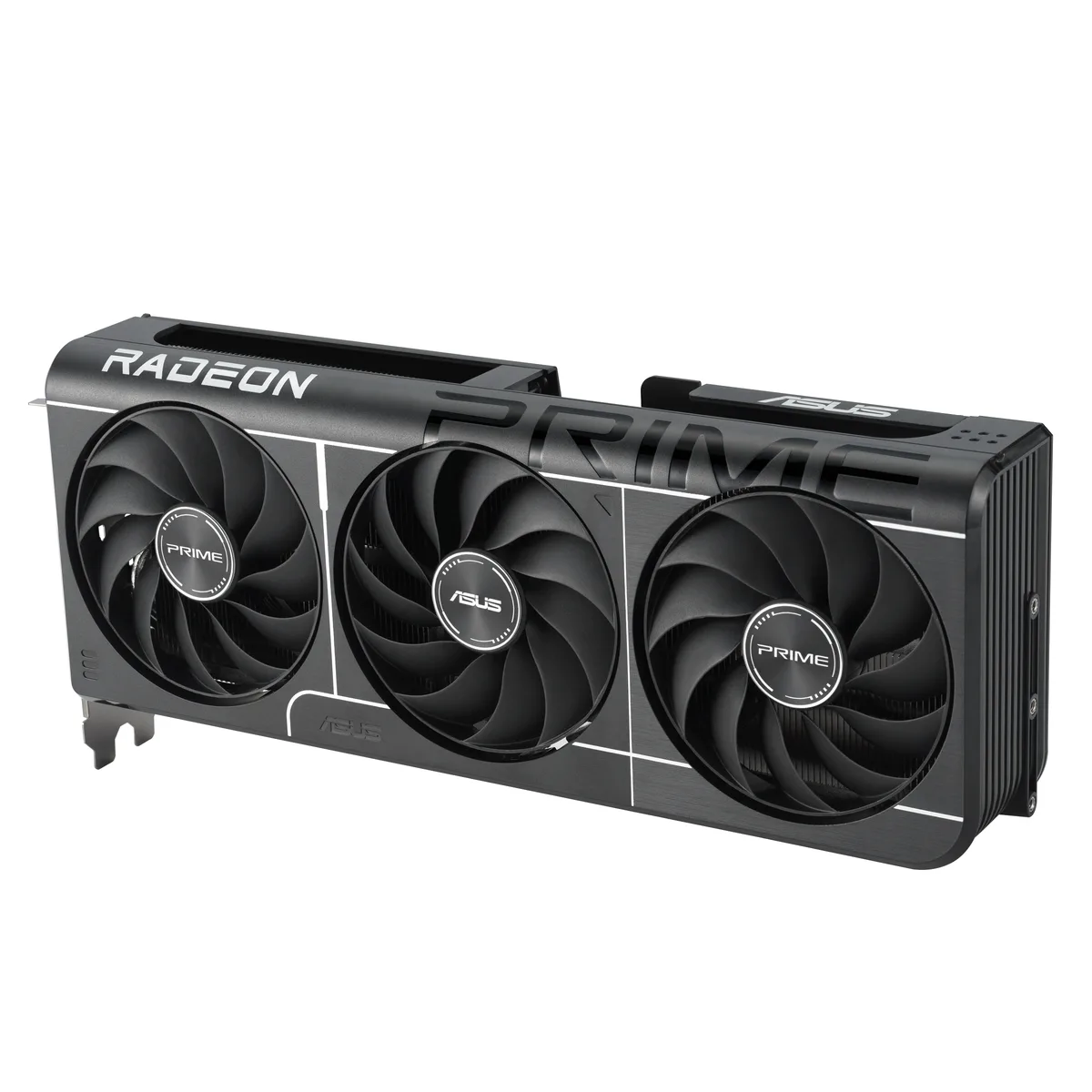

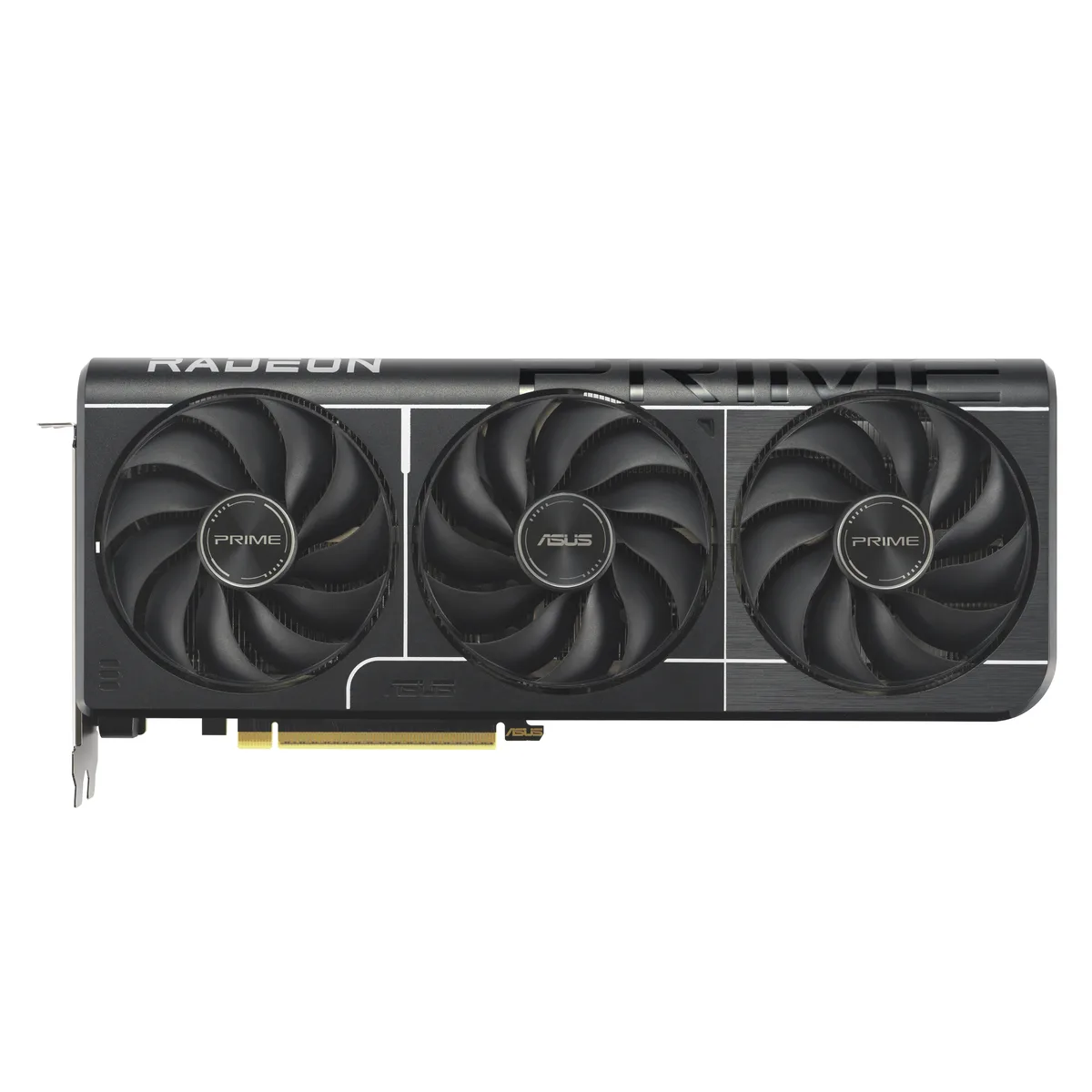

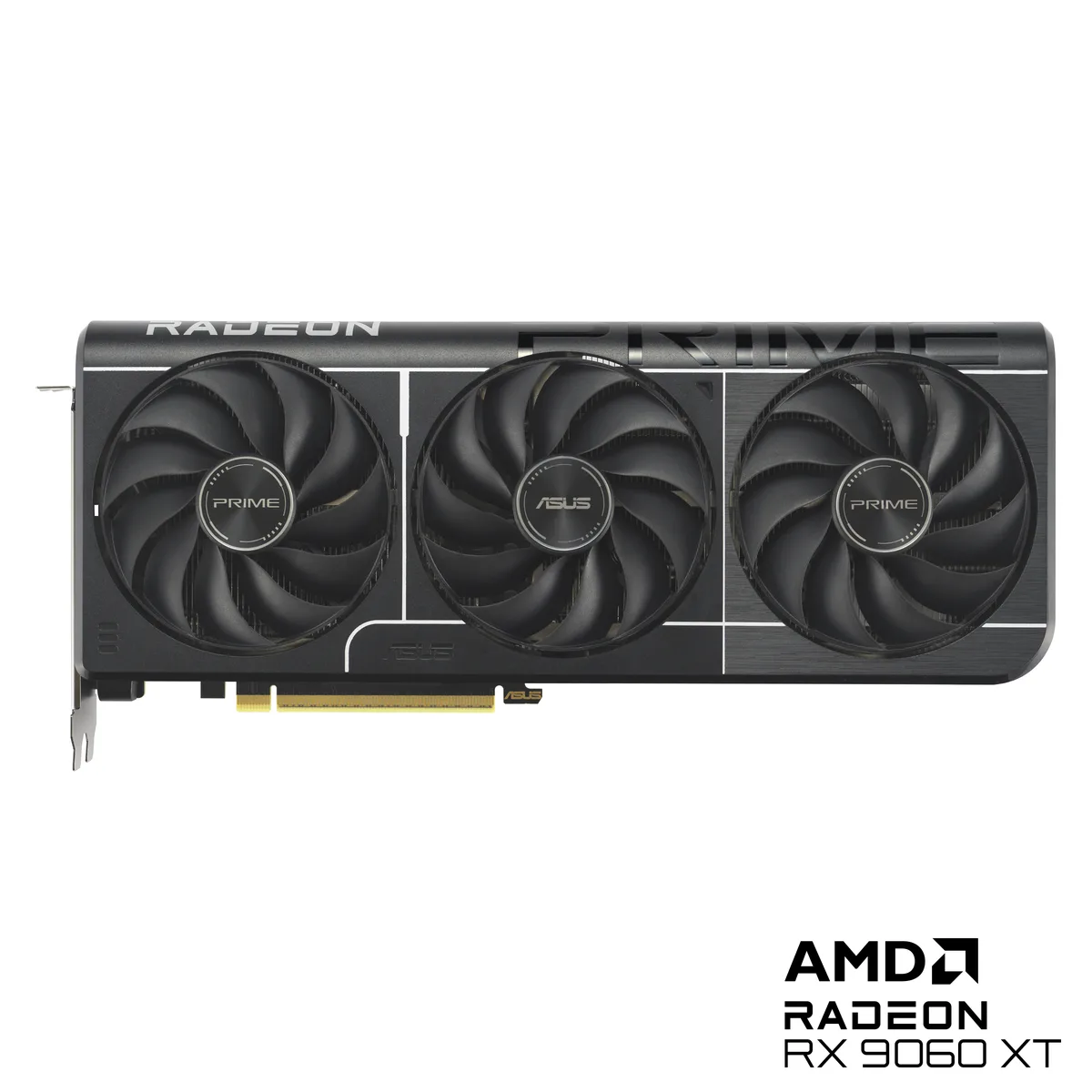

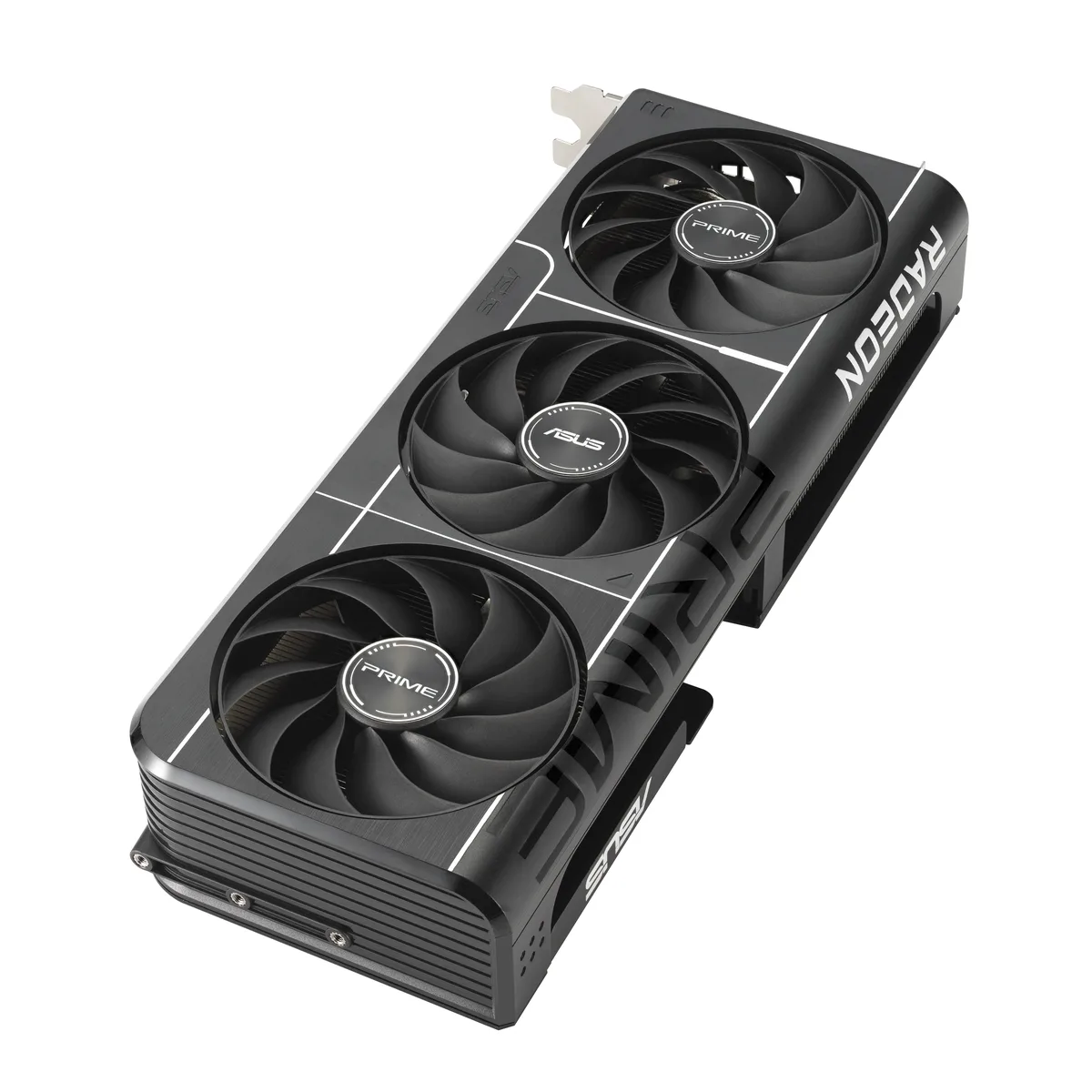

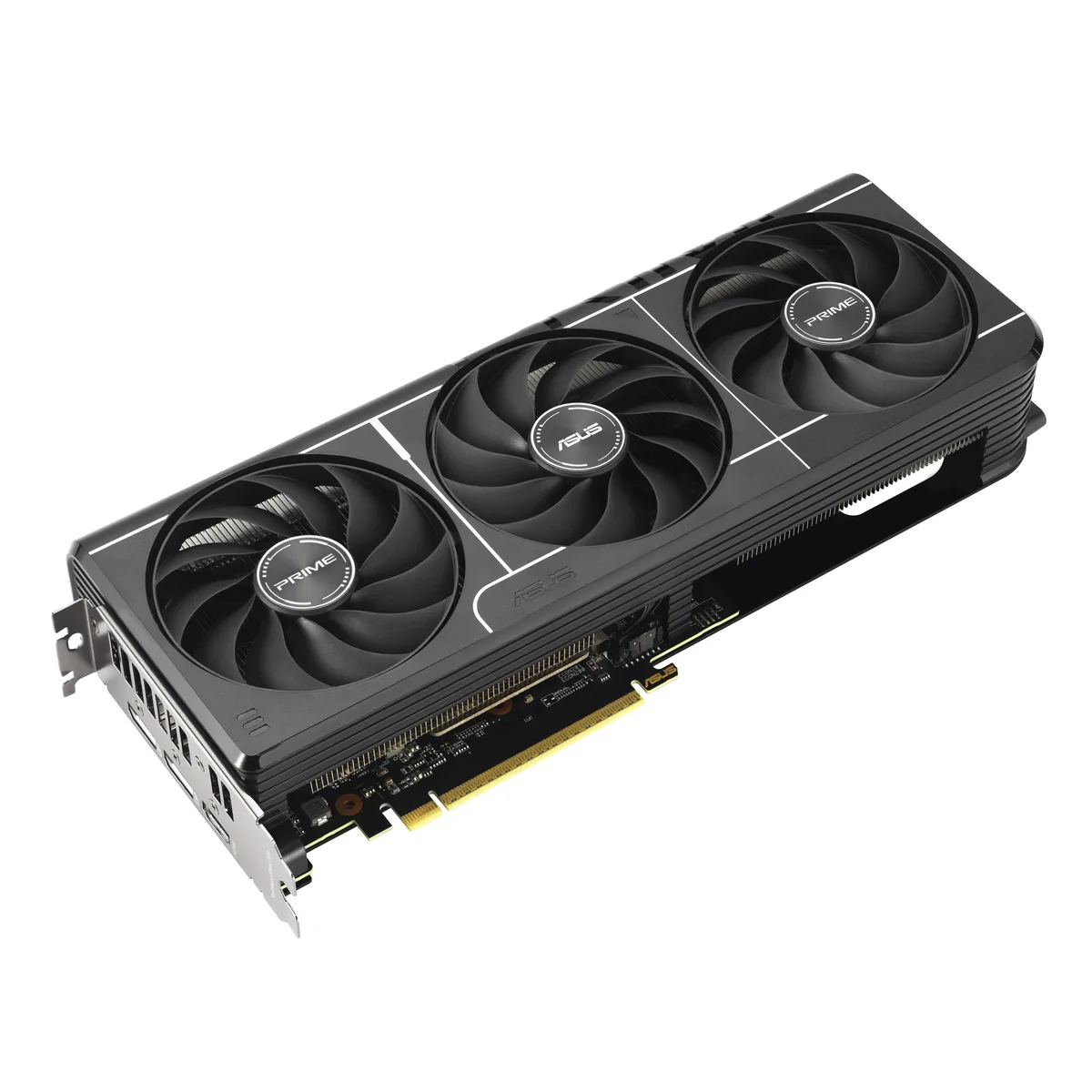

Black triple-fan ATX graphics card, 304 mm long, 2.5-slot width

ASUS

ASUS PRIME Radeon RX 9060 XT PRIME-RX9060XT-O16G graphics card

SKU CH-NKXY-FRQT6 MPN PRIME-RX9060XT-O16G

Refurbished Radeon RX 9060 XT with 16GB GDDR6, triple-fan cooler, PCI Express 5.0 x16 and HDMI 2.1b plus two DisplayPort 2.1a outputs

  • InterfacePCI Express 5.0 x16
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 9000 Series
  • GPURadeon RX 9060 XT
  • ArchitectureRDNA 4
  • Stream Processors2048
  • 16 GB GDDR6 memory handles large textures and high resolutions
  • 2048 stream processors on RDNA 4 architecture accelerate modern workloads
  • 20 Gbps effective clock feeds data quickly to the GPU
  • PCI Express 5.0 x16 interface provides high host bandwidth

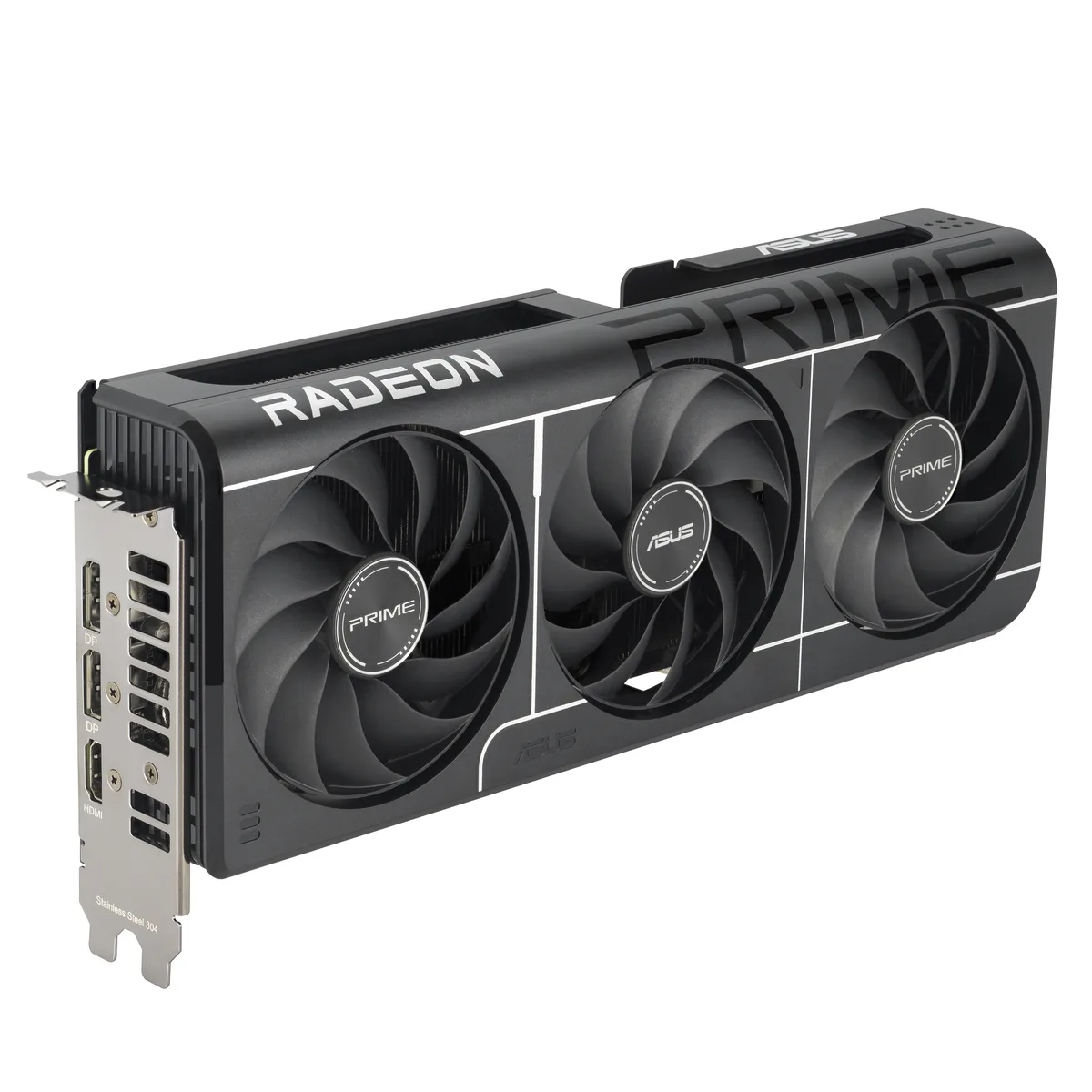

  • HDMI 2.1b plus two DisplayPort 2.1a outputs drive up to three displays

16GB RDNA 4 graphics card

The ASUS PRIME Radeon RX 9060 XT delivers 16GB of GDDR6 memory on a 128-bit bus with an effective clock of 20 Gbps. It is built on the RDNA 4 architecture with 2048 stream processors and a PCI Express 5.0 x16 interface. The card targets gamers and creators who need high memory capacity for 1440p and 4K workloads.

Compatibility checklist

Verify your motherboard has a free PCI Express 5.0 x16 slot and that your case can clear a 304 mm long, 2.5-slot ATX card measuring 304 x 126 x 50 mm. Ensure the power supply meets the 550 W recommendation and provides an 8-pin connector. The card offers one HDMI 2.1b and two DisplayPort 2.1a outputs for up to three displays at 7680 x 4320 resolution.

Triple-fan cooler and power draw

A triple-fan cooler dissipates heat from the 2048-stream-processor GPU under typical gaming loads while drawing power through a single 8-pin connector within the 550 W system guideline. Fan noise rises with temperature but stays controlled in normal use. The card supports DirectX 12 Ultimate and OpenGL 4.6, is HDCP ready and VR ready, with no CrossFireX or SLI support.

Highlights

  • 16 GB GDDR6 memory handles large textures and high resolutions
  • 2048 stream processors on RDNA 4 architecture accelerate modern workloads
  • 20 Gbps effective clock feeds data quickly to the GPU
  • PCI Express 5.0 x16 interface provides high host bandwidth
  • HDMI 2.1b plus two DisplayPort 2.1a outputs drive up to three displays

Specifications

BrandASUS
SeriesPRIME
ModelPRIME-RX9060XT-O16G
Part Number90YV0LF1-M0AA00
InterfacePCI Express 5.0 x16
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 9000 Series
GPURadeon RX 9060 XT
ArchitectureRDNA 4
Stream Processors2048
Effective Memory Clock20 Gbps
Memory Size16GB
Memory Interface128-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support3
HDMI1 x HDMI 2.1b
DisplayPort2 x DisplayPort 2.1a
ColorBlack
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerTriple Fans
Recommended PSU Wattage550W
Power Connector8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length304 mm
Card Dimensions (L x H)304 x 126 x 50mm
Slot Width2.5 Slots
Shipping weight1.47 kg
Package size406 × 234 × 89 mm

Questions about this item

What comes in the box with the ASUS PRIME Radeon RX 9060 XT and do I need to buy a power cable separately?

The card includes the graphics board with a triple-fan cooler. It requires one 8-Pin power connector from your PSU; that cable is supplied with the power supply, not the card.

The card has 16GB GDDR6 on a 128-Bit bus at 20 Gbps — is that the only memory configuration available for this model?

Yes, the PRIME-RX9060XT-O16G is offered with 16GB of GDDR6 memory on a 128-Bit interface running at 20 Gbps; no other capacity or bus-width variants exist for this SKU.

With 2048 stream processors and a 550W recommended PSU, what resolution and monitor setup can I realistically run?

The card supports a maximum resolution of 7680 x 4320 and can drive up to three displays via one HDMI 2.1b and two DisplayPort 2.1a outputs.
