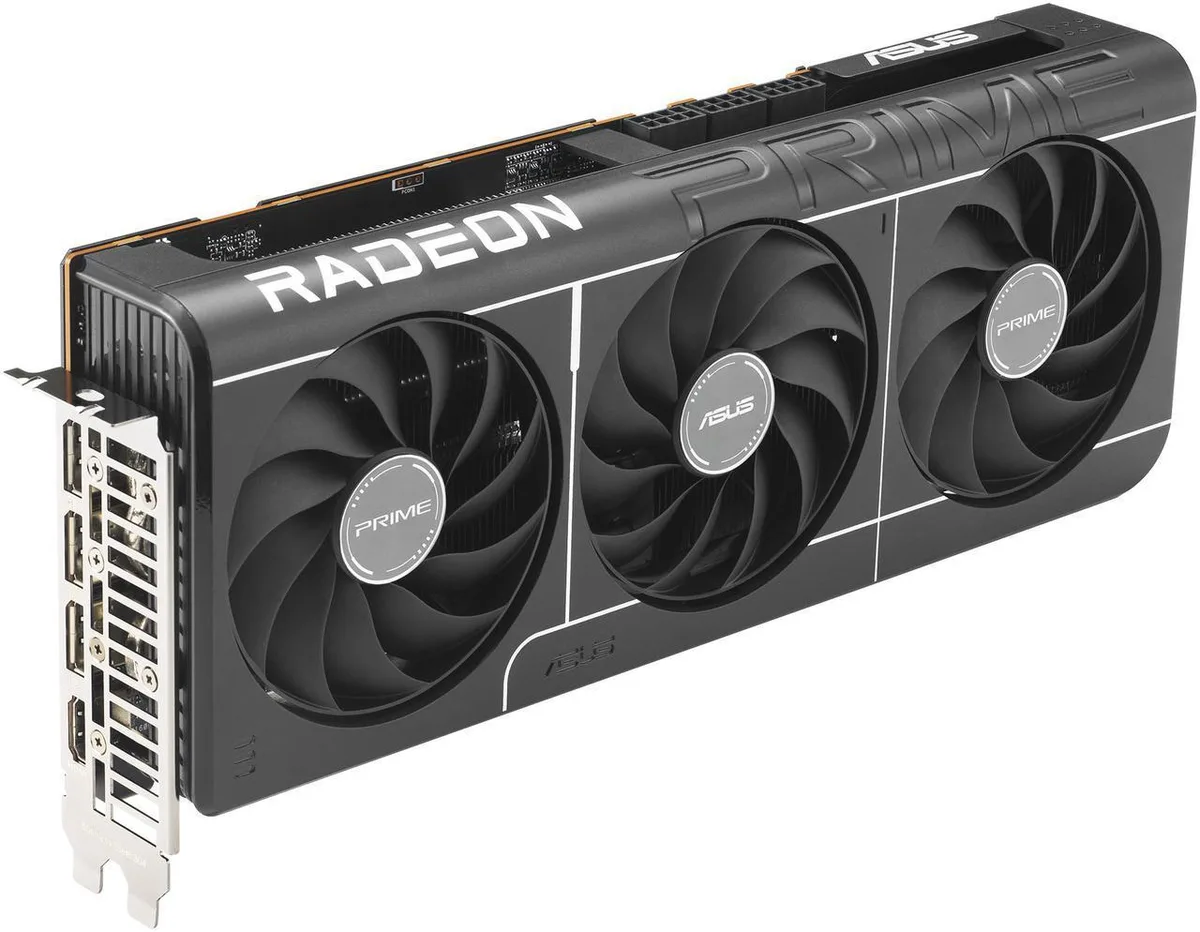

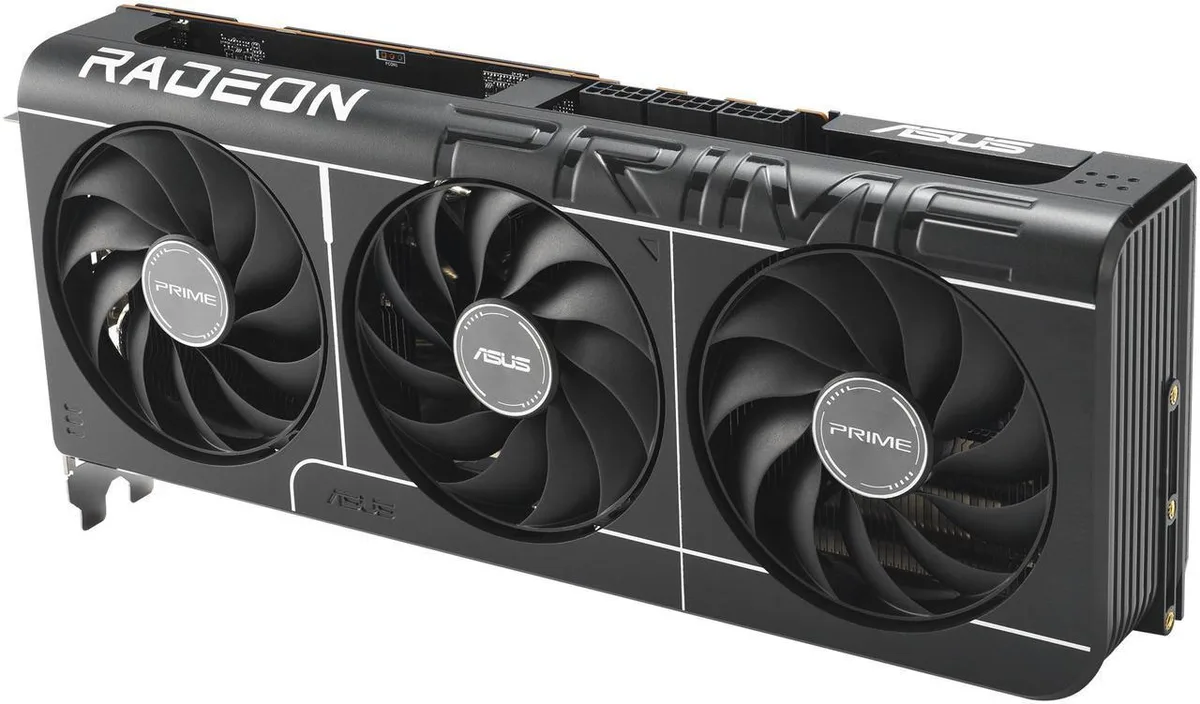

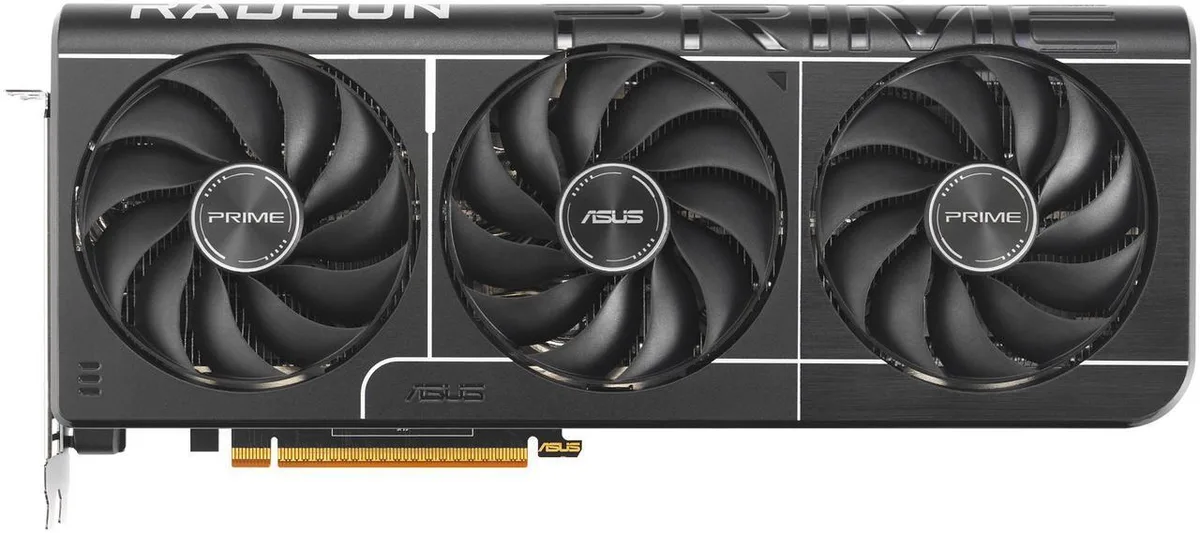

ASUS PRIME Radeon RX 9070 graphics card, triple-fan cooler, dark finish, metal backplate

ASUS

ASUS PRIME Radeon RX 9070 16GB GDDR6 PRIME-RX9070-16G graphics card

SKU CH-W15Q-GGRW6

Delivers 16 GB 256-bit GDDR6 on RDNA 4 with 3584 stream processors, 2540 MHz OC boost and PCIe 5.0 for 4K gaming

  • InterfacePCI Express 5.0 x16
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 9000 Series
  • GPURadeon RX 9070
  • ArchitectureRDNA 4
  • Game ClockOC mode(GPU Tweak III): up to 2090 MHz (Game Clock)
  • 16GB 256-bit GDDR6 memory for high-resolution textures
  • RDNA 4 architecture with 3584 stream processors for parallel workloads
  • Boost clock up to 2540 MHz in OC mode via GPU Tweak III
  • PCI Express 5.0 x16 interface for maximum bus bandwidth
  • HDMI 2.1b and three DisplayPort 2.1a outputs for four-display support

ASUS PRIME Radeon RX 9070 16GB

The ASUS PRIME Radeon RX 9070 is a graphics card built on AMD RDNA 4 architecture for gamers and creators who need high frame rates at 1440p or 4K. It carries 16GB of GDDR6 memory across a 256-bit bus and 3584 stream processors. The OC mode in GPU Tweak III pushes the boost clock to 2540 MHz and the game clock to 2090 MHz.

PCI Express 5.0 x16 bandwidth

The card plugs into a PCI Express 5.0 x16 slot, doubling the theoretical throughput of the previous 4.0 generation. To reach that ceiling the motherboard must also implement a 5.0 x16 link; a 4.0 slot will still work but caps the interface at 4.0 speeds. The 20 Gbps memory clock feeds the GPU without saturating the bus in typical gaming loads.

PSU connectors and case length

Verify that your power supply has the required 12VHPWR or dual 8-pin connectors for the board’s rated draw. Measure the available clearance in your chassis because the triple-fan cooler extends well beyond a standard dual-slot bracket. Ensure the motherboard’s top PCIe slot is wired for x16 electrical lanes and not shared with M.2 or secondary slots.

Highlights

  • 16GB 256-bit GDDR6 memory for high-resolution textures
  • RDNA 4 architecture with 3584 stream processors for parallel workloads
  • Boost clock up to 2540 MHz in OC mode via GPU Tweak III
  • PCI Express 5.0 x16 interface for maximum bus bandwidth
  • HDMI 2.1b and three DisplayPort 2.1a outputs for four-display support

Specifications

BrandASUS
SeriesPRIME
ModelPRIME-RX9070-16G
Part Number90YV0LI2-M0AA00
InterfacePCI Express 5.0 x16
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 9000 Series
GPURadeon RX 9070
ArchitectureRDNA 4
Game ClockOC mode(GPU Tweak III): up to 2090 MHz (Game Clock)
Boost ClockOC mode(GPU Tweak III): up to 2540 MHz (Boost Clock)
Stream Processors3584
Effective Memory Clock20 Gbps
Memory Size16GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1a
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerTriple Fans
Thermal Design Power220W
Recommended PSU Wattage650W
HDCP ReadyYes
Form FactorATX
Max GPU Length312 mm
Card Dimensions (L x H)312 x 130 x 50 mm
12.3 x 5.1 x 2.0 inch
Slot Width2.5 Slots
Package Contents1 x Thank you card
1 x Speedsetup Manual

Questions about this item

Which clock setting should I use, the game clock or the boost clock?

The game clock runs up to 2090 MHz during typical gameplay while the boost clock can reach 2540 MHz in OC mode via GPU Tweak III when thermal headroom allows.

What does the 2540 MHz boost clock actually deliver in a built system?

It is the peak frequency the GPU can hit under light loads or short bursts; sustained gaming clocks will sit closer to the 2090 MHz game clock depending on cooling and power limits.

Does PCI Express 5.0 x16 limit bandwidth on a PCIe 4.0 motherboard?

The card will operate at PCIe 4.0 x16 speeds on a 4.0 board, which still provides ample bandwidth for the 16 GB GDDR6 frame buffer and 3584 stream processors.
