ASUS PRIME Radeon RX 9070 XT 16GB graphics card PRIME-RX9070XT-O16G

Ready for 4K gaming

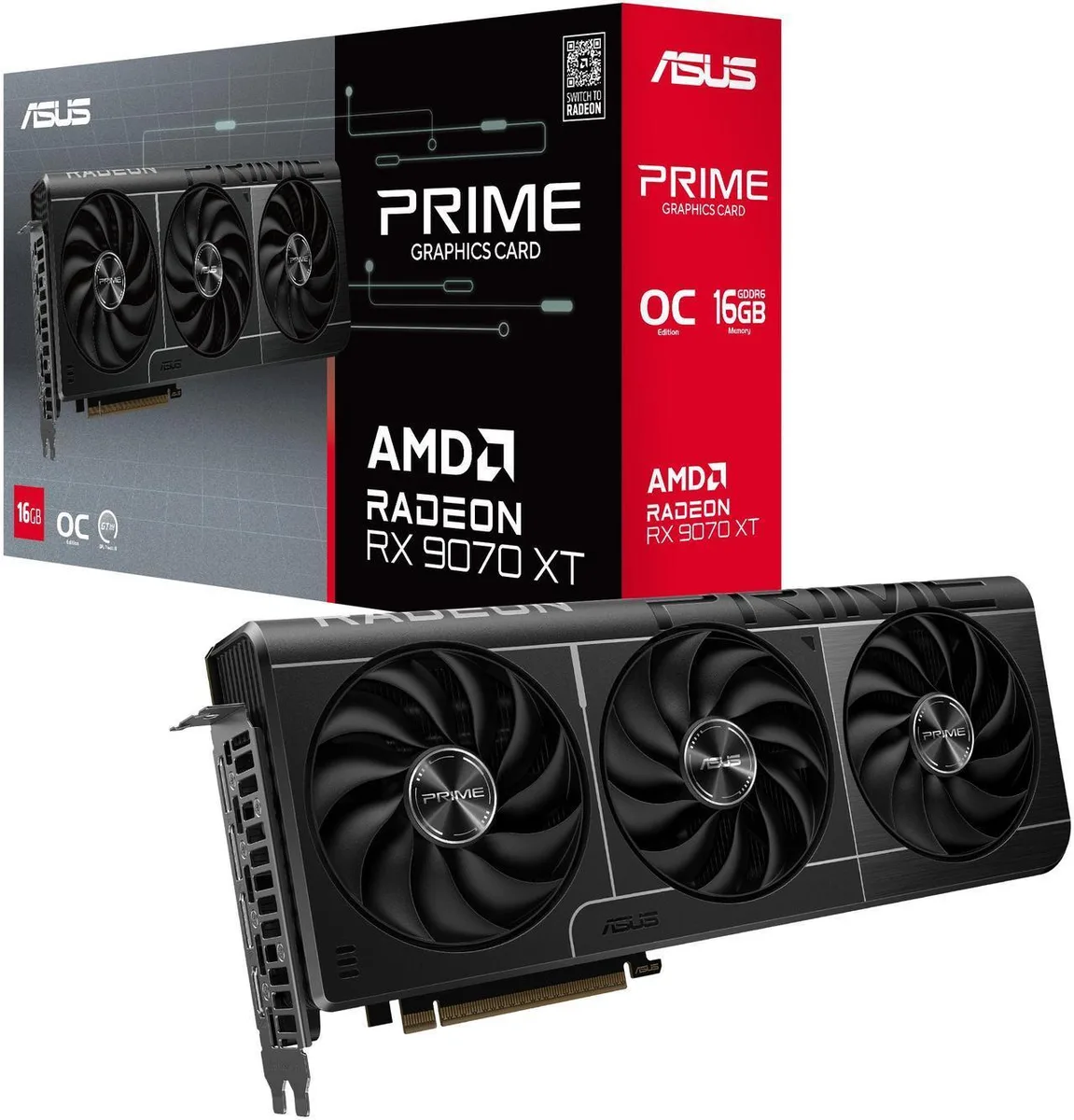

The ASUS PRIME Radeon RX 9070 XT 16GB graphics card targets enthusiasts who want high frame rates at 7680 x 4320 resolution. It combines 4096 stream processors with 16GB of GDDR6 memory on a 256-bit interface running at 20 Gbps. The PCI Express 5.0 x16 link feeds data without bottlenecking modern platforms. Four display outputs — one HDMI 2.1b and three DisplayPort 2.1a — drive multi-monitor arrays up to the rated maximum resolution.

Sustained clocks under load

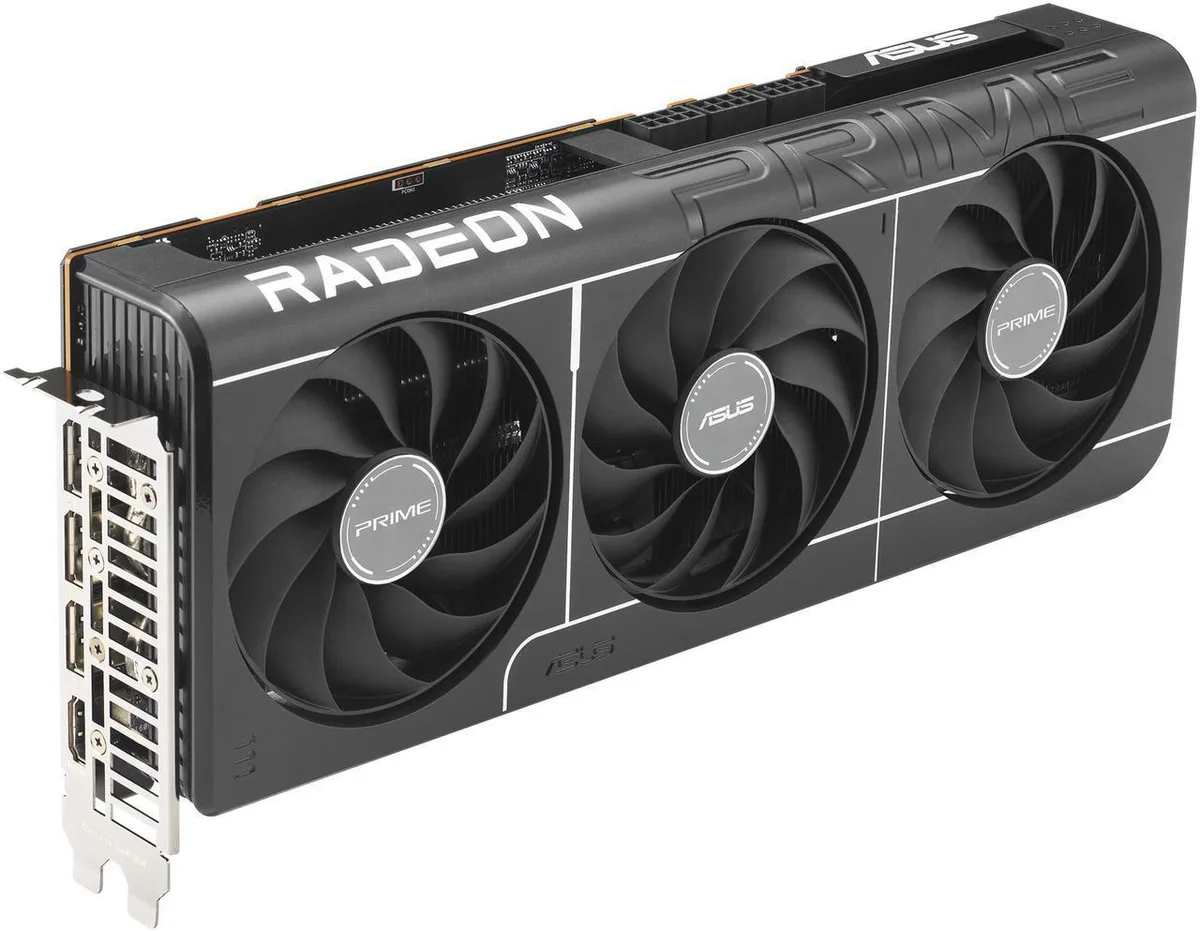

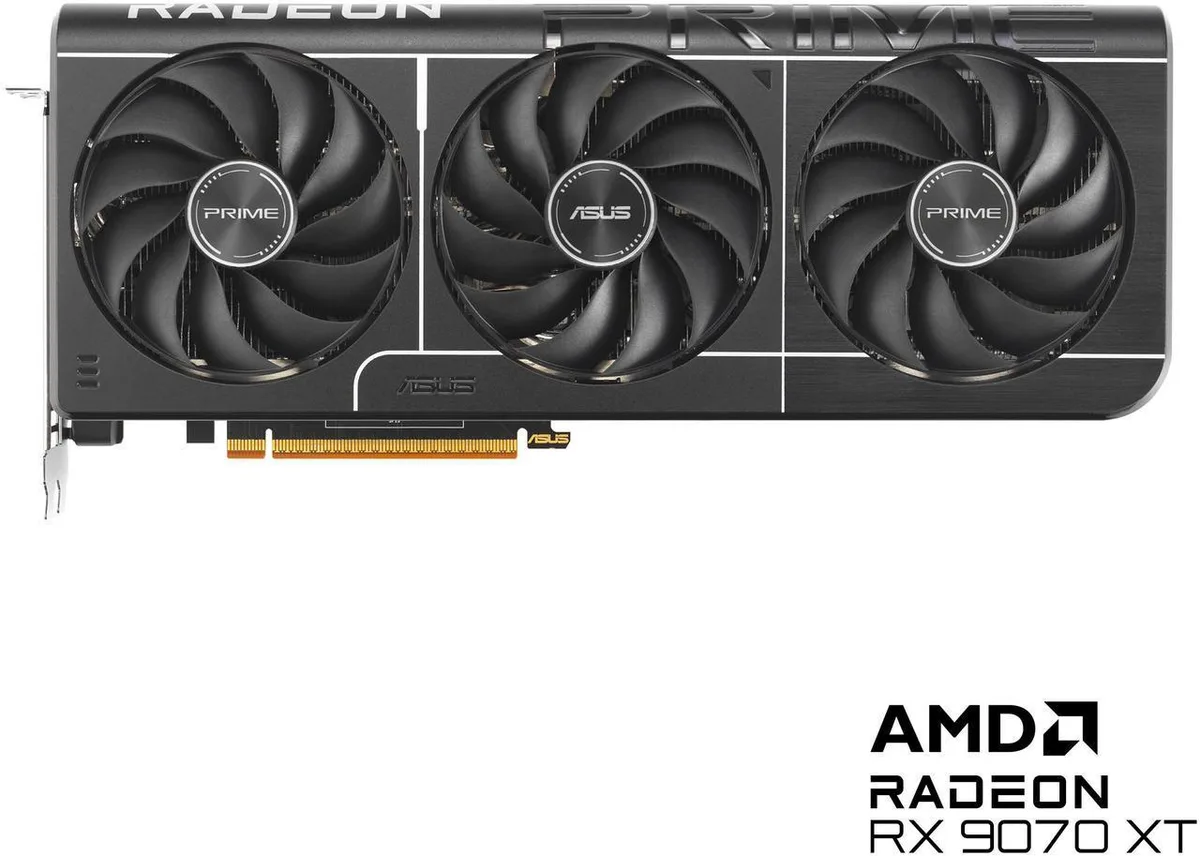

In default mode the boost clock sits at 3010 MHz and the game clock at 2460 MHz; GPU Tweak III OC mode raises those to 3030 MHz and 2480 MHz respectively. The 640 GB/s memory bandwidth and 64 MB third-generation cache keep textures flowing during extended sessions. Three axial fans with a custom blade profile move more air across a large fin stack, while phase-change thermal pads transfer heat quickly from the GPU die to the heatsink.

Check power and space first

Verify that your power supply can deliver the wattage required by a card with 4096 stream processors and 16GB GDDR6 at 20 Gbps. Confirm the chassis length and height clearance for a triple-fan design with a substantial heatsink. Ensure the motherboard provides a PCI Express 5.0 x16 slot and that your display cables match HDMI 2.1b or DisplayPort 2.1a for full 7680 x 4320 support.
