ASUS

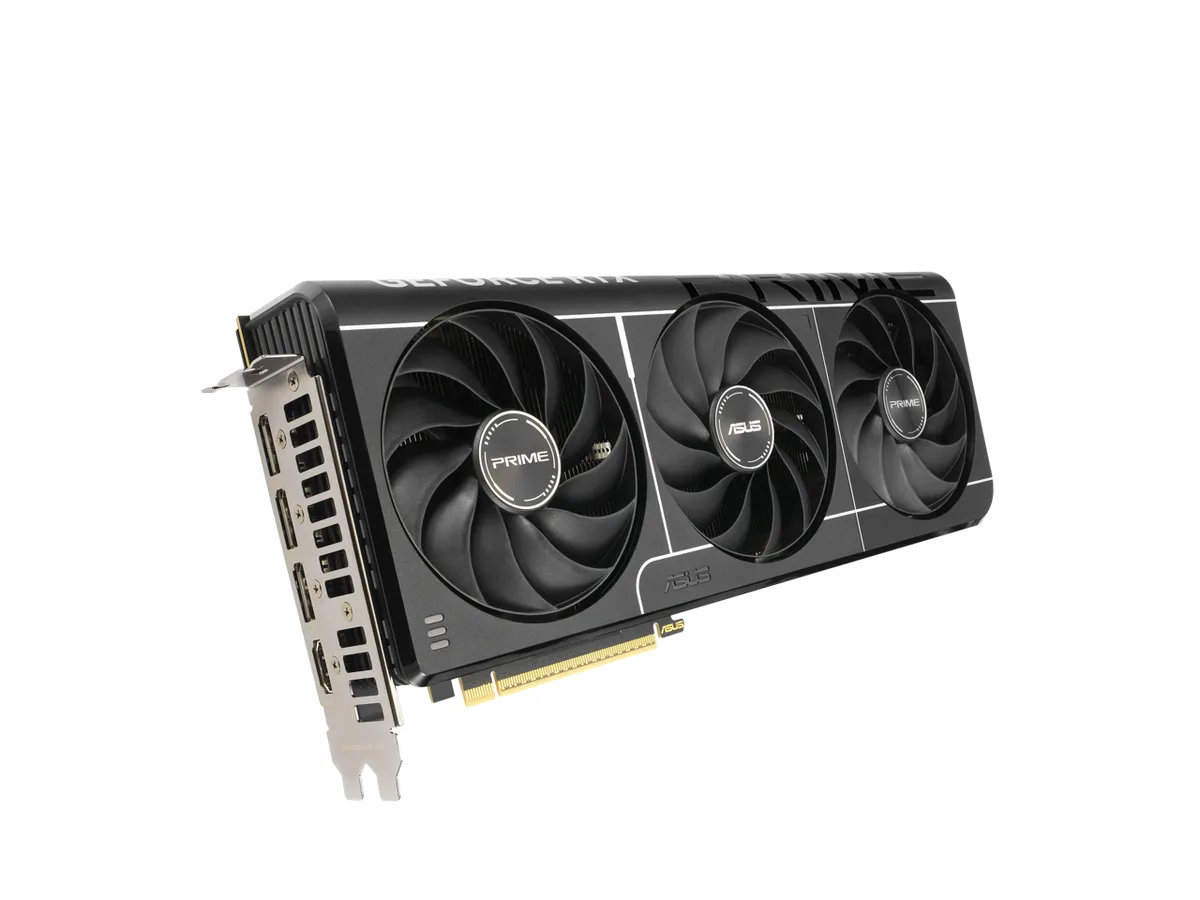

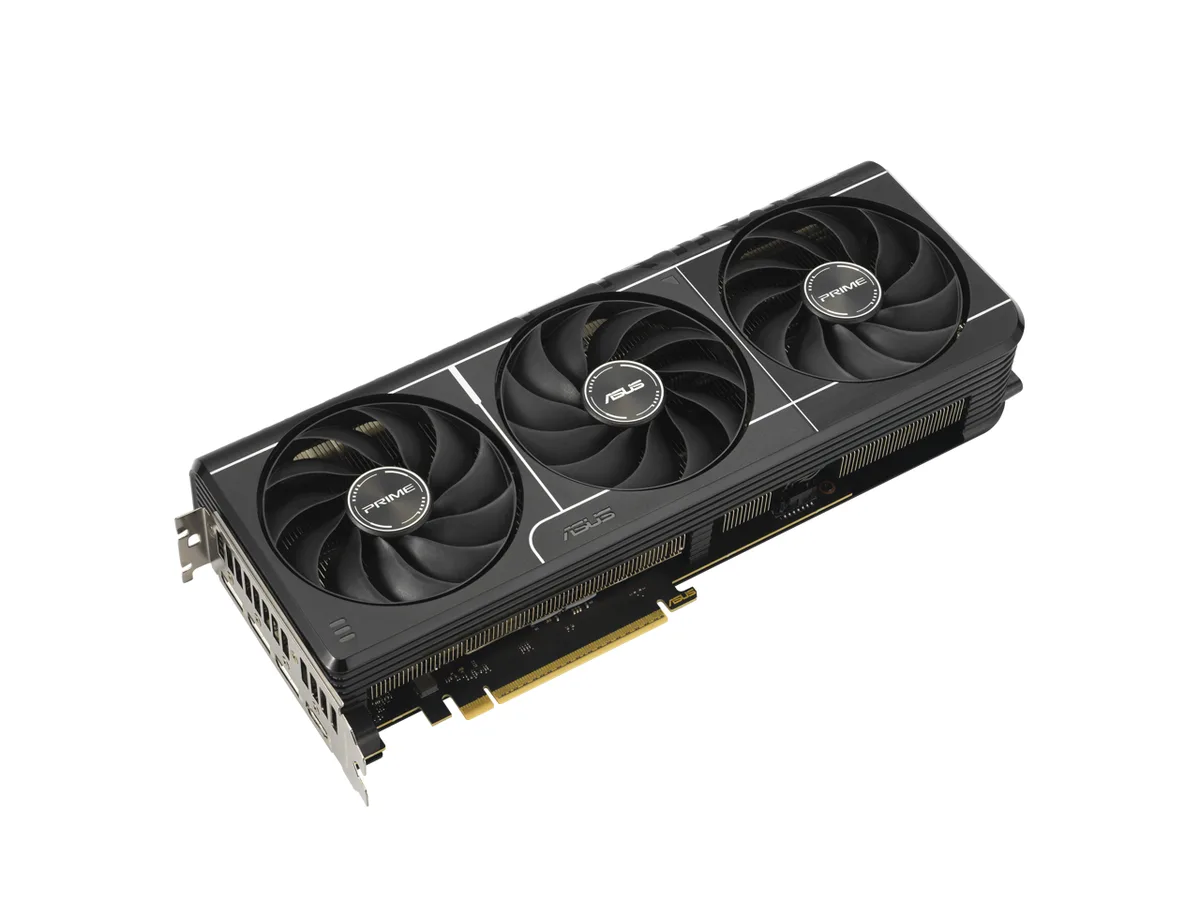

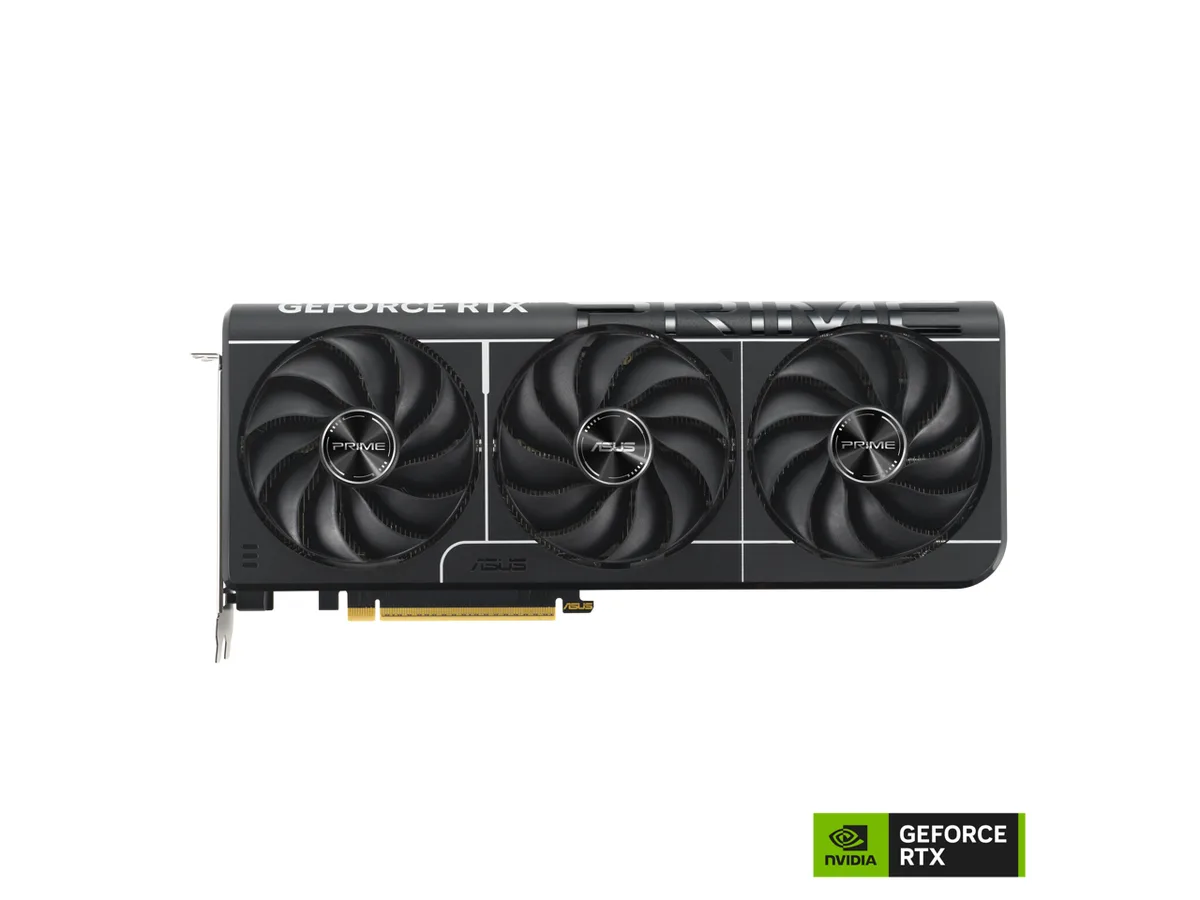

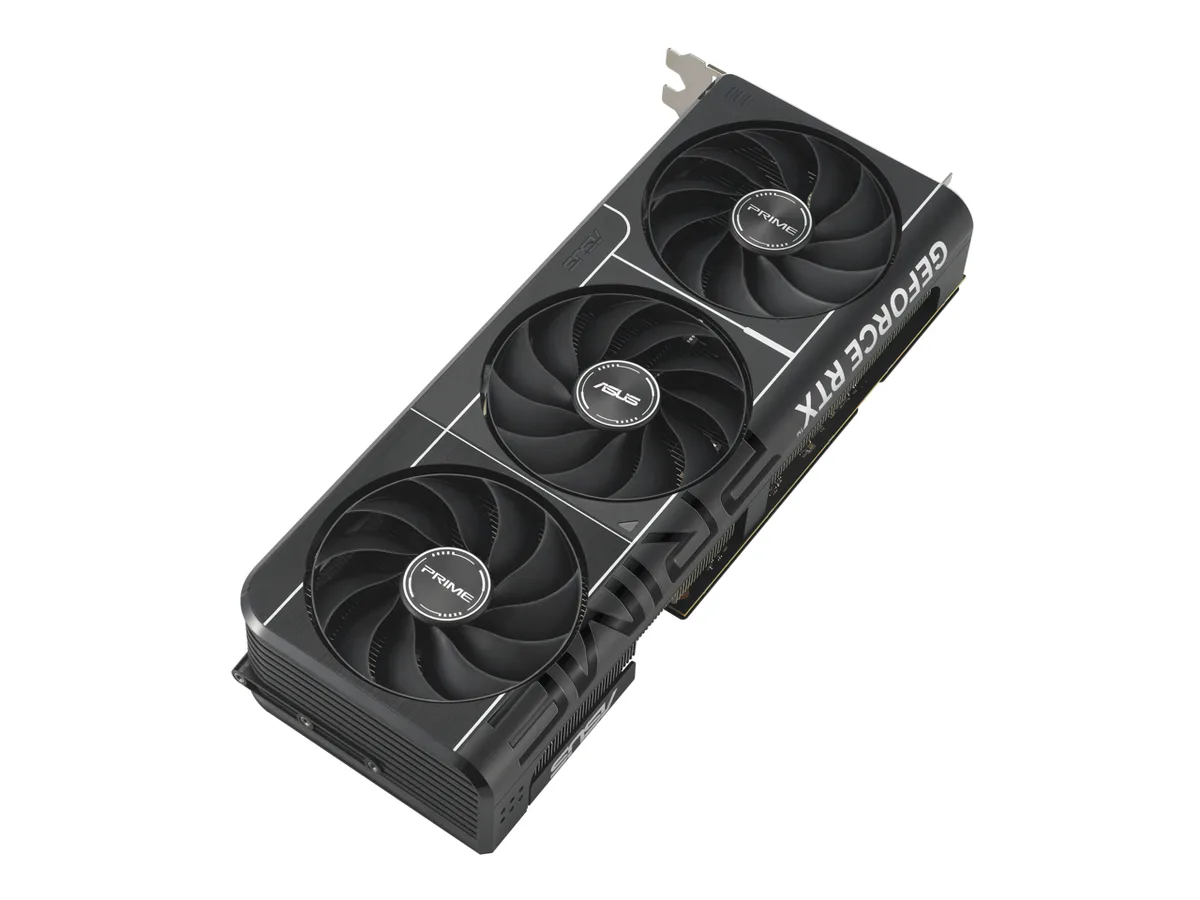

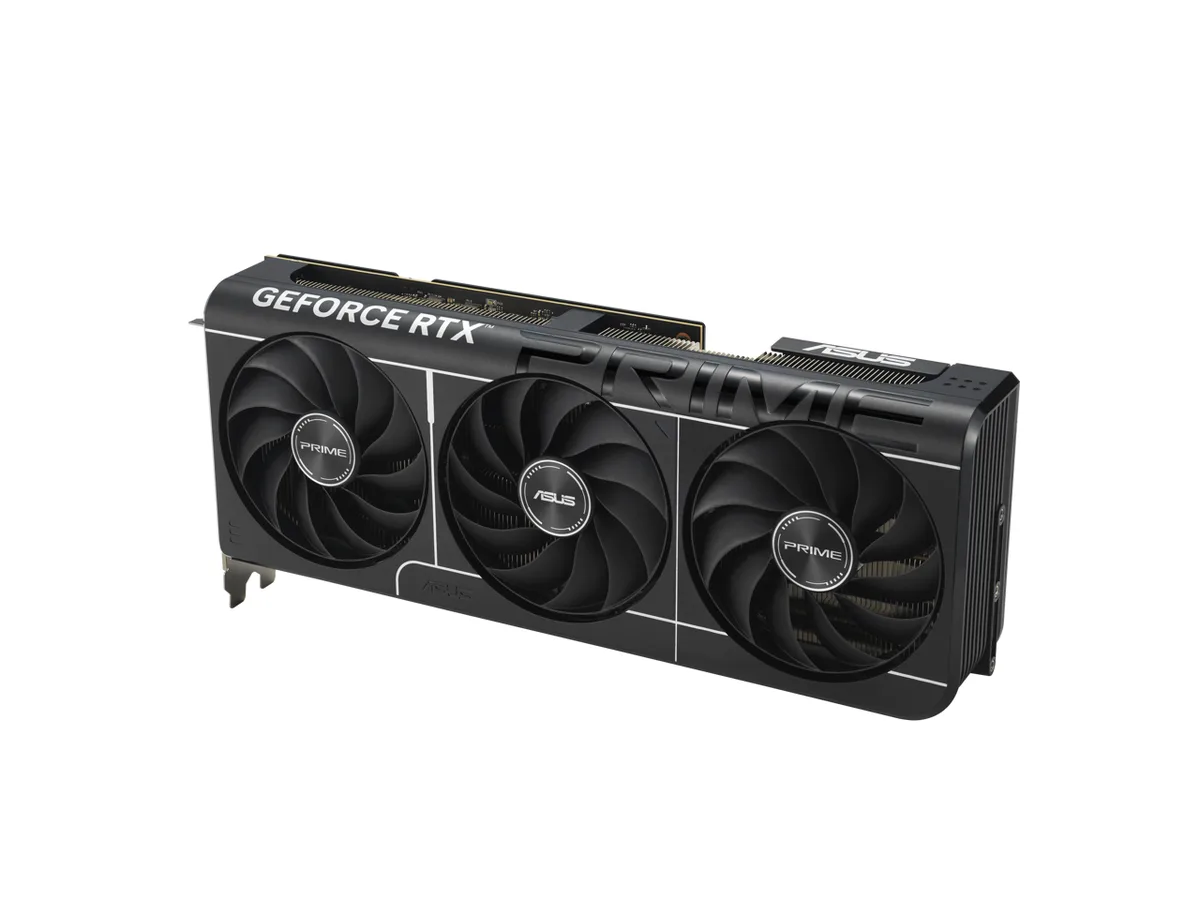

ASUS PRIME-RTX5080-O16G graphics card
GeForce RTX 5080 graphics card with 16GB GDDR7 memory, 10752 CUDA cores and PCI Express 5.0 interface
- InterfacePCI Express 5.0 x16
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 50 Series
- GPUGeForce RTX 5080
- ArchitectureBlackwell
- CUDA Cores10752
Edition PRIME OC
- TUF GAMING OC
- ROG ASTRAL OC
- PRIME
- ROG ASTRAL
- ROG ASTRAL OC WHITE
- ROG ASTRAL OC HATSUNE MIKU EDITION
- PRIME OC
- PRIME OC EVO
Struck-through versions exist but are not stocked here.
- 16 GB GDDR7 memory at 30 Gbps fuels high-resolution gaming
- 10,752 CUDA cores accelerate AI and creative workloads
- PCIe 5.0 x16 interface doubles bandwidth for modern platforms
- HDMI 2.1b plus three DisplayPort 2.1a connectors drive four 8K displays
- 5-slot design with 306 mm length fits standard ATX builds
16GB GDDR7 graphics card
The ASUS PRIME-RTX5080-O16G equips the NVIDIA GeForce RTX 5080 GPU with 16GB of GDDR7 memory on a 256-bit bus. Its 10752 CUDA cores and 30 Gbps effective clock target 4K gaming and professional rendering workloads. A PCI Express 5.0 x16 interface provides the bandwidth headroom for modern platforms.
Factory overclock under sustained load
The OC Edition ships with a higher boost clock than the reference specification while the 360W thermal design power remains unchanged. An 850W power supply is recommended to feed the single 16-pin connector during extended sessions. Blackwell architecture efficiencies help maintain clocks without thermal throttling in typical chassis airflow.
2.5-slot ATX form factor and display outputs
At 306 mm long the card occupies 2.5 slots and fits standard ATX cases without special clearance planning. One HDMI 2.1b and three DisplayPort 2.1a connectors drive up to four monitors at 7680 x 4320 resolution. A bundled 1-to-3 adapter cable eases power-supply compatibility in existing builds.
Highlights
- 16 GB GDDR7 memory at 30 Gbps fuels high-resolution gaming
- 10,752 CUDA cores accelerate AI and creative workloads
- PCIe 5.0 x16 interface doubles bandwidth for modern platforms
- HDMI 2.1b plus three DisplayPort 2.1a connectors drive four 8K displays
- 5-slot design with 306 mm length fits standard ATX builds
Specifications
| Brand | ASUS |
|---|---|
| Series | PRIME |
| Model | PRIME-RTX5080-O16G |
| Part Number | 90YV0LX0-M0AA00 |
| Interface | PCI Express 5.0 x16 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 50 Series |
| GPU | GeForce RTX 5080 |
| Architecture | Blackwell |
| CUDA Cores | 10752 |
| Effective Memory Clock | 30 Gbps |
| Memory Size | 16GB |
| Memory Interface | 256-Bit |
| Memory Type | GDDR7 |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.1b |
| DisplayPort | 3 x DisplayPort 2.1a |
| Color | Black |
| Max Resolution | 7680 x 4320 |
| CrossFireX Support | No |
| SLI Support | No |
| Virtual Reality Ready | Yes |
| Thermal Design Power | 360W |
| Recommended PSU Wattage | 850W |
| Power Connector | 1 x 16-Pin |
| HDCP Ready | Yes |
| Form Factor | ATX |
| Max GPU Length | 306 mm |
| Card Dimensions (L x H) | 12 x 5 x 2 inch |
| Slot Width | 2.5 Slots |
| Package Contents | 1 x Speedsetup Manual 1 x ASUS Velcro Hook & Loop 1 x Thank You Card 1 x Adapter Cable (1 to 3)? |
| Shipping weight | 1.13 kg |
| Package size | 356 × 267 × 64 mm |
Other versions of this model
1 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
Questions about this item
How much heat does the 360W TDP card put out when it runs all day?
The card has a thermal design power of 360W, so sustained loads will release that much heat into your case and room.
What power supply and connector must I already have for this 16-Pin GPU?
You need a PSU rated at least 850W with a native 16-Pin (12VHPWR) cable or the included 1-to-3 adapter for three 8-Pin plugs.
Will the 306mm, 2.5-slot RTX 5080 fit alongside my older ATX motherboard and case?
It requires a PCI Express 5.0 x16 slot, 306mm length clearance and space for a 2.5-slot thick card in your chassis.
