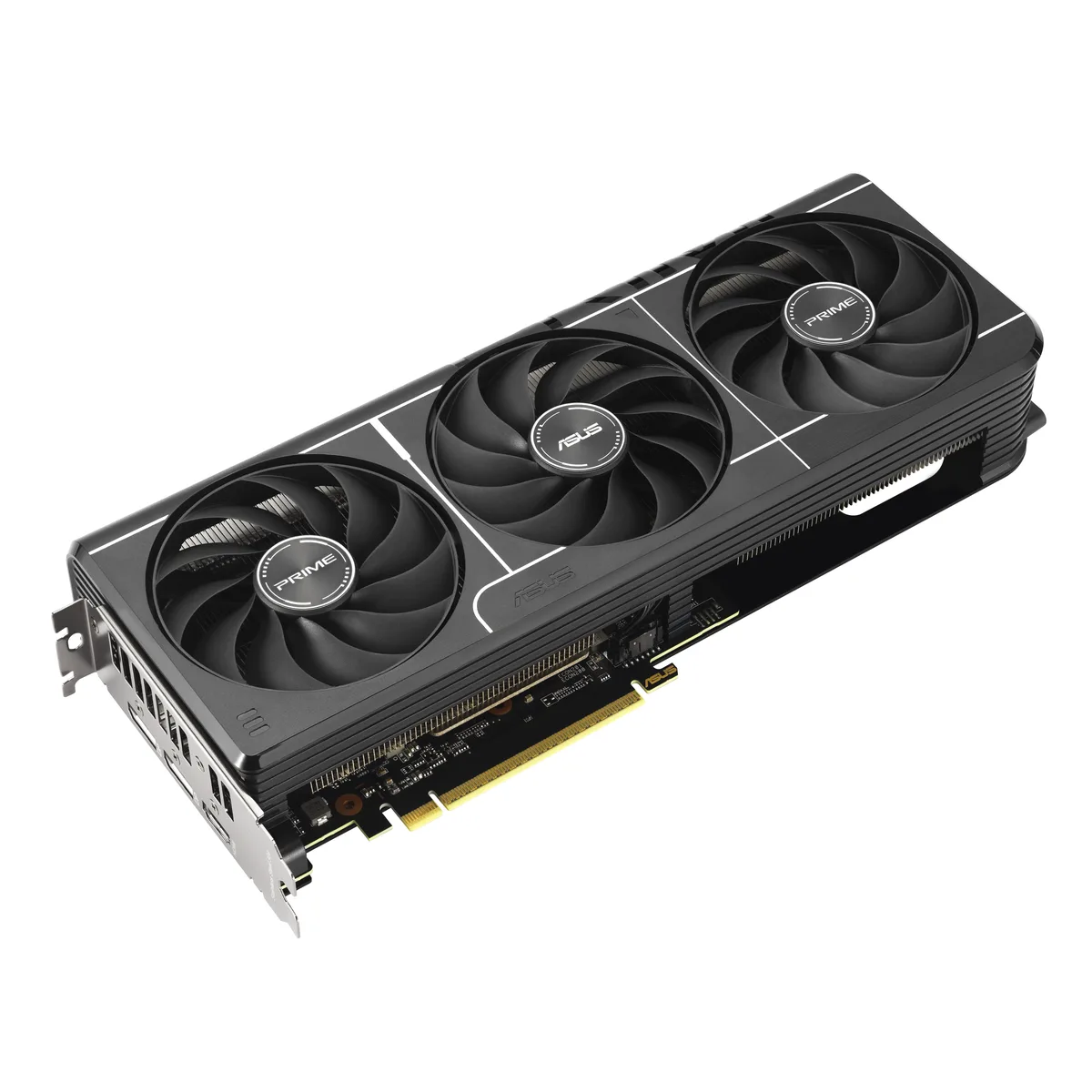

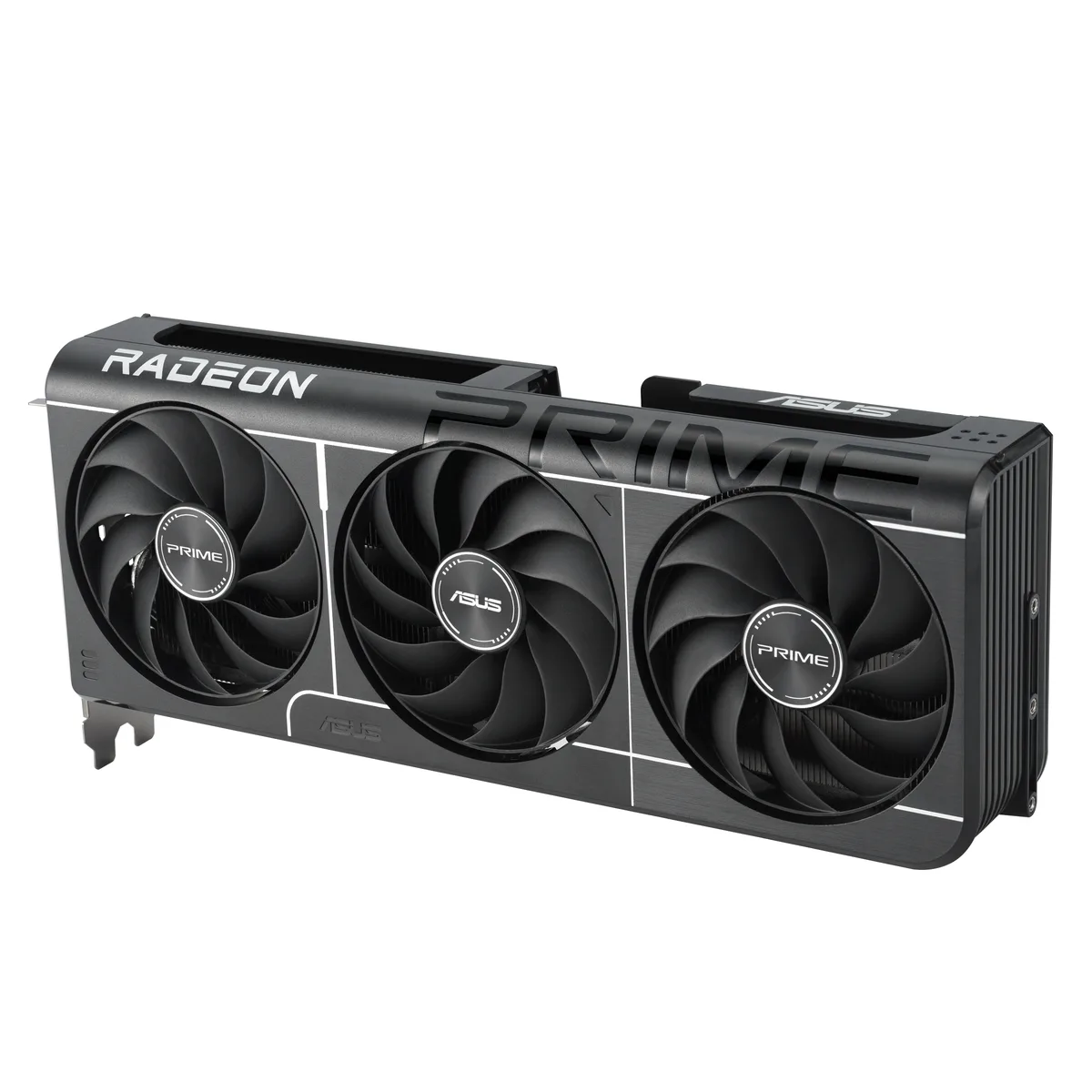

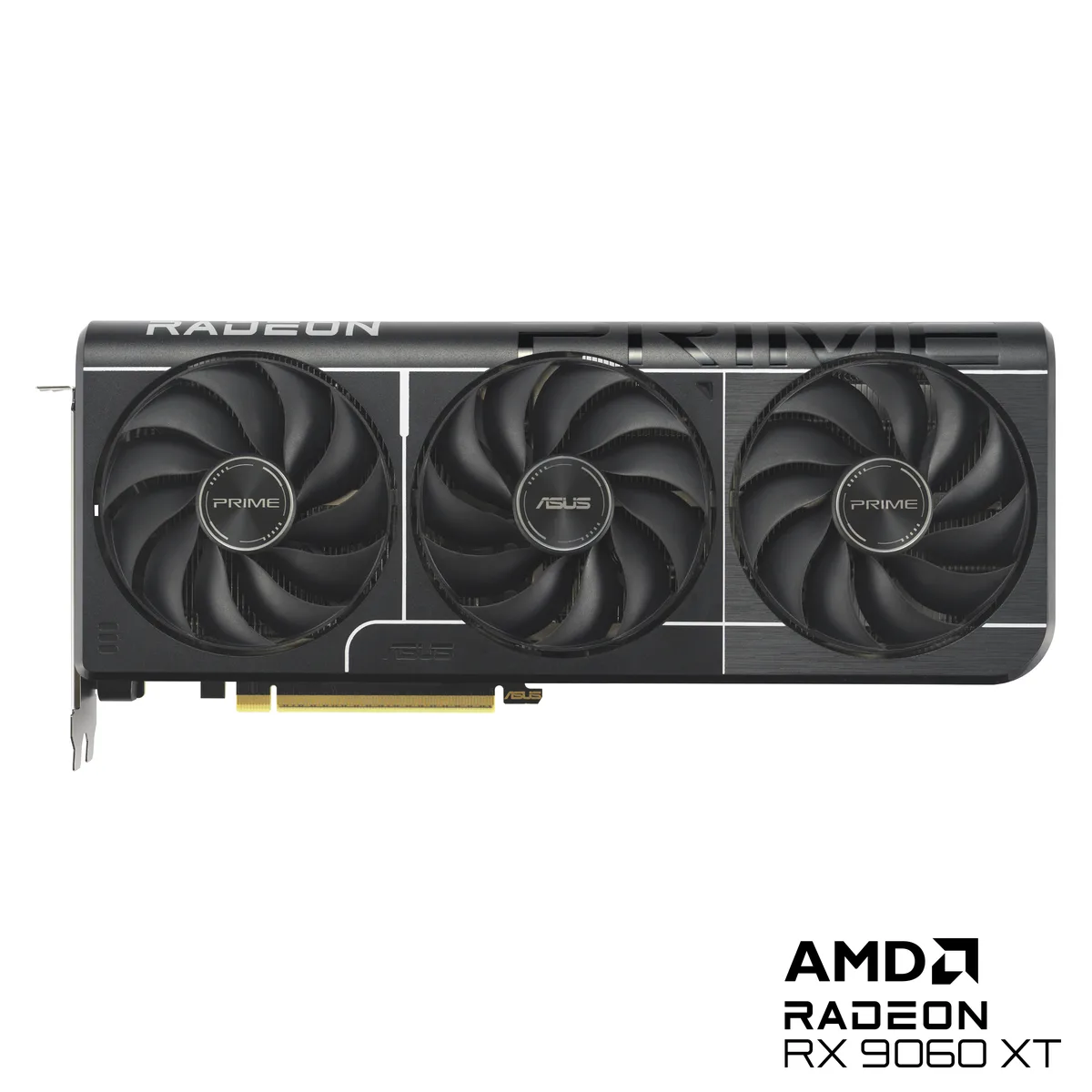

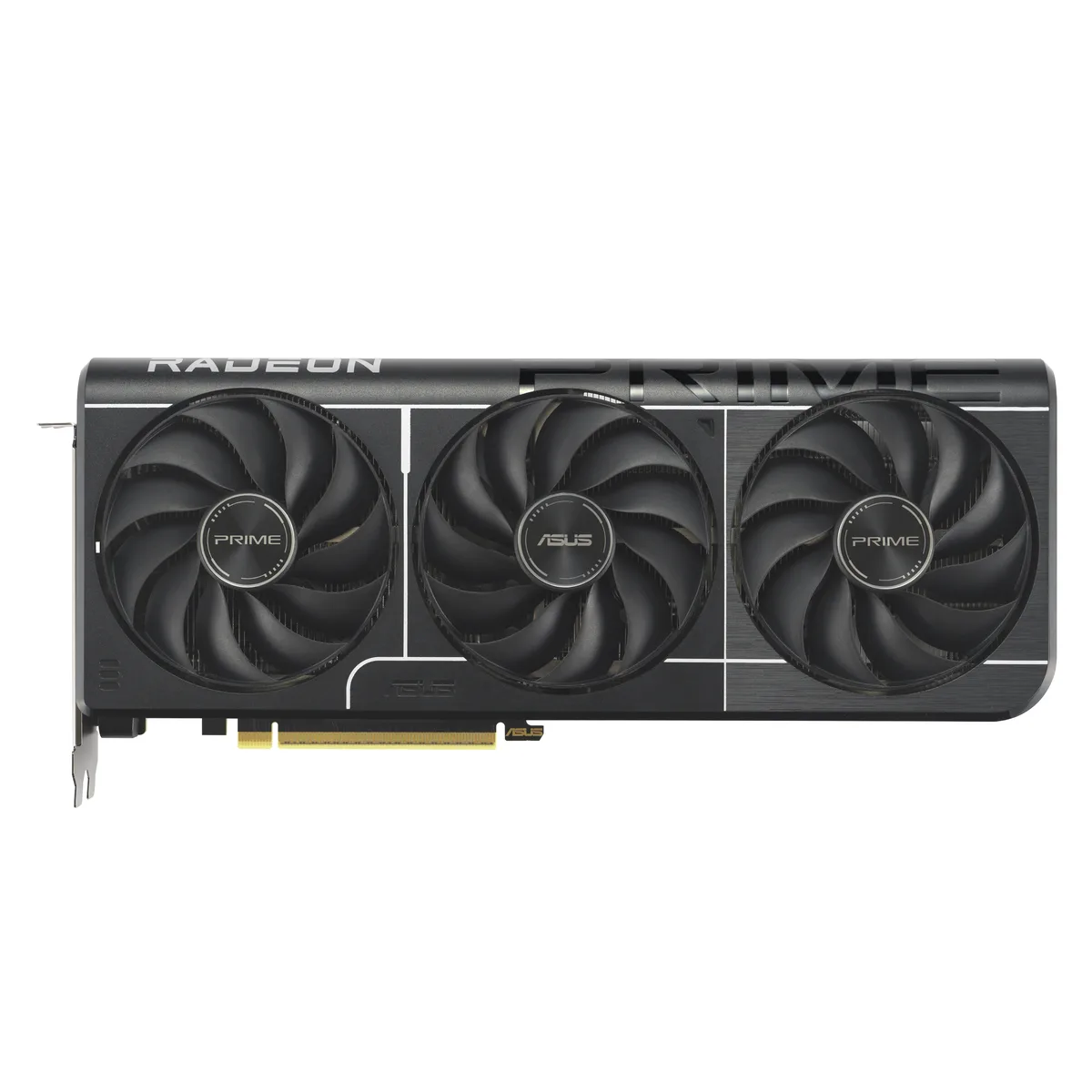

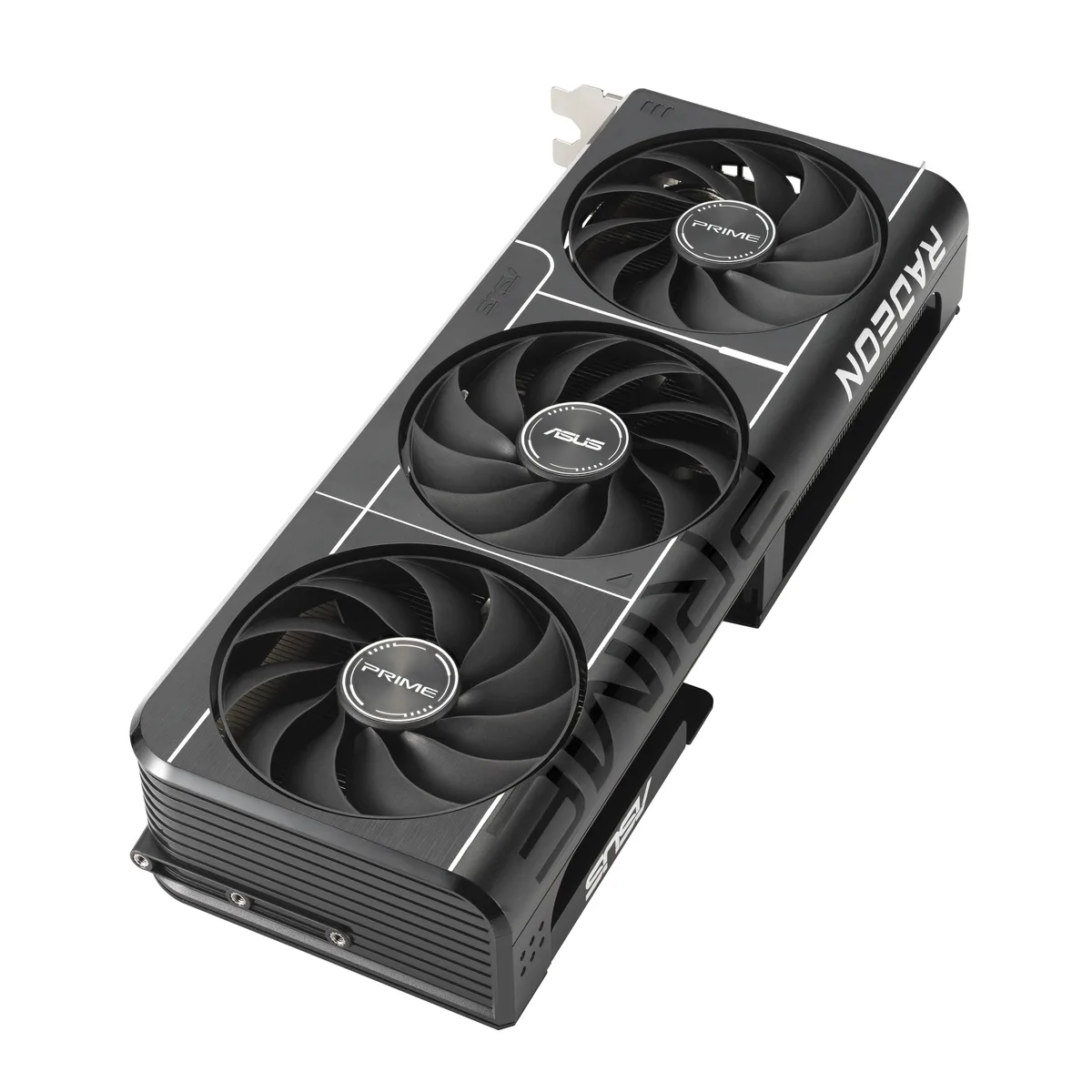

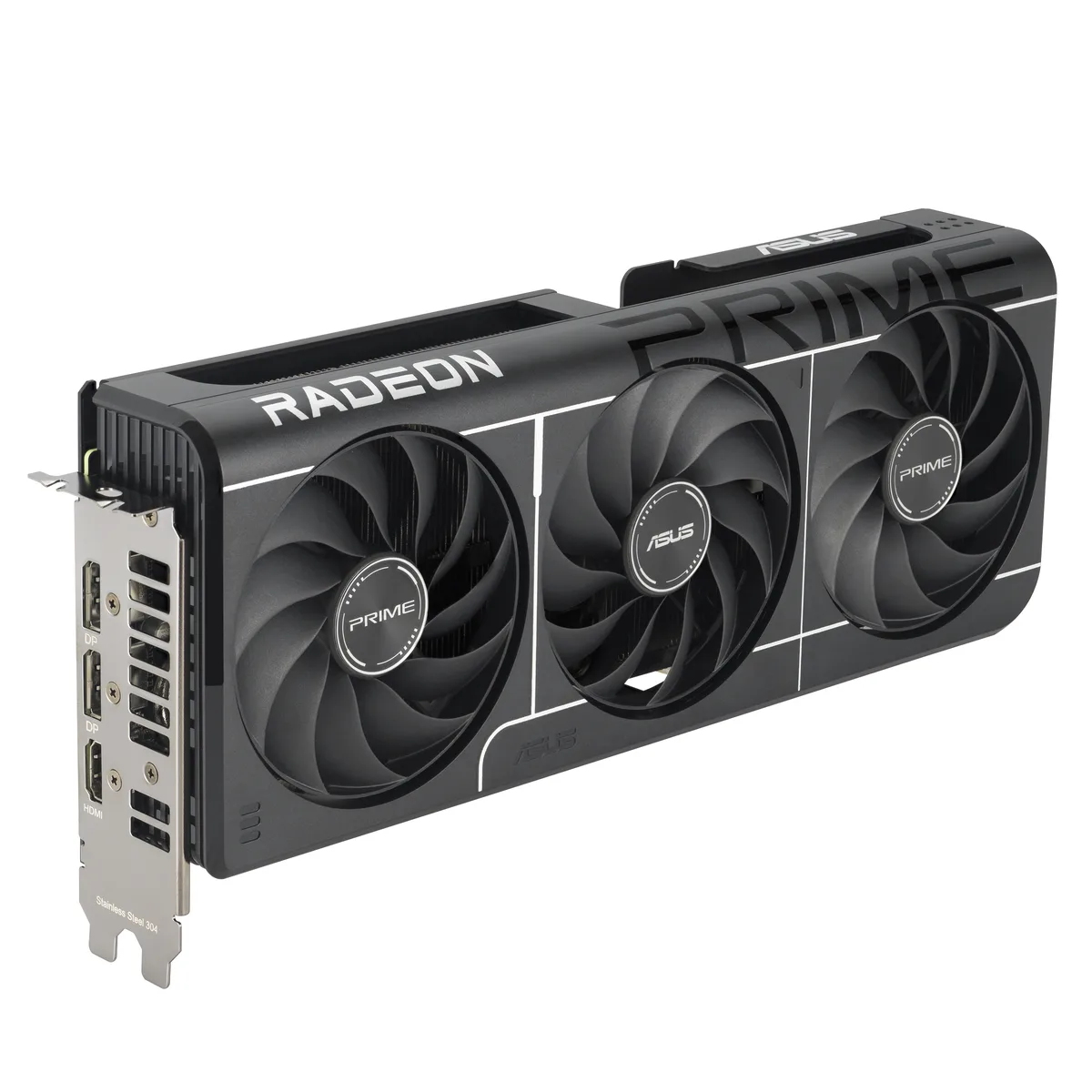

Black triple-fan ATX graphics card, 304 mm long, 2.5-slot width

ASUS

ASUS PRIME-RX9060XT-O8G Radeon RX 9060 XT graphics card

SKU CH-DXGT-ST6JG MPN PRIME-RX9060XT-O8G

Refurbished Radeon RX 9060 XT graphics card with 8GB GDDR6 memory, PCI Express 5.0 x16 interface and triple-fan cooling in a 2.5-slot ATX design

  • InterfacePCI Express 5.0 x16
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 9000 Series
  • GPURadeon RX 9060 XT
  • ArchitectureRDNA 4
  • Stream Processors2048
  • 8GB GDDR6 memory at 20 Gbps fuels high-resolution textures
  • PCI Express 5.0 x16 interface enables maximum bandwidth to the CPU
  • RDNA 4 architecture with 2048 stream processors delivers efficient compute performance
  • HDMI 2.1b and dual DisplayPort 2.1a drive up to three 8K displays
  • Triple-fan cooler in a 304 mm ATX card keeps thermals controlled

8GB RDNA 4 GPU for 1440p gaming

The ASUS PRIME Radeon RX 9060 XT delivers 8GB of GDDR6 memory on a 128-bit bus with a 20 Gbps effective clock. It uses the RDNA 4 architecture with 2048 stream processors and connects via PCI Express 5.0 x16. The card targets gamers who want solid 1440p performance in a compact ATX form factor.

Sustained load behaviour on 550W PSU

Under continuous load the GPU draws power through a single 8-pin connector while the triple-fan cooler maintains stable clocks. The 304 mm long card occupies 2.5 slots and fits standard ATX cases. Driver support for DirectX 12 Ultimate and OpenGL 4.6 ensures consistent API performance across extended sessions.

Thermals noise and power in daily use

The triple-fan design moves heat away from the 50 mm thick heatsink without excessive noise at typical gaming loads. Power draw stays within the 550W PSU recommendation for the whole system. Display outputs include one HDMI 2.1b and two DisplayPort 2.1a ports driving up to 7680 x 4320 resolution across three monitors.

Highlights

  • 8GB GDDR6 memory at 20 Gbps fuels high-resolution textures
  • PCI Express 5.0 x16 interface enables maximum bandwidth to the CPU
  • RDNA 4 architecture with 2048 stream processors delivers efficient compute performance
  • HDMI 2.1b and dual DisplayPort 2.1a drive up to three 8K displays
  • Triple-fan cooler in a 304 mm ATX card keeps thermals controlled

Specifications

BrandASUS
SeriesPRIME
ModelPRIME-RX9060XT-O8G
Part Number90YV0MI0-M0AA00
InterfacePCI Express 5.0 x16
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 9000 Series
GPURadeon RX 9060 XT
ArchitectureRDNA 4
Stream Processors2048
Effective Memory Clock20 Gbps
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support3
HDMI1 x HDMI 2.1b
DisplayPort2 x DisplayPort 2.1a
ColorBlack
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerTriple Fans
Recommended PSU Wattage550W
Power Connector8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length304 mm
Card Dimensions (L x H)304 x 126 x 50mm
Slot Width2.5 Slots
Shipping weight1.45 kg
Package size406 × 241 × 89 mm

Questions about this item

How much power does the 550W recommended PSU need to supply to the 8-Pin connector during all-day use?

The card draws its power through a single 8-Pin connector and the manufacturer recommends a 550W power supply for sustained operation.

Which motherboard slot and free case length does the PCI Express 5.0 x16 interface and 304 mm card require?

You need a PCI Express 5.0 x16 slot and at least 304 mm of clear length in the case for the 2.5-slot ATX form factor.

Will the HDMI 2.1b and DisplayPort 2.1a outputs drive my older 4K 60 Hz monitor without adapters?

Yes, both HDMI 2.1b and DisplayPort 2.1a are backward compatible with existing 4K 60 Hz displays using standard cables.
