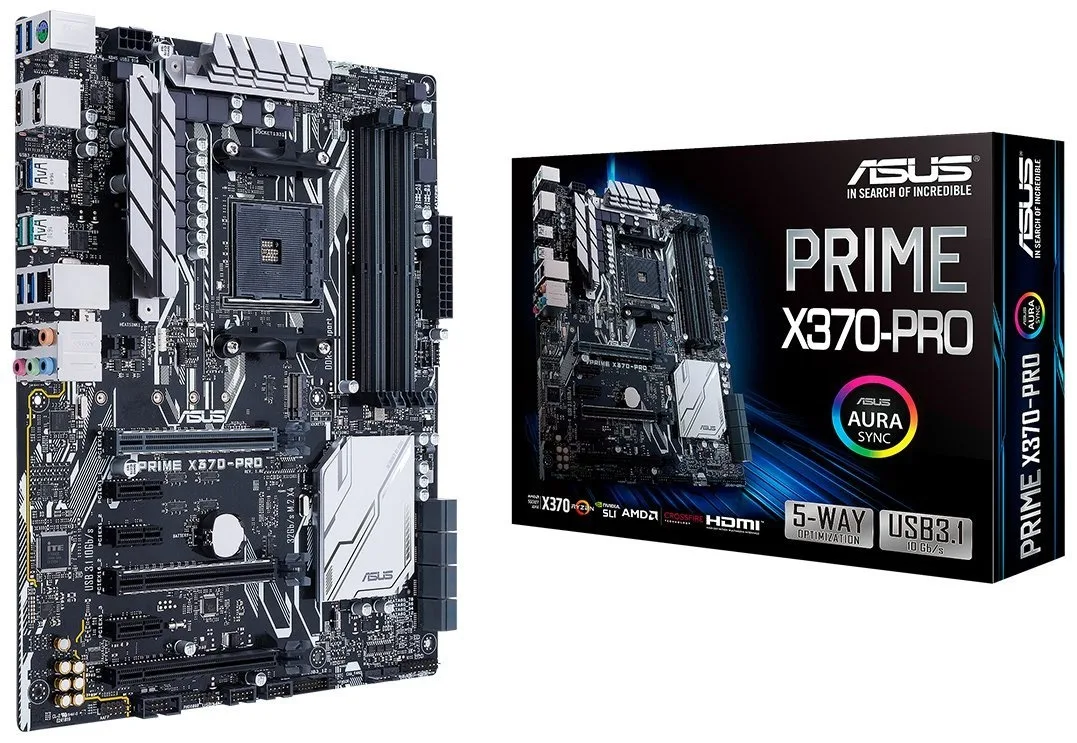

ATX motherboard in dark grey with silver heatsinks and RGB accents

ASUS

ASUS Prime X370-Pro AMD motherboard

SKU CH-M3G7-7C58R

ATX board for AM4 Ryzen CPUs with dual PCIe 3.0 x16 slots, eight SATA 6.0Gb/s ports, one M.2 socket, USB 3.1, Intel Gigabit LAN and AURA Sync RGB lighting

  • CPU Socket TypeAM4
  • CPU TypeAMD AM4 Socket AMD Ryzen 2nd Generation / Ryzen with Radeon
  • ChipsetAMD X370
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardAMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics /
  • Maximum Memory Supported64GB
  • AM4 socket supports Ryzen and 7th generation Athlon CPUs
  • Four DDR4 slots accept up to 64 GB dual-channel memory
  • M.2 slot fits 2242 2260 2280 22110 drives with PCIe 3.0 x4 or SATA 6.0Gb/s
  • Two reinforced SafeSlots hold heavyweight GPUs in x16 or dual x8 mode

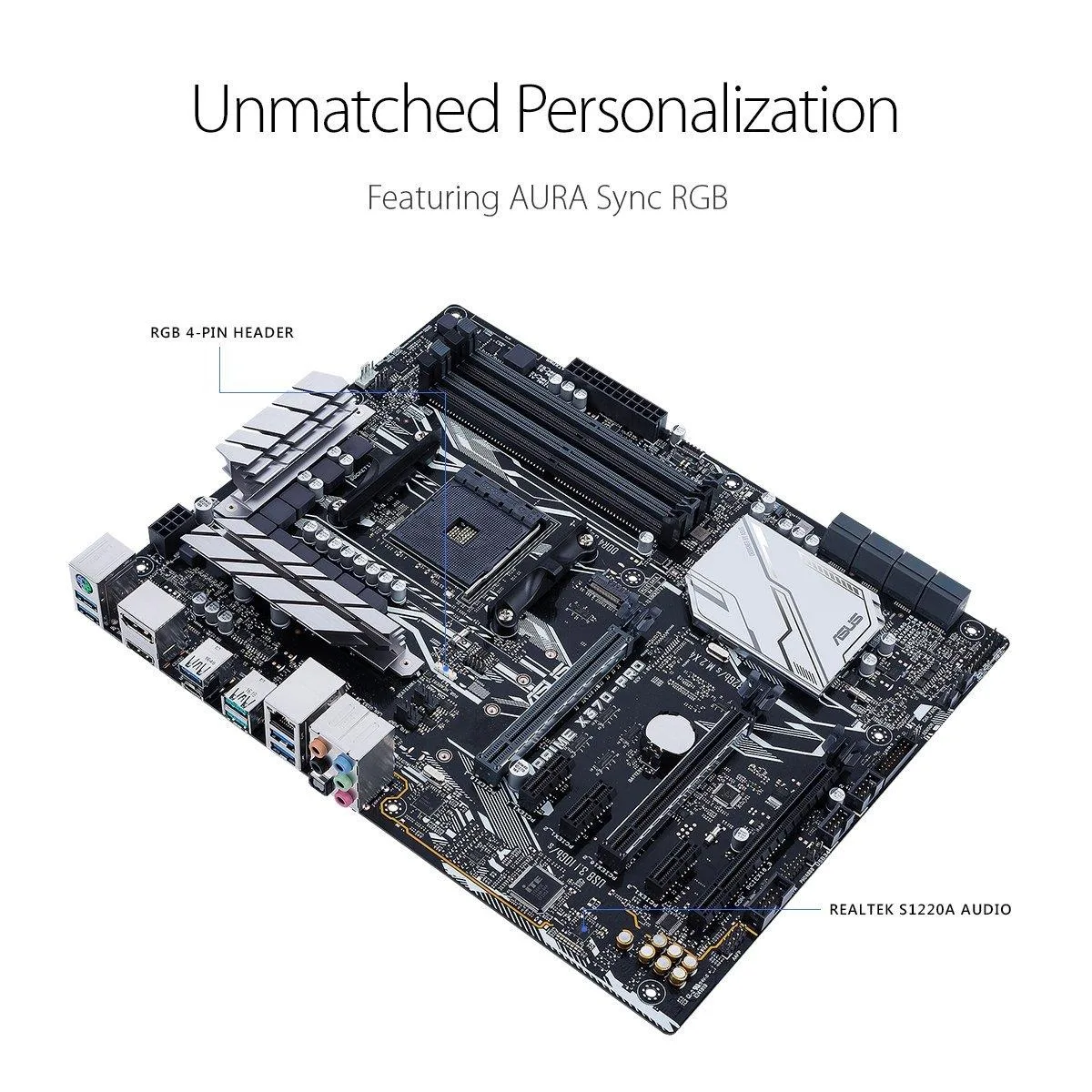

  • AURA Sync RGB lighting synchronises effects across compatible components

ASUS Prime X370-Pro AM4 ATX motherboard

The ASUS Prime X370-Pro is an ATX motherboard built for the AMD AM4 socket and X370 chipset. It supports Ryzen 1st and 2nd Generation processors as well as 7th Generation A-Series and Athlon APUs. Four 288-pin DDR4 slots allow up to 64GB of memory in dual-channel mode.

Suitable for Ryzen CPUs

Builders pairing a Ryzen 1st or 2nd Generation CPU get two PCIe 3.0 x16 slots that run at x16 or dual x8, plus one PCIe 2.0 x16 slot at x4 and three PCIe 2.0 x1 slots. APU users lose the second x16 slot because the processor provides only eight PCIe lanes. Eight SATA 6.0Gb/s ports handle large drive counts.

One M.2 Socket 3 with M key

A single M.2 slot accepts SATA and PCIe 3.0 x4 drives in lengths 2242, 2260, 2280 and 22110. The slot shares bandwidth with two PCIe x1 slots, so populating it reduces total expansion lanes. Realtek S1220A 8-channel audio and Intel i211AT 1Gbps LAN complete the I/O set.

Highlights

  • AM4 socket supports Ryzen and 7th generation Athlon CPUs
  • Four DDR4 slots accept up to 64 GB dual-channel memory
  • M.2 slot fits 2242 2260 2280 22110 drives with PCIe 3.0 x4 or SATA 6.0Gb/s
  • Two reinforced SafeSlots hold heavyweight GPUs in x16 or dual x8 mode
  • AURA Sync RGB lighting synchronises effects across compatible components

Specifications

BrandASUS
ModelPrime X370-Pro
CPU Socket TypeAM4
CPU TypeAMD AM4 Socket AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics / Ryzen 1st Generation / 7th Generation A-series/Athlon X4 Processors* Refer to www.asus.com for CPU support list
ChipsetAMD X370
Number of Memory Slots4x288pin (DDR4)
Memory StandardAMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics / Ryzen 1st Generation ProcessorsDDR4 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered MemoryAMD 7th Generation A-Series/Athlon X4 ProcessorsDDR4 2400/ 2133 MHz Un-buffered MemoryECC Memory (ECC mode) support varies by CPU.* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x16AMD Ryzen 2nd Generation / Ryzen 1st Generation Processors2 x PCIe 3.0/2.0 x16 (x16 or dual x8)AMD Ryzen with Radeon Vega Graphics / 7th Generation A-Series/Athlon X4 Processors1 x PCIe 3.0/2.0 x16 (x8 mode)AMD Athlon with Radeon Vega Graphics Processors1 x PCIe 3.0/2.0 x16 (x4 mode)
PCI Express 2.0 x161 x PCIe 2.0 x16 (max at x4 mode) ** PCIeX16_3 slot shares bandwidth with PCIeX1_1 and PCIeX1_3.
PCI Express x13 x PCI Express 2.0 x1 slots
Serial ATA (SATA)8 x SATA 6.0Gb/s ports (gray)
M.2AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Ryzen 1st Generation Processors:1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode)AMD 7th Generation A-Series/Athlon X4 Processors:1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)AMD Athlon with Radeon Vega Graphics Processors:1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)
SATA RAID0/1/10
Onboard Video ChipsetIntegrated Graphics in the AMD Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics / 7th Generation A-Series APUMulti-VGA output support: HDMI/DisplayPort ports- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
Audio ChipsetRealtek S1220A High Definition Audio CODEC
Audio Channels8 Channels
LAN ChipsetIntel i211AT
Max LAN Speed1Gbps

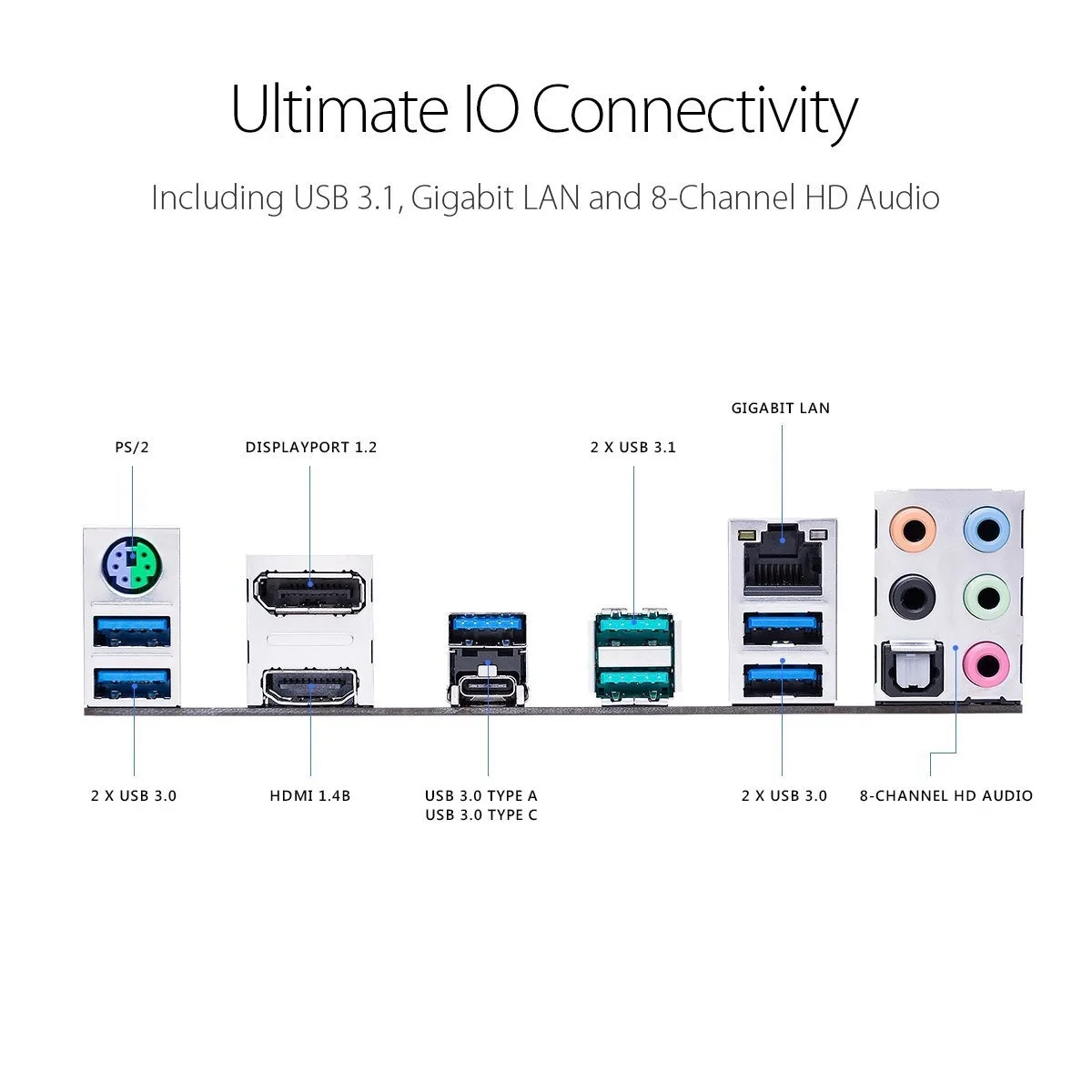

PS/21 x PS/2 keyboard/mouse port
HDMI1 x HDMI
RJ451 x RJ45
DisplayPort1 x DisplayPort
USB 3.12 x USB 3.1 Gen 2 (teal blue) 5 x USB 3.1 Gen 1
USB Type-C1 x USB 3.1 Gen 1
S/PDIF Out1 x Optical
Audio Ports5 Ports
Onboard USB1 x USB 3.1 Gen 2 front panel connector1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors1 x Aura RGB Strip Header1 x CPU Fan connector(s) (1 x 4-pin)1 x CPU OPT Fan connector(s) (1 x 4-pin)2 x Chassis Fan connector(s) (2 x 4-pin)1 x AIO_PUMP connector (1 x 4-pin)1 x W_PUMP+ connector (1 x 4-pin)1 x Front panel audio connector(s) (AAFP)1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt)1 x Clear CMOS jumper(s)1 x 14-1-pin TPM connector1 x COM port header
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)
FeaturesMulti-GPU Support:Supports NVIDIA 2-Way SLI Technology*Supports AMD CrossFireX Technology * Only AMD Ryzen 1st Processor support NVIDIA SLI TechnologySpecial Features:5-Way Optimization by Dual Intelligent Processors 5- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usagesASUS 5X Protection III:- ASUS SafeSlot Core: Fortified PCIe Slot pr
Package ContentsAccessories:User's manualASUS Q-Shield4 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x Supporting DVD1 x SLI HB BRIDGE (2-WAY-M)1 x Q-connector(s) (1 in 1)

Questions about this item

What size M.2 SSD fits the onboard slot?

The M.2 Socket 3 slot accepts 2242, 2260, 2280 and 22110 form factors using the M key

How do I mount a heavy graphics card in the primary PCIe slot?

Align the card with the SafeSlot PCIe 3.0 x16, press firmly until the retention clip clicks, then secure the bracket screw to the case

Which components on this board may need replacement over time?

The CMOS battery maintains BIOS settings and will need swapping when it no longer holds charge; case fans connected to the board headers can wear out; any M.2 SSD installed in the slot may eventually reach its write endurance limit
