Green ATX motherboard with silver heatsinks, black slots, AM4 socket and rear I/O panel

ASUS

ASUS Prime X470-Pro AMD motherboard

SKU CH-SZFS-GMCS8

ATX board with AM4 socket and X470 chipset supports Ryzen CPUs, four DDR4 slots up to 64 GB, six SATA 6 Gb/s ports, one M.2 socket, Intel Gigabit LAN and 8-channel audio

  • CPU Socket TypeAM4
  • CPU TypeAMD AM4 Socket AMD Ryzen 2nd Generation / Ryzen with Radeon
  • ChipsetAMD X470
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardAMD Ryzen 2nd Generation ProcessorsDDR4 3600(O.C.)/ 3466(O.C
  • Maximum Memory Supported64GB
  • Supports Ryzen 2nd Gen CPUs on AM4 socket
  • Dual-channel DDR4 up to 3600 MHz overclocked
  • Two PCIe 3.0 x16 slots for multi-GPU
  • Six SATA 6Gb/s ports plus M.2 storage
  • Intel Gigabit LAN with Realtek 8-channel audio

AM4 X470 ATX motherboard

The ASUS Prime X470-Pro is an ATX board built around the AMD X470 chipset and AM4 socket. It accepts Ryzen 2nd Generation, Ryzen 1st Generation, Ryzen with Radeon Vega Graphics and 7th Generation A-series or Athlon X4 processors. Four 288-pin DDR4 slots support up to 64 GB in dual-channel mode.

Steel-reinforced slots and rear I/O

The primary PCIe 3.0 x16 slot uses a metal brace for heavier graphics cards. A second PCIe 3.0 x16 slot runs at x8, joined by a PCIe 2.0 x16 slot at x4 and three PCIe 2.0 x1 slots. Storage includes six SATA 6Gb/s ports and one M.2 Socket 3 M-key slot for 2242, 2260, 2280 or 22110 drives in SATA or PCIe 3.0 x4 mode. Rear I/O provides HDMI 1.4b, DisplayPort, USB 3.1 Gen 1, USB 3.1 Gen 2 and USB-C Gen1 alongside Intel i211AT Gigabit LAN.

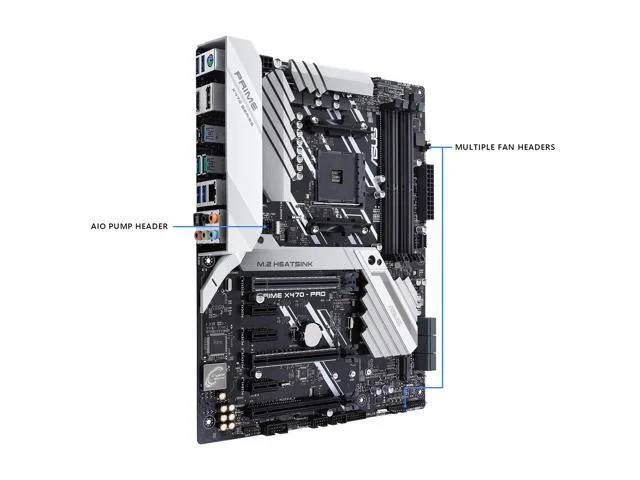

Fan headers and 8-channel audio

Multiple 4-pin hybrid fan headers let the board balance CPU and chassis airflow under load. The Realtek S1220A codec with Crystal Sound 3 drives 8-channel high-definition audio. Onboard video outputs require a compatible APU and max out at 4096 x 2160 at 24 Hz over HDMI or 2560 x 1600 at 60 Hz over DisplayPort.

Highlights

  • Supports Ryzen 2nd Gen CPUs on AM4 socket
  • Dual-channel DDR4 up to 3600 MHz overclocked
  • Two PCIe 3.0 x16 slots for multi-GPU
  • Six SATA 6Gb/s ports plus M.2 storage
  • Intel Gigabit LAN with Realtek 8-channel audio

Specifications

BrandASUS
ModelPrime X470-Pro
CPU Socket TypeAM4
CPU TypeAMD AM4 Socket AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Ryzen 1st Generation / 7th Generation A-series/Athlon X4 Processors * Refer to www.asus.com for CPU support list
ChipsetAMD X470
Number of Memory Slots4x288pin (DDR4)
Memory StandardAMD Ryzen 2nd Generation ProcessorsDDR4 3600(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory *AMD Ryzen with Radeon Vega Graphics / Ryzen 1st Generation ProcessorsDDR4 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered MemoryAMD 7th Generation A-Series/Athlon X4 ProcessorsDDR4 2400/ 2133 MHz Un-buffered Memory * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x16AMD Ryzen 2nd Generation / Ryzen 1st Generation Processors2 x PCIe 3.0 x16 (x16 or dual x8)AMD Ryzen with Radeon Vega Graphics / 7th Generation A-Series/Athlon X4 Processors1 x PCIe 3.0 x16 (x8 mode)
PCI Express 2.0 x161 x PCI Express 2.0 x16 slots (max. at x4 mode)** PCIeX16_3 slot shares bandwidth with PCIeX1_1 and PCIeX1_3.
PCI Express x13 x PCI Express 2.0 x1 slot
Serial ATA (SATA)6 x SATA 6Gb/s
M.2AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Ryzen 1st Generation Processors:1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode)AMD 7th Generation A-Series/Athlon X4 Processors:1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)AMD X470 chipset:1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x2 mode)** The M.2_2 socket shares PCIe clock with PCIe x1_1. When PCIe x1_1 or PCIe x1_3 is occupied, the M.2_2 socket can only support SATA mo
SATA RAID0/1/10
Onboard Video ChipsetIntegrated Graphics in the AMD Ryzen with Radeon Vega Graphics / 7th Generation A-Series APUMulti-VGA output support: HDMI/DisplayPort ports- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 HzMaximum shared memory of 2048MB (for iGPU exclusively)
Audio ChipsetRealtek S1220A high definition audio CODEC featuring Crystal Sound 3
Audio Channels8 Channels
LAN ChipsetIntel i211AT
Max LAN Speed1Gbps
Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)2 x USB 3.1 Gen 2 (teal blue) Type-A1 x USB 3.1 Gen 1 USB Type-C5 x USB 3.1 Gen 11 x Optical S/PDIF out5 x Audio jack(s)
Onboard USB1 x USB 3.1 Gen 2 front panel connector1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

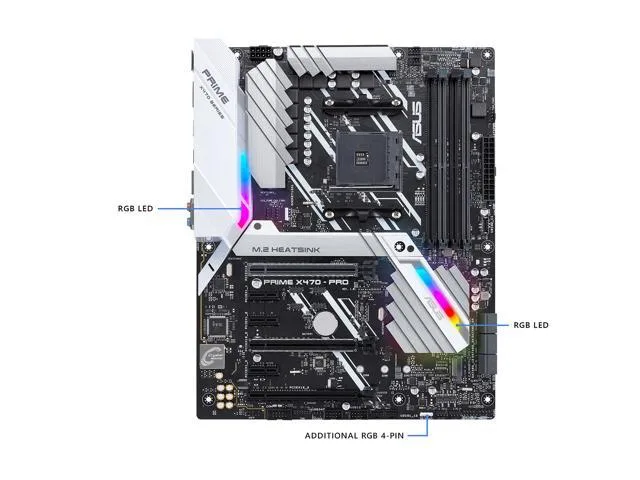

Other Connectors2 x Aura RGB Strip Headers1 x CPU Fan connector(s) (1 x 4-pin)1 x CPU OPT Fan connector(s) (1 x 4-pin)3 x Chassis Fan connector(s) (2 x 4-pin)1 x AIO_PUMP connector (1 x 4-pin)1 x W_PUMP+ connector (1 x 4-pin)1 x Front panel audio connector(s) (AAFP)1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt)1 x Clear CMOS jumper(s)1 x 14-1-pin TPM connector1 x COM port header1 x T_Sensor Connector
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)
FeaturesMulti-GPU Support:AMD Ryzen 2nd Generation / Ryzen 1st Generation ProcessorsSupports NVIDIA 2-Way SLI TechnologySupports AMD CrossFireX TechnologyAMD Ryzen with Radeon Vega Graphics / AMD 7th Generation A-Series/Athlon X4 ProcessorsSupports AMD CrossFireX TechnologySpecial Features:5-Way Optimization by Dual Intelligent Processors 5Fan Xpert4- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling controlASUS 5X Protection III:- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage- ASUS LANGuard: Protects against LAN surges,
Package ContentsAccessories:User's manualASUS Q-Shield2 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x Supporting DVD1 x SLI HB BRIDGE (2-WAY-M)1 x Q-connector(s) (1 in 1)

Questions about this item

What does the M.2 socket 3 key M support for storage devices?

The M.2 socket 3 with M key accepts type 2242, 2260, 2280 and 22110 storage devices in SATA or PCIe 3.0 x4 mode depending on the installed processor.

What case and mounting provisions does this ATX board need?

It fits a standard ATX chassis with the matching I/O shield and nine mounting holes aligned to the ATX pattern.

How is the CPU installed and what step is often missed?

Lift the AM4 socket lever, align the gold triangle on the Ryzen processor with the socket corner, lower the lever to lock it, then apply thermal paste before mounting the cooler.
